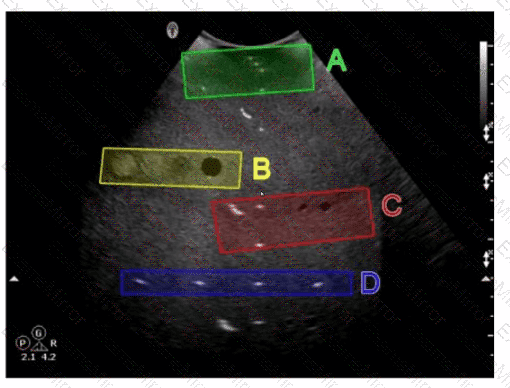

In the tissue-mimicking phantom image, Option D (blue box) is used to evaluate transverse distance measurement accuracy. Phantoms are used to simulate human tissue and provide a standardized way to test the accuracy and precision of ultrasound machines. Transverse distance measurement accuracy is assessed by measuring known distances between targets in the phantom. The blue box (Option D) typically contains targets positioned to specifically test the accuracy of transverse measurements, ensuring that the ultrasound system provides reliable and precise distance readings.

References

ARDMS Sonography Principles and Instrumentation (SPI) Exam Study Guide

"Quality Assurance for Ultrasound Imaging Systems" by AAPM (American Association of Physicists in Medicine)

Comprehensive and Detailed Explanation From Exact Extract:

Transmit focus narrows the ultrasound beam width at specific depths, improving lateral resolution — the ability to distinguish two objects side-by-side.

According to Principles and Instrumentation:

"Lateral resolution depends on beam width and is improved by focusing, which narrows the beam in the lateral dimension."

Axial resolution depends on pulse length.

Elevational resolution depends on slice thickness.

Temporal resolution relates to frame rate.

Therefore, the correct answer is C: Lateral.

QUESTION NO17

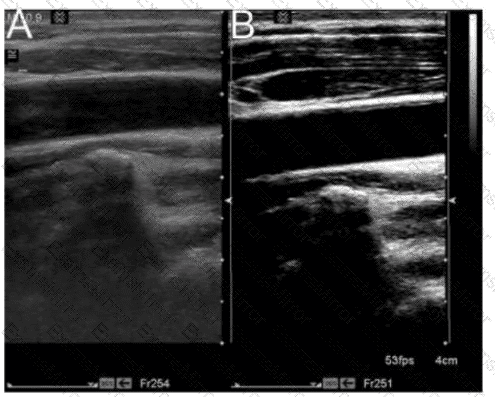

Which statement characterizes the primary difference between image A and image B?

A close-up of a medical scan Description automatically generated

A. Image A demonstrates a better axial resolution.

B. Image A demonstrates a lower overall gain setting.

C. Image A demonstrates a shallower field of view.

D. Image A demonstrates a wider scale of contrast.

Answer: B

Comprehensive and Detailed Explanation From Exact Extract:

In image A, the structures appear darker with less overall brightness compared to image B. This indicates that the overall gain (receiver amplification) is set lower in image A, resulting in a dimmer image. Gain controls how much the returning echoes are amplified after detection.

According to Principles and Instrumentation:

"Overall gain amplifies all returning echoes equally. A lower gain setting results in a darker image, while higher gain brightens the display."

Axial resolution (A) is primarily dependent on frequency and pulse length, not visible here.

Field of view (C) appears similar between both images.

Contrast scale (D) refers to dynamic range, not directly indicated here.

Therefore, the correct answer is B: Image A demonstrates a lower overall gain setting.

—

Comprehensive and Detailed Explanation From Exact Extract:

Axial resolution improves with shorter spatial pulse length, which is directly related to higher frequency. At shallow depths (such as 2 cm), higher frequency can be used effectively since attenuation is minimal.

Principles and Instrumentation state:

"Axial resolution improves with increasing frequency due to shorter wavelength and pulse length."

Turning off spatial compounding (A) affects speckle reduction.

Harmonics (B) help with resolution but primarily lateral contrast.

Gain (C) affects brightness, not resolution directly.

Therefore, the correct answer is D: Increase frequency.

Temporal resolution is improved by increasing the frame rate. One way to increase the frame rate is by decreasing the packet size (also known as ensemble length) in color Doppler imaging. The packet size refers to the number of pulses used to determine the Doppler shift at each location. A smaller packet size means fewer pulses are required, which allows for quicker data acquisition and thus a higher frame rate. Increasing the field of view, decreasing transmit frequency, and increasing line density would all decrease the frame rate and thus degrade temporal resolution.

The Doppler shift is directly related to the cosine of the angle between the ultrasound beam and the direction of blood flow. As the angle increases from 30 degrees to 60 degrees, the cosine of the angle decreases (cosine of 30 degrees is approximately 0.87, while cosine of 60 degrees is 0.5). Since the Doppler shift is proportional to the cosine of the angle, increasing the angle results in a decreased Doppler shift. This means the measured blood flow velocities will appear lower at a 60-degree angle compared to a 30-degree angle.

American Registry for Diagnostic Medical Sonography (ARDMS). Sonography Principles and Instrumentation (SPI) Examination Review Guide.

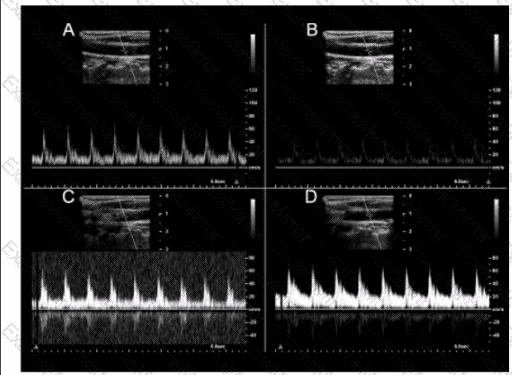

Option B demonstrates appropriate spectral Doppler gain. Appropriate gain settings ensure that the Doppler signal is adequately amplified without introducing excessive noise or artifacts. In Option B, the spectral waveform is clearly visible with distinct borders, and the background noise is minimal. In contrast, other options might show either under-gained (too little signal) or over-gained (excessive noise and signal) images, making it difficult to accurately interpret the spectral Doppler information.References:

ARDMS Sonography Principles and Instrumentation guidelines

"Understanding Ultrasound Physics" by Sidney K. Edelman

Comprehensive and Detailed Explanation From Exact Extract:

In pulsed-wave transducers, the thickness of the piezoelectric element primarily determines the fundamental operating frequency. Thinner elements produce higher frequencies, while thicker elements produce lower frequencies.

According to sonography instrumentation reference:

“The operating frequency of a pulsed-wave transducer is primarily determined by the thickness of the piezoelectric crystal. Thinner crystals vibrate at higher frequencies.”

Therefore, the correct answer is A: Element thickness.

—

—

Comprehensive and Detailed Explanation From Exact Extract:

Slice thickness (elevational resolution artifact) occurs when the ultrasound beam partially includes surrounding tissue above or below the scan plane, falsely appearing as internal echoes within an otherwise anechoic cyst.

Principles and Instrumentation:

"Slice thickness artifact occurs when off-axis echoes are included in the imaging slice, falsely creating internal echoes in cystic structures."

Refraction (A) causes displacement.

Enhancement (B) causes posterior brightening.

Range ambiguity (D) produces incorrect depth placement.

Therefore, the correct answer is C: Slice thickness.

—

Comprehensive and Detailed Explanation From Exact Extract:

Aliasing happens in Doppler ultrasound when the Doppler shift frequency exceeds half of the pulse repetition frequency (the Nyquist limit). When PRF is too low for the measured Doppler shift, the signal wraps around, producing aliasing.

According to sonography instrumentation reference:

“Aliasing occurs when the Doppler shift frequency exceeds one-half the pulse repetition frequency (Nyquist limit). This results in incorrect display of flow direction and velocity.”

Therefore, the correct answer is C: Aliasing.

—

Lateral resolution refers to the ability of the ultrasound system to distinguish two structures that are side by side, perpendicular to the direction of the sound beam. This resolution is primarily improved by reducing the beamwidth. A narrower beamwidth allows for better differentiation between adjacent structures, enhancing the lateral resolution. Higher frequency transducers can also help achieve a narrower beamwidth, but beamwidth is the primary factor.
