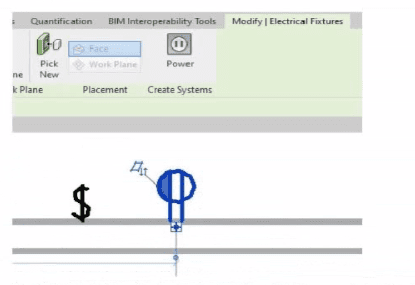

In Autodesk Revit Electrical Design, when an electrical designer attempts to control a receptacle (an Electrical Fixture family) with a switch (a Lighting Device family) as part of a switch system, Revit will only allow this connection if the receptacle’s family has been configured as Switchable within the Family Editor.

According to the Autodesk Revit MEP User’s Guide (Chapter 17 – “Electrical Systems”):

“Revit allows you to add elements such as lighting fixtures or receptacles to a switch system only if the family includes a switchable connector. The ‘Switchable’ parameter must be enabled in the Family Editor to allow this connection.”

This means that for the receptacle shown in the exhibit to appear as an available component for switching, the Electrical Connector within its family must have the Switchable property checked. This parameter is found under:

Family Editor → Select Connector → Properties Palette → Electrical - Data → Switchable.

If this option is not enabled, Revit treats the receptacle as a standard unswitched outlet and will not display it in the switch system creation dialog. Once the option is checked, the designer can reload the family into the project and associate it with a switch system normally.

Additionally, the Smithsonian Facilities Revit Template User’s Guide explains this concept as follows:

“To associate receptacles with lighting switches, ensure that the receptacle family has a switchable connector. Without this setting, the device will not appear as an assignable component to a switch system.”

This distinction is important in residential electrical modeling, where switched receptacles are common for plug-in lamps. Lighting circuits can include both Lighting Fixtures and Switchable Receptacles when the family configuration supports it.

Incorrect Options Explanation:

A. A switch system not being created is irrelevant — the issue occurs before system creation.

C. Being on the same circuit doesn’t affect switchability; it affects electrical load connection.

D. Incorrect — Revit supports switchable receptacles if properly configured.

Therefore, the correct answer is B. The receptacle’s “Switchable” option is not selected within the family editor.

In Revit, when a designer nests a Generic Annotation family (such as a receptacle symbol) inside an Electrical Fixture family, and that annotation includes a label, the label value cannot be changed directly in the project unless the parameter controlling that label is properly associated (linked) to a parameter in the host (electrical fixture) family.

According to Autodesk Revit Electrical Design documentation, under “Creating Family Parameter Links”, it is explicitly stated:

“By linking family parameters, you can control the parameters of families nested inside host families from within a project view. You can control instance parameters or type parameters.”

The procedure describes the correct process to make the label value editable in a project:

“Click the button next to a parameter that is of the same type as the one you created in Step 6. For example, if you created a text parameter, you must select a text parameter here. In the dialog that displays, select the parameter you created in Step 6 to associate it with the current parameter, and click OK.”

“The nested family changes according to the value you entered.”

This means that the designer must associate the nested family’s label parameter (usually a text parameter controlling the annotation label) to a corresponding parameter in the host electrical fixture family. Once linked, this host parameter appears in the project’s Properties palette, allowing the designer to change the label value directly.

Other options—such as creating formulas, modifying visibility, or enabling “Shared”—do not make the label editable in the project unless the parameter link is established.

When all icons on the View Control Bar are dimmed (disabled), including the View Scale, it typically means the view is being controlled by a View Template. View templates apply standardized settings—such as scale, discipline, detail level, and more—across multiple views to ensure consistency. However, these templates can lock certain parameters, including the view scale, preventing manual changes.

According to Revit Electrical Design standards:

"If a view is governed by a View Template, properties such as view scale may be locked and appear dimmed in the View Control Bar. To regain control and allow changes like adjusting the view scale, the view template must be removed. This is done by setting the View Template to <None> in the Properties Palette."

Steps:

Select the view in question.

Open the Properties Palette.

Locate the View Template parameter.

Set it to <None>.

Now the View Control Bar becomes active and the scale can be changed freely.

Clarification of Other Options:

B (Edit the assigned view template): Changes apply to all views using that template, not just the one.

C (Duplicate the view with Detailing): Creates a copy but doesn't resolve template restrictions.

D (Right-click on the scale and select <Activate>): This is not a valid method in Revit.

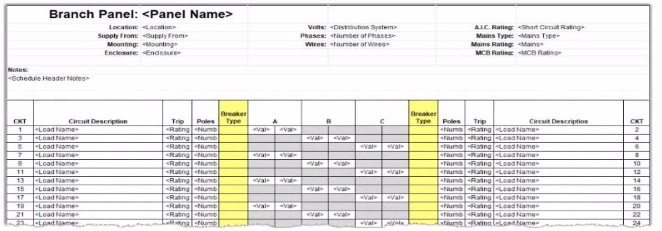

In Autodesk Revit Electrical Design, panel schedules display data that originates from the Electrical Circuits category, not directly from the Electrical Equipment or Electrical Fixtures families. Each circuit in a panel schedule represents an instance of an Electrical Circuit object within Revit’s system-based MEP structure. Therefore, to add an additional field like Breaker Type, the parameter must be created and assigned specifically to the Electrical Circuits category.

According to the Revit MEP User’s Guide – Chapter 50 “Electrical Systems and Panel Schedules”:

“Panel schedules display parameters that are associated with electrical circuits, including load names, rating, poles, and breaker information. To include additional circuit information in a panel schedule, create a Project Parameter assigned to the Electrical Circuits category.”

This means the designer should:

1️⃣ Open Manage → Project Parameters → Add

2️⃣ Create a Project Parameter named Breaker Type

3️⃣ Assign it to the Electrical Circuits category

4️⃣ Set it to appear in schedules and tags, ensuring it becomes available for use in the panel schedule template

As noted in the Smithsonian Facilities Revit Template User’s Guide:

“Custom circuit data fields such as ‘Breaker Type’ or ‘Wire Tag’ are defined as project parameters applied to the Electrical Circuits category so they can be displayed in panel schedule templates.”

Incorrect options:

A. Shared Parameter in Electrical Equipment — Electrical Equipment holds overall panel data (e.g., Mains Rating, Voltage) but not per-circuit data.

B. Shared Parameter in Electrical Fixture families — Fixtures are individual load devices, not part of the circuit’s breaker assignment.

D. Project Parameter assigned to Electrical Equipment — would apply to the panelboard as a whole, not to individual breakers in circuits.

Thus, the correct answer is C. Project Parameter assigned to Electrical Circuits, ensuring each breaker in the panel schedule can display its type individually and dynamically.

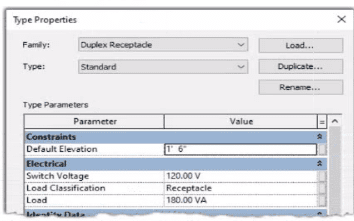

In Autodesk Revit, each type within a family represents a unique combination of parameters such as size, voltage, photometric properties, and construction configuration. When a family is created in the Family Editor, the designer can define multiple Family Types using the Family Types dialog. This interface allows the user to duplicate, rename, or modify type parameters before loading the family into a project.

In the exhibit, the Type Name dropdown list clearly shows two available lighting fixture types:

1x4 – 120

1x4 – 277

These two types appear to represent different voltage configurations of the same 1x4 light fixture format. Since these are the only types visible in the Family Types selection preview, the correct number of family types saved within the family file is two.

Revit’s behavior aligns with standard family management described in documentation, which explains that every defined type is listed in the Family Types browser. When a designer saves a family, all defined types are stored and become available for placement in the project environment. Devices can then be selected based on parameters such as voltage or photometric values, which are often driven by electrical design requirements.

The Revit MEP User’s Guide explains how type properties and family types are controlled:

“Selection of named items or elements [such as Family Types] are managed through the Properties and Family Types dialogs, allowing multiple variations to exist within a single family.”

In Autodesk Revit Electrical Design, each electrical family (such as a receptacle, lighting fixture, or equipment) can contain one or more connectors that define how it interacts with the electrical system. The Load Classification parameter determines how the connected load is categorized in electrical schedules and load calculations (e.g., Lighting, Power, Receptacle, Other).

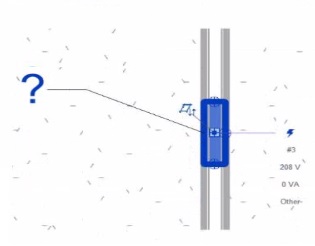

When a family’s Type Parameter Load Classification does not display correctly (e.g., it shows “Other” instead of “Receptacle” after being circuited), the issue lies in the power connector’s internal parameter not being linked to the family-level “Load Classification” parameter. Revit uses the connector’s classification to determine the load type when it is connected to a circuit — if the connector isn’t associated, the classification defaults to “Other.”

According to the Autodesk Revit MEP User’s Guide (Chapter: Electrical Systems – Creating Electrical Families), it specifies:

“To control how a component reports its connected load type, associate the power connector’s Load Classification parameter with a corresponding Family Parameter. This ensures the load classification in the circuit matches the family definition, rather than defaulting to ‘Other.’ To correct existing families, edit the family in Family Editor, select the connector, and associate its Load Classification parameter with the family’s Load Classification type parameter. Then reload the family into the project.”

This confirms that the correct approach is to edit the family and create or link the Load Classification parameter to the connector’s Load Classification field. Merely changing the connector value (option C) won’t ensure dynamic synchronization between the family type and circuit. Deleting and re-adding the connector (option B) won’t automatically create that link. Option D (editing through the System Browser) modifies instance-level data, not family associations.

Hence, the correct and permanent fix is:

Open the family in the Family Editor.

Select the power connector.

In the Properties palette, click the small Associate Family Parameter button (⚙️) next to Load Classification.

Link it to the family’s Load Classification parameter.

Save and reload the family into the project.

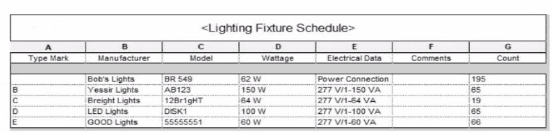

In the given Lighting Fixture Schedule, each row represents a lighting fixture type rather than individual instances, and the “Count” column summarizes how many fixtures of that type exist in the project. To achieve this layout in Revit, two specific actions must be performed in the Schedule Properties dialog:

Deselected “Itemize every instance.”

The Revit documentation explains:

“Itemize every instance. This option displays all instances of an element in individual rows. If you clear this option, multiple instances collapse to the same row based on the sorting parameter. If you do not specify a sorting parameter, all instances collapse to one row.”

By deselecting this checkbox, Revit consolidates identical fixture instances of the same type into a single row — exactly as shown in the exhibit, where each “Type Mark” (A, B, C, etc.) appears once with a summarized Count.

Sorted by Type Mark.

On the same Sorting/Grouping tab, Revit allows users to organize the schedule by a specific field:

“On the Sorting/Grouping tab of the Schedule Properties dialog, you can specify sorting options for rows in a schedule… You can sort by any field in a schedule, except Count.”

In the example, fixtures are sorted alphabetically by their “Type Mark” (A through E). This ensures the grouped and counted results appear in order.

Other options—such as filtering by type mark or adding switch data—do not impact how instances collapse or group within the schedule.

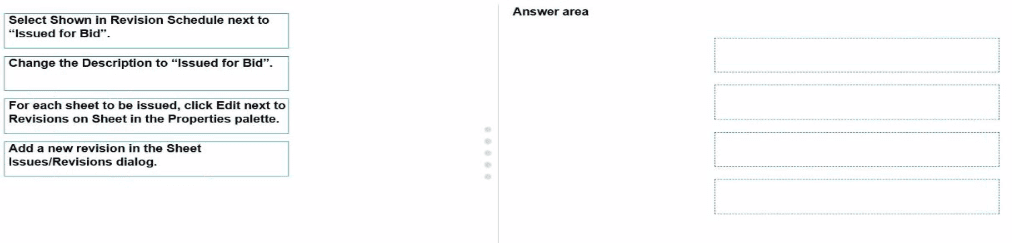

In Autodesk Revit Electrical Design, revisions are managed using the Sheet Issues/Revisions dialog to track changes and document issuance phases, such as “Issued for Bid” or “Issued for Construction.” The revision schedule on the title block automatically reflects this data when configured correctly.

According to the Revit MEP User’s Guide (Chapter 48 “Construction Documentation – Managing Sheets and Revisions”):

“Revisions define a record of changes issued with sheets. To display a revision in the title block, it must first be created in the Sheet Issues/Revisions dialog, assigned a description, and set to be shown in the revision schedule.”

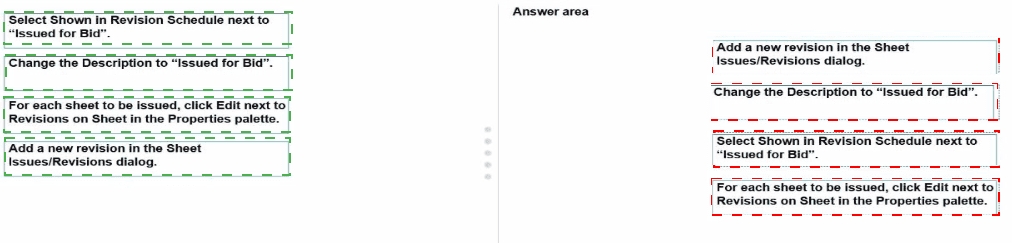

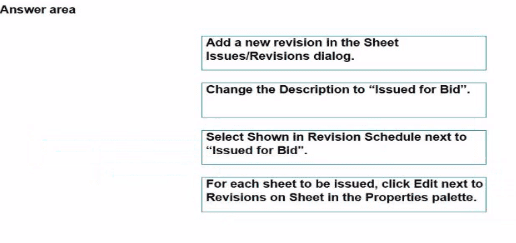

Here’s how the process works step-by-step:

1️⃣ Add a new revision in the Sheet Issues/Revisions dialog.

Navigate to View tab → Sheet Composition panel → Revisions.

Add a new revision line entry (this creates a new revision record).

2️⃣ Change the Description to “Issued for Bid”.

In the same dialog, edit the Description field to reflect the issuance purpose.

3️⃣ Select Shown in Revision Schedule next to “Issued for Bid”.

Check “Show” in the Revision Schedule column so it will appear in the title block’s revision schedule table.

4️⃣ For each sheet to be issued, click Edit next to Revisions on Sheet in the Properties palette.

In the Properties palette, under Identity Data, click Revisions on Sheet → Edit and assign the “Issued for Bid” revision only to the sheets being released.

This ensures only the selected sheets display the “Issued for Bid” entry, maintaining proper control over which drawings are issued while others remain unaffected.

As described in the Smithsonian Facilities Revit Template User’s Guide:

“Revision schedules are dynamically linked to sheet issue data. Designers can show or hide revisions on a per-sheet basis by editing ‘Revisions on Sheet’ from the Properties palette.”

In Autodesk Revit for Electrical Design, when a designer creates a panel schedule, the default name of the panel schedule view is automatically derived from the Panel Name parameter of the Electrical Equipment family to which the circuits are assigned.

According to the Revit MEP User’s Guide (Electrical Systems section: Panel Schedules):

“When you create a panel schedule, Revit uses the Panel Name parameter of the electrical equipment to define the default schedule name. The Panel Name identifies the distribution panel that supplies the circuits. This name appears in both the Panel Schedule view and in circuit information tags.”

— Revit MEP User’s Guide, Chapter 17: Electrical Systems – Panel Schedules

The Panel Name is a critical electrical equipment instance parameter located in the Electrical – Circuiting group of properties.

It appears in both the Electrical Equipment Properties Palette and the Panel Schedule Header. This name can later be modified manually, but by default, it directly controls the naming convention of the generated schedule.

In contrast:

A. Type Mark — identifies types within the family for documentation and does not control schedule naming.

B. Mark — a unique instance identifier often used for tags, but not for panel schedule view naming.

C. Description — provides descriptive text only for documentation or labeling.

D. Panel Name — correctly defines and drives the default schedule view name for panels and circuits.

When a panel (electrical equipment) is placed in the model and circuits are connected, Revit generates a new Panel Schedule View automatically titled using the value entered in the Panel Name field (e.g., “Panel LP-1”). This ensures consistency between the modeled equipment and the schedule documentation.

Verified Reference Extracts from Revit for Electrical Design Documentation:

Autodesk Revit MEP User’s Guide (2011), Chapter 17: Electrical Systems – Creating and Editing Panel Schedules:

“The name of the panel schedule view is determined by the Panel Name property of the electrical equipment.”

Revit MEP Electrical Design Training Manual, Module: Electrical Equipment and Panel Schedules:

“Panel Name is used by Revit as the default identifier for any panel schedule view created for that equipment.”

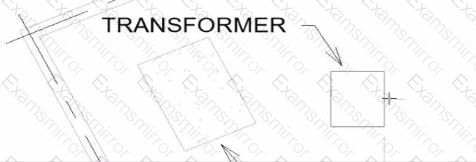

In Autodesk Revit, when placing electrical equipment such as transformers, disconnects, or switchboards onto a pad or foundation, precise alignment is essential for accurate coordination with architectural and structural elements. During component placement, Revit provides an intuitive way to align an object before final placement using the Spacebar in combination with the object’s edges.

When the cursor is hovered over an edge of the component (not just anywhere on it) and the Spacebar is pressed, Revit cycles the component’s orientation, rotating it 90 degrees around its insertion point each time. This technique allows the designer to visually align the equipment’s orientation with the pad or architectural geometry before clicking to place it.

According to the Autodesk Revit MEP User’s Guide under “Placing and Modifying Components”:

“While placing a component, move the cursor over an edge and press the Spacebar to rotate the element incrementally. This method helps align electrical or mechanical equipment with nearby reference geometry before placement.”

This method is ideal for electrical designers positioning pad-mounted equipment, ensuring that components such as transformers or switchgear are oriented precisely to site geometry, conduit routes, or building walls.
