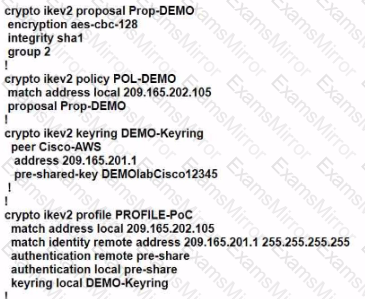

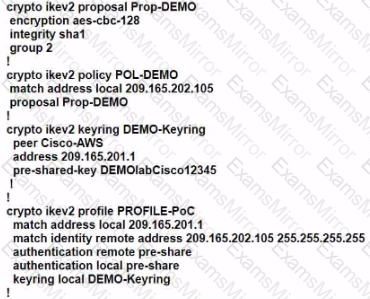

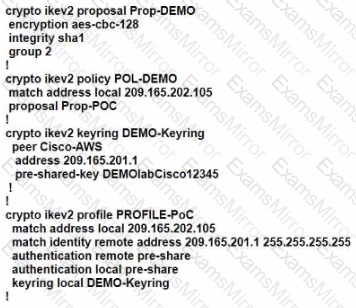

 Option C is the correct answer because it configures the IKEv2 profile with the correct match identity, authentication, and keyring parameters. It also configures the IPsecprofile with the correct transform set and lifetime parameters. Option A is incorrect because it does not specify the match identity remote address in the IKEv2 profile, which is required to match the AWS virtual private gateway IP address. Option B is incorrect because it does not specify the authentication pre-share in the IKEv2 profile, which is required to authenticate the IKEv2 peers using a pre-shared key. Option C also matches the configuration example provided by AWS1 and Cisco2 for setting up an IKEv2 IPsec site-to-site VPN between a Cisco IOS-XE router and an AWS virtual private gateway. References :=

1: AWS VPN Configuration Guide for Cisco IOS-XE

2: Configure IOS-XE Site-to-Site VPN Connection to Amazon Web Services

 A fully meshed topology with SD-WAN technology using dynamic routing and prioritized traffic for QoS meets the network architecture requirements of the company. A fully meshed topology provides high availability by eliminating single points of failure and allowing multiple paths between branch offices. SD-WAN technology enables multihoming by supporting multiple transport options, such as MPLS, internet, LTE, etc. SD-WAN also provides QoS by applying policies to prioritize traffic based on application, user, or network conditions. Dynamic routing allows the SD-WAN solution to adapt to changing network conditions and optimize the path selection for each traffic type. A fully meshed topology with SD-WAN technology can also support specific routing needs, such as segment routing, policy-based routing, or application-aware routing. References:

Designing and Implementing Cloud Connectivity (ENCC) v1.0

[Cisco SD-WAN Design Guide]

[Cisco SD-WAN Configuration Guide]

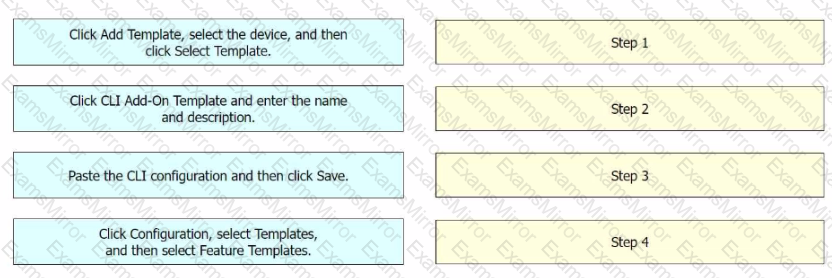

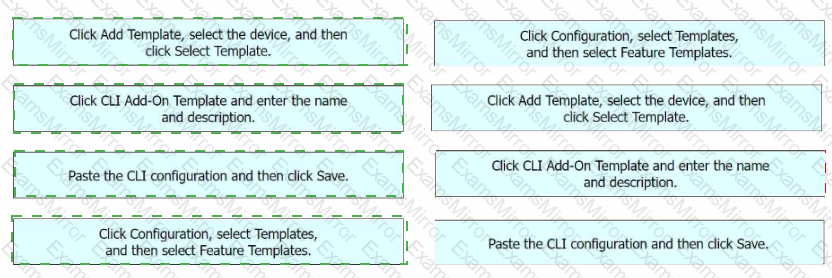

Step 1 = Click Configuration, select Templates, and then select Feature Templates. Step 2 = Click Add Template, select the device, and then click Select Template. Step 3 = Click CLI Add-On Template and enter the name and description. Step 4 = Paste the CLI configuration and then click Save.

The process of configuring a CLI add-on feature template in Cisco vManage for enhanced policy-based routing (ePBR) for IPv4 involves several steps1234.

Click Configuration, select Templates, and then select Feature Templates: This is the first step where you navigate to the Templates section in the Configuration menu of Cisco vManage1.

Click Add Template, select the device, and then click Select Template: In this step, you add a new template for the device1.

Click CLI Add-On Template and enter the name and description: After setting up the template, you select the CLI Add-On Template option, and then enter the name and description for the template1.

Paste the CLI configuration and then click Save: Finally, you paste the CLI configuration into the template and save the changes1.

References :=

CLI Add-On Feature Templates - Cisco

Cisco Catalyst SD-WAN Systems and Interfaces Configuration Guide, Cisco IOS XE Catalyst SD-WAN Release 17.x - CLI Add-On Feature Templates

Cisco SD-WAN vSmart CLI Template - NetworkLessons.com

CLI Templates for Cisco XE SD-WAN Routers

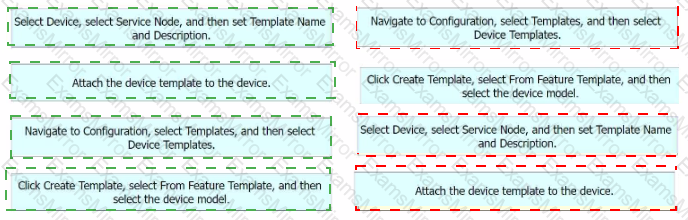

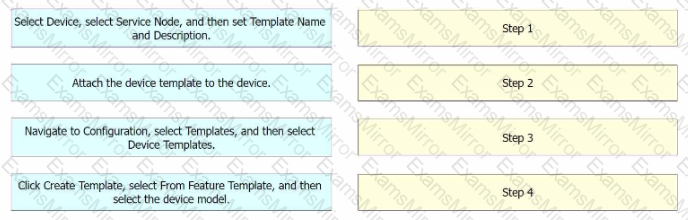

Step 1 = Navigate to Configuration, select Templates, and then select Device Templates. Step 2 = Click Create Template, select From Feature Template, and then select the device model. Step 3 = Select Device, select Service Node, and then set Template Name and Description. Step 4 = Attach the device template to the device.

The process of configuring an AppGoE service node for WAN optimization for applications that are hosted in the cloud using Cisco vManage for C8000V or C8500L-8S4X devices involves several steps12.

Navigate to Configuration, select Templates, and then select Device Templates: This is the first step where you navigate to the Templates section in the Configuration menu of Cisco vManage1.

Click Create Template, select From Feature Template, and then select the device model: In this step, you create a new template for the device model from the feature template1.

Select Device, select Service Node, and then set Template Name and Description: After setting up the template, you select the device and the service node, and then set the template name and description1.

Attach the device template to the device: Finally, you attach the created device template to the device1.

References :=

AppQoE - Step-by-Step Configuration - Cisco Community

Cisco Catalyst SD-WAN AppQoE Configuration Guide, Cisco IOS XE Catalyst SD-WAN Release 17.x

 Security groups are a feature in AWS that allow you to control the inbound and outbound traffic to your instances. They act as a virtual firewall that can filter the traffic based on the source, destination, protocol, and port. You can assign one or more security groups to your instances, and each security group can have multiple rules. Security groups are stateful, meaning that they automatically allow the response traffic for any allowed inbound traffic, and vice versa. Security groups are essential for securing your nodes in the AWS EKS cluster, as they can prevent unauthorized access to your Mongo Atlas database or other resources. You can also use security groups to isolate your nodes from other instances in the same VPC or subnet, or to allow communication between nodes in different clusters or regions. References :=

AWS Security Groups

Security Groups for Your VPC

Security Groups for Your Amazon EC2 Instances

Security Groups for Your Amazon EKS Cluster

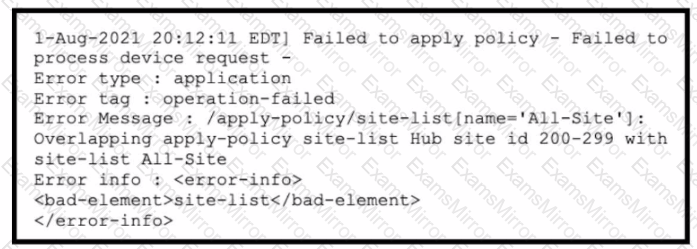

The problem is that the site-list “All-Site” has a higher match sequence than the site-list “Hub”, which means that the policy for “All-Site” will take precedence over the policy for “Hub” for any site that belongs to both lists. This creates a conflict and prevents the engineer from adding a new centralized control policy in Cisco vManage. To resolve this issue, the site-list “All-Site” should be configured with a new match sequence that is lower than the sequence for site-list “Hub”, so that the policy for “Hub” will be applied first and then the policy for “All-Site” will be applied only to the remaining sites that are not in the “Hub” list. References :=

Designing and Implementing Cloud Connectivity (ENCC, Track 1 of 5), Module 3: Cisco SD-WAN Cloud OnRamp for Colocation, Lesson 3: Cisco SD-WAN Cloud OnRamp for Colocation - Centralized Control Policies

Cisco SD-WAN Cloud OnRamp for Colocation Deployment Guide, Chapter 4: Configuring Centralized Control Policies

Cisco SD-WAN Configuration Guide, Release 20.3, Chapter: Centralized Policy Framework, Section: Policy Configuration Overview

To send traffic into an IPsec tunnel to the cloud VPN gateway, the engineer must configure two actions:

Configure access lists that match the interesting user traffic. This is the traffic that needs to be encrypted and sent over the IPsec tunnel. The access lists are applied to the crypto map that defines the IPsec parameters for the tunnel.

Configure policy-based routing (PBR). This is a technique that allows the engineer to override the routing table and forward packets based on a defined policy. PBR can be used to send specific traffic to the IPsec tunnel interface, regardless of the destination IP address. This is useful when the cloud VPN gateway has a dynamic IP address or when multiple cloud VPN gateways are available for load balancing or redundancy. References:

Designing and Implementing Cloud Connectivity (ENCC) v1.0, Module 3: Implementing Cloud Connectivity, Lesson 3: Implementing IPsec VPNs to the Cloud, Topic: Configuring IPsec VPNs on Cisco IOS XE Routers

Security for VPNs with IPsec Configuration Guide, Cisco IOS XE, Chapter: Configuring IPsec VPNs, Topic: Configuring Crypto Maps

[Cisco IOS XE Gibraltar 16.12.x Feature Guide], Chapter: Policy-Based Routing, Topic: Policy-Based Routing Overview

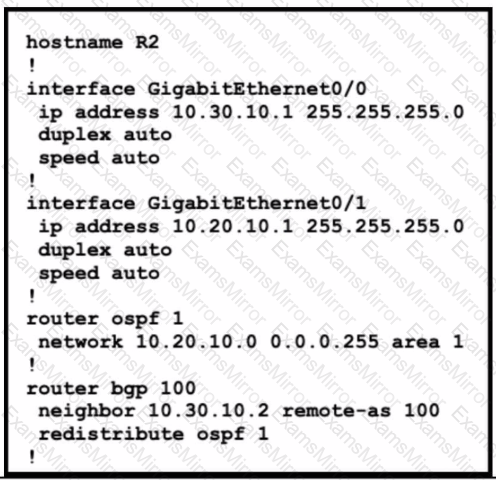

The command redistribute ospf 1 match external is missing on router R2. This command is needed to redistribute only the external OSPF routes into BGP. The external OSPF routes are those that are learned from another routing protocol or redistributed into OSPF. In this case, the 10.0.10.0/24 network is an external OSPF route, as it is redistributed from EIGRP into OSPF on router R1. The other commands are either already present or not relevant for this scenario. References :=

Designing and Implementing Cloud Connectivity (ENCC) v1.0, Module 3: Implementing Cloud Connectivity, Lesson 3.1: Implementing IPsec VPN from Cisco IOS XE to AWS, Topic 3.1.2: Configure BGP on the Cisco IOS XE Router

Security for VPNs with IPsec Configuration Guide, Cisco IOS XE, Chapter: Configuring IPsec VPNs with Dynamic Routing Protocols, Section: Configuring BGP over IPsec VPNs

Azure ExpressRoute is a service that enables a dedicated and secure connection between an on-premises infrastructure and Azure data centers through a colocation provider. A colocation provider is a third-party data center that offers network connectivity services to multiple customers. Azure ExpressRoute allows customers to bypass the public internet and connect directly to Azure services, such as virtual machines, storage, databases, and more. This provides benefits such as lower latency, higher bandwidth, more reliability, and enhanced security. Azure ExpressRoute also supports hybrid scenarios, such as connecting to Office 365, Dynamics 365, and other SaaS applications hosted on Azure. Azure ExpressRoute requires a physical connection between the customer’s network and the colocation provider’s network, as well as a logical connection between the customer’s network and the Azure virtual network. The logical connection is established using a Border Gateway Protocol (BGP) session, which exchanges routing information between the two networks. Azure ExpressRoute supports two models: standard and premium. The standard model offers connectivity to all Azure regionswithin the same geopolitical region, while the premium model offers connectivity to all Azure regions globally, as well as additional features such as increased route limits, global reach, and Microsoft peering. References: Designing and Implementing Cloud Connectivity (ENCC) v1.0, Learning Plan: Designing and Implementing Cloud Connectivity v1.0 (ENCC 300-440) Exam Prep, ENCC | Designing and Implementing Cloud Connectivity | Netec

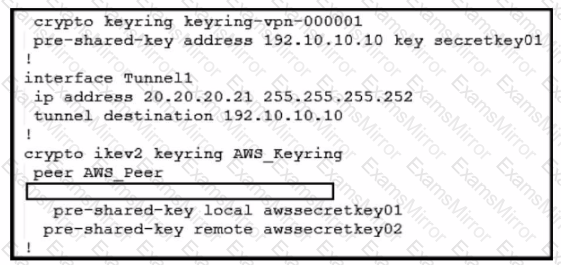

 In the given scenario, an engineer is configuring a site-to-site IPsec VPN connection between an on-premises Cisco IOS XE router and AWS. The correct command to complete the tunnel configuration is “tunnel source 20.20.20.21”. This command specifies the source IP address for the tunnel, which is essential for establishing a secure connection between two endpoints over the internet or another network1. References:

Configure IOS-XE Site-to-Site VPN Connection to Amazon Web Services - Cisco Community

[Security for VPNs with IPsec Configuration Guide, Cisco IOS XE Release 3S - Config
