Questions # 1:

Which option describes the initial configuration steps that the infrastructure administrator must perform in the ACI fabric?

Options:

ACIcluster discovery and initialization,create VLAN pool (static),create logical domain,and maplogical domain to posts.

ACIclusterdiscovery,create VLAN pool (static),create bridge domain,and map logical domain to ports.

Fabric discovery and initialization,create VLAN pool (static),create logical domain,and map logical domain to ports.

Fabric discovery and initialization,create VLAN pool (static),create physical domain,andmap physical domainto ports.

Answer

Questions # 2:

Where in the APIC GUI is VMM domain created?

Options:

VM networking > inventory

Fabric > Access policies

Tenants> Common

VM networking > policies

Answer

Explanation

In the APIC GUI click on VM Networking and select the Policies sub-tab

[Reference:http://www.virtualizationadmin.com/articles-tutorials/vmware-esx-and-vsphere-articles/general/cisco-aci-configuring-vmware-integration-apic.html, , ]

Questions # 3:

The ACI fabric provides decoupling of which aspects of the data center network?

Options:

Endpoint identity,IP addressing,and application profiles.

Endpoint identity,location,and associated policy.

Endpoint groups,location,and application profiles.

Endpoint groups,IP addressing,and associated policy.

Answer

Explanation

The ACI fabric decouples the endpoint identity and associated policy from the underlying forwarding graph

[Reference:http://www.cisco.com/c/en/us/td/docs/switches/datacenter/aci/apic/sw/1-x/aci-fundamentals/b_ACI-Fundamentals/b_ACI_Fundamentals_BigBook_chapter_0100.html, , ]

Questions # 4:

Which in an ACI fabric can configure vPCs?

Options:

Tenant administrator

Serveradminister

Network administrator

Infrastructureadministrator

Answer

Explanation

In ACI, the logic to define a virtual Port-Channel is as follows:

The infrastructure administrator creates the VPC domain from the "Access Policies” as "protection" policy (i.e. which "nodes" are part of a vPC domain)

The infrastructure administrator defines the "Access Policy Group" "Bundle Interfaces" where one creates the specific vPC channel-group configuration

The interface policy defines a list of interfaces that are associated with the vPC channel-group but it doesn’t specify which leafs this is associated with

The switch policy defines a list of "nodes" nodes whose interfaces selected by the interface policy are defined as part of the vPC

Questions # 5:

What is the maximum number of configurable vPC links in an ACI fabric?

Options:

Answer

Questions # 6:

Which application-centric infrastructure container is used for IP subnets and can be used to define a Layer 2 boundary?

Options:

bridgedomain

tenant

endpointgroup

VLAN

Privatenetwork(layer 3)

Answer

Explanation

A bridge domain is a construct used to define a Layer 2 boundary within the fabric. A bridge domain can be viewed as somewhat similar to regular VLANs in a traditional switching environment.

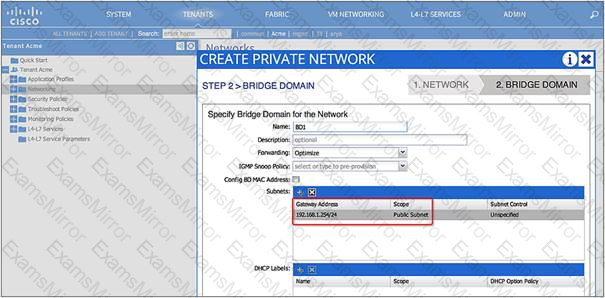

Specify a bridge domain in the private network.

Specify the bridge domain name in the Name field (BD1).

Click the + sign next to Subnets to add a public subnet (192.168.1.254/24) to associate with BD1. This public subnet will advertise to ISP1

Questions # 7:

Which table is stored on the spine switches of an ACI fabric?

Options:

Global station table.

Tenant station table.

Proxy station table.

Local station table.

Answer

Explanation

Although the size of the local station table is limited, the total amount of endpoints supported by the whole ACI fabric can be much larger than the size of the local station table. All the endpoints learned on the non-fabric uplinks are stored in the local station table. All the endpoints learned on the fabric uplink ports are kept in the global station table.

[Reference:http://www.cisco.com/c/en/us/solutions/collateral/data-center-virtualization/application-centric-infrastructure/white-paper-c07-732033.html, , ]

Questions # 8:

Which two options describe functions of the Council of Oracles Protocol? (Choose two.)

Options:

COOP updatesthe addressesof all hoststhat are attachedto the ACI fabric.

COOP enables APIC mapping, VMM mapping DHCP forwardingARP/GARPlearning and data plane learning.

COOP ensures all spine nodes maintain a consistent copy of endpoint addresses.

COOP maintains the distributed hashtable repository of endpoint identity-to-location mappings.

Answer

C, D

Explanation

[Reference:http://wenku.baidu.com/view/04e2b1afba0d4a7302763a63.html?re=viewslide 55, , ]

Questions # 9:

Which aspect of the fabric defines the communication between endpoint groups?

Options:

Contracts

Endpointgroups

Applicationnetworkprofiles

Bridge domains

Answer

Explanation

ACI Application Network Profiles are the grouping of one or more EPGs and the policies that define how they communicate.

[Reference: http://www.cisco.com/c/en/us/solutions/collateral/data-center-virtualization/application-centric-infrastructure/white-paper-c11-731630.html, , ]

Questions # 10:

Which protocols are used to resolve hypervisor-to-leaf node attachment in an ACI fabric?

Options:

COOP or OpFlex

LLDP or COOP

LLDP or OpFlex

LACP or OpFlex

Answer

Explanation

LLDP or OpFlex permissions are used to resolve the hypervisor to leaf node attachments.

[Reference:http://www.cisco.com/c/en/us/td/docs/switches/datacenter/aci/apic/sw/1-x/aci-fundamentals/b_ACI-Fundamentals/b_ACI_Fundamentals_BigBook_chapter_0111.html, , ]
