•Statement B: "The same default gateway IPv4 address is configured on each host on the local network." This is true because all hosts on the same local network (subnet) use the same default gateway IP address to send packets destined for other networks.

•Statement D: "The default gateway is the IPv4 address of the router interface connected to the same local network as the host." This is true because the default gateway is the IP address of the router's interface that is directly connected to the local network.

•Statement A: "The IPv4 address of the default gateway must be the first host address in the subnet." This is not necessarily true. The default gateway can be any address within the subnet range.

•Statement C: "The default gateway is the Loopback0 interface IPv4 address of the router connected to the same local network as the host." This is not true; the default gateway is the IP address of the router's physical or logical interface connected to the local network.

•Statement E: "Hosts learn the default gateway IPv4 address through router advertisement messages." This is generally true for IPv6 with Router Advertisement (RA) messages, but not typically how IPv4 hosts learn the default gateway address.

References:

•Cisco Default Gateway Configuration: Cisco Default Gateway

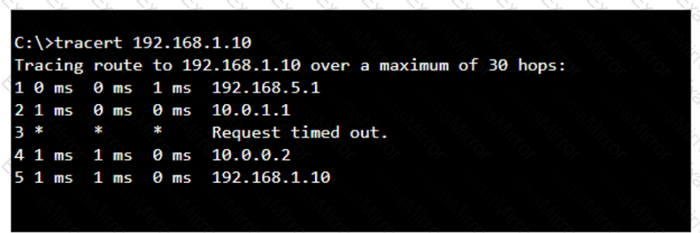

The tracert command output shows the path taken to reach the destination IP address, 192.168.1.10. The command output indicates:

•Hops 1 and 2 are successfully reached.

•Hop 3 times out, meaning the router at hop 3 did not respond to the tracert request. However, this does not necessarily indicate a problem with forwarding packets, as some routers may be configured to block or not respond to ICMP requests.

•Hops 4 and 5 are successfully reached, with hop 5 being the destination IP 192.168.1.10, indicating that the server is reachable.

Thus, the correct answer is C. The server with the address 192.168.1.10 is reachable over the network.

References :=

•Cisco Traceroute Command

•Understanding Traceroute

The tracert command output indicates that the server with the address 192.168.1.10 is reachable over the network. The asterisk (*) at hop 3 suggests that the probe sent to that hop did not return a response, which could be due to a variety of reasons such as a firewall blocking ICMP packets or the router at that hop being configured not to respond to ICMP requests. However, since the subsequent hops (4 and 5) are showing response times, it means that the packets are indeed getting through and the server is reachable12.

References :=

•How to Use Traceroute Command to Read Its Results

•How to Use the Tracert Command in Windows

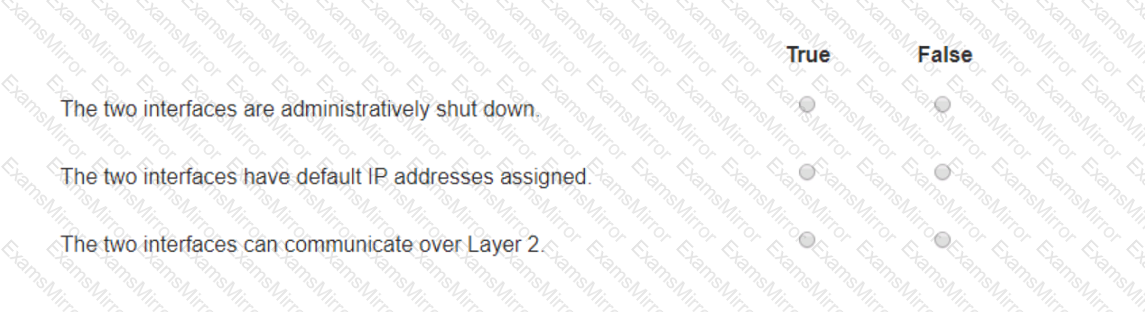

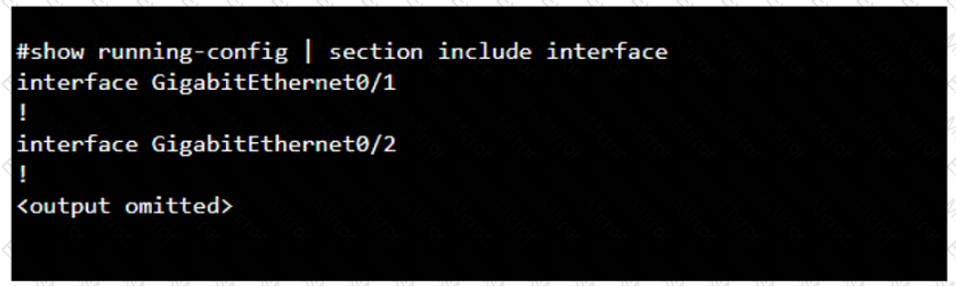

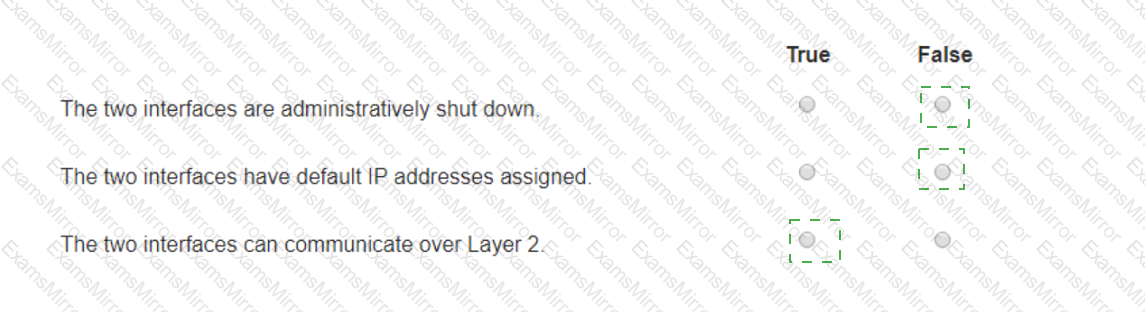

The two interfaces are administratively shut down:

False: The output does not show any "shutdown" command under the interfaces, which would indicate that they are administratively shut down. Therefore, they are likely in their default state, which is administratively up.

The two interfaces have default IP addresses assigned:

False: The output does not show any IP address configuration. In the default state, interfaces do not have IP addresses assigned unless explicitly configured.

The two interfaces can communicate over Layer 2:

True: By default, interfaces on a switch are Layer 2 interfaces capable of forwarding Ethernet frames. As there is no configuration provided that changes this, it can be assumed they can communicate over Layer 2.

Interface Status: The absence of the "shutdown" command means the interfaces are not administratively shut down.

IP Address Assignment: There is no evidence in the output that IP addresses have been assigned to the interfaces, which would typically be shown as "ip address" entries.

Layer 2 Communication: Switch interfaces in their default state operate at Layer 2, enabling them to forward Ethernet frames and participate in Layer 2 communication.

References:

Cisco IOS Interface Configuration: Cisco Interface Configuration

Understanding Cisco Switch Interfaces: Cisco Switch Interfaces

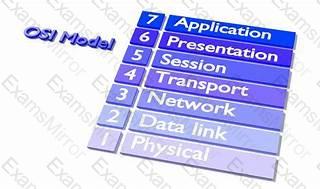

OSI model

During the data encapsulation process, theData Link layerof the OSI model is responsible for adding a header that contains MAC addressing information and a trailer used for error checking.The header typically includes the source and destination MAC addresses, while the trailer contains a Frame Check Sequence (FCS) which is used for error detection1.

The Data Link layer ensures that messages are delivered to the proper device on a LAN using hardware addresses and translates messages from the Network layer into bits for the Physical layer to transmit. It also controls how data is placed onto the medium and is received from the medium through the physical hardware.

References:=

The OSI Model – The 7 Layers of Networking Explained in Plain English

OSI Model - Network Direction

Which layer adds both header and trailer to the data?

What is OSI Model | 7 Layers Explained - GeeksforGeeks

WPA2-Personal, also known as WPA2-PSK (Pre-Shared Key), is the wireless security option that uses a pre-shared key to authenticate clients. This method is designed for home and small office networks and doesn’t require an authentication server. Instead, every user on the network uses the same key or passphrase to connect1.

References :=

•What is a Wi-Fi Protected Access Pre-Shared Key (WPA-PSK)?

•Exploring WPA-PSK and WiFi Security

=========================

•WPA2-Personal: This wireless security option uses a pre-shared key (PSK) for authentication. Each client that connects to the network must use this key to gain access. It is designed for home and small office networks where simplicity and ease of use are important.

•WPA2-Enterprise: Unlike WPA2-Personal, WPA2-Enterprise uses 802.1x authentication with an authentication server (such as RADIUS) and does not rely on a pre-shared key.

•802.1x: This is a network access control protocol for LANs, particularly wireless LANs. It provides an authentication mechanism to devices wishing to attach to a LAN or WLAN.

•802.1q: This is a networking standard that supports VLAN tagging on Ethernet networks and is not related to wireless security.

References:

•Cisco Documentation on WPA2 Security: Cisco WPA2

•Understanding Wireless Security: Wireless Security Guide

The primary purpose of assigning an IP address to the management VLAN interface on a Layer 2 switch is to facilitate remote management of the switch. By configuring an IP address on the management VLAN, network administrators can access the switch’s Command Line Interface (CLI) remotely using protocols such as Telnet or Secure Shell (SSH). This allows for convenient configuration changes, monitoring, and troubleshooting without needing physical access to the switch1.

References :=

•Understanding the Management VLAN

•Cisco - VLAN Configuration Guide

•Remote Management of Switches

Assigning an IP address to the management VLAN interface (often the VLAN 1 interface by default) on a Layer 2 switch allows network administrators to remotely manage the switch using protocols such as Telnet or SSH. This IP address does not affect the switch's ability to route traffic between VLANs but provides a means to access and configure the switch through its Command Line Interface (CLI).

•A: The switch does not act as a default gateway; this is typically a function of a Layer 3 device like a router.

•B: The switch does not resolve URLs; this is typically a function of DNS servers.

•C: The switch can relay DHCP requests but does not typically provide DHCP services itself; this is usually done by a dedicated DHCP server or router.

Thus, the correct answer is D. To enable access to the CLI on the switch through Telnet or SSH.

References :=

•Cisco VLAN Management Overview

•Cisco Catalyst Switch Management

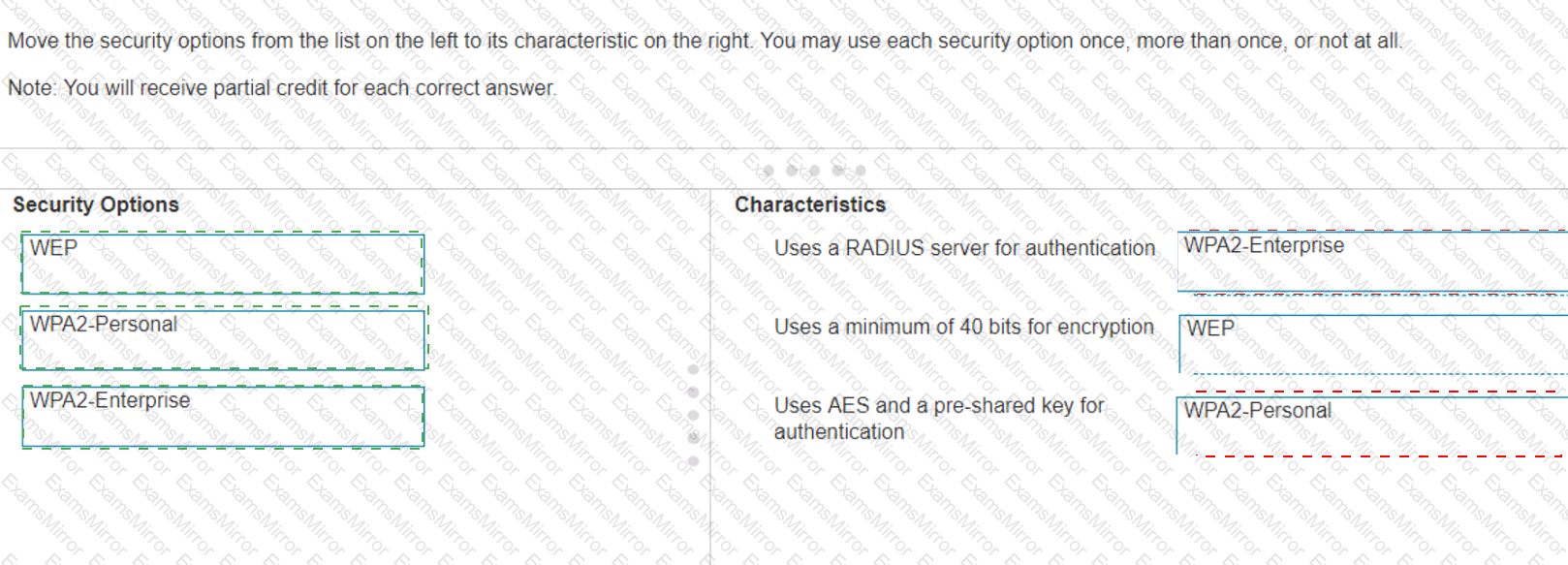

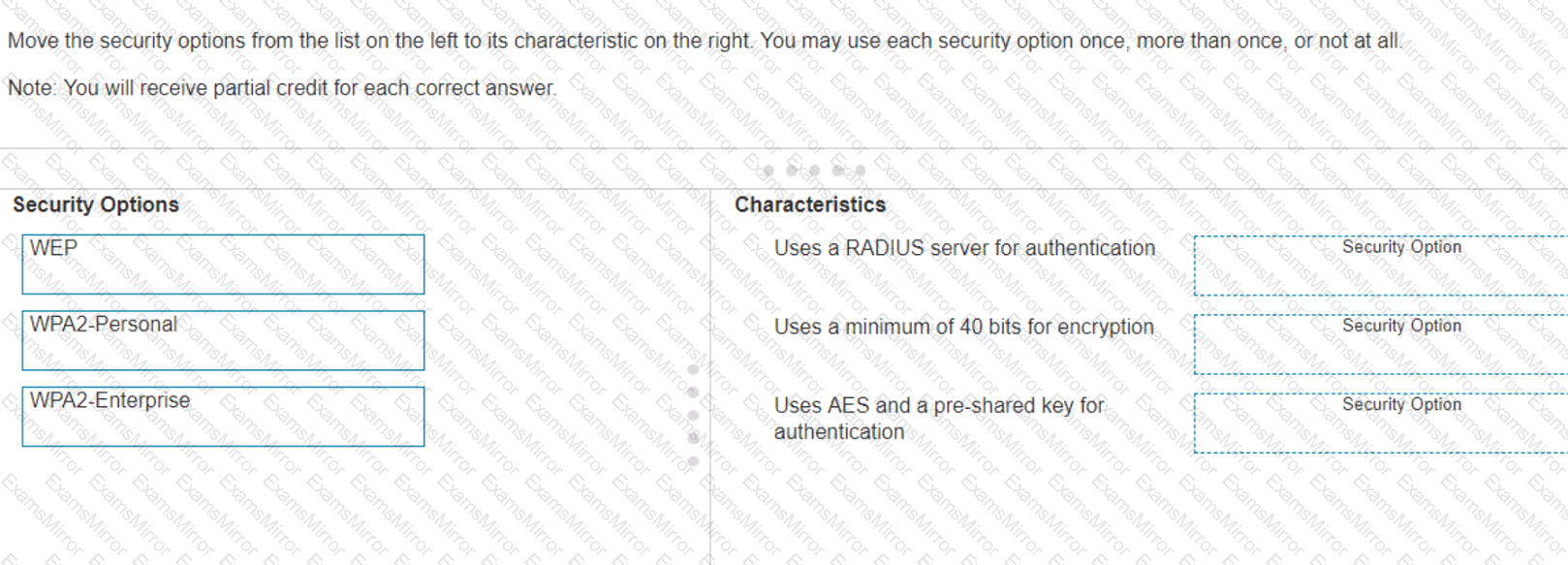

The correct matching of the security options to their characteristics is as follows:

WPA2-Enterprise: Uses a RADIUS server for authentication

WEP: Uses a minimum of 40 bits for encryption

WPA2-Personal: Uses AES and a pre-shared key for authentication

Here’s why each security option matches the characteristic:

WPA2-Enterpriseuses a RADIUS server for authentication, which provides centralized Authentication, Authorization, and Accounting (AAA) management for users who connect and use a network service.

WEP (Wired Equivalent Privacy)is an outdated security protocol that uses a minimum of 40 bits for encryption (and up to 104 bits), which is relatively weak by today’s standards.

WPA2-Personal(Wi-Fi Protected Access 2 - Personal) uses the Advanced Encryption Standard (AES) for encryption and a pre-shared key (PSK) for authentication, which is shared among users to access the network.

These security options are essential for protecting wireless networks from unauthorized access and ensuring data privacy.

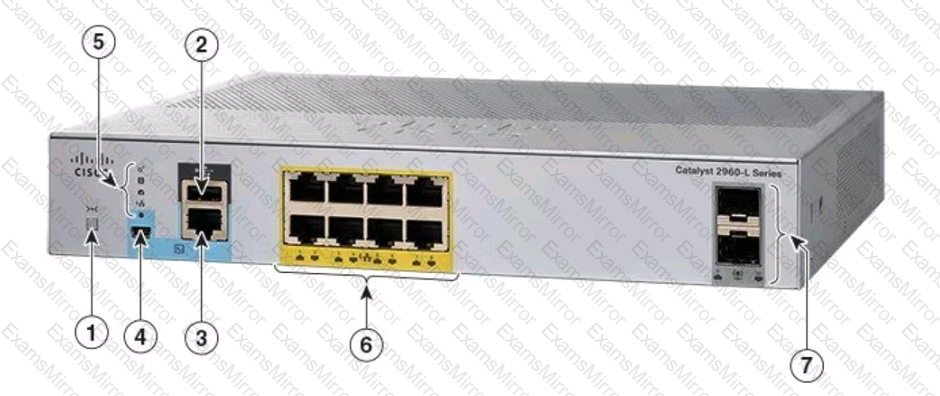

In the provided image of the Cisco PoE switch, the ports identified with number 6 are the standard RJ-45 Ethernet ports typically found on switches that provide both data connectivity and Power over Ethernet (PoE). PoE ports are designed to supply power to devices such as IP phones, wireless access points, and other PoE-enabled devices directly through the Ethernet cable.

Ports:

•2: Console port (for management and configuration)

•3 and 4: Specific function ports (often for management)

•6: RJ-45 Ethernet ports (capable of providing PoE)

•7: SFP ports (for fiber connections, typically do not provide PoE)

Thus, the correct answer is C. Ports identified with number 6.

References :=

•Cisco Catalyst 2960-L Series Switches Data Sheet

•Cisco PoE Overview

SFTP, or Secure File Transfer Protocol, is a protocol that allows for secure file transfer capabilities between networked hosts. It is a secure extension of the File Transfer Protocol (FTP). SFTP encrypts both commands and data, preventing passwords and sensitive information from being transmitted openly over the network. It is typically used for secure file transfers over the internet and is built on the Secure Shell (SSH) protocol1.

References :=

•What Is SFTP? (Secure File Transfer Protocol)

•How to Use SFTP to Safely Transfer Files: A Step-by-Step Guide

•Secure File Transfers: Best Practices, Protocols And Tools

The Secure File Transfer Protocol (SFTP) is a secure version of the File Transfer Protocol (FTP) that uses SSH (Secure Shell) to encrypt all commands and data. This ensures that sensitive information, such as usernames, passwords, and files being transferred, are securely transmitted over the network.

•ICMP (Internet Control Message Protocol) is used for network diagnostics and is not designed for file transfer.

•NTP (Network Time Protocol) is used to synchronize clocks between computer systems and is not related to file transfer.

•HTTP (HyperText Transfer Protocol) is used for transmitting web pages over the internet and does not inherently provide secure file transfer capabilities.

Thus, the correct protocol that allows secure uploading of files to another computer on the internet is SFTP.

References :=

•Cisco Learning Network

•SFTP Overview (Cisco)

When prioritizing trouble tickets, the most critical issues affecting business operations or high-impact activities should be addressed first. Here's a breakdown of the tickets:

Ticket 1: Relocation of a printer, while necessary, is not urgent and does not impact critical operations.

Ticket 2: An ongoing webinar losing internet access is critical, especially if the webinar is time-sensitive and involves multiple participants.

Ticket 3: Slower response time for a cloud-based application is important but typically not as urgent as a complete loss of internet access for a live event.

Ticket 4: Wireless access down in the cafeteria affects users but does not have the same immediate impact as a live webinar losing connectivity.

Thus, the correct answer is B. Ticket 2: An online webinar is taking place in the conference room. The video conferencing equipment lost internet access.

References:=

IT Help Desk Best Practices

Prioritizing IT Support Tickets
