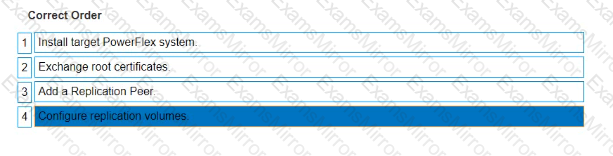

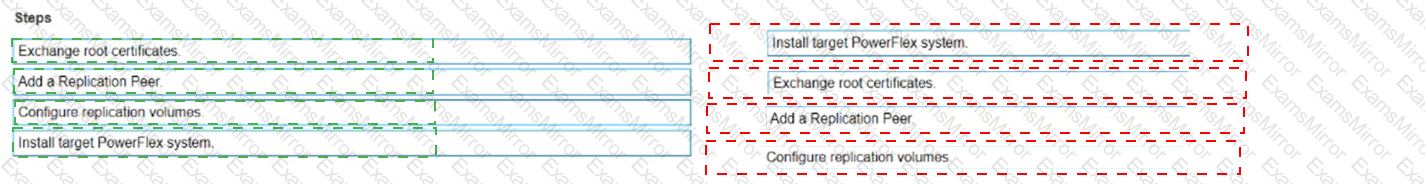

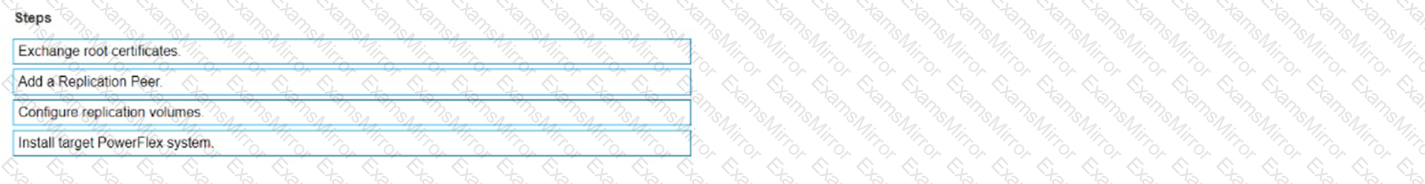

The correct sequence of steps to set up remote replication on the PowerFlex system is as follows:

Install target PowerFlex system: Before replication can be set up, there must be a target system in place to receive the replicated data1.

Exchange root certificates: This is a security measure to ensure that communication between the source and target systems is secure1.

Add a Replication Peer: This involves configuring the target system as a replication partner in the source system’s configuration1.

Configure replication volumes: Finally, specific volumes on the source system are configured to replicate to the target system1.

Setting up remote replication in a PowerFlex system involves a series of steps that establish the necessary components and configurations for the replication process. The sequence begins with the installation of the target PowerFlex system, which will serve as the destination for the replicated data. Next, root certificates are exchanged between the source and target systems to ensure secure communication. The target system is then added as a Replication Peer within the source system’s configuration. Lastly, the volumes intended for replication are configured on the source system to complete the setup process. This sequence ensures that the replication is secure, reliable, and correctly configured to maintain data integrity and availability across both systems1.

By changing the granularity of the PowerFlex storage pool from fine to medium, the architect improved the performance of the system. Medium Granularity (MG) storage pools are recommended for environments where I/O performance and low latency are critical, such as Virtual Desktop Infrastructure (VDI) deployments1.

Here’s a detailed explanation of the change:

Fine Granularity (FG): FG storage pools are designed for space efficiency and enable features like inline compression, which can reduce the size of volume data depending on its compressibility.However, this can come at the cost of performance due to the overhead of compression and the smaller space allocation block size2.

Medium Granularity (MG): MG storage pools, on the other hand, provide supreme I/O performance with the least latency to virtual machines and applications. They use a larger space allocation block size of 1 MB, which is more efficient for I/O operations compared to the 4 KB block size used in FG storage pools1.

Performance Improvement: By switching to an MG storage pool, the architect ensured that the storage volumes provide better I/O performance and lower latency, which is essential for applications that require fast and responsive storage access1.

This change aligns with the best practices for PowerFlex storage provisioning, where the selection of granularity is based on the specific performance and space efficiency needs of the customer’s workload1.

For setting up PowerFlex Manager with the minimal supported configuration, the customer should select the option with 36vCPU and 600 GB DISK Space. This configuration provides a sufficient amount of resources to support the management operations of PowerFlex Manager while adhering to the minimal requirements.

The selection process for the minimal supported configuration typically involves:

Evaluating Requirements: Understanding the minimal resource requirements for PowerFlex Manager, which includes CPU and disk space.

Matching Specifications: Aligning the available options with the known minimal requirements.

Selecting the Configuration: Choosing the configuration that meets or exceeds the minimal requirements without unnecessary resource allocation.

The reference for this information can be found in the PowerFlex Manager documentation, which outlines the system requirements for different deployment scenarios1. It is important to consult the latest compatibility matrix and administration guides to ensure that the chosen configuration aligns with the current supported standards and recommendations for PowerFlex Manager deployments1.

Before adding a Fault Set in PowerFlex, two critical aspects must be in place: a Protection Domain and Storage Pools.

Protection Domain: This is a logical grouping of storage resources that share the same protection policy and fault tolerance settings. It defines the boundaries of failure domains and is essential for ensuring data availability and resilience1.

Storage Pools: These are collections of storage media across multiple nodes within a Protection Domain. Storage Pools provide the physical storage where data is actually placed. They are necessary for the creation of volumes and for the distribution of data across the system1.

Fault Sets are used to group nodes that share a common risk of failure, such as being in the same rack or power circuit. When creating Fault Sets, it’s important that they are defined within an existing Protection Domain and utilize the storage resources allocated within Storage Pools. This ensures that data remains available and protected even if a Fault Set fails, as the system can rebuild the data using the remaining Fault Sets and Storage Pools1.

The information provided here is based on the best practices and design principles outlined in Dell PowerFlex documentation, which details the requirements for setting up and configuring various components of the PowerFlex system, including Fault Sets1.

When adding an NVMe device to an existing storage pool in PowerFlex, the details provided in the “Add Storage Device to SDS” dialog box must be accurate and follow the correct syntax. In the scenario provided, the device path contains an invalid character (an apostrophe) and an incorrect format, which would cause the device addition to fail.

Here’s a breakdown of the process and where the error occurs:

Device Path: The device path should be a valid Linux device path, typically starting with /dev/disk/by-id/. The path provided contains an apostrophe (') which is not a valid character in Linux file paths and would result in an error1.

Device Name: The device name should be a simple identifier without spaces or special characters. The name provided, “NVMe A. 1.6 TB”, contains spaces and periods, which are not typical for device names and could potentially lead to issues, although the primary cause of failure is the invalid device path1.

Storage Pool: The storage pool name “SP-1” is a valid identifier, but it is contingent on the correct device path and name for the device to be added successfully.

The result of the action, given the invalid device path, would be that the device addition fails. It is crucial to ensure that all details entered in the dialog box adhere to the expected formats and do not contain invalid characters to avoid such failures.

This explanation is based on the standard practices for device path naming conventions in Linux systems and the configuration guidelines for PowerFlex systems as described in Dell’s official documentation1. Correcting the device path by removing the invalid character and ensuring the proper format would resolve the issue and allow the device to be added to the storage pool successfully.

To calculate the required journal capacity, we need to consider the maximum cumulative writes that might occur during an outage. The calculation is based on the application’s write bandwidth and the duration of the supported outage. For an application generating 2 GB/s of writes, using a 2-hour outage (which is 7200 seconds), the journal capacity reservation needed is:

Journal Capacity=Write Bandwidth×Outage Duration

Journal Capacity=2 GB/s×7200 s=14400 GB

However, since the question specifies that the outage is under two hours, we use the minimum outage allowance of 1 hour for the calculation, which is 3600 seconds. Therefore, the correct calculation is:

Journal Capacity=2 GB/s×3600 s=7200 GB

But considering the recommendation to use three hours in the calculations for safety, the needed capacity would be approximately 10.547 TB, which is roughly 10.800 GB12. Hence, the verified answer is 10.800 GB.

Placing an SDS into Protected Maintenance Mode (PMM) can fail due to several scenarios, two of which are:

Another node in the same protection domain is in maintenance mode: PMM is designed to ensure data protection and availability during maintenance activities. If another node within the same protection domain is already in maintenance mode, initiating PMM on an additional node could compromise the protection domain’s ability to maintain data availability and redundancy1.

Another node has failed in the same protection domain: The failure of a node within the same protection domain can prevent the initiation of PMM for another node. This is because the system needs to ensure that there is sufficient redundancy and that data protection is not jeopardized by having multiple nodes in a non-operational state within the same protection domain1.

These scenarios are based on the operational principles of PowerFlex’s maintenance modes, as described in the Dell PowerFlex documentation. The system’s priority is to maintain data protection and availability, and therefore, it restricts the ability to enter PMM under conditions that could threaten these objectives1.

The policy that determines the priority of reconstructing data after a failure in a PowerFlex system is the Rebuild throttling policy. This policy is designed to manage the speed and resources allocated to the rebuild process, which is critical for restoring data redundancy and integrity after a failure occurs1.

The rebuild process in PowerFlex is a high-priority operation that ensures data is reconstructed across the remaining nodes and drives in the storage pool to maintain the desired levels of protection. The Rebuild throttling policy allows administrators to configure the impact of rebuild operations on the overall performance of the system, ensuring that while data reconstruction is prioritized, it does not significantly degrade the performance of production workloads1.

Rebalance throttling (Option A) is related to the process of redistributing data across the storage pool to maintain balance but is not directly concerned with the immediate reconstruction of data after a failure. Checksum Implementation (Option C) and Checksum Protection (Option D) are related to data integrity verification methods but do not determine the priority of data reconstruction.

Therefore, the correct answer is B. Rebuild throttling, as it is the policy that specifically governs the prioritization and management of data reconstruction activities following a failure in the PowerFlex system.

To track total usage on a PowerFlex File system without imposing any restrictions on users, an administrator can create a tree quota and set both the soft and hard limits to zero. This method allows the administrator to monitor usage without enforcing any quota limits, thus not restricting user behavior.

Here’s how it can be accomplished:

Access the PowerFlex Management Console: Log in to the PowerFlex Management Console where you can manage quotas.

Navigate to the File System: Locate the file system for which you want to track usage.

Create a Tree Quota: Choose to create a new tree quota for the file system.

Set Limits to Zero: When setting up the quota, input zero for both the soft and hard limits. This effectively means there are no limits enforced on the users.

Apply the Quota: Save and apply the quota settings to the file system.

By setting both limits to zero, the administrator can use the quota system purely for monitoring purposes, without affecting user operations. The users will not encounter any quota warnings or limits, but the system will still track and report on the total usage, which the administrator can review.

The rationale behind using a tree quota rather than a user quota is that tree quotas are associated with a directory tree, allowing the tracking of usage across a broader scope, which is more suitable for monitoring overall file system usage.

This approach is consistent with best practices for administering PowerFlex systems as described in the Dell PowerFlex Administration Guide1, which provides detailed procedures for managing storage, including the configuration of quotas for monitoring purposes.

To generate a software troubleshooting bundle for PowerFlex, a customer must navigate to the PowerFlex Manager Serviceability. The steps to generate the bundle are as follows1:

Log in to PowerFlex Manager.

Choose ‘Settings’ from the menu.

Within the Settings menu, select ‘Virtual Appliance Management’.

Choose ‘Generate Troubleshooting Bundle’.

In the popup window, the customer has the option to either send the bundle to Configured Secure Remote Services (Secure Remote Services) or download it locally. If downloading locally, select the path for the downloads and enter the appropriate login information, then click ‘Generate’.

This process is part of the serviceability features of PowerFlex Manager, which provides tools for system maintenance and troubleshooting. It is important to follow these steps carefully to ensure that the troubleshooting bundle is generated correctly and contains all the necessary information for diagnosing issues within the PowerFlex system.
