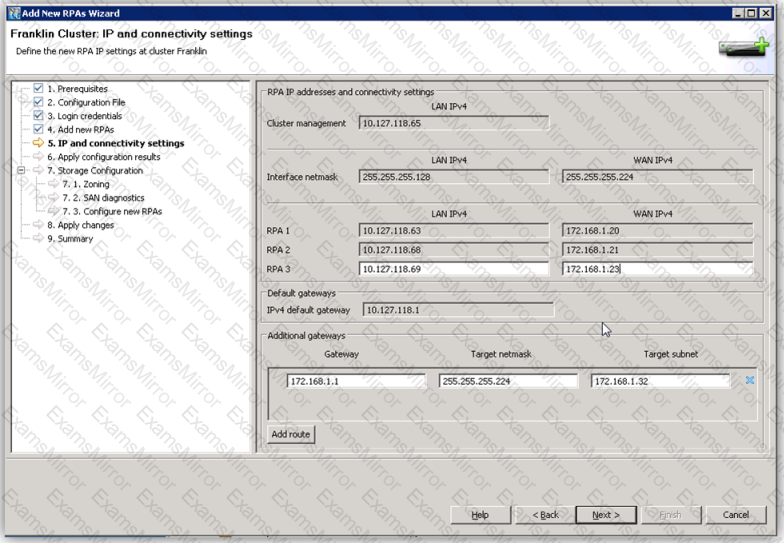

Power On: Ensure that RPA-3 is powered on.

Configure LAN Address: Assign and configure the LAN IP address as displayed in the wizard for RPA-3.

Verification: Verify that the RPA-3 is reachable at the configured LAN address.

Advance the Wizard: Once the above steps are confirmed, select “Next” to proceed with the wizard.

It is essential that the RPA is powered on and correctly configured with the LAN address shown in the deployment wizard to ensure proper communication and integration into the RecoverPoint cluster1.

Accessing the RPA: To retrieve the WWNs / PWWNs, you need to log into each RecoverPoint Appliance (RPA) individually.

Step 1: Use an SSH client to connect to the RPA.

Step 2: Log in with the boxmgmt user credentials.

Navigating to SAN Diagnostics: Once logged in, navigate to the SAN Diagnostics menu.

Step 3: From the main menu, select the option for SAN Diagnostics. This menu provides various diagnostic tools and information related to the SAN environment.

Retrieving WWNs / PWWNs: Within the SAN Diagnostics menu, you can retrieve the WWNs / PWWNs.

Step 4: Select the option to display the initiators. This will list the WWNs / PWWNs associated with the RPA.

Verification: Ensure that the retrieved WWNs / PWWNs are correct and correspond to the intended RPAs. This information is crucial for configuring zoning on the Brocade switch.

References: This process is verified based on the official Dell RecoverPoint documentation, which outlines the steps for accessing and retrieving WWNs / PWWNs from the RPAs12.

The System Modification wizard is part of the RecoverPoint Deployment Manager, which is used for various important RecoverPoint operations1.

The wizard allows you to modify several environment settings of a RecoverPoint Appliance (RPA) cluster2.

Among the settings that can be changed are:

Cluster name: This is the name assigned to the RecoverPoint cluster.

Time Zone: The local time zone for the RPA.

DNS server: The Domain Name System servers that the RPA will use for resolving hostnames.

These settings are essential for the proper functioning and integration of the RPA within the network and with other systems like VNX, VMAX, or VPLEX2.

For the most accurate and detailed instructions, always refer to the latest official documentation or contact Dell EMC support directly. The information provided here is based on general knowledge of RecoverPoint systems and may not reflect the most recent updates or specific configurations.

For a two-node vRPA cluster, a minimum of 9 IP addresses is required. This includes IP addresses for management, replication, and other network communication needs necessary to maintain high availability and proper functioning of the vRPA cluster.

To replace the VNX array with a Unity 600F array in a RecoverPoint with VNX(SE) cluster with local replication, you need to add a new Local Replication license using the Unity Serial number. This step ensures that the new storage array is correctly licensed and integrated into the existing RecoverPoint configuration.

When connecting RecoverPoint clusters over IP, it is crucial that the network infrastructure supports the data transmission requirements of RecoverPoint.

Jumbo frames are larger than standard Ethernet frames and can carry more data, reducing overhead and improving performance1.

If jumbo frames are not enabled on the IP network, the RecoverPoint clusters may fail to connect due to the inability to handle the larger data packets required for efficient replication and synchronization2.

The MTU (Maximum Transmission Unit) size also plays a role in this process.An MTU size of 9000 is often recommended for jumbo frames, but if the network devices do not support this configuration, it can lead to connection issues2.

It’s important to ensure that all network devices along the path support jumbo frames and are configured correctly to allow for the larger MTU size required by RecoverPoint clusters1.

For detailed troubleshooting steps and to confirm the exact cause of the connection failure, refer to the Dell RecoverPoint documentation or contact Dell EMC support for assistance. The information provided here is based on general knowledge of networking requirements for RecoverPoint systems and may not reflect the most recent updates or specific configurations.

For ensuring the highest availability for all communication within a RecoverPoint with VNX(SE) cluster using virtual RPAs in a VMware environment, it is recommended to use at least 2 virtual switches. This setup allows for redundancy and load balancing, which are crucial for maintaining high availability and preventing single points of failure.

Understanding Group Sets: Group Sets in Dell RecoverPoint allow administrators to create a consistent point-in-time image across multiple Consistency Groups. This is particularly useful in environments where data consistency across different applications or databases is critical.

Functionality: When using Group Sets, a single bookmark can be applied to multiple Consistency Groups simultaneously. This ensures that all the groups are synchronized to the same point in time, providing a consistent recovery point across different data sets.

Implementation:

Step 1: Access the RecoverPoint Management Application.

Step 2: Navigate to the Group Sets section.

Step 3: Create a new Group Set and select the Consistency Groups that need to be included.

Step 4: Apply a bookmark to the Group Set. This action will create a consistent point-in-time image across all selected Consistency Groups.

Verification: After setting up the Group Set and applying the bookmark, verify that the point-in-time image is consistent across all included Consistency Groups. This can be done by checking the bookmarks and ensuring they are synchronized.

References: This information is verified based on the official Dell RecoverPoint documentation, which details the use and configuration of Group Sets for achieving consistent point-in-time images across multiple Consistency Groups12.

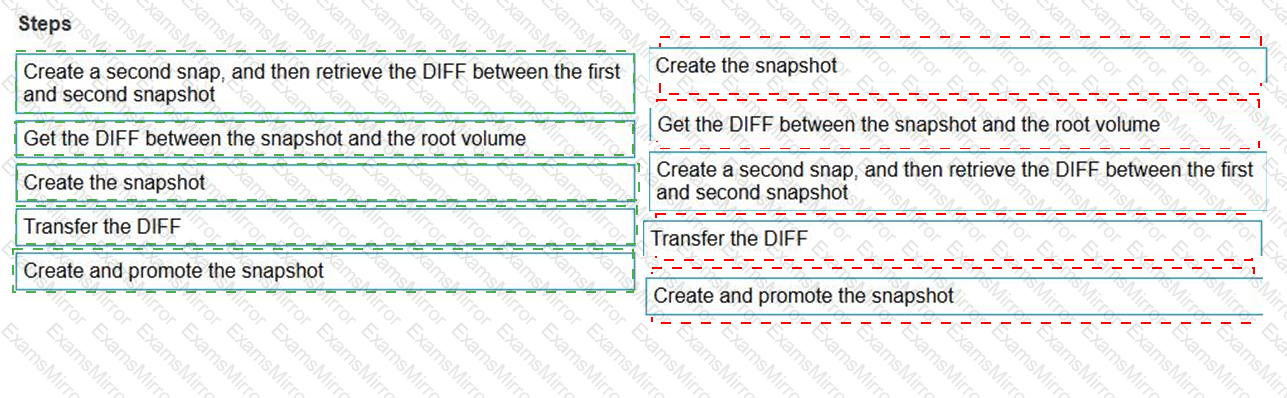

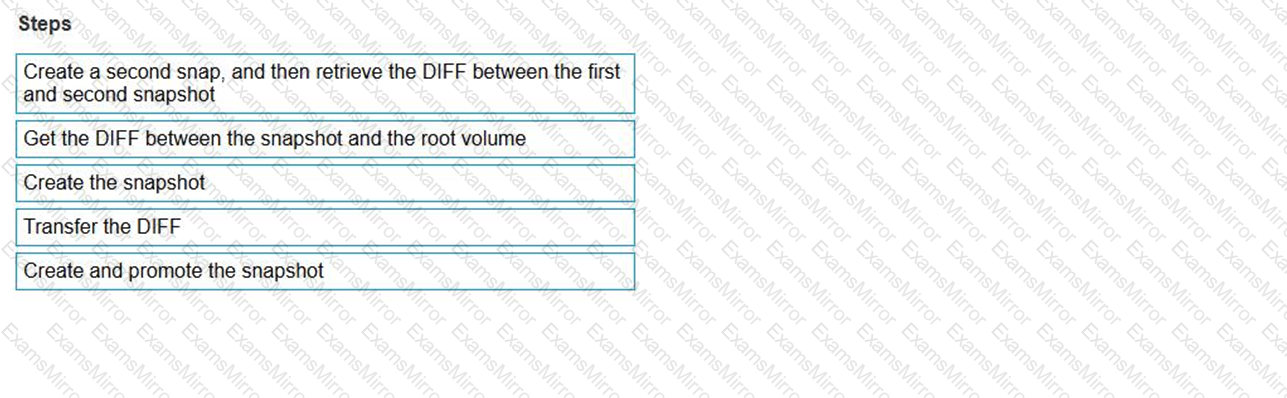

The correct sequence of steps for Snap-based replication on XtremIO is:

Create the snapshot

Get the DIFF between the snapshot and the root volume

Create a second snap, and then retrieve the DIFF between the first and second snapshot

Transfer the DIFF

Create and promote the snapshot

Snap-based replication on XtremIO involves the following steps:

Create the snapshot: This step involves taking a snapshot of the source volume that will be used as the baseline for replication.

Get the DIFF between the snapshot and the root volume: Here, the differences between the snapshot and the root volume are calculated. This is necessary to understand what changes have been made since the last snapshot.

Create a second snap, and then retrieve the DIFF between the first and second snapshot: A second snapshot is created to capture the latest state of the volume. The differences (DIFF) between the first snapshot and the second snapshot are then calculated.

Transfer the DIFF: The differences identified between the snapshots are transferred to the target volume. This ensures that only the changes are replicated, optimizing the replication process.

Create and promote the snapshot: Finally, the snapshot is created and promoted to ensure the target volume is updated with the latest changes.

This sequence ensures efficient and accurate replication by focusing on the changes between snapshots, rather than replicating the entire volume each time.

When determining the Journal volume size, the factors that must be considered are:

B. Rate of change, application data type to be replicated, and the number of snapshots to retain

Explanation:To determine the appropriate size for the Journal volume in a RecoverPoint system, several key factors need to be taken into account. These include the rate of change of the data being replicated, the type of application data (as different data types can have different change rates), and the number of snapshots to retain for recovery purposes. These factors collectively help in estimating the amount of space required for efficient journaling and replication.

References:Dell RecoverPoint for Virtual Machines 6.0.1 vSphere HTML5 Plugin Administrator's Guide, Chapter on Journal Sizing and Management.
