In a RecoverPoint/EX cluster, the administrator can add volumes from an unlicensed array as a repository volume.The repository volume is used for internal RecoverPoint operations, such as storing metadata and system information necessary for the RecoverPoint cluster to function1.

The repository volume does not require a license as it is not part of the data replication path and does not store user data. This allows the administrator to utilize storage from an unlicensed array for this purpose.However, for journal and copy volumes, which are directly involved in data protection and replication, a licensed array is required to ensure proper functionality and support1.

It is important to note that while the repository can be on an unlicensed array, all other volumes involved in replication (such as journal and copy volumes) must be on licensed arrays.This ensures compliance with licensing agreements and enables full support and functionality of the RecoverPoint system1.

For the most accurate and up-to-date information, it is always best to consult the latest official Dell RecoverPoint documentation or contact Dell EMC support directly1.

In a Dell RecoverPoint system with XtremIO arrays at both production and disaster recovery sites, setting the replication mode for a Consistency Group as “Continuous” implies that the replication occurs continuously without predefined intervals. This mode aims to minimize the Recovery Point Objective (RPO), which is the maximum targeted period in which data might be lost due to a major incident. While an RPO of 0 seconds is ideal, it is often not practical due to network latency and system processing times.Therefore, an effective RPO of less than 60 seconds is a realistic target for a “Continuous” replication mode, ensuring that data loss is minimized to the lowest possible timeframe in the event of a disaster1.

RecoverPoint/BK license mode is for local backup of Data Domain storage. RecoverPoint/BK is system-based licensing for all clusters in a RecoverPoint system:

•Synchronous replication

•Multipath I/O support

•Virtualization hypervisor support for Hyper-V and VMware platforms.

•Integration with VMware vCenter, VMware SRM and vSphere VAAI support

•Built-in bandwidth reduction

•Two to eight RecoverPoint appliances per RPA cluster for failure resiliency and throughput

RecoverPoint/BK Overview:

RecoverPoint/BK is a specialized licensing mode designed for local backup operations specifically aimed at EMC's Data Domain storage systems. It enhances the data protection capabilities by integrating with Data Domain for efficient backup and recovery processes.

Functionality and Features:

Local Backup: The RecoverPoint/BK license mode is particularly utilized for local backups of Data Domain storage arrays. It ensures that the data stored on Data Domain systems can be effectively backed up and restored locally.

Synchronous Replication: Provides real-time data replication between the primary and backup locations to ensure data consistency.

Multipath I/O Support: Ensures high availability and reliability by providing multiple data paths to storage.

Hypervisor Support: Supports virtualization platforms such as Hyper-V and VMware, allowing integration with various virtualized environments.

Integration with VMware: Supports integration with VMware vCenter, VMware SRM, and vSphere VAAI, enabling seamless management and operation within VMware environments.

Bandwidth Reduction: Includes built-in features to reduce bandwidth usage during data replication and backup operations.

Resiliency and Throughput: Supports two to eight RecoverPoint appliances per RPA cluster, enhancing failure resiliency and throughput for robust data protection.

Reference from EMC Documentation:

RecoverPoint/BK license mode is explicitly mentioned for local backups of Data Domain storage arrays, providing a comprehensive data protection solution with advanced features tailored for Data Domain.

In Dell EMC RecoverPoint, virtual RPAs (vRPAs) use iSCSI protocol for connections. This is because vRPAs are designed to operate in virtual environments where iSCSI is commonly used for storage networking due to its ability to work over standard IP networks.Physical RPAs, such as Gen-5 and Gen-6, typically use Fibre Channel (FC) for direct storage connectivity1.

Here’s a breakdown of the connectivity:

vRPA: Utilizes iSCSI for connections to protected storage. This is suitable for virtualized environments where the RecoverPoint for Virtual Machines (RP4VMs) operates.

Gen-5 and Gen-6 RPAs: These are physical appliances that generally use Fibre Channel for connectivity, which is more common in physical data center environments where dedicated storage networks are present1.

It’s important to choose the correct RPA type based on the storage infrastructure and connectivity requirements of the environment1.

The performance of the Journal volumes at the remote copy can significantly affect the time it takes for a Consistency Group to complete the first-time initialization. The Journal volumes are where all the changes to the protected volumes are recorded before they are replicated to the remote site.If the Journal volumes are performing poorly, due to issues like high latency or low IOPS (Input/Output Operations Per Second), it can slow down the initialization process as the system struggles to record and replicate the data efficiently1.

Other factors such as the distance between the production and remote copy clusters and the number of RecoverPoint Appliances (RPAs) at both the production and remote copy clusters can also influence the initialization time. However, these factors typically affect the ongoing replication performance rather than the initial synchronization.The number of RPAs can impact the system’s ability to process and replicate data, but the most direct impact on initialization time is the performance of the Journal volumes, as they are the bottleneck in the data recording process1.

For the most accurate and up-to-date information, it is always best to consult the latest official Dell RecoverPoint documentation or contact Dell EMC support directly1.

When using RecoverPoint Unisphere to collect system information, the “Collect System Information” file can be stored on an FTP server that is configured on the RPA cluster. This allows for centralized storage and easy access to the file for further analysis or troubleshooting. The steps typically involve:

Accessing Unisphere: Log into the RecoverPoint Unisphere interface.

Running the Wizard: Navigate to the appropriate section and run the “Collect System Information” wizard.

Choosing Storage Option: Select the option to store the file on an FTP server configured on the RPA cluster.

Retrieving the File: Access the FTP server to retrieve the “Collect System Information” file as needed.

This method ensures that the collected system information is securely stored and can be accessed by authorized personnel for maintenance or support purposes1.

When a Consistency Group failover is performed to a remote copy in a Dell RecoverPoint system, the point-in-time images stored in the copy Journal are deleted after the copy becomes the new production.This is because the copy Journal’s role is to maintain a record of changes for recovery purposes, and once the copy is promoted to production, its Journal is reset to start recording new changes from that point forward1.

The process involves the following steps:

Failover Initiated: The administrator initiates a failover to the remote copy.

Copy Becomes Production: The remote copy is promoted to the production role.

Journal Reset: The point-in-time images in the copy Journal are deleted as part of the promotion process.

New Production Journal: A new production Journal is started to record changes from the new production copy moving forward.

This ensures that the RecoverPoint system can continue to protect the data with a fresh start for the new production environment1.

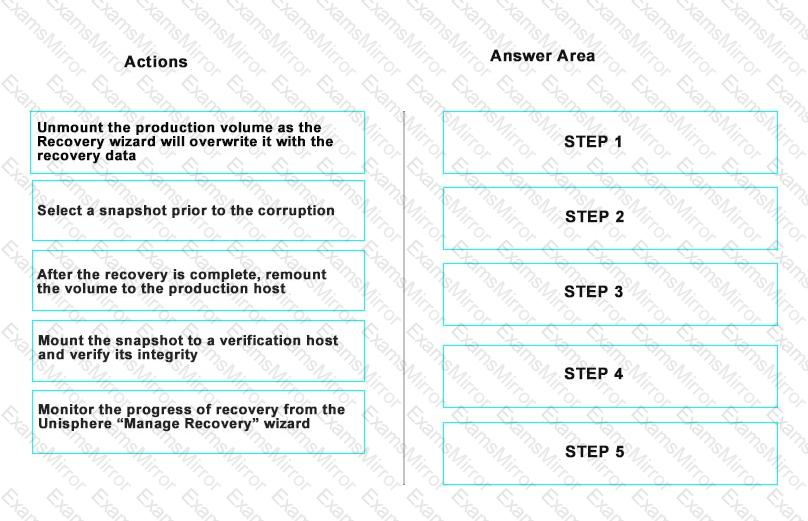

A screenshot of a recovery program Description automatically generated with medium confidence

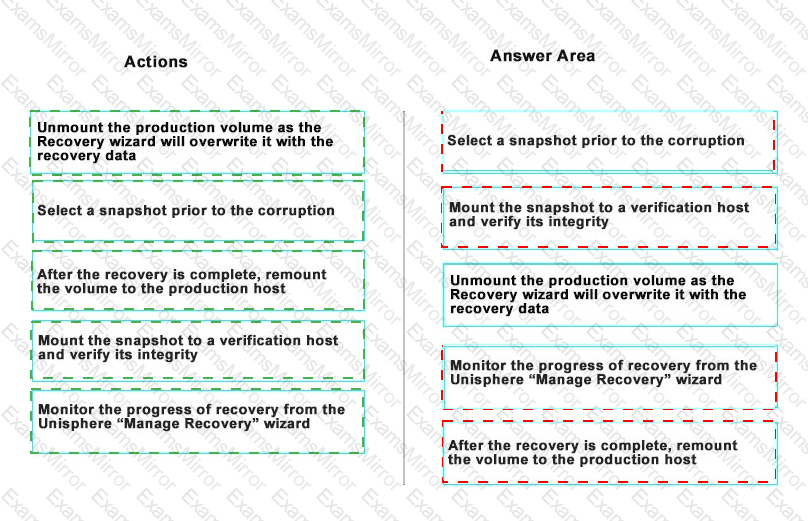

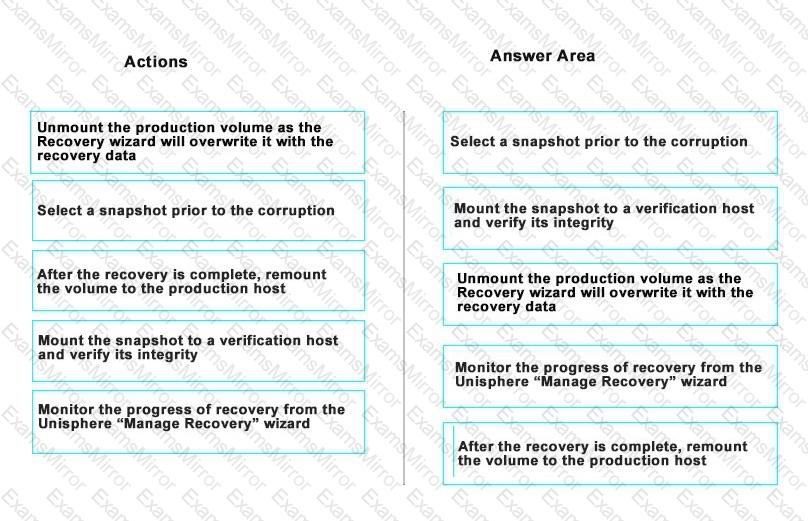

To recover a production volume that has become inaccessible due to logical corruption using RecoverPoint’s “Test a Copy and Recover Production” wizard, follow these steps:

Select a snapshot prior to the corruption: Identify and choose the appropriate point-in-time image from the Journal that was taken before the corruption occurred.

Mount the snapshot to a verification host and verify its integrity: Attach the selected snapshot to a non-production host where you can perform checks to ensure the data is consistent and free from corruption.

Unmount the production volume as the Recovery wizard will overwrite it with the recovery data: Ensure that the current production volume is not in use because the recovery process will overwrite the existing data with the data from the snapshot.

Monitor the progress of recovery from the Unisphere ‘Manage Recovery’ wizard: Use Dell EMC’s Unisphere interface to track the recovery process and ensure that the data is being restored correctly.

These steps are based on the standard procedures outlined in Dell RecoverPoint documentation for using the “Test a Copy and Recover Production” wizard to restore volumes to a previous state1.

In a Dell RecoverPoint environment, Direct Access mode allows for write access to a replica volume during testing or other scenarios. However, when using XtremIO arrays, Direct Access mode is not available because XtremIO handles replication differently compared to other array types.Instead, XtremIO uses its snapshot technology, which does not support Direct Access in the same way as traditional replication methods1.

Here’s why Direct Access is limited with XtremIO:

XtremIO Snapshot Technology: XtremIO arrays use snapshot technology for replication, which is different from the replication methods used by other array types like VMAX, VNX, or VPLEX.

Direct Access Mode: This mode typically allows a replica volume to be mounted and written to directly, but due to the way XtremIO handles snapshots, this functionality is not supported.

RecoverPoint Integration: RecoverPoint integrates with XtremIO to provide replication and disaster recovery solutions, but the Direct Access feature is not compatible with XtremIO’s snapshot-based replication1.

Therefore, when using XtremIO arrays in a RecoverPoint environment, administrators need to be aware of this limitation and plan their disaster recovery and testing strategies accordingly1.

The Journal lag in a Dell RecoverPoint system refers to the amount of data that has been written to the production volumes but has not yet been replicated to the remote site or copy volumes. The maximum Journal lag setting affects the RPO because it determines the maximum allowable time or data volume that can pass before the data must be replicated to the remote site to meet the recovery objectives.

Here’s how the Journal lag impacts the RPO:

Journal Lag Definition: Journal lag is the measure of the difference between the most recent write to the production volume and what has been replicated to the copy volume.

RPO Impact: The RPO is the maximum targeted period in which data might be lost from an IT service due to a major incident. If the Journal lag exceeds the maximum setting, itmeans that the RPO could be breached, as there would be more data at risk of being lost than what is acceptable per the RPO policy.

Management Actions: Administrators can monitor and manage the Journal lag to ensure that the RPO is maintained. If the lag approaches the maximum setting, actions may be taken to increase replication throughput or address any issues causing replication delays.

In summary, the maximum Journal lag setting is crucial for ensuring that the RPO is met, as it directly influences the amount of data that could be lost in the event of a failure or disaster1.
