When a VPLEX distributed device experiences elongated write response times, it is typically due to the characteristic of VPLEX that requires writes to be committed to backend storage on both clusters before an acknowledgement is sent to the host. This ensures data integrity and consistency across the distributed device but can lead to increased response times, especially if there is network congestion or latency issues between the clusters.

Here’s a detailed explanation:

Write I/O Commitment:For a VPLEX distributed device, any write I/O must be committed to backend (BE) storage on both the local and remote clusters1.

Network Impact:If the inter-cluster communication network (FC/IP WAN) is experiencing congestion or high latency, it will increase the round-trip time of I/O packets, leading to performance issues and elongated write response times1.

Performance Best Practices:VPLEX best practices suggest that the round-trip time (RTT) between clusters should not exceed 5 ms to maintain optimal performance, with an RTT of 1 ms recommended for campus-wide networks1.

Troubleshooting Steps:To address such issues, administrators should check for network congestion indicators in the firmware logs and ensure that all WAN communication ports are operational and that SFPs have sufficient power1.

Resolution:If the VPLEX is configured for FC metro and supported by Dell EMC, collecting switch logs and engaging Dell EMC support is advised.For IP metro configurations, validating the health of the IP network is crucial to identify the cause of congestion1.

By understanding this characteristic of VPLEX distributed devices, storage administrators can take appropriate measures to mitigate elongated write response times and maintain system performance.

The command that collects the most recent performance statistics from all VPLEX directors is SNMPGETBULK. This command is part of the SNMP (Simple Network Management Protocol) suite, which is used for collecting information and managing network devices.

SNMPGETBULK Command: The SNMPGETBULK command retrieves bulk data from SNMP-enabled devices.It is designed to efficiently collect multiple pieces of information in a single request, making it suitable for gathering performance statistics from multiple directors1.

Usage in VPLEX: In the context of Dell VPLEX, the SNMPGETBULK command can be used to query the directors for their most recent performance data. This data can include metrics such as I/O rates, latency, cache usage, and other vital statistics.

Performance Monitoring: Collecting performance statistics is crucial for monitoring the health and efficiency of the VPLEX system. It helps administrators identify potential issues and optimize the system’s performance.

SNMP Configuration: To use the SNMPGETBULK command, SNMP must be configured on the VPLEX system, and the appropriate community strings and access permissions must be set up.

Other Commands: While the monitor stat-list command lists available statistics and the monitor collect command collects performance data for a specific monitor, the SNMPGETBULK command is specifically used for bulk data retrieval across all directors.

By utilizing the SNMPGETBULK command, administrators can effectively gather comprehensive performance data from all VPLEX directors, aiding in the management and optimization of the storage environment.

The SNMP management station connects to the VPLEX Management Server to gather statistics. The Management Server acts as the central point for managing and monitoring the VPLEX environment, including the collection of SNMP statistics.

Management Server Role: The VPLEX Management Server provides a centralized interface for system administration and monitoring.It is responsible for managing the VPLEX clusters and all associated components1.

SNMP Statistics Collection: SNMP (Simple Network Management Protocol) is used for collecting performance and health data from networked devices.The VPLEX Management Server supports SNMP and can be configured to send SNMP traps to a management station1.

Configuration: To enable SNMP monitoring, the VPLEX administrator must configure the Management Server with the appropriate SNMP settings, including the community string and the remote host (management station) details1.

Monitoring with SNMP: Once configured, the SNMP management station can connect to the VPLEX Management Server to collect statistics, which can include a wide range of metrics such as CPU utilization, memory usage, and I/O rates1.

Troubleshooting: If there are issues with SNMP data collection, such as the inability to ping the remote host from the VPLEX Management Server, the administrator may need to check network configurations, such as firewall settings, to ensure proper connectivity1.

By connecting to the VPLEX Management Server, the SNMP management station can effectively gather statistics for monitoring the health and performance of the VPLEX system.

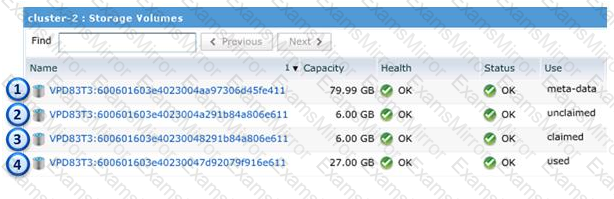

Based on the information provided in the image, here is the explanation:

Storage Volume 1 (OB): This volume is listed with a capacity of 79.99 GB, health status OK, and status OK. Its use is indicated as ‘meta-data’, which typically means it is reserved for system or metadata use and not available for creating extents.

Storage Volume 2 (OA): This volume has a capacity of 6.00 GB, health status OK, and status OK. Its use is indicated as ‘unclaimed’, which suggests that it has not been allocated for any specific purpose yet and could potentially be used for creating an extent.

Storage Volume 3 (OD): This volume also has a capacity of 6.00 GB, health status OK, and status OK. However, its use is indicated as ‘claimed’, meaning it has already been allocated and is not available for creating new extents.

Storage Volume 4 (OC): The final volume has a capacity of 27.00 GB, health status OK, and status OK. Its use is indicated as ‘used’, which implies that it is currently in use and not available for creating new extents.

Based on the above analysis, the storage volume that is available to be used for the creation of an extent isStorage Volume 2 (OA). It is the only volume marked as ‘unclaimed’ and therefore available for new configurations such as creating extents.

In a VPLEX Metro environment, the write rate on distributed volumes has a direct impact on VPLEX performance with respect to WAN bandwidth. Here’s how:

Distributed Volumes: Distributed volumes in VPLEX Metro span across two geographically separated clusters and are designed to provide continuous availability and data mobility1.

Write Operations: Write operations on distributed volumes require data to be written to both clusters before an acknowledgment is sent back to the host.This ensures data consistency across both sites2.

WAN Bandwidth: The Wide Area Network (WAN) bandwidth between the two clusters is a critical factor in the performance of these write operations.If the WAN bandwidth is insufficient, it can lead to increased latency and reduced throughput3.

Performance Impact: With only half the available WAN-COM paths, VPLEX can exceed bandwidth limitations on the existing WAN-COM paths, causing severe latency impacting the remote writes of distributed devices3.

Best Practices: VPLEX best practices indicate that the round-trip time (RTT) between VPLEX clusters shouldn’t exceed 5 ms to provide the best performance, and an RTT of 1 ms is recommended for a campus-wide network2.

By managing the write rate on distributed volumes and ensuring adequate WAN bandwidth, VPLEX Metro can maintain high performance and meet the required service levels for data availability and accessibility.

The batch-migrate check-plan command in Dell VPLEX is used to determine if there is currently enough back-end bandwidth to carry out a migration plan. This is crucial to ensure that the migration does not negatively impact the performance of other operations within the VPLEX environment.

Back-End Bandwidth: The back-end bandwidth refers to the data transfer capacity between the VPLEX and its connected storage arrays.Adequate back-end bandwidth is essential for migration operations to prevent bottlenecks1.

Migration Plan: Before executing a migration plan created by the batch-migrate create-plan command, it is important to check that the system has the necessary resources, such as sufficient back-end bandwidth, to support the migration without disruption1.

Command Function: The batch-migrate check-plan command analyzes the current system load and the expected load from the migration to determine if the migration can proceed without exceeding the system’s bandwidth capabilities1.

Ensuring Performance: By verifying the availability of back-end bandwidth, the command helps to ensure that the migration will not interfere with the normal operations of the VPLEX system, maintaining overall system performance1.

Pre-Migration Assessment: This command is part of the pre-migration assessment process, which is critical for planning and executing migrations effectively and efficiently within the VPLEX environment1.

The batch-migrate check-plan command is an important tool for administrators to validate the feasibility of migration plans and to ensure that migrations do not adversely affect the performance of the VPLEX system.

The Unisphere Performance Monitor Dashboard is used to monitor VPLEX performance parameters. This dashboard is part of the Unisphere for VPLEX management suite and provides a graphical interface for monitoring various performance metrics.

Unisphere for VPLEX: Unisphere for VPLEX is the management interface for VPLEX systems.It provides administrators with tools to configure, manage, and monitor VPLEX environments1.

Performance Monitoring: The Performance Monitor Dashboard within Unisphere allows administrators to view real-time and historical performance data.This includes metrics such as I/O rates, latency, and throughput1.

Dashboard Features: The dashboard offers various features such as performance charts, threshold alerts, and detailed reports that help in identifying performance trends and potential issues1.

Accessibility: The dashboard is accessible through the Unisphere web interface, making it convenient for administrators to monitor the VPLEX system from any location1.

Usage: To use the Performance Monitor Dashboard, administrators log into Unisphere for VPLEX, navigate to the performance section, and can then view and analyze the performance data presented in the dashboard1.

By using the Unisphere Performance Monitor Dashboard, administrators can effectively monitor VPLEX performance parameters, ensuring the system operates efficiently and meets performance requirements.

When preparing a host to access its storage from VPLEX, the best practice for zoning is to ensure that each host has at least one path to an A director and at least one path to a B director on each fabric. This setup provides redundancy and ensures continuous availability of data even if one path or director fails.

Redundant Paths: By having at least one path to an A director and one path to a B director, the host can maintain access to its storage even if one of the directors or paths becomes unavailable1.

Fabric Configuration: The use of dual fabrics provides an additional layer of redundancy.Each fabric acts as an independent network, and having paths on both fabrics ensures that the host can still access storage if one fabric experiences issues1.

Logical Paths: The total of four logical paths (two paths per fabric) allows for load balancing and failover capabilities.This configuration is crucial for environments that require high availability and resilience1.

Zoning Best Practices: Proper zoning practices are essential for maintaining a secure and efficient storage network.The recommended zoning configuration helps to isolate traffic and prevent disruptions1.

VPLEX Configuration: In a VPLEX environment, it is important to follow the recommended zoning practices to take full advantage of the system’s capabilities for data mobility and continuous availability1.

By following this zoning best practice, administrators can ensure that the host has reliable and resilient access to its storage volumes through the VPLEX system.

A VPLEX storage administrator can manage array-based attributes throughstorage tiers. This is part of the VPLEX’s ability to integrate with underlying storage arrays and leverage their native capabilities, such as tiering, to optimize performance and cost.

Here’s a detailed explanation:

Understanding Storage Tiers:Storage tiers are classifications of storage based on performance and cost. High-performance tiers use faster storage media like SSDs, while lower tiers might use traditional HDDs.

VPLEX Integration:VPLEX integrates with underlying storage arrays to manage these tiers. By doing so, it can place data on the appropriate tier based on performance requirements and other policies.

Managing Array-Based Attributes:Within the VPLEX, administrators can define policies that determine how data is placed across these tiers. This is done by managing array-based attributes that dictate tier placement.

Provisioning and Migration:Administrators can provision new volumes or migrate existing ones between tiers as needed, ensuring that the most frequently accessed data is on the highest-performing tiers.

Monitoring and Adjusting:VPLEX provides tools for monitoring performance and usage patterns, allowing administrators to adjust tiering policies and placements to optimize for current workloads.

Documentation and Training:For those seeking to understand the full capabilities and management procedures, Dell provides training and documentation, such as the VPLEX Operate Achievement, which covers these topics in detail123.

By managing storage tiers, VPLEX administrators can ensure that the storage infrastructure is used efficiently, balancing cost and performance effectively.

When provisioning LUNs from an ALUA-capable back-end array to VPLEX, it is required that each VPLEX director has at least two paths to both the active and non-preferred array controllers. This ensures redundancy and continuous availability of data even if one path or controller fails.

ALUA-Capable Arrays: ALUA (Asymmetric Logical Unit Access) arrays present active and non-preferred (or passive) paths to the storage.The active paths are used for I/O under normal operations, while non-preferred paths are available for use if the active paths fail1.

Path Requirements: For each VPLEX director, there should be at least two paths to the active controller and at least two paths to the non-preferred controller.This configuration provides redundancy and supports the ALUA functionality1.

VPLEX Director Connectivity: VPLEX directors manage the paths to the storage arrays.Having multiple paths from each director ensures that VPLEX can continue to provide access to the LUNs even if there are issues with one of the paths or controllers1.

Redundancy and Availability: The path requirement is crucial for maintaining high availability and redundancy, which are key benefits of using VPLEX in conjunction with ALUA-capable arrays1.

Best Practices: Following this best practice for path connectivity aligns with VPLEX’s goal of providing continuous data availability and seamless failover capabilities in the event of hardware failures or maintenance activities1.

By adhering to the path requirement of having at least two paths to both the active and non-preferred array controllers, VPLEX can leverage the ALUA functionality of the back-end array to ensure optimal performance and data availability.
