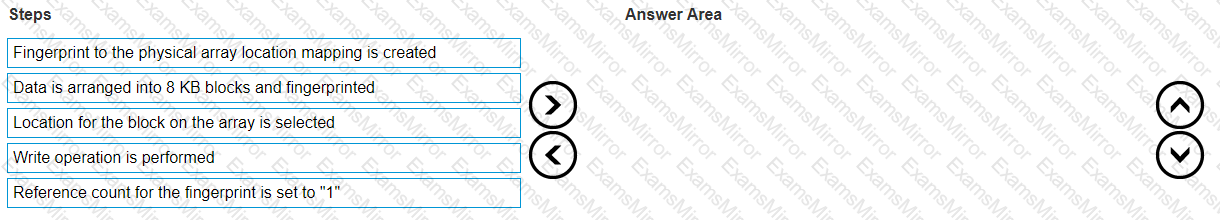

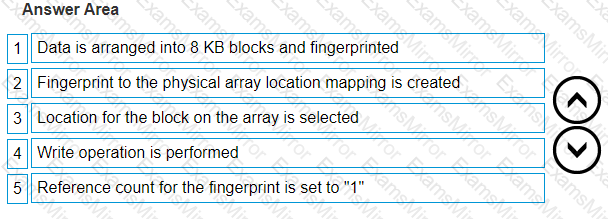

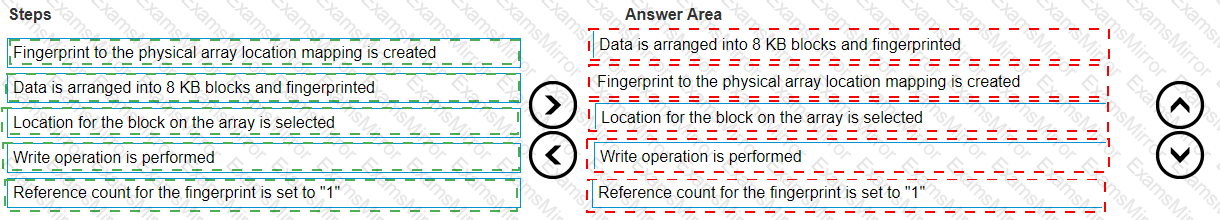

The correct sequence of operations when a host writes a unique data block to an XtremIO X1 array is as follows:

Data is arranged into 8 KB blocks and fingerprinted.

Fingerprint to the physical array location mapping is created.

Location for the block on the array is selected.

Write operation is performed.

Reference count for the fingerprint is set to “1”.

Data Arrangement and Fingerprinting: Initially, the data received from the host is organized into 8 KB blocks.Each block is then fingerprinted, which involves creating a unique identifier for the data block that can be used to detect duplicates and manage data more efficiently1.

Mapping Creation: After fingerprinting, a mapping between the fingerprint and its physical location on the XtremIO array is established.This step is crucial for the array to know where each data block is stored and to retrieve it quickly when needed1.

Location Selection: The XtremIO system then selects the most appropriate location for the data block on the array.This decision is based on various factors, including space availability and optimization algorithms1.

Write Operation: Once the location is determined, the actual write operation takes place.The data block is written to the selected spot on the SSD within the array1.

Reference Count Setting: Finally, a reference count for the data block’s fingerprint is set to “1”. This indicates that there is currently one instance of this data block stored on the array.The reference count is used to manage data deduplication and ensure efficient storage utilization1.

Latency is the performance metric that measures the time taken to complete an operation. It is often described as the delay between a user’s action and the response from the system to that action.In the context of storage systems like XtremIO, latency refers to the time it takes from when a read or write request is issued to when it is completed1.

Here’s a breakdown of the options provided:

A.Bandwidth: Bandwidth measures the amount of data that can be transferred over a network or processed by a system in a given amount of time.It is not a direct measure of time taken to complete an operation2.

B.Latency: Latency is the correct answer as it specifically measures the time delay in completing an operation.It is a critical metric in storage and networking environments, where lower latency is generally indicative of faster system performance1.

C.IOPS (Input/Output Operations Per Second): IOPS is a performance metric that measures the number of read and write operations that can be performed in one second.While it is related to system performance, it does not measure the time taken to complete a single operation2.

D.Throughput: Throughput refers to the rate at which data is processed or transferred.It is similar to bandwidth and measures performance over time but does not specifically measure the time taken to complete an individual operation2.

When "Small IO Alerts" are set to "enabled," an administrator will receive an alert when I/Os smaller than 8 KB are detected.

This setting helps in monitoring and managing small I/O operations that might affect performance and efficiency on the XtremIO array.

Detecting small I/O operations is crucial for maintaining optimal performance, as these can create overhead and impact the array's efficiency.

References:

Dell XtremIO Monitoring Guide

XtremIO Alerts Configuration Documentation

The RESTful API method used to retrieve an existing configuration from a system like XtremIO is the HTTP GET methD.The GET method is used to request data from a specified resource and is one of the most common HTTP methods used in RESTful APIs1.

In the context of the XtremIO REST API, the GET method would be used to access various types of information about the array’s configuration.For example, to retrieve details about the volumes configured on an XtremIO array, you would issue a GET request to the appropriate endpoint of the XtremIO REST API2.

The HTTP POST method, on the other hand, is typically used to send data to the server to create or update a resource.The terms HTTP RETRIEVE and HTTP GATHER are not standard RESTful API methods and are not used in the context of the XtremIO REST API or any RESTful API1.

When configuring QLogic Fibre Channel HBAs in a VMware environment connected to a Dell XtremIO array, the recommended value for the Execution Throttle is 4096. This recommendation is based on best practices to ensure optimal performance and stability in storage environments. Execution Throttle controls the maximum number of concurrent commands that the HBA will issue to a single target, and setting it correctly helps in balancing the load and avoiding congestion on the storage network.

References:

Dell EMC's official documentation on configuring QLogic HBAs recommends setting the Execution Throttle to 4096 to optimize performance and reliability.

Industry best practices suggest similar values to prevent overloading the storage ports and ensure smooth operation.

The XtremIO X2-S storage array is designed to support a significant amount of capacity per volume.Based on the information available, the largest size supported for each volume in a single X-Brick cluster is 64 TB1. Here’s a detailed explanation:

XtremIO X2-S Capacity: The XtremIO X2-S array allows for scaling up with additional SSDs to increase capacity.A single X-Brick can support a considerable number of SSDs, which contributes to the total volume size it can support1.

Volume Size: The volume size refers to the amount of data storage space that can be allocated for use by applications and services.In the case of XtremIO X2-S, the maximum volume size is designed to accommodate large-scale storage needs1.

Configuration: When configuring volumes on the XtremIO X2-S, administrators can specify the desired size up to the maximum supported limit.This ensures that the storage can be tailored to the specific requirements of the environment1.

Largest Supported Size: The option of 64 TB (OB) aligns with the high-capacity design of the XtremIO X2-S array, making it the correct answer for the largest volume size supported per volume on a single X-Brick cluster1.

This ensures that the XMS can effectively communicate with and manage each cluster, regardless of their individual configurations or the specific features they are using.

Compatibility is crucial for the XMS to perform its functions across all clusters, which includes tasks such as monitoring, reporting, and executing management operations.If the XMS code version is not compatible with a particular cluster, it may not be able to manage it properly, leading to potential issues with performance, reliability, and data integrity1.

Therefore, before adding a new XtremIO cluster to an existing XMS setup, the systems administrator must verify that the XMS code version is compatible with the firmware version running on the new cluster, as well as the versions on all other clusters currently being managed.This step is a fundamental requirement to ensure seamless management and operation of the XtremIO storage environment1.

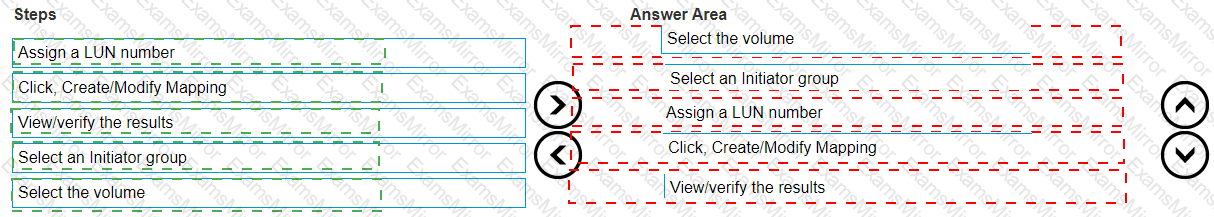

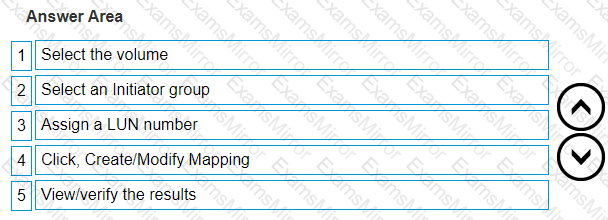

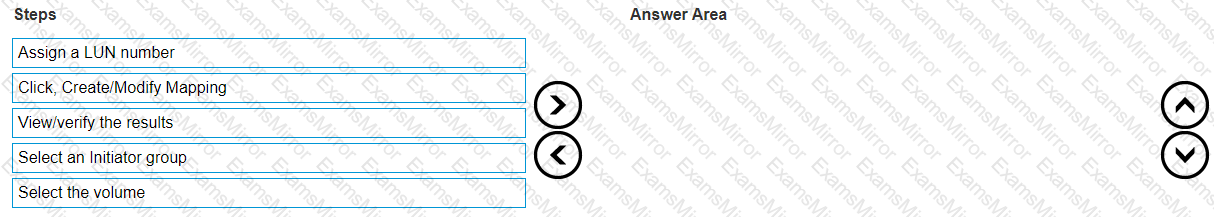

The correct sequence of steps to map a volume to a host using the XtremIO WebUI is:

Select the volume.

Select an initiator group.

Assign a LUN number.

Click ‘Create/Modify Mapping’.

View/verify the results.

To map a volume to a host in the XtremIO WebUI, you would follow these steps:

Select the volume: Navigate to the volume you wish to map and select it. This is the first step because you need to specify which volume you’re working with.

Select an initiator group: Choose the initiator group that corresponds to the host to which you want to map the volume. An initiator group contains one or more initiators that uniquely identify the host in the storage environment.

Assign a LUN number: Specify a Logical Unit Number (LUN) for the volume in this mapping. The LUN is an identifier for the volume in the context of the host to which it’s being mapped.

Click ‘Create/Modify Mapping’: After selecting the volume, initiator group, and assigning a LUN, you’ll execute the command to create the mapping by clicking this button.

View/verify the results: Finally, check the mapping to ensure that it has been successfully created and is functioning as expected.

This sequence of steps ensures that the volume is properly configured and connected to the host, allowing for efficient data management and access within the Dell XtremIO storage system.

The maximum number of volumes allowed in an XtremIO Consistency Group is 512.

Consistency Groups ensure that multiple volumes can be managed and replicated together, maintaining data consistency across all included volumes.

This limit allows for efficient management and scalability of storage resources within the XtremIO environment.

References:

Dell XtremIO Configuration Guide

XtremIO Consistency Group Best Practices

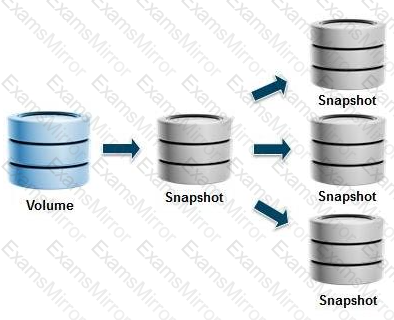

XtremIO uses a Copy-On-Write (COFW) mechanism for snapshots. When a write is performed on a snapshot, the system checks if the data block being written to has been previously written. If it has not, it copies the original data block (from the ancestor snapshot or volume) to a new location before writing the new data to ensure data consistency. This operation only happens once per block for each snapshot, thereby minimizing the performance impact.

References:

Dell's detailed explanation of the XtremIO snapshot functionality emphasizes the efficiency of their COFW mechanism, ensuring minimal performance degradation when creating and writing to snapshots.

XtremIO documentation highlights how snapshots are managed with in-memory metadata, which supports fast creation and access without substantial performance penalties.
