Configuring vSphere Native Multipathing.

For best performance, it is recommended to do the following:

Set the native round robin path selection policy on XtremIO volumes presented to the ESX host.

References: https://itzikr.wordpress.com/2015/12/16/host-configuration-for-vmware-vsphere-on-emc-xtremio/

TPSTUN is a VAAI primitive that enables the array to notify vSphere when a LUN is running out of space due to thin provisioning over-commit. The command causes suspending all virtual machines on that LUN. XtremIO supports this VAAI primitive.

Storage capacity and performance scale linearly, such that two X-Bricks supply twice the IOPS, four X-Bricks supply four times the IOPS, six X-Bricks supply six times the IOPS and eight X-Bricks supply eight times the IOPS of the single X-Brick configuration. However, the latency remains consistently low (less than 1ms) as the system scales out. The sub-millisecond latency is validated by actual test results, and is determined according to the worst-case scenario.

References: Introduction to the EMC XtremIO STORAGE ARRAY (April 2015), page 37

Any copy in the hierarchy tree can be deleted without effecting the parents or children.

Required bandwidth= 100,000 * 8 * 1024 bytes

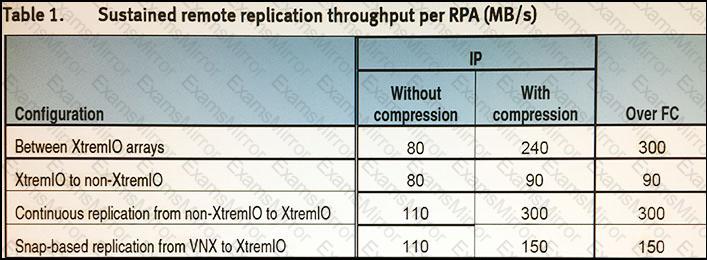

Provided bandwidth between XtremIO arrays with compression over Fiber Channel: 300 * 1024 * 1024 bytes

Required number of RPAs: 100,000 * 8 * 1024 / (300 * 1024 * 1024) = 800,000 / (300 * 1024) = 2.6.

Three RPAs would be enough.

Noting the inefficiencies in VMware’s NMP driver, EMC developed a set of drivers specifically designed to overcome these limitations and improve the performance and reliability of the data passing between an array and a server. EMC developed the PowerPath family of products optimized specifically for Linux, Microsoft Windows, and UNIX Operating Systems as well as PowerPath/VE for VMware vSphere and Microsoft Hyper-V hypervisors.

PowerPath is installed on hosts to provide path failover, load balancing and performance optimization VPLEX engines (or directly to the XtremIO array if VPLEX is not used).

Note: VMware, with the cooperation of its storage partners, developed a Native Multipathing Plug-in (NMP). VMware NMP was designed to distribute the load over all the available paths and provide failover protection in the case of path, port or HBA failure, but it has not been fully optimized to work with the controllers in a storage systems. VMware’s NMP Round Robin policy does not have the intelligence that PowerPath has as PowerPath uses testing and diagnostics to continually monitor an environment to determine the optimal path for queuing requests and will adapt to current conditions.

References:https://www.emc.com/collateral/analyst-reports/emc-taneja-group-powerpath-tb.pdf

The EMC VPLEX family is the next-generation solution for data mobility and access within, across and between data centers.

VPLEX supports two configurations, local and metro. In the case of VPLEX Metro with the optional VPLEX Witness and Cross-Connected configuration, applications continue to operate in the surviving site with no interruption or downtime. Storage resources virtualized by VPLEX cooperate through the stack, with the ability to dynamically move applications and data across geographies and service providers.

EMC XtremIO(All-Flash) : SAN, inline deduplication, 8K fixed chunk size;

References:https://www.linkedin.com/pulse/deduplication-fake-reality-mike-uzan

The XtremIO's RESTful API allows HTTPS-based interface for automation, orchestration, query and provisioning of the system. With the API, third party applications can be used to control and fully administer the array.

Normally you would access the API using some form of programming/scripting language, such as Python or Perl. However for the purposes of learning or testing concepts there are a number of tools that work better, such as HTTPRrequester and curl.

* Curl is a command-line tool that exists in all Linux distributions, and is available for most other Unix OSes as well as Windows.

To use curl to access XtremIO you’ll need to pass it a few options, such as the username/password to access the array (any valid account on the XtremIO XMS will work), the URL of the API, and potentially a few options such as -k to tell curl not to validate the SSL certificate (presuming you don’t have a valid certificate installed), and -s (silent) to stop curl displaying it’s progress as it downloads the response.

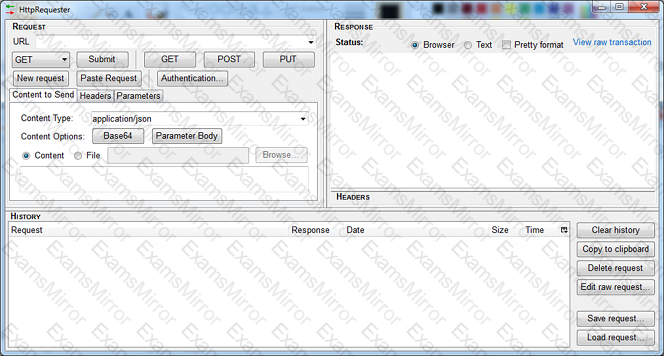

* HTTPRequester is a browser extension that is available for both Chrome and Firefox.

As with for curl, you’ll need to provide a username/password, which is done by clicking on the “Authentication…” box, which adds two boxes below the URL for the username and the password.

References:https://blog.docbert.org/using-the-xtremio-rest-api-part-1/
