Windows Firewall Blocking Traffic:

The firewall on the Windows VM might be configured to block incoming ICMP traffic (ping requests). By default, Windows Firewall is set to block ICMP traffic, which could be a reason for the connectivity issue (Option A).

Security Group Configuration:

AWS Security Groups act as virtual firewalls for instances. If there is no rule allowing ICMP traffic in the security group attached to the Windows server, the ping requests from FortiGate will be blocked. An inbound allow ICMP rule must be added to the security group to permit this traffic (Option D).

Other Options Analysis:

Option B is incorrect because the default AWS Network Access Control List (NACL) allows all inbound and outbound traffic.

Option C is incorrect as AWS does allow ICMP traffic between subnets if properly configured with Security Groups and NACLs.

References:

AWS Security Groups:AWS Security Groups

Windows Firewall Configuration:Windows Firewall

Regional Deployment:

For a global organization with cloud networks in multiple AWS regions, a separate FortiGate Cloud-Native Firewall (CNF) instance is required for each AWS region to provide localized protection and meet compliance requirements. This ensures that each region has its own dedicated NGFW protection tailored to its specific needs (Option B).

Multi-Account Association:

FortiGate CNF supports associating multiple AWS accounts with a single CNF instance. This feature is beneficial for organizations that operate in a multi-account setup, allowing centralized management and security policies across different accounts (Option C).

Other Options Analysis:

Option A is incorrect because AWS Firewall Manager is a different service and is not required to provision a CNF instance.

Option D is incorrect because a single CNF instance cannot protect multiple AWS regions due to regional isolation in AWS.

References:

FortiGate CNF Documentation: FortiGate CNF

AWS Multi-Account Best Practices:AWS Multi-Account

Enhanced Redundancy:

Deploying an active-passive (A-P) FortiGate cluster across two availability zones (AZs) provides enhanced redundancy by ensuring that if one AZ fails, the other can take over, maintaining high availability and uptime.

IP Addressing and Subnetting:

One of the major differences when deploying across different AZs compared to the same AZ is that IP addressing and subnetting are not shared between the instances. Each AZ operates independently with its own set of subnets and IP addresses, which must be managed separately (Option D).

Other Options Analysis:

Option A is incorrect because the FortiGate devices in an A-P setup do not act as a single logical instance; they operate in a failover setup.

Option B is incorrect because secondary IP address configuration is used in both single AZ and multi-AZ deployments.

Option C is incorrect because the number of subnets required is typically more when deploying across multiple AZs for redundancy.

References:

FortiGate HA Configuration Guide: FortiGate HA

AWS Availability Zones:AWS AZ

Invalid Credentials:

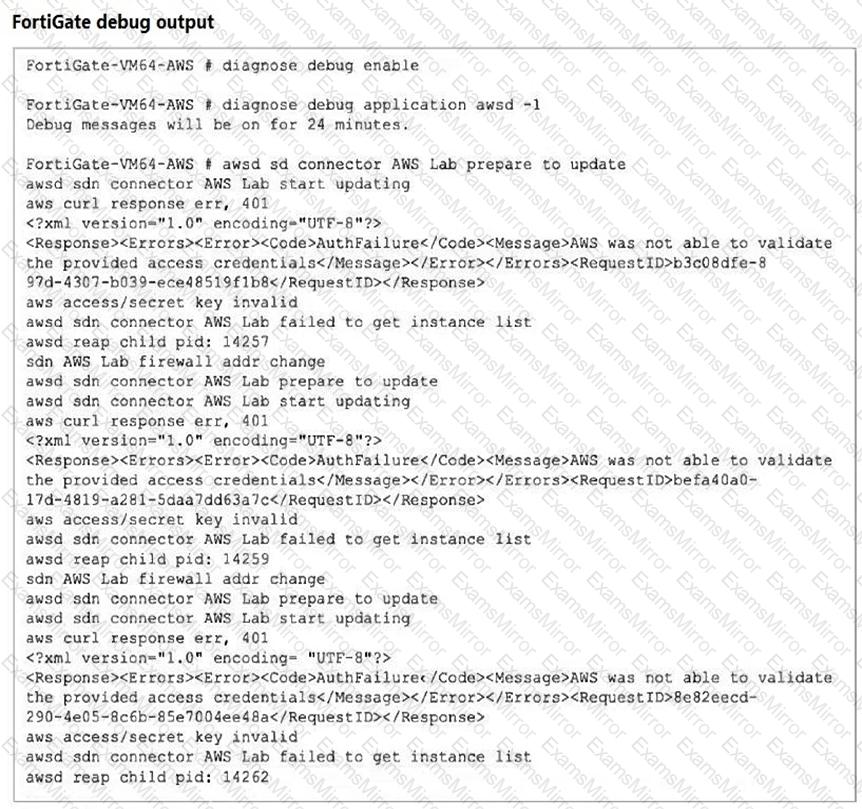

The debug output shows an "AuthFailure" error, indicating that AWS was not able to validate the provided access credentials. This usually points to incorrect or invalid AWS access or secret keys configured in the AWS Lab SDN connector (Option C).

Clock Skew:

Another common reason for authentication failures in AWS API calls is a clock skew between the FortiGate device and AWS. AWS requires that the system time of the client making the API call is synchronized with its own time, within a small margin. If there is a significant time difference, AWS will reject the credentials (Option B).

Other Options Analysis:

Option A is incorrect because the AWS API supports XML version 1.0.

Option D is incorrect as the error message does not indicate an issue with connecting on port 401.

Option E is incorrect because the error is related to authentication, not the absence of instances.

References:

AWS API Authentication:AWS API Security

FortiGate AWS Integration Guide: FortiGate AWS Integration

Understanding Fortinet HA CloudFormation Template:

The Fortinet High Availability (HA) CloudFormation template is used to automate the deployment and configuration of FortiGate instances in AWS.

Staging and Bootstrapping FortiGate:

Staging involves preparing the necessary configuration files and resources needed for deployment.

Bootstrapping is the process of automatically configuring FortiGate instances upon deployment.

S3 Bucket Requirement:

The configuration files required for staging and bootstrapping are typically stored in an S3 bucket.

Since the deployment is in the Ohio (US-East-2) region, it is recommended to host the S3 bucket in the same region to minimize latency and ensure regional compliance.

Comparison with Other Options:

Option A is incorrect because while an S3 bucket is required, it should be in the same region (US-East-2).

Option B is incorrect as the template does not automatically create the S3 bucket.

Option D is incorrect as DynamoDB is not used for staging and bootstrapping in this scenario.

References:

Fortinet Documentation: FortiGate on AWS

AWS S3 Documentation:AWS S3

ENI Attachment Across Availability Zones:

Elastic Network Interfaces (ENIs) are associated with a specific Availability Zone. They cannot be attached to instances that are in a different Availability Zone than where the ENI was created. Therefore, an ENI created in Availability Zone 1 cannot be attached to an instance in Availability Zone 2 (Option A).

ENI Reattachment:

ENIs can be detached from one instance and reattached to another instance within the same Availability Zone. This flexibility allows fornetwork interface configuration to be preserved across instance changes within the same AZ.

Other Options Analysis:

Option B is incorrect because an ENI can be reattached to any instance in the same AZ.

Option C is incorrect as the primary ENI (eth0) cannot be detached from an instance.

Option D is incorrect because when an ENI is moved, the traffic is directed to the new instance, and there is no redirection to the old instance.

References:

AWS ENI Documentation:Elastic Network Interfaces

AWS Networking Best Practices:AWS Networking

Instance Metadata Traffic:

VPC flow logs do not capture traffic to and from the link-local address 169.254.169.254, which is used for accessing instance metadata (Option A).

DHCP Traffic:

DHCP traffic is not captured by VPC flow logs. This is because DHCP relies on broadcast and multicast traffic, which is excluded from flow logs (Option B).

Security Monitoring:

VPC flow logs can be used as a security tool to monitor the traffic that is reaching the instances. By analyzing the flow logs, administrators can detect suspicious activities and troubleshoot connectivity issues (Option D).

Other Considerations:

Option C is incorrect because flow logs do capture traffic to the reserved IP address of the default VPC router.

Option E is incorrect as VPC flow logs do not provide real-time log streams but rather capture data at intervals and deliver them to CloudWatch or S3.

References:

AWS VPC Flow Logs Documentation:VPC Flow Logs

AWS Networking and Security:AWS Security Monitoring

SSL Inspection Requirement:

FortiWeb Cloud provides comprehensive SSL inspection capabilities, allowing it to decrypt and inspect HTTPS traffic for threats. This is a crucial feature for many organizations that need to ensure all traffic, including encrypted traffic, is thoroughly inspected (Option C).

Comparison with AWS WAF:

While AWS WAF with Fortinet managed rules provides robust protection, it might not offer the same level of SSL inspection capabilities as FortiWeb Cloud.

Other Considerations:

Option A (Manual WAF signature updates) is incorrect because FortiWeb Cloud updates signatures automatically.

Option B (PCI 6.6 compliance) is a general requirement for any WAF solution, not specific to choosing FortiWeb Cloud over AWS WAF.

Option D (Traffic inspection for malware) is a feature provided by both FortiWeb Cloud and AWS WAF with Fortinet managed rules.

References:

FortiWeb Cloud Overview: FortiWeb Cloud

AWS WAF Documentation:AWS WAF

VPC-Scoped Protection:

When deploying a FortiWeb VM inside a Virtual Private Cloud (VPC), the security and protection it offers are limited to the applications and traffic that pass through that specific VPC. This means that any applications outside this VPC will not benefit from the protection of FortiWeb VM (Option D).

Comparison with FortiWeb Cloud:

FortiWeb Cloud, being a cloud-native WAF-as-a-Service, can protect applications regardless of their VPC location, offering broader and more flexible protection capabilities.

Other Options Analysis:

Option A is incorrect because both FortiWeb VM and FortiWeb Cloud protect against OWASP Top 10 threats.

Option B is incorrect because FortiWeb VM does support zero-day protection.

Option C is incorrect as the performance of FortiWeb VM in applying advanced WAF protection is not inherently slower compared to FortiWeb Cloud.

References:

FortiWeb Overview: FortiWeb

Implicit Deny Rule:

Similar to traditional firewall rule sets, FortiGate Cloud-Native Firewall (CNF) includes an implicit deny rule at the bottom of each policy set. This means any traffic that does not match an existing rule in the policy set is automatically denied (Option A).

Policy Set Creation:

When a new CNF instance is deployed, a new policy set is created specifically for that instance. This ensures that each CNF instance can have a tailored set of security policies based on the specific needs of the deployment (Option C).

Other Options Analysis:

Option B is incorrect because policy sets do not require manual synchronization; they are applied automatically once configured.

Option D is incorrect as a single CNF instance operates with a single policy set at a time.

References:

FortiGate CNF Documentation: FortiGate CNF

Firewall Policy Best Practices: Fortinet Policies
