Questions # 1:

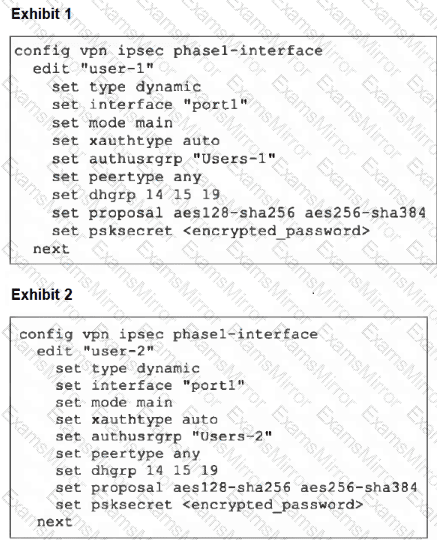

Refer to the exhibits, which contain the partial configurations of two VPNs on FortiGate.

Question # 1

An administrator has configured two VPNs for two different user groups. Users who are in the Users-2 group are not able to connect to the VPN. After running a diagnostics command, the administrator discovers that FortiGate is not matching the user-2 VPN for members of the Users-2 group.

Which two changes must the administrator make to fix the issue? (Choose two.)

Options:

A.

Change to aggressive mode on both VPNs.

B.

Enable XAuth on both VPNs.

C.

Use different pre-shared keys on both VPNs.

D.

Set up specific peer IDs on both VPNs.

Questions # 2:

During which phase of IKEv2 does the Diffie-Helman key exchange take place?

Options:

A.

IKE_Req_INIT

B.

Create_CHILD_SA

C.

IKE_Auth

D.

IKE_SA_INIT

Questions # 3:

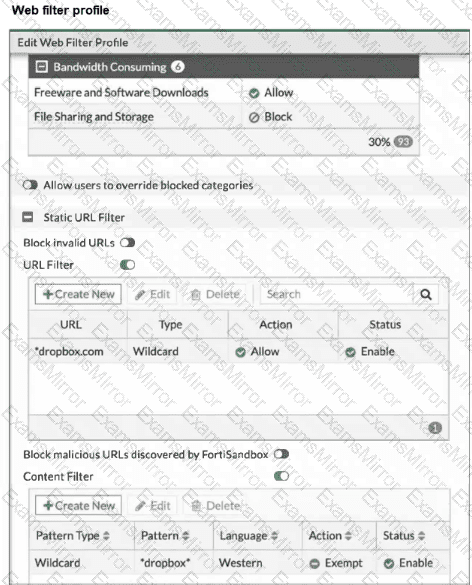

Refer to the exhibit, which shows a partial web filter profile configuration.

Question # 3

The URL www.dropbox.com is categorized as File Sharing and Storage.

Which action does FortiGate take if a user attempts to access www.dropbox.com?

Options:

A.

FortiGate blocks the connection as an invalid URL.

B.

Based on the URL Filter configuration, FortiGate allows the connection.

C.

FortiGate blocks the connection, based on the FortiGuard category-based filter configuration.

D.

Based on the Web Content filter configuration, access to www.dropbox.com would be exempted.

Questions # 4:

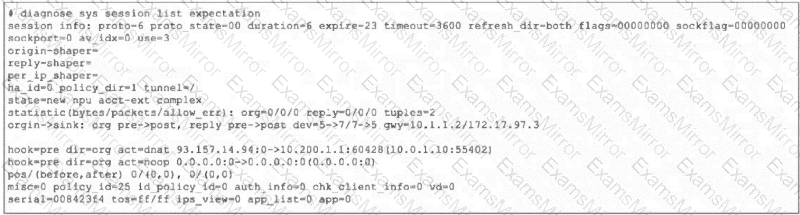

Refer to the exhibit, which shows the partial output of a diagnose command.

Question # 4

Which two conclusions can you draw from the output shown in the exhibit? (Choose two.)

Options:

A.

FortiGate will drop the expected traffic if it does not arrive within 23 seconds.

B.

Clearing the master session has no impact on the expectation session.

C.

This is a pinhole session to allow traffic for a TCP protocol that dynamically assigns TCP ports.

D.

The session is checked against firewall policy ID 25.

Questions # 5:

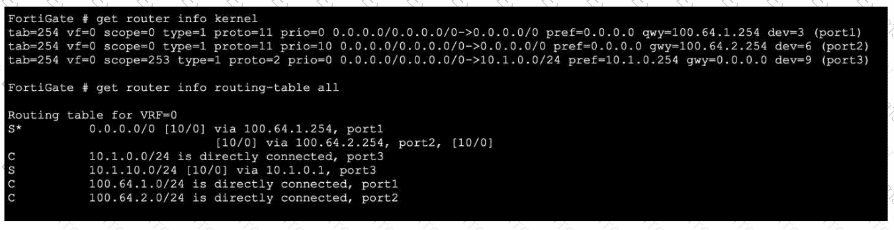

Refer to the exhibit, which shows partial outputs from two routing debug commands.

Question # 5

Which change must an administrator make on FortiGate to route web traffic from internal users to the internet, using ECMP?

Options:

A.

Set snat-route-change to enable.

B.

Set the priority of the static default route using port2 to 1.

C.

Set preserve-session-route to enable.

D.

Set the priority of the static default route using port1 to 10.

Questions # 6:

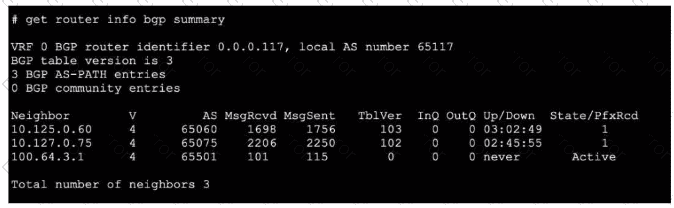

Refer to the exhibit, which shows the output of a BGP debug command.

Question # 6

What can you conclude about the router in this scenario?

Options:

A.

The router 100.64.3.1 needs to update the local AS number in its BGP configuration in order to bring up the 8GP session with the local router.

B.

An inbound route-map on local router is blocking the prefixes from neighbor 100.64.3.1.

C.

All of the neighbors displayed are part of a single BGP configuration on the local router with the neighbor-range set to a value of 4.

D.

The BGP session with peer 10.127.0.75 is up.

Questions # 7:

Refer to the exhibit, which shows a truncated output of a real-time LDAP debug.

Question # 7

What two conclusions can you draw from the output? (Choose two.)

Options:

A.

The name of the configured LDAP server is Lab.

B.

The user is authenticating using CN=John Smith.

C.

FortiOS is able to locate the user in step 3 (Bind Request) of the LDAP authentication process.

D.

FortiOS is performing the second step (Search Request) in the LDAP authentication process.

Questions # 8:

Which statement about parallel path processing is correct (PPP)?

Options:

A.

PPP chooses from a group of parallel options lo identity the optimal path tor processing a packet.

B.

Only FortiGate hardware configurations affect the path that a packet takes.

C.

PPP does not apply to packets that are part of an already established session.

D.

Software configuration has no impact on PPP.

Questions # 9:

An administrator wants to capture encrypted phase 2 traffic between two FotiGate devices using the built-in sniffer.

If the administrator knows that there Is no NAT device located between both FortiGate devices, which command should the administrator run?

Options:

A.

diagnose sniffer packet any 'udp port 500'

B.

diagnose sniffer packet any 'lp proto 50'

C.

diagnose sniffer packet any 'udp port 4500'

D.

diagnose sniffer packet any 'ah'

Questions # 10:

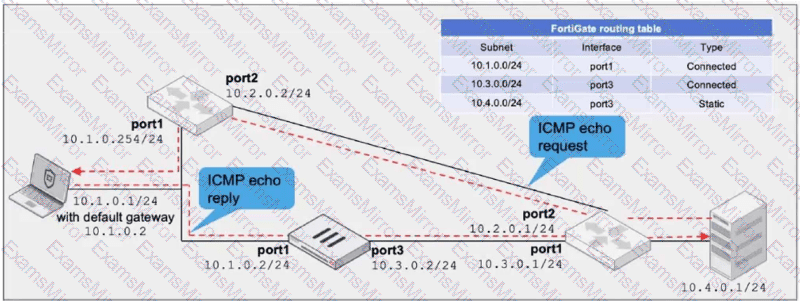

Refer to the exhibit, which a network topology and a partial routing table.

Question # 10

FortiGate has already been configured with a firewall policy that allows all ICMP traffic to flow from port1 to port3.

Which changes must the administrator perform to ensure the server at 10.4.0.1/24 receives the echo reply from the laptop at 10.1.0.1/24?

Options:

A.

Enable asymmetric routing under config system settings.

B.

Change the configuration from strict RPF check mode to feasible RPF check mode.

C.

A firewall policy that allows all ICMP traffic from port3 to port1.

D.

Modify the default gateway on the laptop from 10.1.0.2 to 10.2.0.2.
