The routing table shown in the exhibit lists all the routes known to the FortiGate device. It includes routes learned through different protocols such as BGP, OSPF, and static routes.

The entryS * 0.0.0.0/0 [20/0] via 10.200.2.254, port2, [5/0]indicates that there is a static route to the default gateway (0.0.0.0/0) throughport2with a gateway IP of10.200.2.254.

The asterisk*next to the route signifies that this route is selected and currently active in the forwarding information base (FIB). This means the FortiGate uses this route to forward packets destined for addresses not otherwise specified in the routing table.

References

Fortinet Documentation on Routing Table

Fortinet Community Discussion on Routing

Kernel Slabs Overview:

The slab allocator in the Linux kernel is used for efficient memory management. It groups objects of the same type into caches, which are divided into slabs.

Each slab contains multiple objects and helps to minimize fragmentation and enhance memory allocation efficiency.

Interpreting the Exhibit:

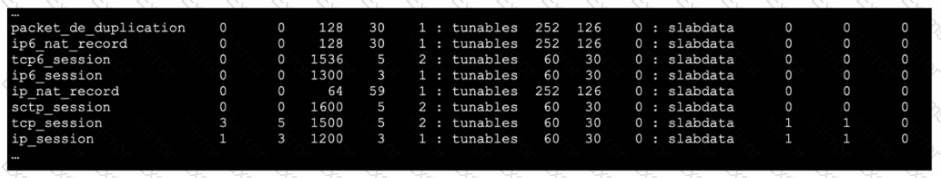

The exhibit shows output related to various kernel slab caches.

The line forip6_sessionindicates that there are 1300 kB allocated for this slab, which means the total memory size allocated for IPv6 session objects in the kernel is 1300 kB.

References:

Fortinet Community: Explanation of kernel slab allocation and usage​(Welcome to the Fortinet Community!)​​(Hammertux)​.

Linux Kernel Documentation: Slab Allocator details​(Hammertux)​.

The exhibit shows log entries from the FSSO (Fortinet Single Sign-On) collector agent logs. These logs provide insights into why there might be issues with the collector agent connecting to workstations or the registry.

Remote registry is not running on the workstation: The failure to connect to the workstation registry can occur if the remote registry service on the workstation is not running. This service needs to be active to allow the FSSO collector agent to query the workstation for user login information.

DNS resolution is unable to resolve the workstation name: The logs indicate a failure in connecting to a workstation by name, which can happen if the DNS server is unable to resolve the workstation's name to an IP address. This is a common issue when the DNS settings are incorrect or the workstation name is not properly registered in the DNS.

A firewall is blocking traffic to port 139 and 445: Communication issues to the workstation or registry are often caused by firewall rules blocking essential ports. Ports 139 (NetBIOS) and 445 (SMB) are critical for these operations. Ensure these ports are open on both the workstation and any intermediate firewalls.

References

Fortinet Community Documentation on FSSO Troubleshooting

Fortinet Community on FSSO Collector Agent Issues

Understanding protocol states:

proto_state=00: Indicates no traffic or a closed session.

proto_state=01: Typically indicates one-way ICMP traffic or a partially established TCP session.

proto_state=10: Indicates an established TCP session, where the session has completed the three-way handshake and both sides can send and receive data.

proto_state=11: Often indicates a fully established and active bidirectional session.

Explanation of correct answer:

proto_state=10is the correct indication for an established TCP session as it signifies that the session is fully established and active.

References

Fortinet Network Security 7.2 Support Engineer Documentation

Fortinet Firewall Protocol State Documentation

Conserve Mode Activation:

FortiGate enters conserve mode to prevent system crashes when the memory usage reaches critical levels. The "red threshold" is the point at which FortiGate starts dropping new sessions to conserve memory.

When the system memory usage exceeds this threshold, the FortiGate will block new sessions that require significant memory resources, such as those needing content inspection.

Exiting Conserve Mode:

The "green threshold" is the memory usage level below which FortiGate exits conserve mode and resumes normal operation.

Once the system memory usage drops below this threshold, FortiGate will start allowing new sessions again.

References:

Fortinet Community: Understanding conserve mode and its thresholds​(Welcome to the Fortinet Community!)​​(Welcome to the Fortinet Community!)​.

Fortinet Documentation: Memory conserve mode and thresholds​(Welcome to the Fortinet Community!)​​(Fortinet GURU)​.

The commanddiagnose test application ipsmonitor 5is used to restart all IPS (Intrusion Prevention System) engines and monitors on the FortiGate device. This command is part of the diagnostic tools available for troubleshooting and maintaining the IPS functionality on the FortiGate.

Running this command forces the IPS system to reset and reinitialize, which can be useful in situations where the IPS functionality appears to be malfunctioning or not responding correctly.

This action helps in clearing any issues that might have arisen due to internal errors or misconfigurations, ensuring that the IPS engines operate correctly after the restart.

SNI and Certificate Mismatch:When the Server Name Indication (SNI) does not match either the Common Name (CN) or any of the Subject Alternative Names (SAN) in the server certificate, FortiGate's default behavior is to consider this as an invalid SSL/TLS configuration.

Default Action:FortiGate, under default settings for SSL certificate inspection, will close the connection to prevent potential security risks associated with mismatched certificates.

References:

Fortinet Community: SSL Certificate Inspection Configuration and Behavior​(Welcome to the Fortinet Community!)​.

OSPF Interface Network Types:

The network types of the interfaces on both FortiGate devices must match. Common network types include broadcast, point-to-point, and non-broadcast multi-access (NBMA).

Authentication Settings:

Both devices must have matching authentication settings (if authentication is used). This includes the same authentication type (none, simple password, or MD5) and the same password or key.

OSPF Router IDs:

Each OSPF router must have a unique router ID within the OSPF domain. The router ID is typically an IPv4 address selected from one of the router's interfaces or manually configured.

Link Costs and Interface Priority:

While link costs and interface priorities are important for route selection and designated router (DR) elections, they do not prevent OSPF adjacency formation if they differ.

References

Fortinet Network Security 7.2 Support Engineer Documentation

OSPF Configuration Guides

Logon Event on Collector Agent:The debug output indicates that the logon event is recorded, showing that the collector agent on Windows is logging user activities and transmitting this data to the FortiGate.

DC Agent Mode:The presence of detailed logon events and their corresponding metadata, such as the domain and workstation information, suggests that the FortiGate is using DC agent mode. This mode involves an agent installed on the Domain Controller (DC) to capture and forward logon events.

References:

Fortinet Community: How FSSO Works and Troubleshooting Steps​(Welcome to the Fortinet Community!)​​(Fortinet GURU)​.

IKE (Internet Key Exchange):IKE is a protocol used to set up a security association (SA) in the IPsec protocol suite. It is utilized to negotiate, create, and manage SAs.

NAT-T (Network Address Translation-Traversal):NAT-T is used to enable IPsec VPN traffic to pass through NAT devices. It encapsulates IPsec ESP packets into UDP packets.

Transport Protocol:Both IKE and IKE NAT-T use UDP as their transport protocol.

Port Numbers:By default, IKE uses UDP port 500. NAT-T typically uses UDP port 4500. However, these port numbers can be configured as needed.

References:

Fortinet Network Security Support Engineer Study Guide for FortiOS 7.2​(Fortinet Docs)​​(ebin.pub)​.

Fortinet Documentation on IPsec VPN Configuration​(Fortinet Docs)​.
