When adding the Amazon Web Services (AWS) account to the FortiCNP, you must follow these three mandatory configuration steps:

Add AWS accounts through FortiCNP. This is the first step to enable cloud protection for your AWS account. You can add one or multiple accounts automatically or manually. You need to provide the AWS account ID and a name for the account. You also need to select the optional permissions to be granted to FortiCNP as needed1.

Accept FortiCNP to create CloudTrail for the account. This is required for FortiCNP to collect and analyze the AWS API calls and events. You can choose to let FortiCNP create a CloudTrail for the account or use an existing one. You also need to specify the aggregation region for the CloudTrail1.

Launch the CloudFormation template. This is required for FortiCNP to create a stack and a role in your AWS account. The stack contains the resources that FortiCNP needs to access and monitor your AWS account. The role allows FortiCNP to assume it and perform actions on your behalf. You need to enter a custom or default role name and a unique UUID that is designated for your company on FortiCNP1.

References: Add AWS Account Automatically

https://docs.fortinet.com/document/forticnp/22.4.a/online-help/246021/add-aws-account-automatically

B. The default network ACL is configured to allow all traffic. This means that when you create a VPC, AWS automatically creates a default network ACL for that VPC, and associates it with all the subnets in the VPC1. By default, the default network ACL allows all inbound and outbound IPv4 traffic and, if applicable, IPv6 traffic1. You can modify the default network ACL, but you cannot delete it1. C. Network ACLs are stateless, and inbound and outbound rules are used for traffic filtering. This means that network ACLs do not keep track of the traffic that they allow or deny, and they evaluate each packet separately1. Therefore, you need to create both inbound and outbound rules for each type of traffic that you want to allow or deny1. For example, if you want to allow SSH traffic from a specific IP address to your subnet, you need to create an inbound rule to allow TCP port 22 from that IP address, and an outbound rule to allow TCP port 1024-65535 (the ephemeral ports) to that IP address2.

The other options are incorrect because:

You can use network ACL and security group at the same time. Network ACL and security group are two different types of security layers for your VPC that can work together to control traffic3. Network ACL acts as a firewall for your subnets, while security group acts as a firewall for your instances3. You can use both of them to create a more granular and effective security policy for your VPC.

Network ACLs are not tied to an instance. Network ACLs are associated with subnets, not instances1. This means that network ACLs apply to all the instances in the subnets that they are associated with1. You cannot associate a network ACL with a specific instance. However, you can associate a security group with a specific instance or multiple instances3.

According to the Terraform documentation for installing Terraform on Linux1, you need to download a zip archive that contains a single binary file called terraform. You need to unzip the archive and move the binary file to a directory that is included in your system’s PATH environment variable, such as /usr/local/bin. This way, you can run the terraform command from any directory without specifying the full path1.

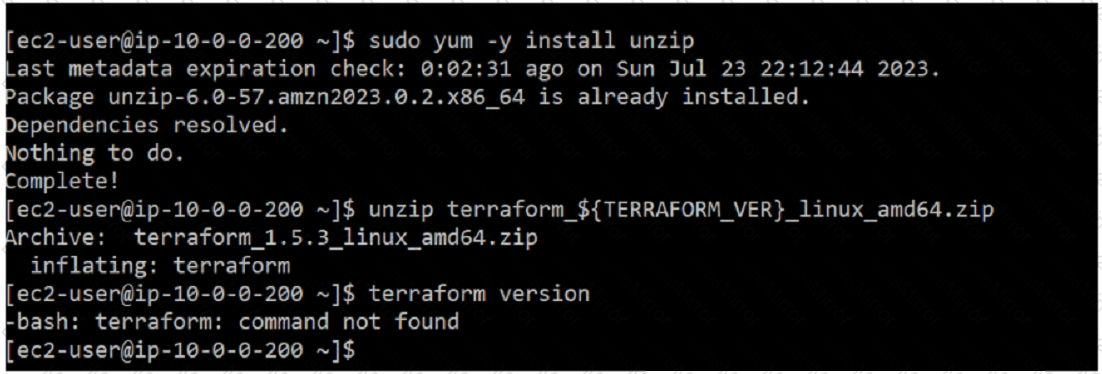

If you do not move the binary file to the bin directory, you will get a command not found error when you try to run the terraform version command, as shown in the screenshot. To fix this error, you need to move the binary file to the bin directory or specify the full path of the binary file when running the command1.

1: Install Terraform | Terraform - HashiCorp Learn

Terraform manages and tracks the state of infrastructure resources through a file known as terraform.tfstate. This file is automatically created by Terraform and is updated after the application of a Terraform plan to capture the current state of the resources.

State File Purpose: The terraform.tfstate file contains a JSON object that records the IDs and properties of resources Terraform manages, so that it can map real-world resources to your configuration, keep track of metadata, and improve performance for large infrastructures.

State File Management: This file is crucial for Terraform to perform resource updates, deletions, and for creating dependencies. It's essentially the 'source of truth' for Terraform about your managed infrastructure and services.

References: This behavior is documented in Terraform's official documentation, which explains how the terraform.tfstate file is used to keep track of the infrastructure Terraform is managing.

A VPC attachment is the type of attachment that allows you to connect a VPC to a TGW and advertise routes through BGP. A VPC attachment creates a VPN connection between the VPC and the TGW, and enables dynamic routing with BGP. A connect attachment is used to connect a VPN or Direct Connect gateway to a TGW. A route attachment is not a valid type of attachment for TGW. A GRE attachment is used to connect a FortiGate device to a TGW using GRE tunnels. References:

Creating the TGW and related resources

Configuring TGW route tables

FortiGate Public Cloud 7.2.0 - Fortinet Documentation

Updating the route table and adding an IAM policy

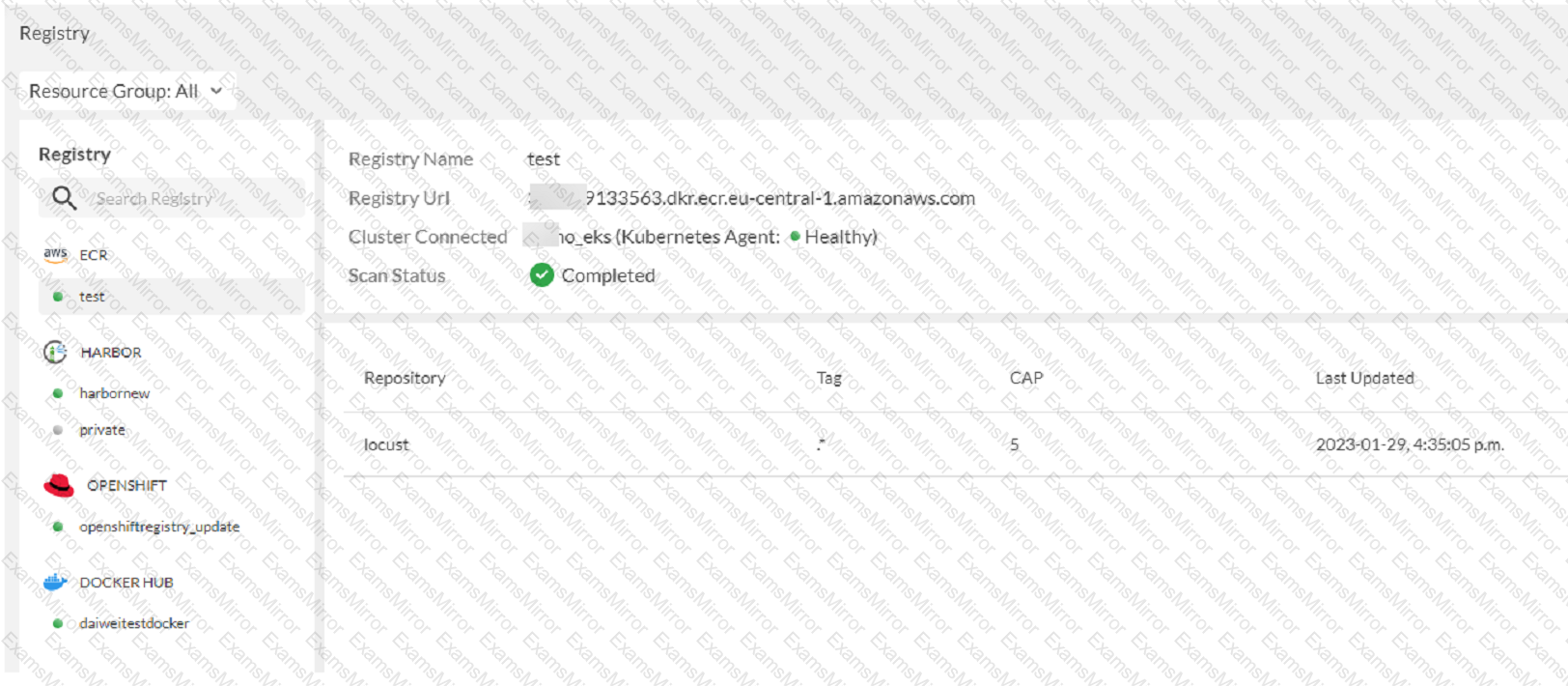

The exhibit shows the results of a FortiCNP registry scan, which is part of the FortiCNP container protection. FortiCNP’s Container Protection provides deep visibility into the security posture of container registries and images1. The registry scan utilizes Common Vulnerabilities and Exposures (CVE) index regularly updated by NVD to detect underlying vulnerabilities, security flaws, and provides security best practices2. The registry scan is performed at the registry level, and it can scan all images in a repository if the Tag section is left blank when adding a repository2. The CAP section stands for Container Assurance Policy, which defines the minimum number of images to be scanned per repository3. Therefore, the correct statements are A and C. References: Container Image Scan | FortiCNP 22.3.a, FortiCNP, Cloud Native Application Protection Platform | FortiCNP

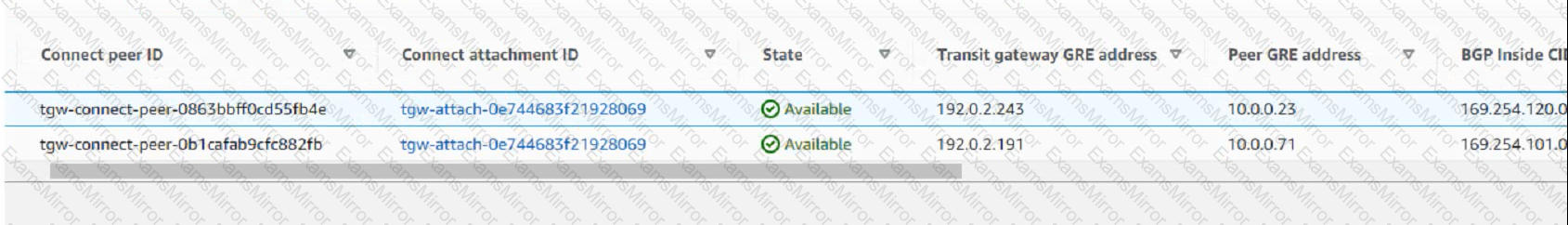

A. The peer GRE address is the FortiGate external interface IP address. This is the IP address of the FortiGate interface that is connected to the transit gateway attachment subnet1. This IP address is used to establish the GRE tunnel between the FortiGate and the transit gateway2. B. The Transit Gateway GRE address is auto-generated. This is the IP address of the transit gateway that is used to establish the GRE tunnel with the FortiGate2. This IP address is automatically assigned by AWS from the Transit Gateway CIDR range that you specify when you create the Connect attachment3.

The other options are incorrect because:

The BGP inside CIDR blocks cannot be any CIDR block with /29. They must be a /29 CIDR block from the 169.254.0.0/16 range for IPv4, or a /125 CIDR block from the fd00::/8 range for IPv64. These are the inside IP addresses that are used for BGP peering over the GRE tunnel4.

The Peer GRE address is not the FortiGate internal interface IP address. The internal interface IP address is used to route traffic from the FortiGate to the VPC subnet where the third-party appliance (such as SD-WAN) is located1. The Peer GRE address is used to route traffic from the FortiGate to the transit gateway over the GRE tunnel2.

B. It is recommended to enable NAT on FortiGate policies. This is because the Azure load balancer uses a hash-based algorithm to distribute traffic to the FortiGate instances, and it relies on the source and destination IP addresses and ports of the packets1. If NAT is not enabled, the source IP address of the packets will be the same as the load balancer’s frontend IP address, which will result in uneven distribution of traffic and possible asymmetric routing issues1. Therefore, it is recommended to enable NAT on the FortiGate policies to preserve the original source IP address of the packets and ensure optimal load balancing and routing1. D. It supports session synchronization for handling asynchronous traffic. This means that the FortiGate instances can synchronize their session tables with each other, so that they can handle traffic that does not follow the same path as the initial packet of a session2. For example, if a TCP SYN packet is sent to FortiGate A, but the TCP SYN-ACK packet is sent to FortiGate B, FortiGate B can forward the packet to FortiGate A by looking up the session table2. This feature allows the FortiGate instances to handle asymmetric traffic that may occur due to the Azure load balancer’s hash-based algorithm or other factors.

The other options are incorrect because:

It does not use the vdom-exception command to exclude the configuration from being synced. The vdom-exception command is used to exclude certain configuration settings from being synchronized between FortiGate devices in a cluster or a high availability group3. However, in this scenario, the FortiGate devices are not in a cluster or a high availability group, but they are standalone devices with standalone configuration synchronization enabled. This feature allows them to synchronize most of their configuration settings with each other, except for some settings that identify the FortiGate to the network, such as the hostname.

It does not use the FGCP protocol. FGCP stands for FortiGate Clustering Protocol, which is used to synchronize configuration and state information between FortiGate devices in a cluster or a high availability group. However, in this scenario, the FortiGate devices are not in a cluster or a high availability group, and they use standalone configuration synchronization instead of FGCP.
