Pass the Fortinet NSE 7 Network Security Architect NSE7_ZTA-7.2 Questions and answers with ExamsMirror

Fortinet ZTNA solution is a zero-trust network access approach that provides secure and granular access to applications hosted anywhere, for users working from anywhere. The three core products that are mandatory in the Fortinet ZTNA solution are:

FortiClient EMS: This is the central management console that orchestrates the ZTNA policies and provides visibility and control over the endpoints and devices. It also integrates with FortiAuthenticator for identity verification and FortiAnalyzer for reporting and analytics.

FortiClient: This is the endpoint agent that supports ZTNA, VPN, endpoint protection, and vulnerability scanning. It establishes encrypted tunnels with the ZTNA proxy on the FortiGate and provides device posture and single sign-on (SSO) capabilities.

FortiGate: This is the next-generation firewall that acts as the ZTNA proxy and enforces the ZTNA policies based on user identity, device posture, and application context. It also provides security inspection and threat prevention for the ZTNA traffic.

References := Zero Trust Network Access (ZTNA) - Fortinet, Zero-Trust Network Access Solution | Fortinet, and Fortinet ZTNA | Fortinet Case Study.

 Based on the exhibit, the true statements about the hr endpoint are:

B. The endpoint is marked as a rogue device: The "w" symbol typically indicates a warning or an at-risk status, which can be associated with an endpoint being marked as rogue due to failing to meet the security compliance requirements or other reasons.

C. The endpoint has failed the compliance scan: The "w" symbol can also signify that the endpoint has failed a compliance scan, which is a common reason for an endpoint to be marked as at risk.

In the scenario where FortiNAC has alarm mappings configured for MDM (Mobile Device Management) compliance failure and FortiClient EMS (Endpoint Management System) is integrated as an MDM connector, the typical response when an endpoint is quarantined by FortiClient EMS is to isolate the host in the registration VLAN. This action is consistent with FortiNAC's approach to network access control, focusing on ensuring network security and compliance. By moving the non-compliant or quarantined host to a registration VLAN, FortiNAC effectively segregates it from the rest of the network, mitigating potential risks while allowing for further investigation or remediation steps.References:FortiNAC documentation, MDM Compliance and Response Actions.

 User/host profiles are used to map sets of hosts and users to different types of policies or rules on FortiNAC. Among the options given, network access and endpoint compliance are the two types of configuration that can be associated with a user/host profile. Network access configuration determines the VLAN, CLI configuration or VPN group that is assigned to a host or user based on their profile. Endpoint compliance configuration defines the policies that checkthe host or user for compliance status, such as antivirus, firewall, patch level, etc. Service connectors and inventory are not types of configuration, but features of FortiNAC that allow integration with other services and devices, and collection of host and user data, respectively. References := User/host profiles | FortiNAC 9.4.0 - Fortinet Documentation and User/host profiles | FortiNAC 9.4.0 - Fortinet Documentation

Endpoint compliance is defined in the policy configuration stage of FortiNAC. Endpoint compliance policies specify which endpoint compliance configuration and user/host profile are applied to a host based on its location, user, and device type. Endpoint compliance configurations define whether a host is required to download an agent and undergo a scan, permitted access with no scan, or denied access. The scan parameters and security actions are also configured in the endpoint compliance configurations. Therefore, to define endpoint compliance, you need to create and assign endpoint compliance policies and configurations in the policy configuration stage of FortiNAC. References := https://docs.fortinet.com/document/fortinac/9.4.0/administration-guide/985922/endpoint-compliance-policies

https://docs.fortinet.com/document/fortinac/9.4.0/fortinac-manager/161887/endpoint-compliance-configurations

When FortiClient EMS is configured as an MDM connector on FortiNAC, it allows FortiNAC to obtain host information from FortiClient EMS and use it for network access control. FortiNAC polls FortiClient EMS periodically (every 5 minutes by default) to update already registered hosts in FortiNAC. This ensures that FortiNAC has the latest host data from FortiClient EMS, such as device type, OS, IP address, MAC address, hostname, and FortiClient version. FortiNAC can also use FortiClient EMS as an authentication source for devices that have FortiClient installed. FortiNAC does not send any data to FortiClient EMS or check for device vulnerabilities and compliance with FortiClient123. References := 1: MDM Service Connectors | FortiClient EMS Integration 2: FortiClient EMS Device Integration|FortiNAC 9.4.0 - Fortinet Documentation 3: Technical Tip: Integration with FortiClient EMS

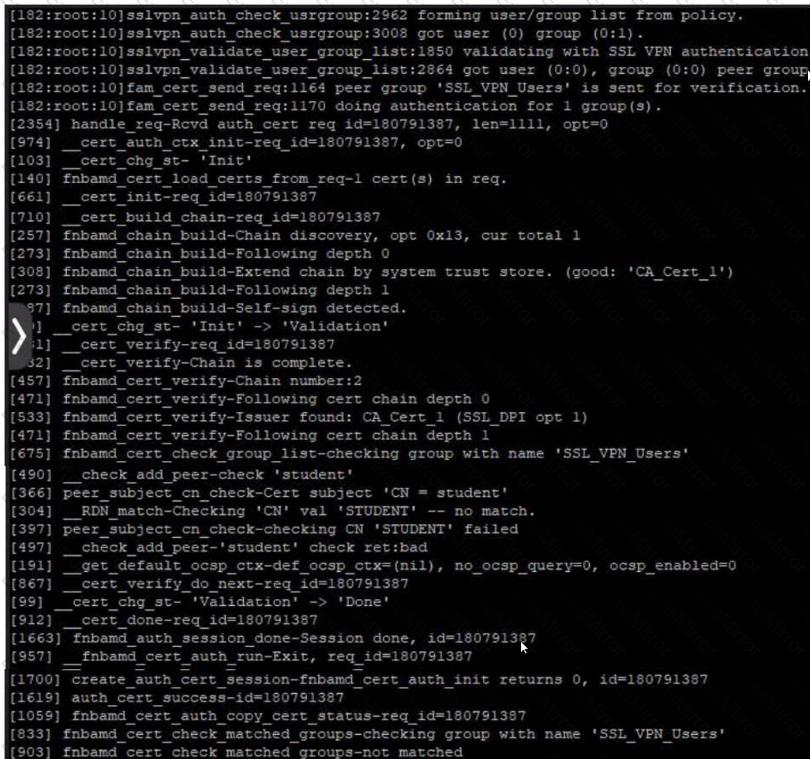

Given the output showing a real-time debug, the statement that describes the login failure is:

C. student is not part of the usergroup SSL_VPN_Users: The debug log contains a line that says "fnbam_cert_check_group_list-checking group with name 'SSL_VPN_Users'" followed by "peer_check_add_peer_check_student" and later "RDN_match-Checking 'CN' val 'STUDENT' -- no match." This suggests that the certificate presented has a common name (CN) of 'student', which does not match or is not authorized under the 'SSL_VPN_Users' group expected for successful authentication.

 Certificate-based authentication is a method of verifying the identity of a device or user by using a digital certificate issued by a trusted authority. For ZTNA deployment, certificate-based authentication is used to ensure that only authorized devices and users can access the protected applications or resources.

B. The default action for empty certificates is block. This is true because ZTNA requires both device and user verification before granting access. If a device does not have a valid certificate issued by the ZTNA CA, it will be blocked by the ZTNA gateway. This prevents unauthorized or compromised devices from accessing the network.

D. Client certificate configuration is a mandatory component for ZTNA. This is true because ZTNA relies on client certificates to identify and authenticate devices. Client certificates are generated by the ZTNA CA and contain the device ID, ZTNA tags, and other information. Client certificates are distributed to devices by the ZTNA management server (such as EMS) and are used to establish a secure connection with the ZTNA gateway.

A. FortiGate signs the client certificate submitted by FortiClient. This is false because FortiGate does not sign the client certificates. The client certificates are signed by the ZTNA CA, which is a separate entity from FortiGate. FortiGate only verifies the client certificates and performs certificate actions based on the ZTNA tags.

C. Certificate actions can be configured only on the FortiGate CLI. This is false because certificate actions can be configured on both the FortiGate GUI and CLI. Certificate actions are the actions that FortiGate takes based on the ZTNA tags in the client certificates. For example, FortiGate can allow, block, or redirect traffic based on the ZTNA tags.

References :=

1: Technical Tip: ZTNA for Corporate hosts with SAML authentication and FortiAuthenticator as IDP

2: Zero Trust Network Access - Fortinet

In a ZTNA (Zero Trust Network Access) deployment, FortiClient EMS:

A. Uses endpoint information to grant or deny access to the network: FortiClient EMS plays a critical role in ZTNA by using information about the endpoint, such as its security posture and compliance status, to determine whether to grant or deny network access.

The other options do not accurately represent the role of FortiClient EMS in ZTNA:

B. Provides network and user identity authentication services: While it contributes to the overall ZTNA strategy, FortiClient EMS itself does not directly provide authentication services.

C. Generates and installs client certificates on managed endpoints: Certificate management is typically handled by other components in the ZTNA framework.

D. Acts as ZTNA access proxy for managed endpoints: FortiClient EMS does not function as an access proxy; its role is more aligned with endpoint management and policy enforcement.

References:

FortiClient EMS in Zero Trust Network Access Deployment.

Role of FortiClient EMS in ZTNA.
