A device that provides high ethernet port density for connecting wired clients is a switch. A switch is a device that operates at the data link layer (layer two) of the OSI model and forwards frames between devices on the same network based on their MAC addresses1. A switch can have multiple ports, ranging from 8 to 48 or more, that can connect to various wired devices, such as computers, IP phones, and printers2. A multilayer switch is a switch that can also operate at the network layer (layer three) of the OSI model and perform routing functions based on IP addresses3. Therefore, statements D and E are correct. Statements A, B, and C are incorrect because they describe devices that provide wireless connectivity, not wired connectivity. A wireless router is a device that combines the functions of a router and an access point and provides wireless access to the internet. A router is a device that operates at the network layer (layer three) of the OSI model and forwards packets between different networks based on their destination IP addresses. An access point is a device that connects wireless devices to a wired network and acts as a bridge between the two. References: 1: Aruba Certified Network Technician (ACNT) Study Guide, page 282: Aruba Certified Network Technician (ACNT) Study Guide, page 303: Aruba Certified Network Technician (ACNT) Study Guide, page 32. : Aruba Certified Network Technician (ACNT) Study Guide, page 29. : Aruba Certified Network Technician (ACNT) Study Guide, page 29. : Aruba Certified Network Technician (ACNT) Study Guide, page 94.

The IP address 10.0.128.0/23 is a Class A private address with a subnet mask of 255.255.254.0. This means that the network prefix is 10.0.128.0 and the host identifier is the last 9 bits of the address. To find the number of IP assignable addresses, we need to subtract 2 from the total number of possible hosts, which is29=512. This is because the network address (10.0.128.0) and the broadcast address (10.0.129.255) are reserved and cannot be assigned to any host. Therefore, the number of IP assignable addresses is 512 - 2 = 510.References:IP Subnet Calculator,CIDR Calculator for IPv4 addresses,Free online IPv4 subnet calculator

A BSSID is a 48-bit label that identifies a basic service set (BSS) within a wireless network. A BSS is a subgroup of devices that share physical-layer medium access characteristics, such as radio frequency, modulation scheme, and security settings. A BSSID is usually the MAC address of the access point (AP) that creates the BSS, or a randomly generated value in an ad hoc network. A BSSID is different from an SSID, which is the name of the wireless network that users see and connect to. An SSID can have multiple BSSIDs associated with it, depending on the number and location of the APs. A BSSID is used to differentiate between different BSSs and to facilitate roaming and load balancing among them. References: https://internetspeedtest.world/wiki/bssid

https://www.minthaik.com/bssid-basic-service-set-identifier/

The command to access the second interface of the third slot in a modular ArubaOS-CX switch is interface 1/3/2. This is because the interface numbering format for modular switches is interface slot/module/port, where slot is the chassis slot number, module is the module number within the slot, and port is the port number within the module1. The slot number starts from 1, the module number starts from 0, and the port number starts from 12. Therefore, the second interface of the third slot is interface 1/3/2. The other options are incorrect because they do not follow the correct interface numbering format. References: AOS-CX 10.06 Command-Line Interface Guide 8320, 8

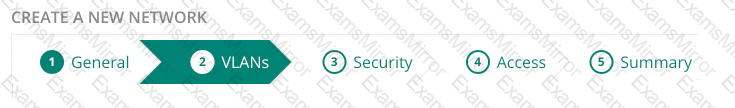

According to the Aruba Network Technician (ACNT) documents and learning resources, the valid configurable “Client VLAN Assignment” options for a Bridge-based WLAN in Aruba Central are native VLAN, automatic VLAN, and static VLAN. These options allow you to specify how the VLAN ID for the WLAN clients is determined.

Native VLAN: This option allows you to use the native VLAN of the AP’s Ethernet port as the VLAN ID for the WLAN clients. The native VLAN is the default VLAN that carries untagged traffic on a trunk port. This option is useful when you want to simplify the VLAN configuration and use the same VLAN for all the WLAN clients connected to the same AP.

Automatic VLAN: This option allows you to use the VLAN ID assigned by a DHCP server to the WLAN clients. The DHCP server can use attributes such as MAC address, hostname, or vendor class to assign different VLAN IDs to different WLAN clients. This option is useful when you want to dynamically assign VLANs based on the client characteristics or policies.

Static VLAN: This option allows you to specify a single VLAN ID for all the WLAN clients. You can either enter a VLAN ID manually or select a named VLAN from the drop-down list. A named VLAN is a VLAN that has a user-defined name associated with it for easy identification. This option is useful when you want to assign a fixed VLAN to a WLAN SSID.

References:

 The dual-band IEEE WLAN standard that provides up to 4.8 Gbps of theoretical data rate is 802.11 be, also known as Wi-Fi 7. This standard is an amendment to the IEEE 802.11-2020 standard that aims to improve the performance, efficiency, and reliability of WLANs operating in the 2.4 GHz and 5 GHz frequency bands. Some of the key features of 802.11 be include:

Enhanced multi-user multiple-input multiple-output (MU-MIMO) that supports up to 16 spatial streams and 37 users per channel

Orthogonal frequency division multiple access (OFDMA) that allows multiple users to share the same channel with different subcarrier allocations

320 MHz channel bandwidth that enables higher data rates and spectral efficiency

4096 quadrature amplitude modulation (QAM) that increases the number of bits per symbol

Multi-link operation that allows a device to connect to multiple access points (APs) simultaneously

Enhanced power saving mechanisms that reduce the energy consumption and extend the battery life of devices

The other options are incorrect because they do not provide the same level of data rate as 802.11 be. 802.11 ac, or Wi-Fi 5, supports up to 1.73 Gbps of data rate in the 5 GHz band with 160 MHz channel bandwidth and 256 QAM. 802.11 ax, or Wi-Fi 6, supports up to 9.6 Gbps of data rate in both 2.4 GHz and 5 GHz bands with 160 MHz channel bandwidth, 1024 QAM, and OFDMA, but it is not a dual-band standard as it also supports the 6 GHz band. 802.11 n, or Wi-Fi 4, supports up to 600 Mbps of data rate in both 2.4 GHz and 5 GHz bands with 40 MHz channel bandwidth and 64 QAM. 802.1 lax and 802.1 In are not valid IEEE WLAN standards. References: IEEE 802.11be Extremely High Throughput: The Next Generation of Wi-Fi Technology Beyond 802.11ax, Wi-Fi Timeline, IEEE 802.11-2020

 The TCP three-way handshake is a process that is used in a TCP/IP network to create a connection between a client and a server. It involves the exchange of three packets: SYN, SYN-ACK, and ACK. The goal of the TCP three-way handshake is to establish a reliable, flow-controlled connection between the two endpoints. This means that the connection is able to ensure that the data is transmitted without errors, losses, or duplications, and that the data is sent at a rate that both sides can handle.

The TCP three-way handshake works as follows:

The client initiates the connection by sending a SYN packet to the server. The SYN packet contains a random sequence number that indicates the starting point of the data that the client will send.

The server responds to the client by sending a SYN-ACK packet. The SYN-ACK packet contains the server’s own sequence number and an acknowledgment number that is equal to the client’s sequence number plus one. This indicates that the server has received the client’s SYN packet and is ready to receive data from the client.

The client completes the handshake by sending an ACK packet to the server. The ACK packet contains an acknowledgment number that is equal to the server’s sequence number plus one. This indicates that the client has received the server’s SYN-ACK packet and is ready to send data to the server.

After the TCP three-way handshake is completed, the connection is established and the data transfer can begin.

References: The answer can be verified by using the following resources:

TCP 3-Way Handshake Process - GeeksforGeeks

TCP 3-Way Handshake (SYN, SYN-ACK,ACK) - Guru99

Akamai Blog | What is a TCP Three-Way Handshake?

What is a Three-Way Handshake? - Definition from Techopedia

What is TCP 3-Way Handshake, Benefits, and Drawbacks? - Networking Signal

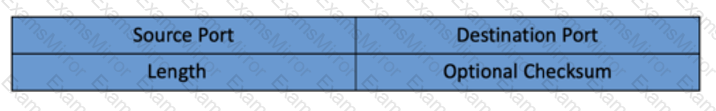

The header in the exhibit belongs to the User Datagram Protocol (UDP), which is a transport layer protocol that provides connectionless and unreliable data delivery. UDP header consists of four fields: Source Port, Destination Port, Length, and Checksum. The Source Port and Destination Port fields identify the endpoints of the communication, and are 16 bits each. The Length field specifies the total length of the UDP datagram, including the header and the data, and is also 16 bits. The Checksum field is used to verify the integrity of the UDP datagram, and is optional in IPv4 but mandatory in IPv6. The Checksum field is also 16 bits.

The other options are incorrect because:

B. Transmission Control Protocol (TCP) is another transport layer protocol that provides connection-oriented and reliable data delivery. TCP header has more fields than UDP header, such as Sequence Number, Acknowledgment Number, Window Size, etc. TCP header is at least 20 bytes long, while UDP header is only 8 bytes long.

C. 802.11 Wi-Fi is a set of standards for wireless local area networks (WLANs). 802.11 Wi-Fi header is different from UDP header, as it contains fields such as Frame Control, Duration, Address 1, Address 2, Address 3, etc. 802.11 Wi-Fi header is at least 24 bytes long, while UDP header is only 8 bytes long.

D. Ethernet Protocol is a data link layer protocol that defines the physical and logical characteristics of a wired network. Ethernet header is different from UDP header, as it contains fields such as Destination MAC Address, Source MAC Address, EtherType, etc. Ethernet header is 14 bytes long, while UDP header is 8 bytes long.

E. Internet Protocol (IP) is a network layer protocol that provides logical addressing and routing for data packets. IP header is different from UDP header, as it contains fields such as Version, Internet Header Length, Type of Service, Total Length, Identification, Flags, Fragment Offset, Time to Live, Protocol, Header Checksum, Source IP Address, Destination IP Address, etc. IP header is at least 20 bytes long, while UDP header is 8 bytes long. References:

Aruba Certified Network Technician (ACNT) | HPE Aruba Networking

User Datagram Protocol - Wikipedia

Transmission Control Protocol - Wikipedia

IEEE 802.11 - Wikipedia

Ethernet frame - Wikipedia

[IP header - Wikipedia]

An omnidirectional antenna is an antenna that radiates almost equal power in all directions in the horizontal plane, which is also called the azimuth plane1. This means that the antenna has a 360-degree coverage in the horizontal plane, but a narrow coverage in the vertical plane, which is also called the elevation plane2. An omnidirectional antenna is suitable for indoor environments where the clients are distributed around the access point3. Therefore, statement D accurately describes an omnidirectional antenna. Statements A, B, and C are incorrect because they describe different types of antennas. Statement A describes an isotropic antenna, which is a theoretical antenna that radiates equal power in all directions in both the horizontal and vertical planes. Statement B describes a vertical antenna, which is an antenna that radiates almost equal power in all directions in the vertical plane, but a narrow coverage in the horizontal plane. Statement C describes a directional antenna, which is an antenna that radiates more power in a specific angle and less power in others, creating a focused beam of radio waves. References: 1: Aruba Certified Network Technician (ACNT) Study Guide, page 872: Aruba Certified Network Technician (ACNT) Study Guide, page 883: Aruba Certified Network Technician (ACNT) Study Guide, page 89. : Aruba Certified Network Technician (ACNT) Study Guide, page 87. : Aruba Certified Network Technician (ACNT) Study Guide, page 88. : Aruba Certified Network Technician (ACNT) Study Guide, page 89.

Radio frequency (RF) power is the amount of energy radiated by an antenna or a transmitter in the form of electromagnetic waves. RF power can be measured in different units, such as watts (W), milliwatts (mW), or decibels (dB). However, some units are more convenient than others for expressing RF power due to its logarithmic nature1

Logarithmic units, such as dB, are useful for comparing power levels that span several orders of magnitude, such as the power output of a radio station versus the power received by a mobile device. Logarithmic units also simplify the calculation of power ratios, gains, and losses, as they can be added or subtracted instead of multiplied or divided12

One common logarithmic unit for RF power is the decibel relative to milliwatt (dBm), which is defined as the power level in dB with reference to 1 mW. For example, 0 dBm means 1 mW, 10 dBm means 10 mW, 20 dBm means 100 mW, and so on. Conversely, -10 dBm means 0.1 mW, -20 dBm means 0.01 mW, and so on. The dBm unit is convenient because many RF signals, especially in wireless communication, are at fairly low power levels, and the dBm unit can express them in a short form23

Another logarithmic unit for RF power is the decibel relative to isotrope (dBi), which is defined as the power level in dB with reference to an isotropic radiator, which is a hypothetical antenna that radiates equally in all directions. The dBi unit is used to measure the gain of an antenna, which is the ratio of the power radiated by the antenna in a specific direction to the power radiated by an isotropic radiator. For example, a 3 dBi antenna means that it radiates 3 dB more power than an isotropic radiator in its main direction. The dBi unit is not suitable for expressing absolute power levels, as it depends on the reference antenna45

Therefore, the recommended unit of measurement for expressing RF power due to its logarithmic nature is the dBm, as it is an absolute unit that can compare power levels across a wide range and simplify power calculations. The dBi unit is only used for expressing antenna gain, which is a relative unit that depends on the reference antenna. The other units, such as lumens and milliwatts, are not logarithmic and are not commonly used for RF power measurement12345 References: 1: Radio frequency - Wikipedia 2: dBm - Wikipedia 3: RF power measurement, Part 1: Why and where - Analog IC Tips 4: Radiant intensity - Wikipedia 5: Fundamentals of RF and Microwave Power Measurements - UC Davis
