Aruba Certified Switching Expert Written Exam Questions and Answers

Pass the HP Aruba Certified Switching Expert HPE6-A69 Questions and answers with ExamsMirror

Practice at least 50% of the questions to maximize your chances of passing.

Exam HPE6-A69 Premium Access

View all detail and faqs for the HPE6-A69 exam

Go to Exam

430 Students Passed

96% Average Score

93% Same Questions

Viewing page 1 out of 2 pages

Viewing questions 1-10 out of questions

Questions # 1:

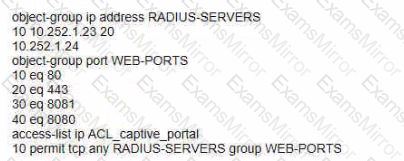

With the given access-list:

Question # 1

Which statement is true about hardware resource consumption of this ACL?

Options:

The ACL consumes a total of 2 entries

The ACL consumes a total of 4 entries.

The ACL consumes a total of 6 entries.

The ACL consumes a total of 8 entries.

Answer

Questions # 2:

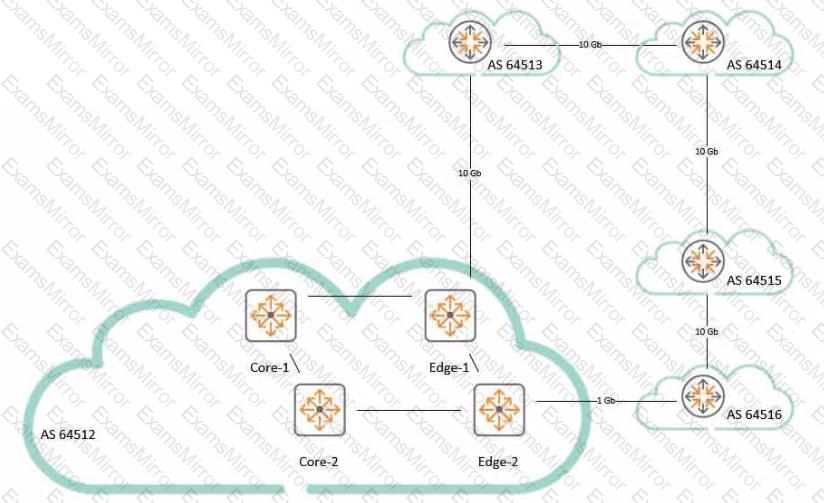

Refer to the exhibit.

Question # 2

Criteria

1. All outbound traffic to AS 64516 prefers Edge-2 to AS 64516

2. All other outbound traffic prefers Edge-1 to AS 64513

Given the customer connectivity depicted in the diagram which single change can be performed on Edge-2 to ensure the criteria are met?

Options:

Configure Edge-2 to set ebgp-multihop 3 for the neighbor for AS 64516.

Configure Edge-2 with a route-map to 'set as-path prepend"' to apply 64516 two times to the neighbor for AS 64516.

Configure Edge-2 to set the local preference for specific routes originating from AS 64516 to 200 and all other routes from AS 64516 to 50

Configure Edge-2 to set the weight on specific routes specific to AS 64516 to 1.

Answer

Questions # 3:

You have removed a member out of the ArubaOS-CX 6300 VSF configuration. The login to the removed member falls. What is true about switch login recovery?

Options:

The task requires physical access to the switch

The zeroize task executes the zeroize.txt from the root of the CF card on the switch

The zeroize task will remove all user passwords: the configuration remains on the switch

The task can be executed remotely

Answer

Questions # 4:

What are two valid steps in a Proof of Concept plan? (Select two)

Options:

Development of the items to Be tested

Engineering a proposed solution

Definition of success criteria

Acceptance of the proposed solution

Answer

A, C

Questions # 5:

Which statement is true regarding IP-SLA?

Options:

ArubaOS-CX supports Doth SLA configuration through CU and by agents through the NAE.

ArubaOS-CX supports forever tests

ArubaOS-CX supports on-demand as well as forever tests.

The default and minimum probe interval for voip SLA is 180 seconds

Answer

Questions # 6:

A customer would like to utilize some ArubaOS-CX 8325 switches to discard unwanted traffic to the IP address 10 20.30 40.

You enter the following command on the switch:

Ip route 10.20.30.40/32 blac

What will be the result?

Options:

The switch will not discard packets to the destined host

The switch will discard packets to the destined host and create a tog message

The switch will discard packets to the destined host silently

The switch will discard packets to the destined host and return ICMP error to the sender.

Answer

Questions # 7:

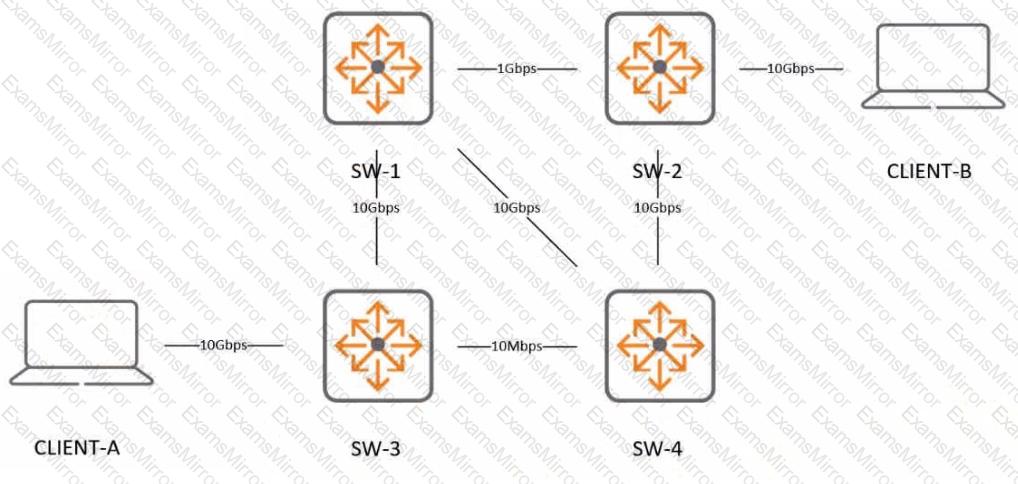

A customer would like to utilize some ArubaOS-CX 6300F switches to perform OSPF routing.

Question # 7

With the ports set up as routed ports, and default parameters for OSPF. what is me OSPF cost for me connection between SW-3 and SW-4"?

Options:

100

1000

10000

Answer

Questions # 8:

A client connected to Aruba CX 6300 on Port vt/2 Is having issues connecting to a remote destination 10 100 10 62 port 443. How should you get session-specific diagnostic information about this connection?

Options:

Use diag utilities tcpdump desttnation-ip 10 10010.62 to capture the session

Use diag utilities tcpdump destination-prefix 10 100 10.62/32 to capture the session

Run tcpdump -interface "1/1/2" host 10.100 10.62 to capture the session

Enter diag-mode and execute tcpdump ip.addr==10.100.10.62.

Answer

Questions # 9:

Before designing a new network solution for a customer with between 2398 and 5264 employees, you should gamer Information from the customer about their wired network needs.

What are valid questions to determine their wired network needs? (Select two.)
