When an AOS-CX switch implements User-Based Tunneling (UBT) to a cluster of three HPE Aruba Networking gateways, the switch determines to which gateway to tunnel each user's traffic based on the particular gateway assigned as that user's active user designated gateway. This ensures that traffic is efficiently distributed and managed according to the designated gateway for each user.

1.User Designated Gateway: Each user's traffic is tunneled to a specific gateway that has been designated for that user, ensuring efficient handling of traffic.

2.Traffic Distribution: This method allows for balanced distribution of user traffic across multiple gateways, enhancing network performance and reliability.

3.Gateway Assignment: The switch uses the assigned gateway for each user to determine the tunneling path, ensuring that traffic is directed to the appropriate gateway.

Comprehensive Detailed Explanation

Virtual Network Based Tunneling (VNBT) is the appropriate technology for this use case because:

Traffic Steering: VNBT enables traffic from specific clients or devices to be tunneled through a predefined network path. This allows traffic to pass through intermediate devices such as third-party security appliances.

Policy Enforcement: VNBT can be configured to route traffic based on roles, VLANs, or other policy definitions, ensuring that only specified traffic flows are redirected to the security appliance.

Scalability: This approach simplifies the redirection of traffic without requiring complex physical rewiring or changes to the underlying network topology.

Other Options:

MC-LAG: Primarily used for high-availability and redundancy in multi-chassis link aggregation scenarios, not for traffic redirection through appliances.

Network Analytics Engine (NAE): Used for monitoring and analytics, not traffic steering or forwarding.

Device Profiles: Helps automate switch port configurations for specific device types but does not handle traffic redirection.

References

AOS-CX Virtual Network Based Tunneling (VNBT) documentation.

Aruba Switch Architecture and Traffic Flow Control Best Practices Guide.

Comprehensive Detailed Explanation

In a user-based tunneling (UBT) setup with reserved VLAN mode, VLAN 64 is used for routing traffic at the gateways. Since the IoT traffic is tunneled to the AOS-10 gateway:

On the gateways:

VLAN 64 must be configured in the iot-wired role for routing purposes.

On the switches:

VLAN 64 does not need to be configured on the access switch physical uplinks because the IoT traffic is tunneled directly to the gateway and does not rely on VLAN configurations at the access layer switches.

Reserved VLAN mode:

Ensures that traffic is encapsulated within the UBT tunnel, and VLANs like 64 are only relevant at the gateway for routing and enforcement.

Therefore, the correct configuration is to define VLAN 64 in the iot-wired role on the AOS-10 gateways and not on any physical interfaces.

References

Aruba AOS-CX UBT configuration guide.

Aruba AOS-10 Gateway Role and VLAN Management documentation.

1. Understanding CPDI Risk Score and Posture Analysis

The Risk Score in ClearPass Device Insight (CPDI) is a numerical value representing the overall risk level associated with a device. It considers factors such as:

Posture Assessment: The device's compliance with health policies (e.g., OS updates, antivirus status).

Security Analysis: Vulnerabilities detected on the device, such as known exploits or weak configurations.

A Risk Score of 90 indicates a high-risk device, suggesting that the posture is unhealthy and vulnerabilities have been detected.

2. Analysis of Each Option

A. The posture is unknown, and CPDI has detected exactly four vulnerabilities on the device:

Incorrect:

The posture cannot be "unknown" because posture assessment is enabled in the settings.

CPDI does not explicitly indicate the exact number of vulnerabilities directly through the Risk Score.

B. The posture is healthy, but CPDI has detected multiple vulnerabilities on the device:

Incorrect:

A Risk Score of 90 is too high for a "healthy" posture. A healthy posture would typically result in a lower Risk Score.

C. The posture is unhealthy, and CPDI has also detected at least one vulnerability on the device:

Correct:

A high Risk Score of 90 indicates an unhealthy posture.

The presence of vulnerabilities (based on Security Analysis being enabled) further justifies the high Risk Score.

This combination of unhealthy posture and detected vulnerabilities aligns with the Risk Score and configuration provided.

D. The posture is unhealthy, but CPDI has not detected any vulnerabilities on the device:

Incorrect:

If no vulnerabilities were detected, the Risk Score would not be as high as 90, even if the posture were unhealthy.

Final Interpretation

From the configuration and Risk Score provided, the device's posture is unhealthy, and at least one vulnerability has been detected by CPDI.

References

HPE Aruba ClearPass Device Insight Deployment Guide.

CPDI Risk Score Analysis and Security Settings Documentation.

Best Practices for Posture Assessment in Aruba Networks.

To configure the HPE Aruba Networking VIA solution for remote employees who need to download their VIA connection profile from the VPN Concentrator (VPNC) and ensure that only those who authenticate with their domain credentials through ClearPass Policy Manager (CPPM) can do so, you need to set up a VIA Authentication Profile. This profile should use the CPPM's RADIUS server group. Once the VIA Authentication Profile is created, you need to reference this profile in the VIA Web Authentication Profile. This configuration ensures that the authentication process requires employees to validate their credentials via CPPM before they can download the VIA connection profile.

To capture only the traffic sent in the mirroring session between an AOS-CX switch and a management station running Wireshark, you should apply a capture filter that isolates the specific traffic of interest. In this case, using the filter udp port 5555 will capture the traffic associated with the mirroring session. This is because AOS-CX switches typically use UDP port 5555 for mirrored traffic, ensuring that only the relevant mirrored packets are captured and excluding other traffic generated by the management station.

In HPE Aruba Networking ClearPass Device Insight (CPDI), a device with a Risk Score of 90 indicates that the posture is unhealthy, and CPDI has detected at least one vulnerability on the device. The risk score is a reflection of the device's security posture and detected vulnerabilities. A high risk score, such as 90, typically signifies significant security concerns, including the presence of vulnerabilities that could be exploited, thereby categorizing the device as a high-risk asset within the network.

When HPE Aruba Networking Central detects an Infrastructure Attack, such as "Detect adhoc using Valid SSID," the next step is to locate the general area of the threat. You can use HPE Aruba Networking Central floorplans or the identities of the detecting APs to pinpoint the approximate location of the adhoc network. This allows you to physically investigate and address the source of the threat, ensuring that unauthorized or rogue networks are quickly identified and mitigated.

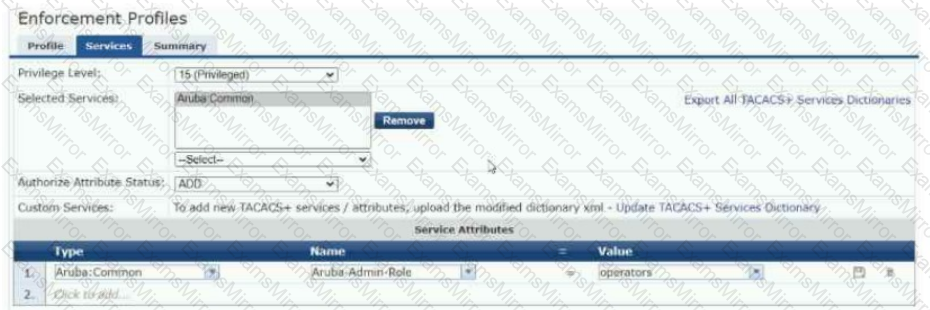

TACACS+ Enforcement Profile:

The profile specifies a Service Attribute under Aruba:Common with:

Name: Aruba-Admin-Role

Value: operators

AOS-CX Role Mapping:

On Aruba AOS-CX switches, the Aruba-Admin-Role attribute maps the authenticated user to predefined roles:

operators: Operator-level privileges (read-only access, limited commands).

administrators: Full administrator privileges.

Other roles like auditors may exist based on configuration.

Analysis:

The value operators explicitly maps the user to operator-level privileges, granting read-only access to the AOS-CX switch.

Since the Aruba-Admin-Role is correctly set and recognized, the switch assigns the appropriate role without errors.

Option Breakdown:

Option A: Correct. The switch assigns operator-level privileges based on the Aruba-Admin-Role value.

Option B: Incorrect. Administrator-level privileges require the role value to be administrators.

Option C: Incorrect. The manager is successfully authenticated and authorized; there is no error.

Option D: Incorrect. There is no reference to an auditor role in the configuration shown.

Conclusion:

The operators value in the TACACS+ enforcement profile ensures that the manager is assigned operator-level privileges on the AOS-CX switch.

To control which commands managers are allowed to enter on AOS-CX switches using HPE Aruba Networking ClearPass Policy Manager (CPPM) as a TACACS+ server, you need to add the Shell service to the TACACS+ enforcement profiles for the managers. This service allows you to define and enforce specific command sets and access privileges for users authenticated via TACACS+. By configuring the Shell service in the enforcement profile, you can specify the commands that are permitted or denied for the managers, ensuring controlled and secure access to the switch's command-line interface.
