The HPE Solutions for Qumulo utilize a modern, distributed file system designed specifically for the era of multi-petabyte unstructured data management. Unlike traditional block storage systems that organize data into LUNs or volumes, Qumulo uses a single, unified namespace where all data is organized into a hierarchical structure of Directories.

According to the HPE Qumulo Administration Guide, all advanced data services—including snapshots, quotas, and replication—are applied at the Directory level. When a storage administrator wants to protect a dataset, they create a snapshot of a specific directory (and all its subdirectories). The Snapshot Locking feature is an extension of this capability, designed to provide "immutable" data protection against ransomware or accidental deletion.

When snapshot locking is implemented, it is associated with a snapshot policy that targets a specific Directory path. Once a snapshot is locked, the metadata associated with that directory at that specific point in time becomes immutable; it cannot be deleted, modified, or shortened in its expiration period until the lock period has expired. This is fundamentally different from legacy architectures where you might lock a whole "Volume" (Option B), which can be inefficient for large datasets. Because Qumulo is a scale-out file system without the concept of traditional volumes or LUNs, "Directory" is the most granular and correct object for implementing these protection policies. This allows for massive flexibility, enabling administrators to set different retention and locking policies for different departments or projects (e.g., /marketing vs /research) all within the same physical cluster without needing to pre-allocate storage pools (Option D).

The HPE Alletra MP is a modular, disaggregated storage platform designed to provide different storage personas (Block or File/Object) based on the software stack installed on the controller nodes. However, the minimum hardware "footprint" required to form a functional, supported cluster differs significantly between these personas.

For HPE GreenLake for File Storage (which utilizes the Alletra MP X10000 hardware and provides both File and Object protocols), the architecture is based on a disaggregated shared-everything (DASE) model. According to the HPE Alletra MP Installation and Architecture Guide, the minimum supported configuration for a File/Object cluster is three X10000 controller nodes. This 3-node minimum is a hard requirement to establish proper quorum and high availability for the V-Tree metadata and the distributed file system logic. A single X10000 node (as suggested in Options A and C) cannot function as a standalone file/object cluster in a production environment.

Furthermore, the Alletra MP X10000 persona is specifically optimized for high-density unstructured data (File and Object). While the B10000 persona (Options A, B, and C) is intended for Block storage, the question asks for a solution that covers file, object, and block. In many modern software-defined or unified scenarios, especially those aligned with the Alletra MP's future-proof roadmap, the X10000 hardware can serve multiple personas. However, strictly following the current architectural minimums for the File/Object requirement mentioned, you must have at least three nodes. Therefore, a 3-node cluster of X10000s is the foundational requirement to even begin providing the file and object services the customer needs. Options A and B fail the minimum cluster size requirement for the File/Object persona.

The customer's requirements specify a need for a fully managed environment that supports a "multi-gen" IT stack, including virtual machines (VMs), containers, and bare metal servers, all while providing a cloud-like operational experience for DevOps. HPE Private Cloud Enterprise (PCE) is the only solution in the portfolio designed specifically to meet all these criteria in a single, integrated managed service.

HPE Private Cloud Enterprise provides an automated, self-service cloud experience for developers and IT operators. It natively supports the provisioning and lifecycle management of bare metal compute resources, which is a key requirement for the customer’s diverse workload environment. For containers, PCE integrates with standard Kubernetes orchestration, and for virtual machines, it supports multiple hypervisors including VMware. A critical differentiator is that PCE is delivered as a managed service, meaning HPE handles the underlying infrastructure management (updates, patching, and health), allowing the customer to focus on application development and DevOps productivity.

Options A and B are focused on specific stacks (VMware Cloud Foundation and Azure Stack HCI, respectively) which do not offer the same native, unified bare-metal management and multi-workload breadth as PCE. HPE Private Cloud Business Edition (Option C) is a self-managed solution intended for smaller-scale VM environments and does not provide the "fully managed" experience or the native bare-metal compute service required by this enterprise customer. PCE’s inclusion of HPE Morpheus Enterprise software further ensures the "DevOps toolchain" integration requirement is met by providing a powerful self-service engine for infrastructure-as-code.

The HPE B-Series SN7000B is a high-performance Director based on Brocade Gen 7 (G7) technology. Buffer-to-Buffer (BB) credits are the fundamental flow-control mechanism used in Fibre Channel to prevent frame loss and manage congestion.

Statement D is a foundational principle of SAN architecture: BB credits are based on link speed and frame size. In an FC fabric, the number of credits required to "fill the pipe" (keep data moving without waiting for acknowledgments) is a direct function of the Round Trip Time (RTT), which is determined by the physical distance, the speed of the link (e.g., 64Gb/s vs 32Gb/s), and the size of the frames being sent (typically 2KB). As link speeds increase, more buffer credits are required to maintain full throughput over the same distance.

Statement C reflects a specific technical default in the Brocade Fabric OS (FOS) for Gen 7 hardware. To ensure that ports can initialize and handle basic traffic immediately upon being enabled, the switch reserves a default number of credits from the ASIC's global buffer pool. For user ports on these high-density blades, the system reserves eight buffer credits per port, regardless of whether the port is currently online or offline. This reservation ensures that the port has the minimum resources necessary to complete a fabric login (FLOGI) or negotiate a link without competing for pool resources.

Option E is incorrect because the entire pool is not reserved; a significant portion of the ASIC's buffers remains in a "shared pool" that can be dynamically allocated for long-distance links or high-demand ports via the "Extended Fabrics" feature. Option B is incorrect as it confuses the TCP windowing concept with FC credit-based flow control. Option A is incorrect because BB credits are a local port-to-port negotiation (link-level) and do not need a fabric-wide global "agreement" to form the fabric.

HPE CloudPhysics is a SaaS-based analytics platform that collects high-resolution metadata (at 20-second intervals) from a customer's virtualized infrastructure to drive data-led procurement and optimization decisions. In the context of performance analysis and sizing, it is critical to understand not just the average utilization, but how different resource demands interact over time.

The Peak Details statistic is unique within the CloudPhysics analytics framework because it provides time-correlated values across different resource dimensions (CPU, RAM, and Disk I/O). While standard "Storage Metrics" or "Hardware Performance" summaries often present aggregated averages or 95th percentile figures that lose their temporal context, Peak Details allows an architect to see exactly when a spike occurred.

This correlation is essential for determining if a storage bottleneck is being driven by a simultaneous compute peak or if a specific "noisy neighbor" VM is impacting the entire datastore during a backup or batch processing window. By aligning disk latency peaks with IOPS and throughput peaks on the same timeline, CloudPhysics enables the architect to validate if the existing third-party array is truly under-provisioned or simply misconfigured. This time-correlated insight ensures that the new HPE storage solution is sized not just for total capacity, but for the actual performance "burstiness" observed in the customer's production cycle. Other metrics, while useful for high-level summaries, do not provide the granular, synchronized timeline required to perform a deep-dive root cause analysis or precision sizing for mission-critical workloads.

Admin port: 2

Back-end and cluster connectivity (southbound): 4

Front-end connectivity (northbound): 3

iLO Ethernet port: 1

The HPE Alletra MP B10000 architecture is defined by its disaggregated nature, separating the controller nodes from the physical storage capacity. Proper cabling of these nodes is fundamental to ensuring the performance and manageability of the cluster.

The ports on the rear of a controller node are categorized by their function within the disaggregated ecosystem:

iLO Ethernet port (1): This is the dedicated management port for the Integrated Lights-Out (iLO) processor. It provides out-of-band management, allowing administrators to access the hardware's health, power status, and remote console regardless of the operating system state.

Admin port (2): This RJ45 port is used for the management plane of the storage OS. It allows the array to communicate with the HPE GreenLake Data Services Cloud Console (DSCC) or local management software for configuration and provisioning tasks.

Front-end connectivity / Northbound (3): These ports (typically located in PCIe slots 1 and 2) provide the "Northbound" path to the host fabric. They are populated with high-speed Fibre Channel or iSCSI adapters to facilitate data access for servers and applications.

Back-end and cluster connectivity / Southbound (4): In a disaggregated shared-everything (DASE) architecture, "Southbound" connectivity is critical. These ports (often 100GbE RoCEv2) connect the controllers to the storage fabric and the disaggregated NVMe JBOFs. This allows every controller to see every drive in the cluster with ultra-low latency.

Understanding the distinction between Northbound (Host) and Southbound (Storage/Cluster) cabling is vital for a Master ASE. Incorrectly cabling the Southbound ports can lead to a "cluster split" or performance bottlenecks, as the disaggregated architecture relies on high-bandwidth, redundant paths to the underlying flash media to maintain its mission-critical performance profile. Number 5 in the diagram often represents the Serial console port, which is utilized primarily for initial setup or low-level troubleshooting by HPE Support and is typically not included in primary functional matching.

Migrating data from a non-HPE (third-party) array to an HPE storage platform requires a specialized toolset designed for interoperability. For the HPE Alletra MP B10000 (Block), the primary tool for migrating from competitive systems like Dell EMC, HDS, or IBM is the HPE Online Import Utility (OIU).

The Online Import Utility is designed to simplify and automate the migration process with minimal disruption to the host applications. Architecturally, OIU leverages the "Peer Motion" technology foundation but is specifically packaged to support "Import" workflows from non-HPE sources. When using OIU over Fibre Channel, the HPE Alletra MP array essentially acts as a "Pass-Through" or proxy. The administrator zones the Dell EMC array to the Alletra MP, and the Alletra MP presents itself as a host to the Dell system.

Once the connection is established, the data is pulled from the source array to the destination array. Because it is an Online utility, the host's I/O is redirected through the Alletra MP during the migration process. This allows the data to be moved in the background while the application remains online. Once the data copy is complete, a "cutover" is performed, and the Dell EMC array can be decommissioned. Option D (Peer Motion Utility) is technically the underlying engine, but "Online Import" is the specific utility name used for multi-vendor migrations. Options B and C are incorrect as Remote Copy and Peer Persistence are proprietary HPE-to-HPE technologies used for ongoing replication and high availability, not for one-time migrations from third-party hardware.

Configure

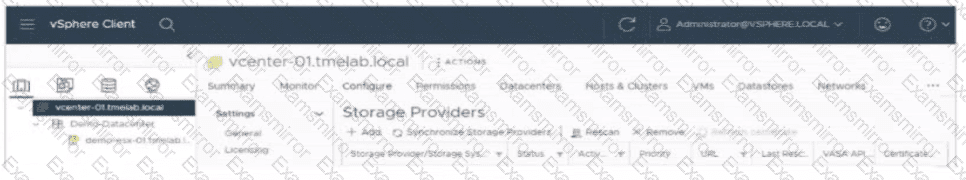

In a VMware vSphere environment, integrating HPE Alletra storage typically involves the installation of the HPE Storage Peer Motion Utility or the HPE Storage Connection Manager for VMware, which provides the VASA (vSphere APIs for Storage Awareness) provider functionality. This integration allows vCenter to manage storage arrays directly for tasks such as provisioning Virtual Volumes (vVols) and monitoring storage health.

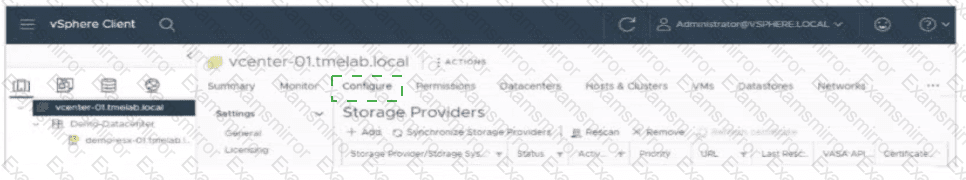

According to the HPE Alletra Integration Guide for VMware, after the plug-in or provider is registered with vCenter, an administrator can verify its status through the vSphere Client UI. As shown in the exhibit (image_64a7b7.png), the administrator is currently viewing the Storage Providers section under the Configure tab of the vCenter object. This specific view is the correct location to verify that the HPE VASA provider is active and communicating. The list under "Storage Provider/Storage System" should show the Alletra array's URL and a status of "Active" or "Online."

If the administrator wants to verify the registration of the UI-based plug-in itself (which adds specific HPE menus and dashboards), they should click the three dots (...) at the end of the navigation bar. This reveals additional hidden tabs where specialized vendor extensions, such as the HPE Storage dashboard, are located. Successful installation is confirmed if the HPE-specific provider is listed with a valid certificate and the "Last Rescan" time is current. Failure to see the provider in this list indicates that the registration process (typically performed via the array's management console or a separate appliance) was not completed successfully, which would prevent the use of advanced features like Storage Policy Based Management (SPBM).

The HPE Alletra 5000 is a hybrid storage array family built on the legacy of the HPE Nimble Storage Adaptive Flash architecture. Its hardware design is optimized for a mixture of high-capacity Hard Disk Drives (HDDs) and high-performance Solid State Drives (SSDs) used for caching (CASL architecture).

The chassis is a 4U enclosure featuring 24 drive slots. To maintain consistent performance and thermal profiles, the architecture designates specific slots for different media types. According to the HPE Alletra 5000 Installation and Service Guide, the SSDs used for cache are housed in Dual Flash Carriers (DFC). Each DFC can hold either one or two SSDs, allowing for a total of 3 or 6 cache drives per shelf. These DFCs are specifically required to be installed in the last three slots of the array, which are slots 22, 23, and 24. The remaining 21 slots (slots 1 through 21) are populated with Large Form Factor (LFF) HDDs for the primary capacity tier.

Option B is incorrect because the system is flexible; it can be configured with a minimum of 3 SSDs (one in each DFC) and does not require the maximum of 6. Option C is incorrect because expansion shelves (like the HPE Alletra 2120) also support their own cache SSDs, meaning the "entire system" capacity for SSDs scales as shelves are added. Option D is incorrect because the Alletra 5000 is a SAS/SATA-based hybrid platform; it does not support NVMe SSDs in its drive slots. NVMe support is reserved for the all-flash Alletra 6000 and 9000 models. Understanding this physical slotting is crucial for site planning and field service operations to ensure the array initializes correctly.

The HPE Alletra MP B10000 (Block) utilizes a disaggregated shared-everything architecture where capacity is distributed across multiple NVMe drives and enclosures. To ensure 100% data availability, the system allows administrators to define the level of resilience required via the High Availability (HA) settings.

Architecturally, there is a direct trade-off between the level of hardware resilience and the achievable space efficiency (usable capacity).

Enclosure Level HA (Option D): This is the most resilient setting. It ensures the system can survive the total failure of an entire drive enclosure (JBOF) without losing data. To achieve this, the system must distribute parity and data stripes across different enclosures. This "vertical" redundancy requires a larger percentage of raw capacity to be reserved for parity, thereby reducing the net space efficiency.

Drive Level HA (Option A): This setting protects against individual drive failures (similar to traditional RAID 6 or RAID-TP) but assumes the enclosure itself remains operational. Because the stripes can be optimized more densely within fewer hardware boundaries, the system requires less "overhead" capacity to maintain the protection state.

By changing the High Availability option to Drive Level, the administrator instructs the Alletra MP software to prioritize usable capacity over enclosure-level fault tolerance. This is a common optimization for customers who have multi-enclosure systems but prefer to maximize their ROI on raw NVMe flash. It is important to note that changing this setting may require a re-striping of existing data and should be done in accordance with the customer’s risk profile and SLA requirements. The sparing algorithms (Options B and C) manage how much space is set aside for automatic rebuilds, but the primary driver of bulk space efficiency in a multi-enclosure MP cluster is the HA policy selection.
