In anasymmetric IRB (Integrated Routing and Bridging)VXLAN forwarding model, Layer 2 forwarding and Layer 3 routing occur ondifferent VTEPs. When PC1 sends traffic to PC2, the packet is first forwarded to thelocal gateway (VBDIF interface)on VTEP1 for Layer 3 routing.

After routing is performed, VTEP1 encapsulates the packet into a VXLAN packet and forwards it to VTEP2. Importantly, theoriginal data frame inside the VXLAN packethas already been rewritten after routing. The destination MAC address in the original Ethernet frame is no longer the MAC address of PC2, but theMAC address of the next-hop gateway on the remote VTEP.

In the figure, this next-hop MAC address isMAC C, which belongs to the VBDIF interface on VTEP2. MAC D (PC2’s MAC address) is only used after the packet is decapsulated and forwarded locally by VTEP2.

According to HCIP Datacom Campus Network VXLAN forwarding behavior, the correct destination MAC address of the original data frame sent from VTEP1 to VTEP2 isMAC C, making optionCcorrect.

Position 1 → Before authenticationBefore users are authenticated, they are placed in thepre-authentication domain. At this stage, access is strictly limited to basic network services such as theAdmission server,DHCP server, andDNS server. This allows users to obtain IP addresses and reach authentication-related services only.

Position 2 → Upon authentication failuresIf user authentication fails or security posture checks (such as antivirus or patch verification) do not pass, users are redirected to theisolation domain. In this domain, access is restricted to remediation resources likevirus signature database serversandpatch servers, preventing users from accessing business services while allowing problem resolution.

Position 3 → After successful authenticationAfter authentication succeeds, users enter thepost-authentication domain. At this stage, full or role-based access is granted to enterprise resources such asoffice data,R&D data,marketing systems, as well asintranet or Internet services, based on assigned policies.

This mapping reflects Huawei’s standardNAC domain-based access control model, ensuring secure, staged network access.

Comprehensive and Detailed 200 to 250 words of Explanation From HCIP Datacom Campus Network documents knowledge without any URL or Links:

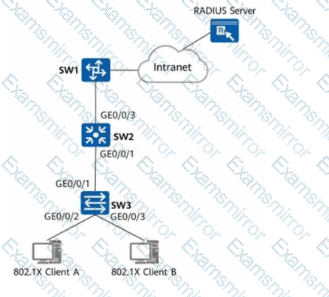

To deploy802.1X authenticationon Huawei campus switches and use aRADIUS serverfor user authentication and authorization, several core configuration components are mandatory. All four options listed are required for a complete and functional deployment.

Anauthentication domainis mandatory because it defines where user authentication requests are processed and which AAA schemes are used. Without a domain, the switch cannot determine how to handle authentication requests, makingoption A mandatory.

Anauthentication profileis also required. This profile binds authentication methods (such as 802.1X), authentication domains, and access policies together. Interfaces reference the authentication profile to determine how users are authenticated, sooption B is mandatory.

An802.1X access profiledefines detailed 802.1X parameters, such as authentication mode, reauthentication behavior, and client handling. This profile is bound to interfaces to enable 802.1X authentication on specific ports, makingoption C mandatory.

Finally, anAAA schemeis essential because it defines the authentication, authorization, and accounting methods used by the device, including RADIUS server configuration. Without an AAA scheme, the device cannot communicate with the RADIUS server or obtain user authorization information. Therefore,option D is mandatory.

According to HCIP Datacom Campus Network documentation, all four configuration steps are required to successfully enable 802.1X authentication with RADIUS-based access control.

Comprehensive and Detailed 200 to 250 words of Explanation From HCIP Datacom Campus Network documents knowledge without any URL or Links:

Huawei’s free mobility solution is based onsecurity group–based policy control. In this architecture, users are dynamically associated with security groups after authentication. These security group identifiers are thencarried in user trafficas metadata when packets traverse the campus network.

When traffic reaches apolicy enforcement device, such as an edge node or border node, the device does not rely on traditional attributes like IP address, MAC address, or port number to make forwarding decisions. Instead, it extracts thesource and destination security group informationembedded in the traffic and matches it against the security policy matrix configured on the controller.

This mechanism enables identity-based and location-independent access control. Even if a user moves to a different access point or changes an IP address, the same security policies continue to apply as long as the user remains in the same security group. This is the core advantage of free mobility in Huawei campus networks.

Port numbers, MAC addresses, and IP addresses are traditional Layer 2 and Layer 3 identifiers, but they do not provide sufficient context for identity-based policy enforcement. According to HCIP Datacom Campus Network documentation, security group information is the key attribute used for policy lookup and enforcement in free mobility solutions. Therefore, option A is correct.

Comprehensive and Detailed 200 to 250 words of Explanation From HCIP Datacom Campus Network documents knowledge without any URL or Links:

Huawei campus switches support multiple flexible VLAN assignment methods to meet diverse access control and service deployment requirements. The most basic method isinterface-based VLAN assignment, where a physical or logical port is statically assigned to a specific VLAN. This method is simple and widely used in traditional access layer designs.

Huawei switches also supportMAC address–based VLAN assignment, allowing devices to be dynamically placed into VLANs based on their MAC addresses. This is useful in scenarios where users frequently move between access ports but require consistent VLAN membership.

Protocol-based VLAN assignmentenables traffic to be classified into VLANs based on upper-layer protocol types, which can be useful in special service separation scenarios. Additionally,IP subnet–based VLAN assignmentallows switches to assign VLANs according to the source IP address of packets, enabling logical grouping of users based on network layer addressing rather than physical location.

These VLAN assignment mechanisms enhance network flexibility, simplify user mobility, and improve access-layer service management. According to HCIP Datacom Campus Network documentation, Huawei switches indeed support VLAN assignment based on interface, MAC address, protocol, and IP address. Therefore, the statement is TRUE, and option A is correct.

Explanation (Concise and Technical)

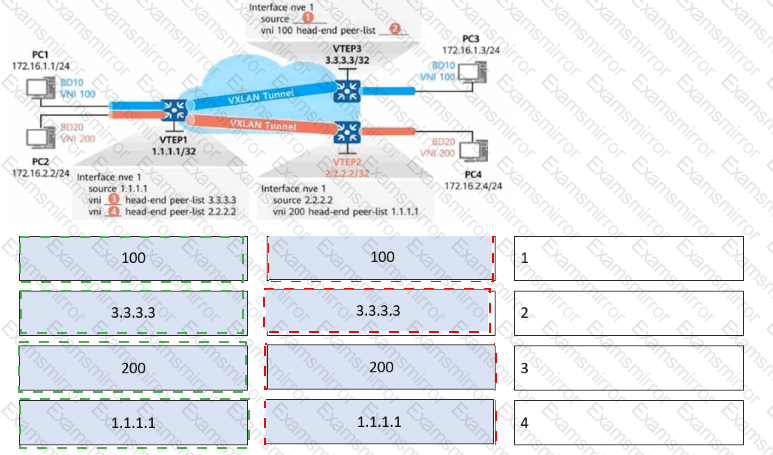

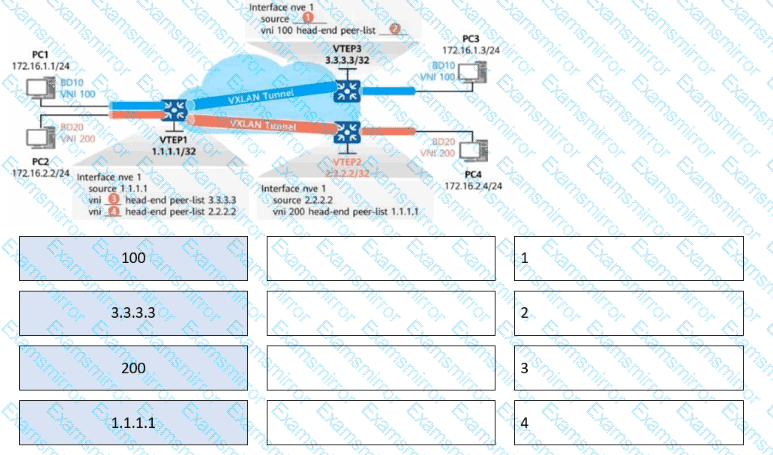

Position 1 → 100This corresponds toVNI 100, which is associated with BD10 and is used for communication between PC1 and PC3.

Position 2 → 3.3.3.3This is theremote VTEP IP addressof VTEP3, configured as a head-end peer for VNI 100 on VTEP1.

Position 3 → 200This representsVNI 200, which is bound to BD20 and enables VXLAN communication between PC2 and PC4.

Position 4 → 1.1.1.1This is theremote VTEP IP addressof VTEP1, configured as a head-end peer for VNI 200 on VTEP2.

This mapping follows standardstatic VXLAN tunnel configuration logicon Huawei devices, where each VNI is explicitly associated with remote VTEP peer addresses using head-end peer-list.

In this scenario, O&M personnel need toview packet exchange processesduring Wi-Fi access and precisely locate the root cause of the failure. According to HCIP Datacom Campus Network documentation, theProtocol Tracefunction of iMaster NCE-CampusInsight is specifically designed for this purpose.

Protocol trace allows administrators to analyzereal packet interaction processesbetween clients, APs, gateways, and servers during key access phases such as authentication, IP address assignment, and service establishment. By tracing protocols like DHCP, ARP, and authentication exchanges, O&M personnel can clearly identify where the access process fails.

In the given case, mobile terminals fail to obtain IP addresses due toDHCP address pool exhaustion. This problem can only be accurately identified by observing the DHCP request and response flow, such as repeated DHCP Discover messages without successful Offer messages. Protocol trace visualizes this interaction step by step, making it easy to confirm that the DHCP server cannot allocate new IP addresses.

Other options do not match the scenario.Simulation feedbackis used to simulate access behavior rather than analyze real traffic.Issue analysisfocuses on aggregated fault statistics and trend analysis, not detailed packet-level inspection.Client journeytracks the overall user access path and experience stages but does not provide deep protocol packet visibility.

Therefore, the function used by O&M personnel to view packet exchange processes and identify DHCP pool exhaustion isProtocol trace, making optionAthe correct answer.

In small- and medium-sized campus networks, the Huawei CloudCampus Solution focuses onsimple, flexible, and easy-to-manage traffic control mechanismsthat align with wireless access characteristics. According to HCIP Datacom Campus Network documentation, several rate limiting modes are supported to ensure fair bandwidth usage and stable user experience in WLAN environments.

Radio-based rate limitingis supported and commonly used in small and medium campuses. This mode limits the total bandwidth available on a radio interface, preventing congestion when multiple users access the same radio. It is especially effective in high-density wireless scenarios where multiple terminals compete for limited wireless resources.

SSID-based rate limitingis also supported. This allows administrators to limit bandwidth per SSID, ensuring that different wireless services—such as guest access and internal employee access—receive appropriate bandwidth allocations. This method is easy to configure and aligns well with service-oriented WLAN design.

User-based rate limitingis another supported mode. It enables bandwidth control on a per-user basis, ensuring fair usage among users and preventing individual users from consuming excessive bandwidth. This approach is particularly useful in environments like classrooms, retail stores, or offices.

ACL-based rate limiting, however, is not typically used or recommended in small- and medium-sized CloudCampus WLAN scenarios. ACL-based rate limiting is more complex and is generally applied in wired or advanced traffic engineering environments rather than simplified campus WLAN deployments.

Therefore, the supported rate limiting modes areRadio-based,SSID-based, andUser-based, makingA, C, and Dthe correct answers.

BGP EVPN is an extension of the BGP protocol designed to support large-scale Layer 2 and Layer 3 virtualization, such as VXLAN-based campus and data center networks. To achieve this, BGP EVPN defines multipleEVPN route typesthrough BGP extensions, including MAC/IP Advertisement routes, Inclusive Multicast routes, Ethernet Segment routes, and IP Prefix routes. Therefore, statement A is correct.

In BGP EVPN, routing information is carried using theMP_REACH_NLRI (Multiprotocol Reachable Network Layer Reachability Information)attribute. EVPN-specific NLRI formats are encapsulated within MP_REACH_NLRI, making statement C correct.

Each EVPN route includes aRoute Distinguisher (RD), which is part of the EVPN NLRI itself. The RD is used to ensure route uniqueness across different EVPN instances. Since the EVPN NLRI is carried inside MP_REACH_NLRI, the RD is effectively carried through MP_REACH_NLRI as well, which makes statement B correct.

Statement D is incorrect.Route Targets (RTs)are not carried in MP_REACH_NLRI. Instead, RTs are transmitted usingBGP extended community attributes, which control route import and export policies between EVPN instances. RTs are used for VPN membership control, not for route reachability advertisement.

In summary, BGP EVPN relies on BGP extensions and MP_REACH_NLRI to transport EVPN routing information and RDs, while RTs are carried separately as extended community attributes. Hence, the correct answers are A, B, and C.

In Huawei campus network access control solutions, different authentication methods are selected based onterminal capabilities, user mobility requirements, and service scenarios. According to HCIP Datacom Campus Network documentation,Portal authenticationandMAC address authenticationare designed for distinct use cases, and the statement correctly describes their recommended application scenarios.

Portal authenticationis well suited for environments withhigh user mobility and a wide variety of terminal types, such as shopping malls, supermarkets, airports, and exhibition centers. In these scenarios, users frequently connect and disconnect from the network using mobile phones, tablets, and laptops. Portal authentication provides a flexible and user-friendly access method, typically through a web page where users enter credentials, accept terms, or obtain temporary access. It does not require pre-installed client software and supports fast onboarding of diverse devices, making it ideal for public or semi-public access networks.

On the other hand,MAC address authenticationis recommended fordumb terminalsthat lack interactive user interfaces or browser capabilities. Devices such as printers, fax machines, IP phones, and some IoT terminals cannot complete Portal authentication. MAC authentication allows the network to authenticate these devices based on their MAC addresses, enabling automatic and seamless access once the MAC address is registered in the authentication system.

Using the appropriate authentication method improves user experience, simplifies network management, and enhances security. Therefore, the statement accurately reflects Huawei’s recommended authentication practices and isTRUE.
