This code indicates that the rootvg will not varyon, and performing a maintenance boot allows the administrator to diagnose the issue and fix it. From the IBM AIX v7 Administrator Specialty Study Guide: "When the system is halted with a reference code 551, the rootvg will not varyon and the system will not boot. The administrator must perform a maintenance mode boot to diagnose the problem."

Devices that are connected to the system can be in one of four states.

Devices that are connected to the system can be in one of the following states:

Item

Description

Undefined

The device is unknown to the system.

Defined

Specific information about the device is recorded in the customized database, but it is unavailable to the system.

Available

A defined device is coupled to the operating system, or the defined device is configured.

Stopped

The device is unavailable but remains known by its device driver.

If a tty device and a printer alternately use the same tty connector, both a tty device and a printer are defined on the same parent and port in the device configuration database. Only one of these devices can be configured at a time. When the tty connector is configured, the printer specific setup information is retained until it isconfigured again. The device is not removed; it is in the defined state. Maintaining a device in defined state retains customized information for a device that is not currently in use, either before it is first made available or while it is temporarily removed from the system.

If a device driver exists for a device, the device can be made available through the device driver.

https://www.ibm.com/docs/en/aix/7.2?topic=nodes-device-states

When a user logs in, the system will process their .profile file which contains the PATH variable. This variable specifies the list of directories that the system will search through to locate executable files. If the PATH variable contains non-existent directories, then it will take longer for the system to process the .profile file, resulting in a slower login experience. Reference: IBM AIX v7 Administrator Specialty Study Guide (page 9-10).

This error indicates that the maximum number of logical partitions for the logical volume is set to 256 and needs to be increased in order to allow the file system to be extended. From the IBM AIX v7 Administrator Specialty Study Guide: "The 0516-787 error indicates that the maximum number of logical partitions for the logical volume is set to 256, and needs to be increased in order to allow the file system to be extended."

When using the connect=shell option, a successful NIM operation requires that the root user on the NIM client has an entry in its .rhosts file for the NIM master, and that the file permissions are set to 600. This is documented in the IBM AIX v7 Administrator Specialty Study Guide. More information on this can be found at https://www.ibm.com/support/knowledgecenter/en/ssw_aix_72/com.ibm.aix.security/nim_security.htm.

The root user is not required to run SMIT, and the size of the window is the only factor that determines the minimum output display requirements. According to the IBM AIX v7 Administrator Specialty Study Guide (page 9-3), SMIT requires 24 lines and 80 columns for the output display for successful execution.

The error message1800-005 SMIT requires a minimum of 24 line by 80 column output displayindicates that the terminal window does not meet the minimum size requirements for runningsmit. To resolve this, the user needs to resize their terminal window to at least 24 lines by 80 columns. Ensuring the terminal meets this size requirement will allowsmitto display its interface properly.References: IBM AIX Documentation – SMIT

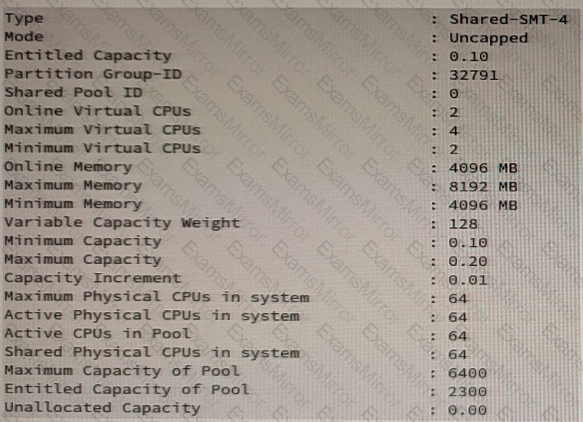

Based on the output from thelparstatcommand, the partition has 8 logical processors configured. This is determined by the "Online Virtual CPUs" value, which shows 2, and the fact that the system is running in SMT-4 mode. Therefore, 2 Virtual CPUs x 4 (SMT threads per core) = 8 logical processors.References:= IBM AIX lparstat Command Documentation

The administrator has failed to run the cfgmgr command before rebooting the systems. Running the cfgmgr command before rebooting a system is important, as it ensures that any changes made to the configuration are written to the system, otherwise the changes may be lost when the system is rebooted. Other commands such as chdev and route add are not related to this issue and will not solve the problem.

For more information on the cfgmgr command, please refer to the IBM AIX v7 Administrator Specialty Study Guide, page 10-7. The guide can be found here:https://www.ibm.com/support/knowledgecenter/en/ssw_aix_72/cfgmgmt/cfgmgr_command.htm.

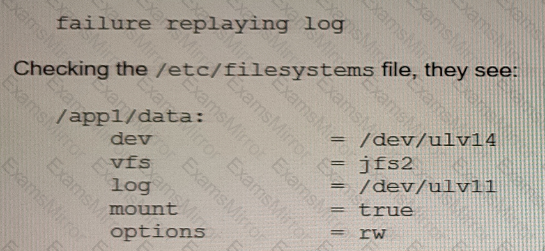

When an administrator encounters a "failure replaying log" error duringfsck, it indicates that the log device associated with the file system is corrupted. The next step is to format the log device using thelogformcommand. Runninglogform /dev/ulv11will reinitialize the log device, clearing any corruption and allowingfsckto proceed without errors. This process effectively resets the log, which is necessary for file system recovery.References: IBM AIX Documentation – logform

The two additional commands that an AIX V7.2 administrator should run after mirroring the rootvg with the mirrorvg command are 'bosboot' and 'bootlist'. The bosboot command is used to update the boot image on all disks in the volume group, and the bootlist command is used to set the boot order for the system. These commands are available on IBM AIX v7 systems and are documented in the IBM AIX v7 Administrator Specialty Study Guide. For more information, please see the IBM documentation at https://www.ibm.com/support/knowledgecenter/ssw_aix_72/com.ibm.aix.cmds3/bosboot.htm  and https://www.ibm.com/support/knowledgecenter/ssw_aix_72/com.ibm.aix.cmds3/bootlist.htm.
