In Juniper Networks Junos OS, a "hidden" route in the BGP table typically signifies that the router has received the prefix but cannot install it into the active routing table because theBGP next hop is unreachable. This is a common occurrence in service provider environments when transitioning betweenExternal BGP (EBGP)andInternal BGP (IBGP).

According to Juniper technical documentation, when an EBGP speaker (R1) advertises a prefix to its peer (R2), it sets the next hop to its own interface IP address ($172.16.10.1$). By default, when R2 re-advertises that prefix to its IBGP peer (R3), itpreserves the original EBGP next-hop address. Unless R3 has a specific route in its Interior Gateway Protocol (IGP) or a static route to reach the $172.16.10.1$ subnet, it will mark the route as unusable (hidden).

In the exhibit, the show route output onR3explicitly shows the nexthop for $203.0.113.0/24$ as $172.16.10.1$. Since this route is marked "hidden," we can conclude R3 does not know how to reach R2's external peering link. To resolve this, the network administrator must modify the next-hop attribute before the route is sent to R3.

By adding the statementset policy-options policy-statement export-to-ibgp then next-hop self(Option B) on routerR2, R2 will replace the external next-hop ($172.16.10.1$) with its own internal peering address ($172.16.20.1$) before advertising the route to R3. Because R3 already has a direct or IGP connection to R2's internal address, it will successfully resolve the next hop, and the route will transition from "hidden" to "active."

Option A is unnecessary because the route is already being exported; Option C is redundant as the policy is already applied to the IBGP group; and Option D changes path preference but does not solve the underlying reachability problem.

In a Juniper Networks MPLS environment, the selection of a signaling protocol depends heavily on the requirement for traffic engineering and path control. To satisfy the requirement for anexplicit path—where the network architect defines specific hop-by-hop routers that the traffic must traverse—theResource Reservation Protocol (RSVP)is the necessary choice.

According to Juniper documentation, RSVP (specifically RSVP-TE) supports the use ofExplicit Route Objects (EROs). When you configure an LSP in Junos OS, you can define a path consisting of a series of IP addresses (strict or loose hops). RSVP then signals the LSP along that exact sequence of routers, reserving resources and establishing labels as it goes. This allows for precise control over the network's traffic patterns, enabling administrators to steer traffic away from congested links or toward specific high-bandwidth paths.

In contrast,LDP (Label Distribution Protocol)(Option D) is a "best-effort" signaling protocol. LDP strictly follows the Interior Gateway Protocol (IGP) shortest path. It does not support explicit paths or traffic engineering constraints; it simply builds a "mesh" of labels based on the existing routing table.IS-IS(Option C) is an IGP used to populate the routing table and TED but does not signal labels.BGP(Option A) is used for service delivery (like L3VPNs) but relies on an underlying transport LSP (built by RSVP or LDP) to reach its next hop. Therefore, only RSVP provides the mechanism for explicit path manipulation.

When designing High Availability (HA) for Juniper Service Provider routers, understanding the interaction between the control plane and data plane is vital. The user has already enabledGraceful Routing Engine Switchover (GRES), which synchronizes the interface and kernel state between the primary and backup Routing Engines (REs). However, GRES by itself does not preserve the routing protocol state (like OSPF adjacencies or BGP sessions).

To achieve the preservation of the routing protocol state without relying on external "helper" routers, you must implementNon-Stop Active Routing (NSR). According to Juniper Networks documentation, NSR uses the infrastructure provided by GRES to also synchronize the routing protocol process (rpd) information. Under NSR, the backup RE maintains a "hot" standby state of all routing protocols. If the primary RE fails, the backup RE takes over immediately. Because it already possesses the full routing table and peer session states, the peering neighbors are unaware that a switchover occurred. No protocol adjacency resets occur, and traffic continues to flow uninterrupted.

It is crucial to differentiate NSR fromGraceful Restart (Option C). While Graceful Restart also aims to maintain traffic flow during a switchover, itdoesrequire help from neighboring routers (known as "helper mode"). If the neighbors do not support or are not configured for Graceful Restart, the sessions will drop. Since the user explicitly stated they want to "avoid relying on helper routers," Graceful Restart is not the correct solution.

Non-stop Active Bridging (Option A)provides a similar "hitless" failover but specifically for Layer 2 environments (STP/VLANs) rather than Layer 3 routing protocols.BFD (Option B)is a failure detection protocol used to speed up convergence but does not preserve state during an RE failover; in fact, without NSR, BFD would likely trigger a faster teardown of the session during a switchover. Therefore,NSRis the only feature that meets the requirement for independent control-plane preservation.

In Junos OS, the flow of routing information is managed by policies that sit between the protocol's database (the RIB-In/LSDB) and the main routing table (inet.0). Understanding the direction of these policies is critical for correct configuration.

Animport policy (Option B)is used to control the movement of routes from a routing protocol into the routing table. According to Juniper Service Provider documentation, even though IS-IS is a link-state protocol that requires all routers in an area to have an identical Link-State Database (LSDB), animport policycan be used to filter which of those validated routes are actually placed into inet.0 for forwarding. For external routes (routes leaked into IS-IS from other areas or protocols), an import policy allows an administrator to selectively accept or reject prefixes based on specific criteria like prefix-lists or community tags.

It is important to distinguish this from anexport policy (Option A). In Junos, an export policy is used to take routesalready inthe routing table and push themoutto a protocol to be advertised to neighbors. For example, you would use an export policy to redistribute static routes into IS-IS.Route preference (Option C)is a global value used to select between different protocols for the same prefix, and theinterface metric (Option D)is used by the SPF algorithm to calculate the shortest path within the IS-IS database itself. Therefore, to specifically control which learned external routes are "installed" into the forwarding table, theimport policyis the correct tool.

For OSPF routers to transition from the "Init" state to a full adjacency, they must agree on several parameters exchanged within theirHello packets. If these parameters do not match, the routers will refuse to form a neighbor relationship, a common point of failure in service provider networks.

According to Juniper Networks documentation, the following fields are mandatory matches:

Hello Interval (Option B):The frequency at which Hello packets are sent. Default is 10 seconds on broadcast networks.

Dead Interval (Option D):The time a router waits without receiving a Hello before declaring a neighbor down. Default is 4 times the Hello interval.

Network Mask (Option C):On broadcast and NBMA (Non-Broadcast Multi-Access) segments, the subnet masks must match because OSPF uses the mask to determine the network boundaries for the link-state advertisements.

Area ID:Routers must belong to the same logical OSPF area.

Authentication:If configured, the type and password/key must be identical.

Why other options are incorrect:

Router Priority (Option A):This is used to influence the election of the Designated Router (DR). It doesnotneed to match; in fact, different priorities are often used to ensure a specific router becomes the DR.

Designated Router (Option E):The DR is theresultof an election that happens after the initial Hello exchange. It is not a field that must match beforehand to start the process.

By ensuring the Hello/Dead timers and the Subnet Mask are synchronized, OSPF guarantees a stable and predictable environment for the subsequent exchange of Link-State Advertisements (LSAs).

TheHello packetis the most basic, yet most vital, component of the OSPF protocol. It serves as the primary mechanism for neighbor discovery, parameter negotiation, and "keepalive" functionality. Per Juniper Networks' routing documentation, OSPF routers use the Hello protocol to dynamically discover other OSPF-enabled routers on their directly connected segments.

When OSPF is enabled on a Junos interface, the router begins multicasting Hello packets (typically to the224.0.0.5"All OSPF Routers" address). This initiates the neighbor relationship. For two routers to move beyond theInitstate and become neighbors, they must agree on several critical parameters contained within the Hello packet:

Area ID:Routers must be in the same OSPF area.

Authentication:Passwords or keys must match.

Timers:The Hello and Dead intervals must be identical.

Options:Such as Stub area flags.

Beyond the initial "initiation," the Hello packet is used tomaintainthe relationship. By continuously sending these packets at a fixed interval (the Hello interval), a router signals to its peers that it is still functional. If a router stops receiving Hello packets from a neighbor for a duration exceeding theDead Interval, it declares the neighbor "down," flushes the associated LSAs from the database, and triggers a new SPF calculation.

Furthermore, on multi-access networks like Ethernet, the Hello packet is the vehicle for the election of theDesignated Router (DR)andBackup Designated Router (BDR). By exchanging priority values and Router IDs within the Hello packets, the segment can elect a central point of contact to minimize the number of adjacencies required on the wire.

For Juniper platforms equipped with dualRouting Engines (REs), the fundamental technology required to provide high availability during a hardware or software failure of the primary RE isGraceful Routing Engine Switchover (GRES).

According to Juniper Networks technical documentation, GRES allows the backup RE to stay in a "hot" standby state. When GRES is enabled, the primary RE synchronizes critical state information with the backup RE, specifically thechassis stateand theinterface state. This synchronization includes the Packet Forwarding Engine (PFE) configuration.

When the primary RE fails, the backup RE takes over immediately. Because the PFE (which resides on the line cards) was already synchronized and is not restarted during the switchover, the routercontinues to forward packetsthat are already in flight or part of established flows. This prevents a complete network outage during an RE failover.

Comparison with other options:

NSB (Non-Stop Bridging - Option A):Focuses specifically on maintaining Layer 2 protocol states (like STP) during a switchover.

LAG (Link Aggregation - Option B):Provides redundancy for physical links, not the control plane or the RE.

BFD (Bidirectional Forwarding Detection - Option C):Is a protocol used for rapid detection of link or neighbor failures; it does not protect the RE or maintain forwarding during an internal switchover.

It is important to note that while GRES maintains theforwardingstate, it does not by itself maintain therouting protocolstate (adjacencies). To keep OSPF or BGP sessions from dropping during the switchover, GRES must be paired withNon-Stop Active Routing (NSR). However, as the question focuses on the core requirement of continuing to forward packets,GRESis the foundational technology.

In a Juniper Networks environment, establishing a functionalMultiprotocol Label Switching (MPLS)Label-Switched Path (LSP) requires synchronized control plane operations. According to Juniper technical documentation, the most common reason for an LSP to remain in the "Down" state at the ingress router is a failure of theConstrained Shortest Path First (CSPF)algorithm during the path computation phase.

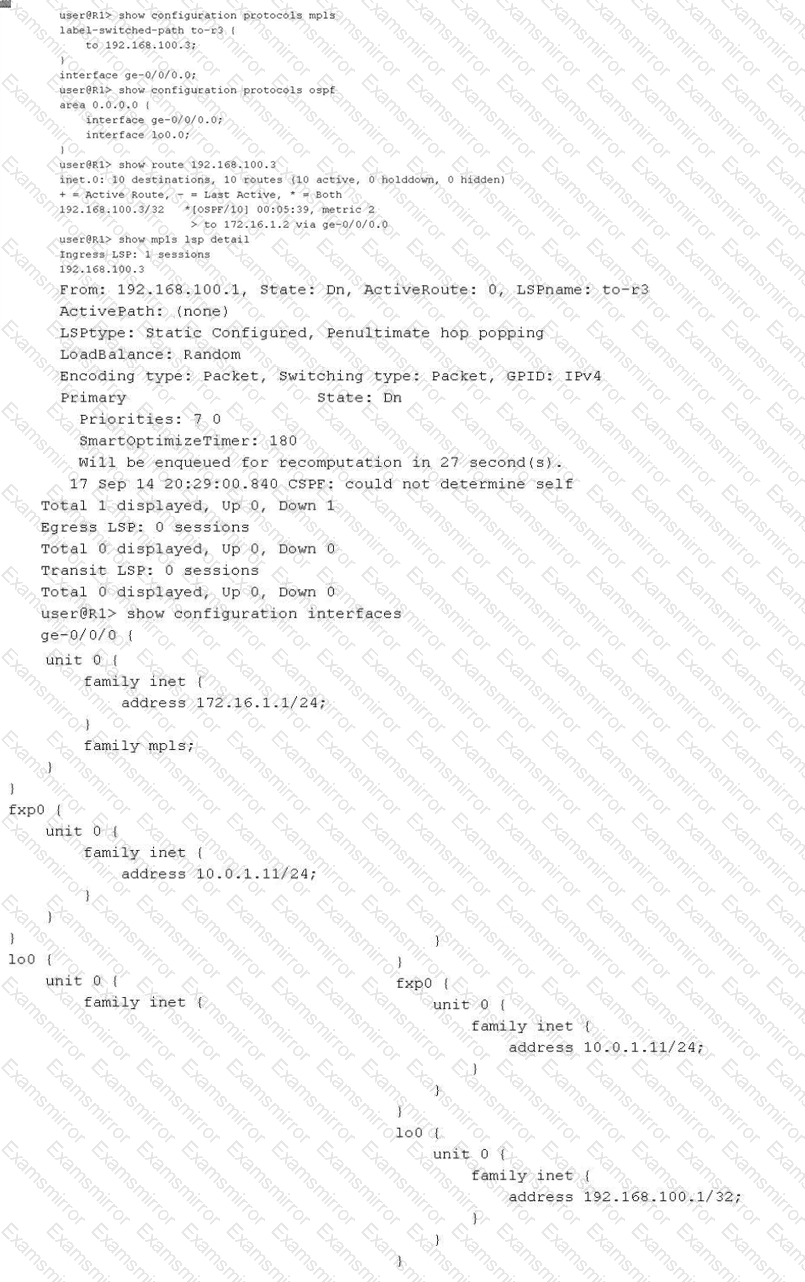

The provided exhibit for routerR1reveals a critical error in the show mpls lsp detail output: "CSPF: could not determine self". This specific error indicates that the CSPF process is unable to find its own local router ID within theTraffic Engineering Database (TED). For CSPF to build a valid TED, the underlying Interior Gateway Protocol (IGP), such as OSPF, must be configured to flood opaque link-state advertisements (Type 10 LSAs) that carry traffic engineering attributes. As seen in the OSPF configuration, traffic engineering is not enabled. Therefore, issuing theset protocols ospf traffic-engineeringcommand (Option D) will allow R1 to populate the TED with its own local information and that of its neighbors, enabling CSPF to calculate a valid path.

Alternatively, an administrator can choose to bypass the requirement for a TED entirely by disabling CSPF on the specific LSP. By issuing theset protocols mpls label-switched-path to-r3 no-cspfcommand (Option B), the router will stop attempting to perform a constrained path calculation. Instead, the signaling protocol (RSVP) will rely on the standardinet.0routing table to determine the hop-by-hop path to the egress destination (192.168.100.3), allowing the LSP to establish without traffic engineering constraints.

Regarding the other options, whilefamily mplsis required on all transit interfaces, the ingress loopback interface (lo0) generally does not require it for standard LSP signaling unless it's used as a transit hop. Furthermore, adding a static route toinet.3(Option A) is used for next-hop resolution of BGP routes over LSPs but does not assist in the signaling or establishment of the LSP itself.

When transitioning to an IPv6 environment usingOSPFv3(the version of OSPF designed for IPv6), there are significant architectural differences compared to OSPFv2 (IPv4). According to Juniper Networks technical documentation, OSPFv3 was redesigned to be more protocol-agnostic.

Router ID (Option C):

Despite OSPFv3 routing IPv6 (which uses 128-bit addresses), the OSPFRouter IDremains a32-bit valueformatted like an IPv4 address (e.g., 1.1.1.1). This is a common point of confusion. In a pure IPv6 environment where no IPv4 addresses are configured on any interfaces, a Juniper router cannot automatically derive a Router ID. Therefore, the administrator must manually configure a 32-bit Router ID under [edit routing-options] for the OSPFv3 process to initialize.

Interface Configuration (Option D):

OSPFv3 runs directly over the IPv6 link-local scope. Unlike OSPFv2, it does not require an IPv4 address to function. Therefore, interfaces areonly required to be configured with family inet6(Option D). You do not need "dual-stack" (both IPv4 and IPv6) functionality just to run OSPFv3. The protocol uses the link-local address (fe80::/10) of the interface for neighbor adjacencies and as the next hop for routing updates. This separation allows OSPFv3 to carry multiple "address families" (both IPv4 and IPv6 unicast) if needed, but the base requirement for an IPv6-only network is simply the family inet6 configuration.

In Junos OS for switching platforms, an interface is configured for Layer 2 bridging under thefamily ethernet-switchinghierarchy. The way an interface handles VLAN traffic depends on its port mode:accessortrunk.

According to Juniper Networks technical documentation, when an interface is configured simply with members , it defaults to anaccess port. In an access port configuration:

The port is a member of only a single VLAN.

The portreceives and sends untagged traffic (Option C). Any untagged frame arriving at this interface is implicitly associated with the configured VLAN member.

The interface does not expect or process 802.1Q tags in incoming frames.

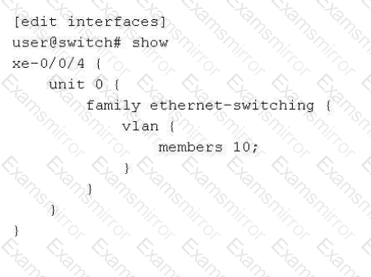

In the exhibit, interface xe-0/0/4 has members 10;. In Junos, the members statement can reference either aVLAN nameor aVLAN ID. However, when the configuration is shown as members 10; without further context of the specific ID mapping, the most precise interpretation of the CLI output provided is thatthe interface is a member of the VLAN named 10 (Option D). While "10" could be the numerical ID, Junos primarily maps members by their defined administrative name.

Why other options are incorrect:

Option A:Access ports do not receive tagged traffic; only trunk ports (which require the port-mode trunk and vlan members [ ... ] statements) are designed to process tagged frames.

Option B:While the VLAN named 10likelyhas a VLAN ID of 10, the exhibit does not explicitly confirm the ID mapping. In Junos, a VLAN named "10" could technically have a different tag ID (e.g., VLAN "Office" with ID 10). Option D is the more accurate direct reading of the displayed member configuration.
