 Probes are the basic unit of abstraction in Intent-Based Analytics (IBA). They are used to collect, process, and analyze data from the network and raise anomalies based on specified conditions. Probes are composed of processors and stages that form a directed acyclic graph (DAG) of data flow. The following statements are correct about probes:

A. Default probes can be cloned, modified, and saved. This is true because Apstra provides a set of default probes that cover common use cases and scenarios. These probes can be cloned and modified to suit the specific needs of the user. The modified probes can be saved as new probes with different names and descriptions. This allows the user to customize and extend the functionality of the default probes.

D. Default probes are enabled, based on the intent for a blueprint. This is true because Apstra enables or disables the default probes automatically based on the intent of the blueprint. The intent of the blueprint is the high-level description of the desired state and behavior of the network. Apstra uses the intent to determine which default probes are relevant and applicable for the blueprint and enables them accordingly. For example, if the intent of the blueprint is to deployan EVPN-VXLAN fabric, Apstra will enable the default probes related to EVPN-VXLAN, such as EVPN-VXLAN Anomaly Detection, EVPN-VXLAN Fabric Health, and EVPN-VXLAN Fabric Validation. The following statements are incorrect about probes:

B. Only the variable parameters for default probes can be edited and saved. This is false because the user can edit and save any parameters for the default probes, not just the variable ones. The variable parameters are the ones that depend on the network topology, devices, or configuration, such as device names, interface names, IP addresses, VLAN IDs, etc. The user can also edit and save the fixed parameters, such as the duration, threshold, condition, etc. However, the user cannot edit and save the default probes directly. The user must clone the default probes first and then edit and save the cloned probes as new probes.

C. All default probes are enabled for all blueprints. This is false because Apstra does not enable all default probes for all blueprints. Apstra enables the default probes based on the intent of the blueprint, as explained above. This means that only the default probes that are relevant and applicable for the blueprint are enabled. For example, if the intent of the blueprint is to deploy a BGP IP fabric, Apstra will not enable the default probes related to EVPN-VXLAN, since they are not relevant for the blueprint. The user can also manually enable or disable the default probes as needed. References:

Probes

Create Probe

Intent-Based Analytics Overview

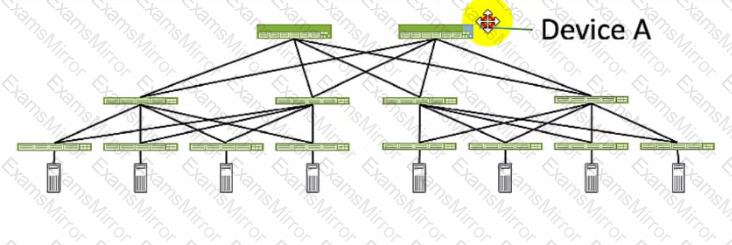

Device A serves as a spine in an IP fabric. An IP fabric is a network architecture that uses a spine-leaf topology to provide high performance, scalability, and reliability for data center networks. A spine-leaf topology consists of two layers of devices: spine devices and leaf devices. Spine devices are the core devices that interconnect all the leaf devices using equal-cost multipath (ECMP) routing. Leaf devices are the edge devices that connect to the servers, storage, or other network devices. In the exhibit, Device A is connected to four leaf devices using multiple links, which indicates that it is a spine device. The other options are incorrect because:

A. leaf is wrong because a leaf device is an edge device that connects to the servers, storage, or other network devices. In the exhibit, Device A is not connected to any servers, storage, or other network devices, but only to four leaf devices, which indicates that it is not a leaf device.

C. super spine is wrong because a super spine device is a higher-level device that interconnects multiple spine devices in a large-scale IP fabric. A super spine device is typically used when the number of leaf devices exceeds the port density of a single spine device. In the exhibit, Device A is not connected to any other spine devices, but only to four leaf devices, which indicates that it is not a super spine device.

D. server is wrong because a server device is a compute or storage device that connects to a leaf device in an IP fabric. A server device is typically the end host that provides or consumes data in the network. In the exhibit, Device A is not connected to any leaf devices, but only to four leaf devices, which indicates that it is not a server device. References:

IP Fabric Underlay Network Design and Implementation

IP Fabric Overview

IP Fabric Architecture

The Links table in the Staged tab shows the physical connections between the devices in the fabric. It provides information such as the source and destination device names, hostnames, serial numbers, roles, interfaces, and link status. The Links table can be used to assist the team that is installing and cabling the devices by verifying that the devices are connected correctly and that the links are operational. The Links table can also be used to troubleshoot any connectivity issues that may arise during the installation process. For more information, see Links (Staged). References:

Links (Staged)

Topology (Staged)

Staged

In the case of IP Clos data center five-stage fabric design, the super spines are the devices that provide the highest level of aggregation in the network. They have two main roles:

Super spines are used to interconnect two different data center pods. A pod is a cluster of leaf and spine devices that form a 3-stage Clos topology. A 5-stage Clos topology consists of multiple pods that are connected by the super spines. This allows for scaling the network to support more devices and bandwidth.

Super spines connect to all spine devices within the five-stage architecture. The spine devices are the devices that provide the second level of aggregation in the network. They connect to the leaf devices, which are the devices that provide access to the end hosts. The super spines connect to all the spine devices in the network, regardless of which pod they belong to. This provides any-to-any connectivity between the pods and enables optimal routing and load balancing.

The following two statements are incorrect in this scenario:

Super spines are used to connect leaf nodes within a data center pod. This is not true, because the leaf nodes are connected to the spine nodes within the samepod. The super spines do not connect to the leaf nodes directly, but only through the spine nodes.

Super spines are always connected to an external data center gateway. This is not true, because the super spines are not necessarily involved in the external connectivity of the data center. The external data center gateway is a device that provides the connection to the outside network, such as the Internet or another data center. The external data center gateway can be connected to the super spines, the spine nodes, or the leaf nodes, depending on the design and the requirements of the network.

References:

5-stage Clos Architecture — Apstra 3.3.0 documentation

5-Stage Clos Architecture | Juniper Networks

Extreme Fabric Automation Administration Guide

A configlet is a small piece of configuration that can be applied to a device or a group of devices to make persistent changes that are not overwritten by Apstra. Configlets can be used to install manual changes that are not part of the Apstra rendered configuration, such as custom commands, scripts, or features. Configlets can be created, edited, and deleted from the Apstra GUI or CLI12. References:

Configlets Overview

Configlets User Guide

Juniper Apstra role-based access control (RBAC) is a feature that allows you to specify access permissions for different users based on their roles. RBAC servers are remote network servers that authenticate and authorize network access based on roles assigned to individual users within an enterprise1. Juniper Apstra has four predefined user roles: administrator, device_ztp, user, and viewer2. The administrator role is the most powerful role, and it can see all permissions and perform all actions in the Apstra software application. The administrator role can also create, clone, edit, and delete user roles, except for the four predefined user roles, which cannot be modified2. Therefore, the statement that the administrator role can see all permissions is correct.

The following three statements are incorrect in this scenario:

The viewer role is predefined and can be deleted. This is not true, because the viewer role is one of the four predefined user roles, and it cannot be deleted. The viewer role is the most restricted role, and it can only view the network information and configuration, but not make any changes2.

The user role can create roles. This is not true, because the user role is one of the four predefined user roles, and it cannot create roles. The user role can perform most of the network configuration and management tasks, but it cannot access the platform settings or the user management features2.

The administrator role is the only predefined role. This is not true, because there are four predefined user roles, not just one. The other three predefined user roles are device_ztp, user, and viewer2.

References:

Providers — Apstra 3.3.0 documentation

User/Role Management (Platform)

The attribute that enables Juniper Apstra to scale and manage thousands of devices with a single server instance is that Apstra is a distributed state system. This means that Apstra uses a graph database to store the network topology and configuration data in a distributed and replicated manner across multiple server nodes. This allows Apstra to handle large-scale networks with high performance, reliability, and availability. Apstra also uses a stateful orchestration engine that ensures the network state is always consistent with the intent of the blueprint, which is the logical representation of thenetwork design and behavior. Apstra can automatically detect and resolve any discrepancies between the desired and actual network state, as well as handle any changes or failures in the network. The other options are incorrect because:

A. Apstra is installed as a cloud resource is wrong because Apstra can be installed either as a cloud resource or as an on-premises resource. Apstra is available as a virtual machine image that can be deployed on various hypervisors, such as VMware ESXi, QEMU/KVM, Microsoft Hyper-V, or Oracle VirtualBox. Apstra can also be deployed on public cloud platforms, such as Amazon Web Services (AWS) or Microsoft Azure. However, the installation method does not affect the scalability of Apstra, which is determined by the distributed state system architecture.

B. Apstra is based on NGINX is wrong because Apstra is not based on NGINX, but on Python and Django. NGINX is a web server and reverse proxy that Apstra uses to serve the web user interface and the REST API. However, NGINX is not the core component of Apstra, and it does not affect the scalability of Apstra, which is determined by the distributed state system architecture.

C. Apstra is available as an OVA is wrong because Apstra is available as an OVF, not an OVA. An OVF (Open Virtualization Format) is a standard format for packaging and distributing virtual machine images. An OVA (Open Virtual Appliance) is a single file that contains the OVF and the virtual disk images. Apstra provides an OVF file that can be imported into various hypervisors, such as VMware ESXi, QEMU/KVM, Microsoft Hyper-V, or Oracle VirtualBox. However, the availability of Apstra as an OVF does not affect the scalability of Apstra, which is determined by the distributed state system architecture. References:

JUNIPER APSTRA ARCHITECTURE

Apstra Server Requirements/References

Juniper Networks Apstra 4.0 enhances the experience of users and operators

When working with logical devices, you specify where each port group is connected by selecting the port group layout and the port speed and role (s) for each port group. The Juniper Apstra UI offers two options to the operator for the port group role: unused and generic1.

Unused: This option means that the port group is not configured or used by Apstra. This can be useful for ports that are faulty, reserved, or not part of the data center fabric1.

Generic: This option means that the port group is configured with a generic role that is not specific to any device type or function. This can be useful for ports that are used for testing, troubleshooting, or custom purposes1. References:

Logical Devices

According to the Juniper documentation1, a template is a configuration template that defines a network’s policy intent and structure. A template can be either rack-based or pod-based, depending on the type and number of racks and pods in the network design. A template includes the following details:

Policies: These are the parameters that apply to the entire network, such as the overlay control protocol, the ASN allocation scheme, and the underlay type.

Structure: This is the physical layout of the network, such as the type and number of racks, pods, spines, and leaves. The structure also defines the leaf-to-spine interconnection, which is the number and type of links between the leaf and spine devices. The leaf-to-spine interconnection can be either single or dual, depending on the redundancy and bandwidth requirements.

Therefore, the correct answer is A. the leaf-to-spine interconnection. This is a component that is defined in a template, as it determines the physical connectivity of the network. The speed of the links, the number of spine devices, and the definition of IP pools are not components that are defined in a template, as they are either derived from the device profiles, the resource pools, or the blueprint settings. References: Templates Introduction | Apstra 4.2 | Juniper Networks

The ztp.Json file on the Apstra ZTP server contains the configuration parameters for each device that is onboarded using ZTP. One of the parameters is the State, which can be one of the following values: init, ready, in_progress, done, error, or disabled. The State indicates the current status of the device in the ZTP process. For example, if the State is ready, it means that the device is ready to be onboarded by the Apstra ZTP server. If the State is done, it means that the device has completed the ZTP process and is managed by the Apstra server. The State can be manually set or changed in the ztp.Json file to control the behavior of the device during ZTP. For more information, see Apstra ZTP Configuration File. References:

Apstra ZTP Configuration File

Apstra ZTP Introduction

Configure Apstra ZTP
