For handling large datasets in a Mule application, streaming is an effective strategy. Streaming allows the application to process large amounts of data in chunks, reducing memory usage and improving performance. Using a file storage repeatable strategy for reading records from the database ensures that the data is read in manageable chunks and stored temporarily in files, which can be re-read if necessary, enhancing reliability.

The batch aggregator with streaming to write to an FTPS server ensures that data is written in chunks, aligning with the processing capabilities of the application running in CloudHub with 0.2 vCore and 8 GB storage. This configuration optimizes performance by balancing the load and managing the dataset size effectively, ensuring that the high rate of records can be processed and written to the FTPS server without overwhelming the system.

References:

MuleSoft Documentation on Streaming

MuleSoft Documentation on Batch Processing

Explanation

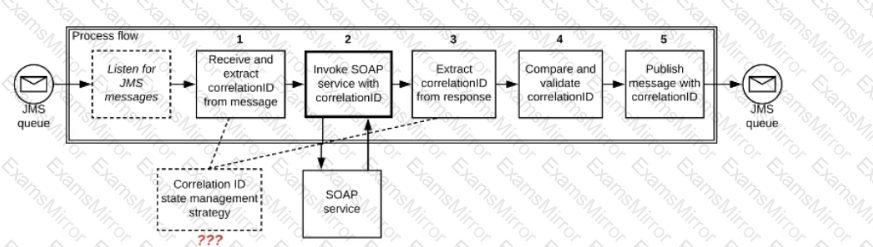

* If we store Correlation id value in step 1 as Mule event variables/attributes, the values will be cleared after server restart and we want system to be fault tolerant.

* The Correlation ID value in Step 1 should be stored in a persistent object store.

* We don't need to store Correlation ID value in Step 3 to persistent object store. We can store it but as we also need to make application performant. We can avoid this step of accessing persistent object store.

*  Accessing persistent object stores slow down the performance as persistent object stores are by default stored in shared file systems.

*  As the SOAP service is idempotent in nature. In case of any failures , using this Correlation ID saved in first step we can make call to SOAP service and validate the Correlation ID.

Top of Form

Additional Information:

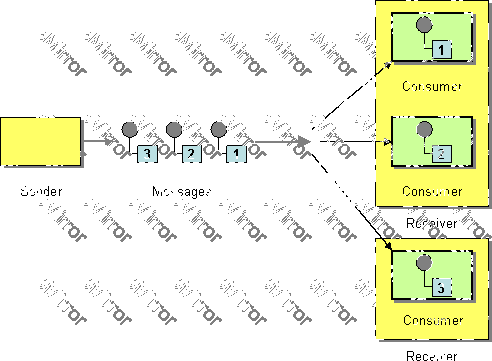

* Competing Consumers are multiple consumers that are all created to receive messages from a single Point-to-Point Channel. When the channel delivers a message, any of the consumers could potentially receive it. The messaging system's implementation determines which consumer actually receives the message, but in effect the consumers compete with each other to be the receiver. Once a consumer receives a message, it can delegate to the rest of its application to help process the message.

Diagram Description automatically generated

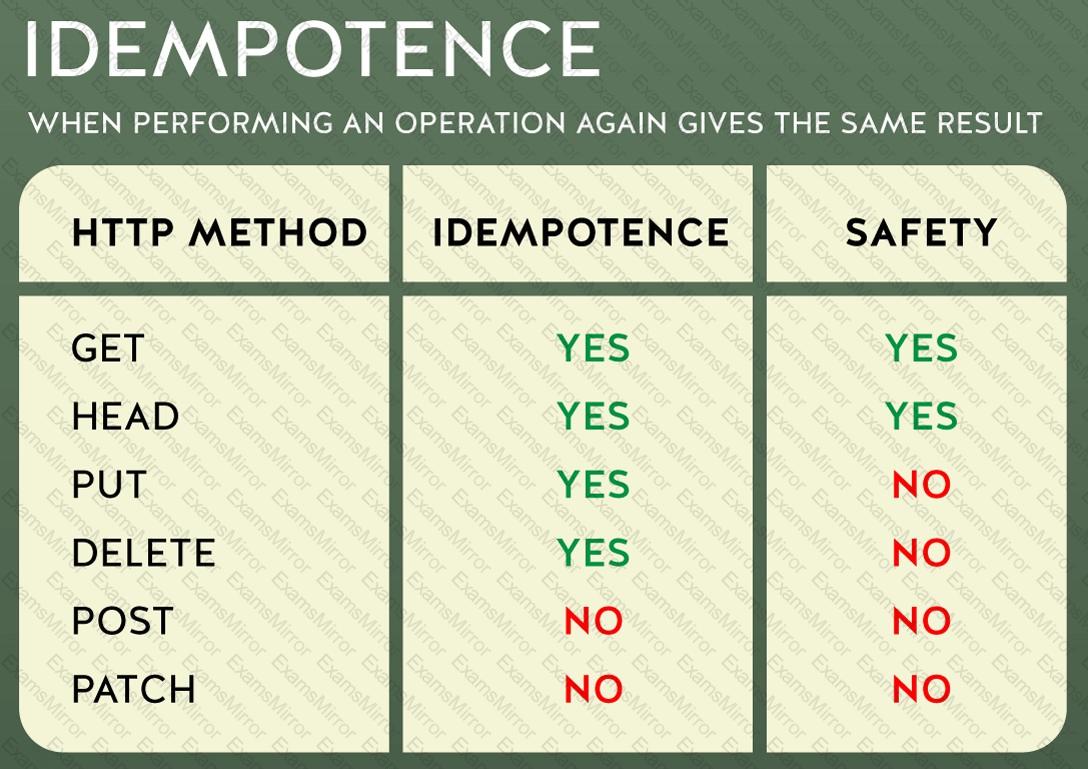

* In case you are unaware about term idempotent re is more info:

Idempotent operations means their result will always same no matter how many times these operations are invoked.

Table Description automatically generated

Bottom of Form

Explanation

Mule 4 is built to:

•Minimize the need for custom code.

•Avoid the need for you to know or understand Java.

However, some advanced uses cases require integration with custom Java code, such as:

•Reuse of a library, such as a tax calculation library.

•Reuse of a canonical object model that is standard in the organization.

•Execution of custom logic using Java.

Mule ref doc : https://docs.mulesoft.com/java-module/1.2/

When migrating from an on-premises cluster to a Runtime Fabric (RTF) cluster, and needing to enable Mule applications to store and share data across application replicas and restarts, the use of Anypoint Object Store V2 is the most suitable option. Here’s why and how to implement it:

Understanding Object Store V2:

Object Store V2 is designed to store and retrieve key-value pairs in a scalable and highly available manner. It is particularly useful for sharing state and data between different instances of applications running on RTF.

Setting Up Anypoint Object Store V2:

First, ensure that your MuleSoft Anypoint Platform account has access to Object Store V2.

Configure your Mule application to use Object Store V2 by defining an object store in your Mule configuration file. This can be done using the objectstore element in your Mule flow.

Configuration Steps:

Add the Object Store connector to your Mule project.

Define the object store configuration in your Mule flow as follows:

xml

Use the object store in your flows to store and retrieve data:

xml

Deploying on RTF:

Deploy your Mule application to the RTF cluster. The RTF will handle scaling and ensure that the Object Store V2 is available to all instances of your application.

Benefits:

Object Store V2 ensures data is shared and persisted across different application replicas and restarts, which meets the requirement of storing and sharing data across application replicas in the RTF cluster.

References:

MuleSoft Documentation on Object Store V2

MuleSoft Documentation on Runtime Fabric

To securely consume compressed and digitally signed files from a partner's FTPS server, the following inputs are required:

PGP Public Key of the Partner:

Purpose: Used to verify the digital signature of the files received from the partner. This ensures that the files were indeed sent by the partner and have not been tampered with.

Implementation: Import the partner’s PGP public key into the Mule application.

PGP Private Key for the Company:

Purpose: Used to decrypt the files that were encrypted by the partner using the company's public key. This ensures that only the intended recipient (the company) can access the contents of the files.

Implementation: Configure the Mule application to use the company’s PGP private key for decryption.

FTP Username and Password:

Purpose: Used to authenticate and establish a connection to the partner's FTPS server. The credentials ensure that only authorized users can access the server.

Implementation: Provide the FTP credentials in the Mule application's FTPS connector configuration.

By using these inputs, the Mule application can securely connect to the FTPS server, verify the integrity and authenticity of the files using PGP, and decrypt the contents for further processing.

References

MuleSoft FTPS Connector

MuleSoft PGP Module

MuleSoft customers often favor a MuleSoft-hosted Anypoint Platform runtime plane over a customer-hosted runtime for the following reasons:

Reduced time-to-market for the first application (C): Using a MuleSoft-hosted runtime plane accelerates the deployment process because MuleSoft manages the infrastructure, allowing customers to focus on developing and deploying their applications quickly. This leads to faster time-to-market for the initial application and subsequent updates.

Reduced IT operations effort (E): By leveraging a MuleSoft-hosted environment, customers offload the operational responsibilities, such as infrastructure maintenance, updates, and scalability management, to MuleSoft. This reduces the IT operations workload and allows internal teams to focus on more strategic initiatives.

In contrast, other options like reduced application latency and increased application throughput are not directly influenced by whether the runtime plane is MuleSoft-hosted or customer-hosted.

References

MuleSoft Anypoint Platform Documentation

MuleSoft Hosted vs. Customer Hosted Deployment Guides

Explanation

Connected Apps

The Connected Apps feature provides a framework that enables an external application to integrate with Anypoint Platform using APIs through OAuth 2.0 and OpenID Connect. Connected apps help users delegate their access without sharing sensitive credentials or giving full control of their accounts to third parties. Actions taken by connected apps are audited, and users can also revoke access at any time. Note that some products do not currently include client IDs in this release of the Connected Apps feature. The Connected Apps feature enables you to use secure authentication protocols and control an app’s access to user data. Additionally, end users can authorize the app to access their Anypoint Platform data.

Mule Ref Doc : https://docs.mulesoft.com/access-management/connected-apps-overview

According to MuleSoft's IT delivery and operating model, one effective approach to reduce the frequency of IT project delivery failures is to decouple central IT projects from the innovation that happens within each line of business. This approach allows individual business units to innovate and develop solutions tailored to their specific needs while the central IT team focuses on providing core services and governance. By decentralizing innovation, organizations can increase agility, reduce bottlenecks, and foster a more responsive IT environment that can quickly adapt to changing business requirements.

References

MuleSoft IT Operating Model Guidelines

Anypoint Platform Documentation on Decoupling IT Projects

For handling millions of requests per day with high performance and reliability, JMS (Java Message Service) transactions are the most suitable method. JMS transactions ensure that messages are processed reliably and can be rolled back in case of failures, providing transactional integrity. This is crucial for a trading company where reliable message processing is critical.

Using JMS transactions within Mule clusters allows for the decoupling of message producers and consumers, improving scalability and fault tolerance. JMS provides built-in mechanisms for handling transactional messaging, ensuring that messages are processed once and only once, even in the event of system failures.

References:

MuleSoft Documentation on JMS
