Reverting to a previous ONTAP version requires careful preparation because ONTAP upgrades often introduce irreversible changes. To successfully revert, the following actions are needed:

C. Reinstall your boot media and install ONTAP 9.5 software

Explanation:You need to reinstall the older version of ONTAP (9.5) on the boot media because the current version (9.7) has been installed as part of the upgrade. The reinstallation ensures that the system boots with ONTAP 9.5.

Steps:

Boot the node into maintenance mode.

Perform the reinstallation using the appropriate ONTAP 9.5 image.

D. Wipe your config and restore from backup

Explanation:A revert requires wiping the configuration because ONTAP upgrades may have made changes to the cluster configuration or WAFL metadata. Restoring the configuration from a backup ensures consistency with the older ONTAP version.

Steps:

Back up the current cluster configuration before proceeding.

Use the restored backup after the revert is complete to reconfigure the system.

Why the Other Options Are Incorrect:

A. Revert from ONTAP 9.7 software to ONTAP 9.6 software and then to ONTAP 9.5 software:

Incorrect. ONTAP reverts must directly target the desired version. You cannot perform multi-step reverts.

B. Delete all Snapshot copies from the past two days:

Incorrect. Deleting Snapshot copies is not a prerequisite for reverting ONTAP. While older Snapshot copies might not be compatible with the reverted version, they do not need to be deleted before the revert.

References:

NetApp Documentation: ONTAP Upgrade and Revert Procedures.

NetApp Knowledge Base: Steps for reinstallation and configuration restoration during a revert.

To trigger an AutoSupport message in ONTAP, the following commands are valid:

What it does:This command manually triggers a complete AutoSupport message of type "all." This includes logs and system information from all subsystems.

How to use:

Run the command: autosupport invoke –node –type all

Replace with the name of the node for which you want to generate the AutoSupport message.

Why it's relevant:This is the primary method for triggering a full AutoSupport message manually. It is commonly used during troubleshooting to provide comprehensive system data to NetApp Support.

1. ::> autosupport invoke –node –type all

What it does:This command is specifically used to upload core files (e.g., kernel or user space cores) from a node to NetApp Support for analysis.

How to use:

Run the command: autosupport invoke-core-upload –node .

Replace with the name of the node for which you want to upload core files.

Why it's relevant:If there is a system panic or other critical issue, this command ensures that core files are included in the AutoSupport message for detailed analysis.

2. ::> autosupport invoke-core-upload –node

A. ::> autosupport history show-upload-details –node <nodename>:

This command displays the history of AutoSupport uploads but does not trigger a new AutoSupport.

B. ::> system node coredump upload –node <nodename>:

This command uploads coredumps directly to a support server but does not trigger an AutoSupport message.

Why Other Options Are Incorrect:

"ONTAP 9 AutoSupport Configuration Guide" confirms autosupport invoke as a valid command to trigger AutoSupport messages.

"ONTAP CLI Reference Manual" specifies autosupport invoke-core-upload for core file uploads.

References:

To reset environment variables to factory settings, the set-defaults command is used. This command clears all customizations and restores the environment variables to their default values.

Command Syntax:At the LOADER prompt, type:

Key Details:arduino

Copy code

set-defaults

Effect:This command resets all environment variables (e.g., boot arguments, diagnostic settings) to their original factory defaults.

B. unsetenv all:

This command clears all environment variables, but it does not restore them to factory defaults.

C. setenv factory:

This is not a valid command in NetApp systems.

D. wipeconfig:

This command is used to clear configuration and logs but does not reset environment variables.

Why Other Options Are Incorrect:

NetApp "System Configuration Guide" confirms the use of set-defaults for restoring environment variables to factory settings.

References:

To diagnose a PCI/NMI error and collect logs, use the following commands:

What it does:This command collects PCI error logs, including detailed information about PCI devices and the errors that caused the panic.

How to use:Run the command from the nodeshell to capture the required PCI log entries.

1. pelog –a –g=2

What it does:This command reads the SSRAM log file, which contains low-level error information related to PCI and other hardware subsystems.

How to use:Run the command to view the log entries directly for detailed troubleshooting.

2. rdfile /mroot/etc/log/SSRAM

B. show pci –v:

While this command displays PCI device information, it does not provide detailed error logs.

D. event log show:

This displays event log entries but does not contain the specific PCI or NMI-related logs required for diagnosing the panic.

Why Other Options Are Incorrect:

"ONTAP Hardware Troubleshooting Guide" lists pelog and SSRAM as tools for analyzing PCI errors.

"ONTAP Panic Analysis Guide" emphasizes the importance of collecting detailed hardware logs.

References:

To determine whether an aggregate is WAFL (Write Anywhere File Layout) inconsistent, the following two commands can be used:

What it does:This command directly checks the WAFL consistency status of the specified aggregate. If an aggregate is WAFL inconsistent, it will report the inconsistency in the output.

How to use:

Run the command: wafiron show <aggregate> (replace <aggregate> with the name of the aggregate).

Look for indications of WAFL inconsistency in the output.

Why it's relevant:The wafiron utility is specifically designed to provide WAFL status and diagnostics. It is the most accurate and direct way to confirm whether an aggregate is inconsistent.

References:

"WAFL Troubleshooting Guide" from NetApp highlights the wafiron show command as a primary tool for checking aggregate consistency.

1. wafiron show <aggregate>

What it does:This command displays RAID information for all aggregates on the specified node. If an aggregate is WAFL inconsistent, it will be explicitly mentioned in the output.

How to use:

Run the command: node run –node sysconfig –r.

Check the output for the phrase "WAFL inconsistent" under the corresponding aggregate.

Why it's relevant:This command provides additional context, such as the RAID group details, which can help understand whether the inconsistency is isolated or part of a larger issue.

References:

"ONTAP CLI Commands Guide" specifies sysconfig –r as a method to verify aggregate status, including WAFL consistency.

2. node run –node sysconfig –r

C. storage aggregate show:

This command displays aggregate configuration and usage information but does not report WAFL inconsistency.

D. node run –node <node> sysconfig –a:

While this command shows detailed hardware configuration information, it does not include WAFL consistency status for aggregates.

Why Other Options Are Incorrect:

 What Is a Watchdog Timeout?

The watchdog is a software or hardware mechanism that monitors the system’s health and ensures it is operating correctly.

If the system fails to respond or update the watchdog timer within the specified time, the watchdog triggers a system panic to avoid further corruption or damage.

 Cause of Watchdog Timeout:

This usually occurs due to:

A hardware failure (e.g., CPU or memory issue).

A software bug causing a system hang or crash.

The panic ensures the system stops operation to preserve data integrity and aid in troubleshooting.

 NetApp Reference Documentation:

"ONTAP Troubleshooting Guide" and "Core Dump Analysis Guide" provide details on interpreting watchdog timeouts and recommended actions.

In a clustered ONTAP system, write requests are acknowledged to the client only after they are securely stored in NVRAM on both the local node and its HA (High Availability) partner.

This ensures redundancy and data protection in case of a node failure.

Write Acknowledgment in NetApp ONTAP:

A. when the write is present in the local node RAM and NVRAM:

Writes are not acknowledged until the HA partner also stores the data in its NVRAM.

B. when the write has been flushed to disk:

Writes are acknowledged before they are written to disk, as NVRAM ensures durability.

D. when the write has been flushed from NVRAM to RAM:

Data is not acknowledged based on RAM; NVRAM on both nodes is the requirement.

Why Other Options Are Incorrect:

NetApp’s "ONTAP Write I/O Processing Guide" explains the role of NVRAM and HA in write acknowledgment.

"Data Protection in ONTAP" highlights the synchronization of NVRAM between HA partners.

References:

 Upgrade Considerations for Disk and CPU Utilization:

During an ONTAP upgrade, it is critical to ensure the system has sufficient resources to handle the upgrade process without impacting normal operations.

 Recommended Threshold:

NetApp recommends that both disk and CPU utilization should be below 70% before initiating an upgrade. This ensures that there is enough headroom for the upgrade operations and avoids performance degradation.

 Steps to Verify Utilization:

Use the system node show -fields cpu command to check CPU usage.

Use the storage aggregate show -fields used command to check aggregate disk utilization.

 NetApp Reference Documentation:

"ONTAP Upgrade and Maintenance Guide" specifies the 70% threshold for disk and CPU usage during upgrade planning.

The "ONTAP Performance Management Guide" provides methods for monitoring system resource utilization.

When a node fails to boot and loads the previous version of ONTAP, it usually indicates that the primary boot location is incorrect. To resolve this:

Enter the LOADER Prompt:

Interrupt the boot process to access the LOADER prompt.

Set the Primary Kernel URL:

Use the following command:

Steps to Boot the Correct ONTAP Version:setenv GX_PRIMARY_KERNEL_URL

Boot the Node:

Run the boot command to load the correct version.

B. From the loader prompt of nodeA1, run boot_backup:

Booting the backup image may result in an outdated version of ONTAP, not the desired version.

C. From the clustershell of the partner, run system node image modify:

Modifications to the ONTAP image must be done from the LOADER prompt, not the clustershell.

D. From the clustershell of nodeA1, run system node image modify:

NodeA1 cannot load ONTAP, so this command cannot be run.

Why Other Options Are Incorrect:

"ONTAP System Boot Guide" explains how to resolve boot issues using the LOADER prompt.

NetApp documentation on environment variables includes the use of GX_PRIMARY_KERNEL_URL.

References:

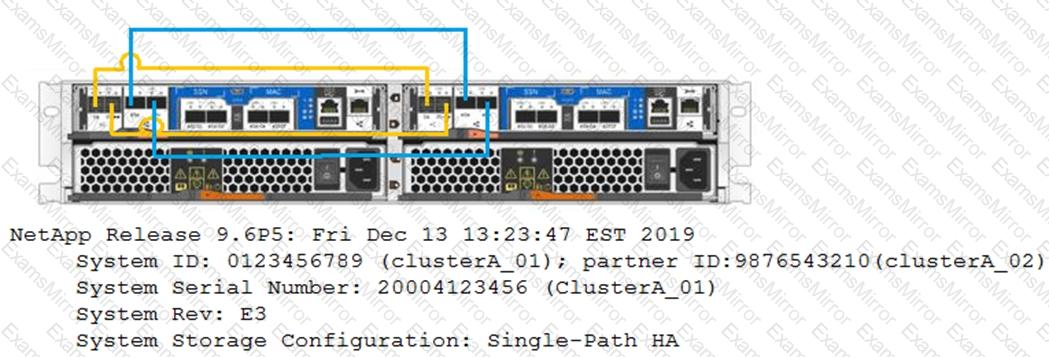

In a NetApp high-availability (HA) configuration, multipath HA ensures redundancy by providing two independent paths from each controller to the connected storage. If the system is currently showing Single-Path HA, it means only one path is operational or connected, which is a potential single point of failure.

To convert the configuration to multipath HA, additional cabling must be configured to establish the second path. For the AFF A220 system, the correct connections are as follows:

Explanation of the Correct Answer:

AFF A220 Port Configuration for HA:

Each controller in an AFF A220 has ports labeled 0a, 0b, 0c, and 0d for connectivity.

In a multipath HA configuration, each controller must have two independent paths to the connected storage via the partner controller's disk shelves.

Correct Cabling for Multipath HA:

Port 0a on both controllers must be connected to the corresponding port (e.g., disk shelf stack or Inter-Switch Link).

Port 0c on both controllers must also be connected to complete the redundant path.

These connections ensure that there are two independent data paths between the controllers and the storage system, providing fault tolerance in case one path fails.

Single-Path HA to Multipath HA:

If the system currently shows Single-Path HA, it is likely that only one set of ports (e.g., 0a and 0b) are cabled.

Adding the additional connections on 0a and 0c establishes the second path required for multipath HA.

Why the Other Options Are Incorrect:

A. 0a and 0b on both controllers should be connected:

This option only connects ports 0a and 0b, which does not establish a multipath HA configuration. Port 0c is also required for redundancy.

C. 0c and 0d on both controllers should be connected:

Connecting only 0c and 0d would leave ports 0a disconnected, failing to establish a proper multipath HA setup. Both 0a and 0c are required.

D. 0a and 0d on both controllers should be connected:

Connecting 0a and 0d is not the standard configuration for multipath HA in an AFF A220 system. Port 0c is part of the required configuration.

How to Verify the Configuration:

Use the following ONTAP command to verify the HA status:

cluster::> storage failover show -fields multipath-ha

This will display whether the system is in multipath HA or single-path HA mode.

Check the port connectivity:

cluster::> network port show -node

References:

NetApp Hardware Installation and Setup Guide for AFF A220.

NetApp Knowledge Base: "Configuring Multipath HA for AFF Systems."

ONTAP 9.x System Administration Guide: "High Availability Configurations."

 Understanding Single-Path HA vs. Multipath HA:

Single-Path HA indicates that only one path exists between the controllers and the connected shelves, leading to limited redundancy.

Multipath HA requires both controllers to have redundant SAS connections to the shelves.

 Cabling for Multipath HA in AFF A220 Systems:

To achieve multipath HA, you must connect 0c and 0d on both controllers to the appropriate stack ports on the shelves.

This ensures dual paths for each controller to access the storage shelves.

 NetApp Reference Documentation:

Refer to the "ONTAP Multipath HA Configuration Guide" and the "NetApp Hardware Installation Guide" for AFF A220 systems for cabling diagrams and best practices.
