= The NetApp sanlun command is a tool that returns information about the LUNs mapped to your host, multipathing, and information necessary to create initiator groups. It is part of the Linux Unified Host Utilities package, which also includes other tools to manage NetApp storage, such as failover policies and physical paths. To run the sanlun command, you must install the Host Utilities package on your Linux host. The other options are not relevant for this scenario, as they are either not required or not compatible with the Linux host. References = Install Linux Unified Host Utilities 7.1, SAN Toolkit

Here is my reasoning:

The system node hardware unified-connect show command displays the status and configuration of the Unified Connect ports on a node1. This command can help you identify if the ports are configured correctly and if they have any errors or faults.

The ports 0e and 0f on the AFF A300 are 10GbE ports that support both Ethernet and Fibre Channel over Ethernet (FCoE) protocols2. These ports are part of the Unified Connect feature, which enables you to use the same physical port for different protocols without requiring additional hardware3.

If the ports are offline, it could indicate a problem with the port configuration, the cable connection, the switch configuration, or the protocol settings. The system node hardware unified-connect show command can help you troubleshoot these issues by showing you the port mode, speed, duplex, state, and error count1.

The other commands in the options are not as helpful for troubleshooting the port issue, because they show different information that is not related to the Unified Connect feature or the port status. For example:

The vserver fcp wwpn-alias show command displays the World Wide Port Name (WWPN) aliases for the Fibre Channel Protocol (FCP) logical interfaces (LIFs) on a Vserver4. This command can help you manage the FCP LIFs, but it does not show the status of the physical ports or the Unified Connect feature.

The storage port show command displays the status and configuration of the storage ports on a node5. This command can help you manage the storage ports, but it does not show the status of the Unified Connect ports or the FCoE protocol.

The vserver fcp interface show command displays the status and configuration of the FCP LIFs on a Vserver6. This command can help you manage the FCP LIFs, but it does not show the status of the physical ports or the Unified Connect feature.

Here are some references that might help you:

1: system node hardware unified-connect show - NetApp 2: AFF A300 system installation - NetApp 3: Unified Connect - NetApp 4: vserver fcp wwpn-alias show - NetApp 5: storage port show - NetApp 6: vserver fcp interface show - NetApp

= AutoSupport is enabled by default for Cloud Manager and ONTAP Cloud systems. It proactively monitors the health of your systems and sends messages to NetApp technical support. To enable AutoSupport, you must provide your NetApp Support site credentials to Cloud Manager. If your credentials are incorrect or expired, Cloud Manager will not be able to send AutoSupport messages to NetApp. Therefore, the solution for this issue is to verify that your NetApp Support site credentials are correctly added to Cloud Manager. References = Troubleshooting Cloud Manager and ONTAP Cloud, Set up AutoSupport

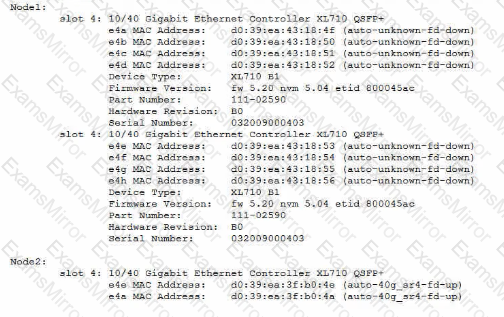

= The cause of the customer’s problem is that the port has an incorrect SFP inserted. According to the AutoSupport data, the node 1 has a device type of XL710 BQ, which is a 40GbE adapter that requires a QSFP+ transceiver1. However, the part number of the adapter is 111-02590, which is a 10GbE adapter that requires a SFP+ transceiver2. This mismatch prevents the link from coming up on node 1. The customer should replace the adapter with the correct one or use a compatible transceiver for the existing adapter. References = 1: NetApp Hardware Universe - X1144A 2: NetApp Hardware Universe - X1147A

 The iSCSI service must be enabled on the network interfaces that are used for iSCSI communication. If the iSCSI service is disabled on an interface, the incoming connection requests from the iSCSI initiator will be discarded and the event log will show the message “ISCSI: network interface identifier disabled for use; incoming connection discarded”. To enable the iSCSI service on an interface, you can use the System Manager or the CLI command network interface modify -vserver vserver_name -lif lif_name -data-protocol iscsi. References = Configure the iSCSI protocol with System Manager, [ONTAP 9 Network Management Guide]

The VMware feature that is supported by ONTAP software to identify and follow I/Os from each VM on the shared FC LUN-backed datastores is Virtual machine ID (VMID). VMID is a unique identifier assigned to each VM by the vCenter Server. ONTAP software can use VMID to map the VMs to the FC LUNs and provide visibility into the I/O performance and latency of each VM. This feature is also known as Virtual Storage Console (VSC) for VMware vSphere12. References: 1:Virtual Storage Console for VMware vSphere | NetApp Documentation 2: How to use Virtual Storage Console (VSC) to monitor the performance of virtual machines - NetApp Knowledge Base

The mailbox disks are the first two disks of the root aggregate on each node of an HA pair. They store the HA state information and the panic dump files. The mailbox disks are used for communication between the HA partners and for takeover and giveback operations1

The mailbox destroy local command is used to destroy the mailbox disks on the local node. This command is only available in maintenance mode and should be used with extreme caution. The command is intended for situations where the mailbox disks are corrupted or inaccessible and need to be recreated2

If the mailbox destroy local command is executed on a node that is in takeover mode, the node will panic with the message “Permanent errors on all HA mailbox disks”. This is because the node will lose the HA state information and the panic dump files of the partner node, and will not be able to communicate with the partner node or perform a giveback operation3

Therefore, if the motherboard of Node-01 is being replaced, and a takeover was initiated from Node-02, and Node-02 panics showing the string “Permanent errors on all HA mailbox disks”, the most likely cause is that the mailbox destroy local command was executed on Node-02 while in maintenance mode. This is a serious error that can result in data loss and system downtime4

References:

1: ONTAP 9 - High-Availability Configuration Guide - The Open Group 2: ONTAP 9 - Commands: Manual Page Reference - The Open Group 3: How to troubleshoot a “Permanent errors on all HA mailbox disks” panic - NetApp Knowledge Base 4: One node PANIC : Permanent errors on all HA mailbox disks - NetApp Knowledge Base

 The two throughput elements that are controlled by host applications are operation size and concurrency. Operation size refers to the amount of data that is transferred in a single I/O request, and concurrency refers to the number of I/O requests that are issued simultaneously. Both of these factors affect the throughput of a host application, as they determine how much data can be sent or received within a given time period. Larger operation sizes and higher concurrency can increase the throughput, but they may also increase the latency and resource consumption12. References: 1: NetApp Performance Analysis on Data ONTAP - Chapter 3: Host-Side Performance 2: NetApp Performance Analysis on Data ONTAP - Chapter 4: Storage System Performance

= The error message indicates that the volume my_data_vol is WAFL inconsistent, which means that there is a discrepancy between the data blocks and the metadata in the file system. This can be caused by various factors, such as hardware failures, software bugs, power outages, or network disruptions. The first action to correct this issue is to determine the root cause behind the inconsistency before attempting any recovery procedure, as recommended by the NetApp documentation1. This is because some recovery procedures, such as wafliron or storage takeover, may not work or may cause further damage if the underlying cause is not resolved. For example, if the inconsistency is due to a faulty disk or shelf, running wafliron may not fix the problem and may even corrupt more data. Therefore, it is important to identify and isolate the cause of the inconsistency before taking any further steps. References = 1 Volume Showing WAFL Inconsistent - NetApp Knowledge Base

= The -transport parameter specifies the protocol used to send AutoSupport messages, which should be HTTPS by default. The -proxy-url parameter specifies the proxy server used to sendAutoSupport messages, which should be the Connector’s IP address and port if the Cloud Volumes ONTAP nodes do not have outbound internet access. These two parameters can be used to check the AutoSupport configuration and connectivity status. References = Verify AutoSupport setup, Troubleshoot your AutoSupport configuration, High-availability pairs in Azure
