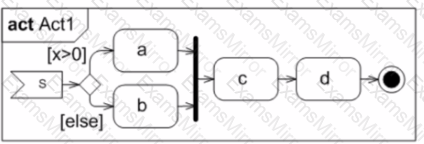

The provided image depicts a block diagram with a signal, decisions, and actions. Here's a breakdown of the elements and why answer choice A is the most accurate:

Signal: Represented by a vertical arrow labeled "Signal", indicating an external stimulus that triggers the process.

Decision Diamond labeled "x>0": This diamond represents a decision point based on the condition "x greater than 0". The flow splits into two paths based on whether the condition is True (Yes) or False (No).

Paths from the Decision:

The True (Yes) path leads to an action labeled "a".

The False (No) path leads to an action labeled "b".

Action c: This action is positioned below the decision diamond.

Analysis of Action c's Execution:

Upon receiving a Signal, the decision point is evaluated.

Depending on the value of x:

If x is greater than 0 (True path), action "a" is executed.

If x is not greater than 0 (False path), action "b" is executed.

In either case (True or False), after the corresponding action (a or b) finishes, action "c" is then executed once.

Other Answer Choices Analysis:

B. Two or more Signals must be received... The diagram suggests execution upon receiving one Signal.

C. Action c will get executed twice... The diagram indicates c executes only once after either a or b.

D. Nothing can be said... The diagram conveys a clear sequence of actions based on the signal and the decision.

The most appropriate use of UML during software development is to capture the essential characteristics and design decisions of a planned or existing system. UML (Unified Modeling Language) is primarily utilized to visually represent the architecture, design, and behavior of a system, which includes detailing the components, relationships, and interactions within the system. This makes it a critical tool for understanding complex systems and making informed design decisions that align with project requirements and constraints. UML facilitates clear communication among development team members and stakeholders, ensuring that design decisions are well-understood and accurately implemented.

In UML sequence diagrams, a signal is typically represented as an asynchronous message without a return value. Asynchronous messages are often denoted with an open arrowhead, and they can represent the sending of a signal.

Looking at the diagram provided, 'p' is sent from 'v2[C]' to 'v3[B]' with an open arrowhead, which indicates that it is an asynchronous message. This fits the common representation of a signal, as it does not expect a response.

'A', 'B', and 'C' do not represent signals in the context of a sequence diagram: A) 'v' is not shown in the diagram; it might refer to a lifeline, which is not a signal. B) 'B' refers to a class or object type and not a message or signal. C) 'm' is represented as a synchronous message (as it has a return arrow), which is not typical for signals.

Therefore, the correct answer is:

D. p

In UML, basic types like byte, short, and long are represented as DataType elements. These are typically used to specify the types of attributes, parameters, or return values of operations in a model. Option A shows three separate classes named Byte, Short, and Long, which would represent these as distinct data types within the UML model.

Option B incorrectly uses stereotypes on objects, which is not the correct UML representation for data types. Option C shows a class with attributes of different types, but it does not define these types as basic types. Option D is incorrect because it uses stereotypes on DataType elements, which is not the standard way to represent basic types in UML.

According to the UML 2.5 specification, DataTypes are a kind of classifier that specifies a domain of values without identity (section 10.5.8). DataTypes are not classes; they do not have operations and cannot have instances that maintain an identity.

In UML 2, a structured class can have internal parts, which are depicted using 'parts' or 'roles' within the class diagram. These internal parts are used to show the composition of the class in terms of contained classes or components. In the context of the question, the structured class named 'System' contains two parts named 'Subsystem1' and 'Subsystem2'.

Option C is the equivalent definition of 'System' in terms of UML 2 notation for several reasons:

It represents the structured class 'System' with internal parts correctly labeled as 's1:Subsystem1' and 's2:Subsystem2-[ ]', which indicates the role names 's1' and 's2' followed by the class type 'Subsystem1' and 'Subsystem2' respectively. The notation '1..*' after 's2:Subsystem2-[ ]' suggests a multiplicity, meaning that there can be one or many instances of 'Subsystem2' associated with 'System'.

The compartmentalization within the structured class is indicative of the composition of the 'System', showing that 'Subsystem1' and 'Subsystem2' are integral parts of the 'System'.

The notation conforms to the standard UML 2 representation for composite structures, as described in the UML 2 Superstructure Specification, where a class can be broken down into its constituent parts within the class rectangle.

This information is verified against the UML 2 Superstructure Specification, which is the authoritative source for UML notation and semantics. Particularly, this aligns with section 9.3.5 on Composite Structures Diagrams, which details the graphical notation for parts and roles within a structured class.

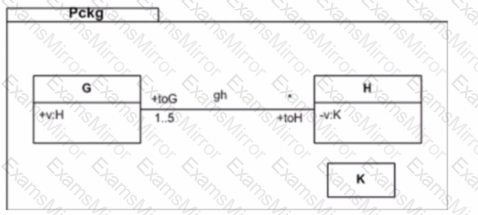

The diagram shows a package Pckg that includes two classes G and H with a one-to-many association between them. The multiplicity '1..5' near class G on the 'gh' association end suggests that for each H object, there should be between 1 to 5 associated G objects. However, the '*' (multiplicity many) near class H on the 'gh' association end indicates that a G object can be associated with zero or more H objects. This implies that it's possible to have a G object that is not associated with any H object.

References:

UML 2.x Superstructure Specification: Multiplicity notations and association rules are clearly defined in the UML specifications, which detail the semantics of multiplicities and their implications for object association.

UML 2.x Infrastructure Specification: Further explains the basic constructs of the UML metamodel, which underpin the interpretation of multiplicities in associations.

The image depicts a state machine with the following states:

S1

S11

S2

S21

The state machine transitions are labeled as follows:

gxSH - This triggers the transition from the initial state to S1.

E - This event triggers the transition from S11 to S21.

exS1 - This signifies exiting state S1.

exS11 - This signifies exiting state S11.

entS2 - This signifies entering state S2.

entS21 - This signifies entering state S21.

actnE - This indicates an action associated with the E event.

Given the state machine is currently in state S11 and an event of type E occurs, here's the sequence of behavior executions:

actnE: The action associated with event E is executed.

exS11: The state machine exits state S11.

exS1: Since S11 is nested within S1, exiting S11 also implicitly triggers exiting S1.

entS2: The state machine enters state S2.

entS21: The state machine enters the nested state S21.

Justification for excluding other options:

Option A (actnE; exS1; exS11: entS21; entS2) has the order of entering S2 and S21 reversed.

Option C (exS11; actnE; entS2) omits the execution of the action associated with event E.

Option D (gxSH; exS1; actnE; entS2) includes the irrelevant initial transition trigger (gxSH).

Option E (exS11; exS1; actnE; entS2; entS21) has an extra exiting of state S1, which is not part of the valid transition path.

Following the state transitions and action triggers depicted in the state machine diagram, option B accurately reflects the sequence of behaviors that occur when event E triggers a transition from state S11.

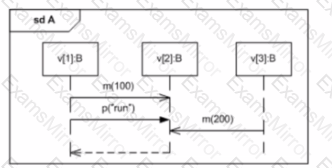

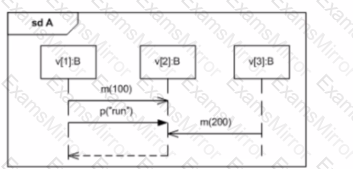

The diagram shown is a UML Sequence Diagram, which is used to depict the interaction and order of messages between objects.

In the given diagram, we can see two occurrences of the message 'm' with different parameters (100 and 200), and one occurrence of the message 'p' with the parameter "run".

To determine the minimum number of occurrences that must happen before the reception of 'm(200)', we look at the order of messages:

The message 'm(100)' must occur.

The message 'p("run")' must occur after 'm(100)' and before 'm(200)'.

These two occurrences are the minimum necessary before 'm(200)' can be received by the object. The dashed line represents a return message, which does not count as an occurrence for this purpose.

Therefore, the correct answer is:

B. 2

In UML, Comments are annotations that can be attached to most elements within UML diagrams. Their primary function is not to affect the semantics of the model directly but to provide useful information to anyone reading the model. Comments can help explain or clarify design decisions, make notes about specific parts of the model, or provide any other context necessary for understanding the model better.

The role of Comments in UML is not to enable automatic generation of code comments or to add constraints or semantics to model elements, although they can be associated with model elements to highlight or explain specific attributes or relationships.

References:

UML 2.x Superstructure Specification: This document describes Comments as a way to provide human-readable descriptions and notes that do not impact the execution or structure of the model but are crucial for documentation and understanding.

UML 2.x Infrastructure Specification: Further delineates the role of comments in providing clarifications and additional information useful for model interpretation.

Here's a breakdown of why option D is correct and why the other options aren't:

FlowFinalNode Purpose:In UML activity diagrams, a FlowFinalNode represents a termination point for a specific control flow within an activity. It does not end the activity itself but rather the path along which it is placed.

Analysis of Other Options:

A. FlowFinalNodes do not appear in activities... This is incorrect. FlowFinalNodes are specifically defined for use in the context of activities.

B. FlowFinalNodes do not appear in activities; the proper element for this use is NoneEndEvent. NoneEndEvent is a concept from State Machine Diagrams. While it shares some similarities in terms of ending a flow of execution, it is a distinct concept from FlowFinalNode within the context of activity diagrams.

C. A token that reaches a FlowFinalNode causes all execution within the activity to cease. This is too broad. A FlowFinalNode only halts the specific control flow on which it's placed. Other activity flows continue unaffected.

References

UML 2.5.1 Specification (Superstructure): Sections on Activity Diagrams, FlowFinalNode. https://www.omg.org/spec/UML/2.5.1/
