A default aggregation can be specified for a measure, making A correct. Measures represent quantitative values and are normally aggregated when they are added to a visualization. For example, a Sales measure typically appears as SUM(Sales). Tableau allows the author to change the measure's default aggregation so that subsequent uses of the field can initially use AVG, MIN, MAX, COUNT, standard deviation, or another supported aggregation instead of SUM. The configuration is available from the Data pane by right-clicking the measure and selecting Default Properties > Aggregation. The choice becomes the default behavior when the field is subsequently added to a view, although the aggregation can still be overridden for an individual instance of the field. Dimensions do not use a default measure aggregation in this manner because their primary role is to partition and categorize the data. Bins are generated categorical fields representing numerical intervals. An already aggregated calculated expression also has restrictions because Tableau cannot arbitrarily aggregate an expression that is already defined at an aggregate level. Tableau's official Default Settings documentation specifically states that users can specify a default aggregation for any measure and documents the Data pane workflow for configuring it.

A basic scatter plot requires one measure on Columns and another measure on Rows, so D is correct. A scatter plot displays the relationship between two quantitative variables. One measure determines the horizontal position of each mark, while the second measure determines its vertical position. For example, placing SUM(Sales) on Columns and SUM(Profit) on Rows establishes a two-dimensional quantitative coordinate system. A dimension may then be added to Detail, Color, Shape, or another Marks property to create separate marks for entities such as customers, products, or states. However, that additional dimension is not the fundamental axis requirement identified by the question. The minimum structural requirement is two quantitative measures defining the x- and y-axes. A dimension plus a measure normally produces a categorical view such as a bar chart rather than a scatter plot. Two dimensions likewise do not supply the pair of quantitative scales required to analyze numerical correlation or distribution. Tableau's visual construction model distinguishes continuous quantitative measures, which generate axes, from discrete fields, which generally create headers. A scatter plot relies on two quantitative axes and therefore requires measures on both Rows and Columns. This is consistent with Tableau's standard scatter-plot construction methodology and its continuous-field behavior.

A story point is an individual visualization state within a Tableau story, normally represented by a worksheet or dashboard. Therefore, A is correct. Tableau defines a story as a sequence of visualizations that collectively communicate information, provide context, demonstrate relationships, or support a data-driven narrative. Each individual sheet contained in that sequence is called a story point. A story can contain multiple points, and each point can present a different worksheet, dashboard, filter state, annotation, or analytical stage. Option C describes the overall story, not an individual story point. The distinction is important: the story represents the complete ordered narrative, while the story point represents one step within that narrative. Option B is not an official Tableau object or definition. Option D refers to controls within the story workspace and does not define a story point. This functionality allows an analyst to guide viewers through findings in a controlled sequence while preserving interactive visualization capabilities where supported. Official Tableau Desktop documentation explicitly states that a story is a collection of sheets arranged in sequence and that each individual sheet in a story is called a story point.

Tableau provides three principal scope levels for reference lines: Entire Table, Per Pane, and Per Cell. Therefore, A, B, and D are correct. Scope determines the partition of the visualization over which Tableau calculates and displays the reference line. Entire Table computes one reference value based on all applicable marks in the view. This is appropriate for a global benchmark such as overall average Sales. Per Pane creates a separate reference line for each pane. For example, if a visualization is partitioned by Region, Tableau can calculate an independent average for each regional pane. Per Cell is still more granular and can calculate a separate reference line for each cell defined by the row and column structure of the view. Maximum is not a scope; it is a possible statistical value or computation that can be used to determine the reference-line value. Similarly, Fill Above concerns formatting or shading behavior associated with analytical reference objects and does not define the calculation scope. Official Tableau documentation explicitly states that the terms Table, Pane, and Cell define the scope for reference lines and related analytical objects. These options control whether the benchmark applies globally or independently to specific partitions of the visualization.

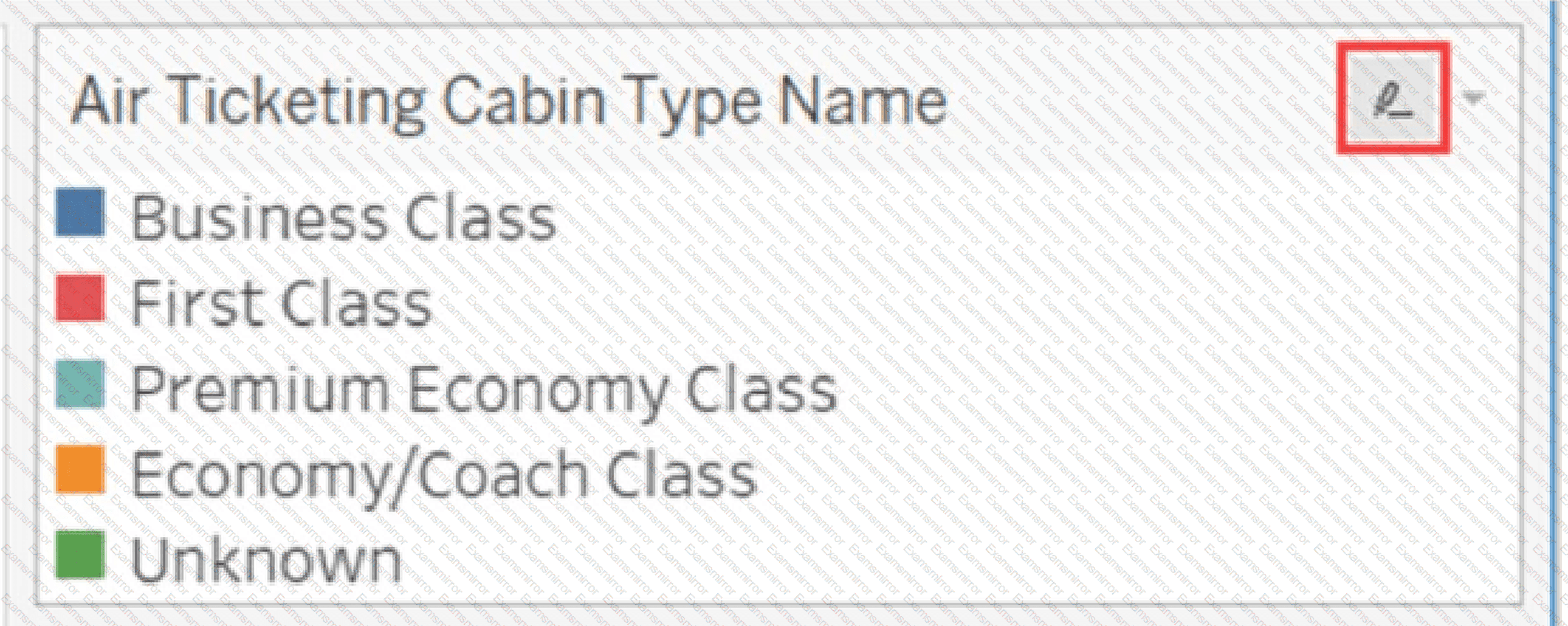

The icon displayed to the right of the legend title is Tableau's highlighting control. Therefore, clicking it controls legend highlighting, making C the correct answer. Legend highlighting is an interactive analytical feature that allows the viewer to focus on specific marks associated with a selected legend member. When highlighting is enabled and a value such as Business Class or First Class is selected, Tableau emphasizes the corresponding marks while visually dimming unrelated marks. This makes it possible to investigate one category without filtering other categories out of the visualization. Tableau supports both one-way and two-way legend highlighting. The icon displayed at the top of the legend indicates the available highlighting mode. In two-way highlighting, interaction can occur from either the legend or marks in the visualization. The Edit Colors command is accessed through the legend's menu or other color controls, not by clicking this highlighter icon. Likewise, the icon does not expose filter settings and does not hide or display the legend itself. Official Tableau documentation explicitly states that the icon at the top of the legend represents legend highlighting and can be used to control highlighting behavior.

The correct answer is Treemaps. A treemap represents data as a set of rectangles. Tableau uses one or more dimensions to define the rectangular structure, while a measure placed on Size determines each rectangle's relative area. Tableau automatically lays out the rectangles to use the available visualization space efficiently. The analyst therefore controls relative size through the measure encoded on Size rather than manually resizing the generated rectangles with the ordinary Marks card size slider. For example, if Sub-Category defines the rectangles and Sales is placed on Size, categories with larger aggregated Sales values receive proportionally larger rectangles. Changing the Sales values or replacing the field on Size changes the relative areas, while Tableau recalculates the layout automatically. Pie charts have mark-size controls and can be resized through the Marks card. Area charts derive their visual area from their axes and underlying measures. Histograms use bars representing bins and frequencies and have different bar-sizing behavior. Tableau's official Treemap documentation identifies Size and Color as the crucial encodings and explains that a measure on Size determines the areas of the rectangles. The resulting treemap geometry is automatically laid out according to those values rather than manually sized mark by mark.

A Relative dates filter is designed for date ranges that dynamically change relative to the current date, making B correct. This filter can represent periods such as the current week, previous month, year to date, or the last specified number of days, weeks, months, quarters, or years. The important distinction is that a relative date filter is dynamic. As the current date advances, Tableau recalculates the applicable range when the view is opened or refreshed. This behavior is appropriate for requirements based conceptually on TODAY() because the filter should continue tracking the present period rather than retaining fixed start and end dates. A Range of dates filter establishes a specific date interval and is better suited to fixed boundaries. A Starting Date or Ending Date represents an open-ended boundary from a particular date rather than a dynamically shifting interval relative to today. Tableau's official documentation states that relative date filters dynamically update to display a time period relative to when the view is opened. Examples include the current week, year to date, or past ten days. This functionality allows analysts to create dashboards that consistently display the most recent period without manually editing the filter as calendar time progresses. Relevant topics include date fields, relative date filtering, dynamic analysis, and interactive filter configuration.

The correct configuration is Logical tables that use a single table extract, making C correct. In Tableau's data model, a union operates in the physical layer. The two unioned physical tables are merged into one resulting logical table. Tableau explicitly describes logical tables as containers that can contain multiple physical tables joined or unioned together. When an extract is stored using Logical Tables, Tableau creates one extract table for each logical table in the data source. Because the scenario contains one logical table composed of the two unioned physical tables, the extract is consequently represented as a single extract table. This is different from using Physical Tables storage. Physical storage retains an extract table for each physical table and is subject to additional eligibility restrictions. Tableau's current terminology replaced the older "Single Table" and "Multiple Tables" extract terminology with Logical Tables and Physical Tables, respectively. Official Tableau documentation states that physical tables joined or unioned inside a logical table are merged as part of that logical table, and that Logical Tables extract storage creates one extract table per logical table. Therefore, a two-table union forming one logical table corresponds to a logical/single-table extract structure.

The associate should place Region on Color on the Marks card. A discrete dimension placed on Color partitions the marks according to the dimension's members. Consequently, the visualization produces a separate line for each Region while preserving the existing date field on Columns and Sales measure on Rows. For example, if Region contains Central, East, South, and West, Tableau separates the original Sales line into four distinct series and assigns a categorical color to each region. The lines remain plotted against the same continuous date and Sales axes, which satisfies the requirement for multiple distinct lines on the same axis. Placing Region on Rows or Columns would partition the visualization into separate panes or headers rather than overlaying distinct regional lines within the same plotting area. Path controls the order in which Tableau connects marks in a line or polygon and therefore does not provide the required categorical separation. Tableau's Marks card is specifically designed to encode fields by visual properties such as Color, Size, Label, Detail, Tooltip, and Path. Official Tableau documentation confirms that placing a discrete field—typically a dimension—on Color assigns a distinct categorical color to each value.

Tableau visualization animations can use either a Simultaneous or Sequential animation style, and their analytical purpose is to make changes in the data easier to perceive. Therefore, A and D are correct. Under Format > Animations, Tableau provides two animation styles. With Simultaneous, all applicable transitions occur at the same time. With Sequential, Tableau stages the transition—for example, fading marks, moving or sorting them, and then displaying the updated state. This directly confirms option A. Animations are particularly useful when filters, sorts, parameters, or other changes alter the position or composition of marks. Instead of immediately replacing one static state with another, the transition helps a viewer understand how the marks changed, making patterns, movements, and differences easier to track. This supports D. The Pages shelf is a separate Tableau feature for stepping through members of a field and can create a sequence of views, but it does not define visualization animations themselves. Likewise, animation is a workbook/sheet formatting capability rather than a feature specifically defined by map visualization usage. Tableau's official Animations documentation identifies Simultaneous and Sequential as the available animation styles and describes animations as a mechanism for visually communicating changes in the view.
