Explanation

Correct answer is Only MuleSoft provided certificates can be used for server side certificate

* The CloudHub Shared Load Balancer terminates TLS connections and uses its own server-side certificate.

* You would need to use dedicated load balancer which can enable you to define SSL configurations to provide custom certificates and optionally enforce two-way SSL client authentication.

* To use a dedicated load balancer in your environment, you must first create an Anypoint VPC. Because you can associate multiple environments with the same Anypoint VPC, you can use the same dedicated load balancer for your different environments.

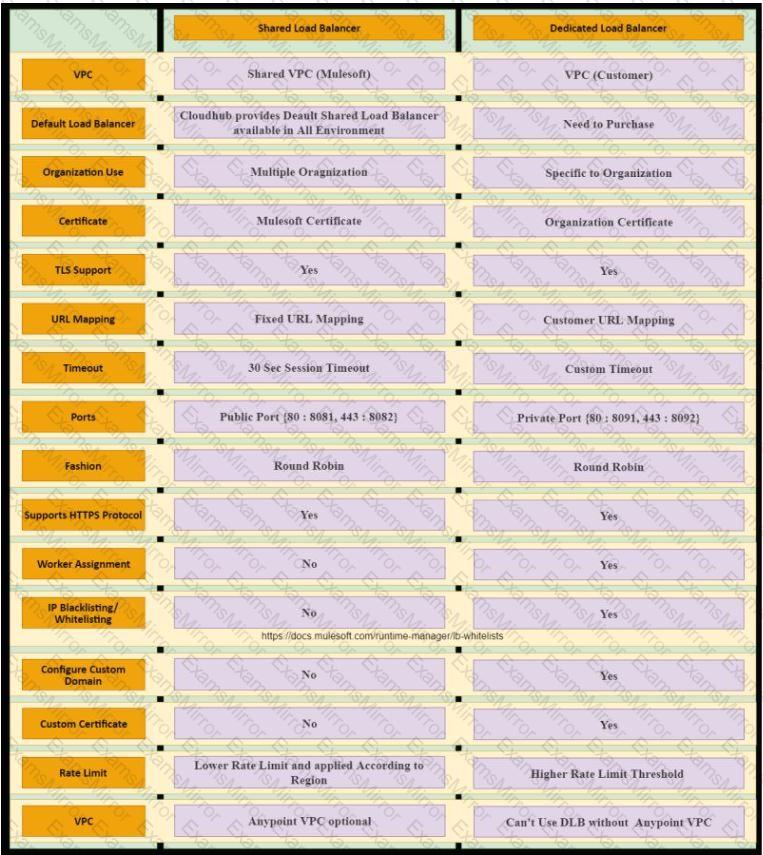

Additional Info on SLB Vs DLB:

Table Description automatically generated

To improve delivery quality, a MuleSoft integration team should adopt automated testing with MUnit. MUnit is MuleSoft's testing framework that allows developers to create, design, and run unit and integration tests on their Mule applications. Automated testing with MUnit ensures that each part of the Mule application is tested for correctness and performance, catching issues early in the development cycle. This practice leads to higher quality code, reduced defects, and more reliable integrations.

Other practices mentioned, such as continuous design with API Designer and passive monitoring with Anypoint Monitoring, are important but do not directly address the need for rigorous and automated testing to ensure quality.

References

MuleSoft Documentation on MUnit

Best Practices for Automated Testing with MUnit

Explanation

● Option A says "Perform EACH DB insert in a SEPARATE DB transaction". In this case if first DB insert is successful and second one fails then first insert won't be rolled back causing inconsistency. This option is ruled out.

● Option D says Perform BOTH DB inserts in ONE DB transaction.

Rule of thumb is when one or more DB connections are required we must use XA transaction as local transactions support only one resource. So this option is also ruled out.

● Option B acknowledges the before DB processing, so message is removed from the queue. In case of system failure at later point, message can't be retrieved.

● Option C is Valid: Though it says "do not ack JMS message", message will be auto acknowledged at the end of transaction. Here is how we can ensure all components are part of XA transaction: https://docs.mulesoft.com/jms-connector/1.7/jms-transactions

Additional Information about transactions:

● XA Transactions - You can use an XA transaction to group together a series of operations from multiple transactional resources, such as JMS, VM or JDBC resources, into a single, very reliable, global transaction.

● The XA (eXtended Architecture) standard is an X/Open group standard which specifies the interface between a global transaction manager and local transactional resource managers.

The XA protocol defines a 2-phase commit protocol which can be used to more reliably coordinate and sequence a series of "all or nothing" operations across multiple servers, even servers of different types

● Use JMS ack if

– Acknowledgment should occur eventually, perhaps asynchronously

– The performance of the message receipt is paramount

– The message processing is idempotent

– For the choreography portion of the SAGA pattern

● Use JMS transactions

– For all other times in the integration you want to perform an atomic unit of work

– When the unit of work comprises more than the receipt of a single message

– To simply and unify the programming model (begin/commit/rollback)

Explanation

Mule applications are deployed in CloudHub workers and each worker is assigned with a dedicated IP • For zero downtime deployment, each worker in CloudHub needs additional IP addresses • A few IPs in a VPC are reserved for infrastructure (generally 2 IPs) • The IP addresses are usually in a private range with a subnet block specifier, such as 10.0.0.1/24 • The smallest CIDR network subnet block you can assign for your VPC is /24 (256 IP addresses) (60*3 env * 2 worker per application ) + 50% of (total) for zero downtime = 540 In this case correct answer is 10.0.0.0/22 as this provided 1024 IP's .

Other IP's are insufficient.

To determine when permissions were last changed for an Anypoint Platform user, the system administrator should use the Audit Logging component. Audit Logging in Anypoint Platform captures detailed logs of various activities, including changes to user permissions, login attempts, and other significant actions. These logs provide a historical record that administrators can review to track changes and ensure compliance with security policies.

Other components like Anypoint Monitoring, Anypoint Studio, and Mule Stack Traces are used for monitoring application performance, development, and debugging, respectively, but they do not provide specific information about user permission changes.

References

MuleSoft Documentation on Audit Logging

Anypoint Platform User Management

Explanation

Correct answer is Depending on the Listener operation configuration, either all messages are consumed by ONLY the primary cluster node or else EACH message is consumed by ANY ONE cluster node

For applications running in clusters, you have to keep in mind the concept of primary node and how the connector will behave. When running in a cluster, the JMS listener default behavior will be to receive messages only in the primary node, no matter what kind of destination you are consuming from. In case of consuming messages from a Queue, you’ll want to change this configuration to receive messages in all the nodes of the cluster, not just the primary.

This can be done with the primaryNodeOnly parameter:

MuleSoft's IT delivery and operating model suggests adopting an approach that decouples core IT projects from the innovation within each line of business. This approach, often referred to as API-led connectivity, allows different lines of business to innovate and deliver projects independently by using reusable APIs that provide access to core systems and data. This decoupling enhances agility, speeds up delivery, and ensures that core IT maintains control over critical systems and data while enabling rapid innovation.

A design-first approach in API development focuses on creating a detailed API specification before any implementation begins. This specification acts as a contract that defines the API's endpoints, request/response formats, and error codes. By developing this specification early, potential consumers can provide feedback, and testing can be conducted against mock implementations to ensure the API meets their needs. This approach helps identify issues early in the development process, improving the likelihood of successful implementation and adoption.

A synchronous invocation of a RESTful API using HTTP to get an individual customer record from a single system exemplifies the request-reply interaction pattern. In this pattern, a client sends a request to a service and waits for a response. The interaction is synchronous because the client expects an immediate reply and is blocked until it receives the response.

This pattern is common in scenarios where the client needs to retrieve specific data or perform an action that requires immediate feedback from the server, such as retrieving a customer record from a database.

References

MuleSoft Integration Patterns Documentation

Request-Reply Pattern Overview
