Comprehensive and Detailed In-Depth Explanation:

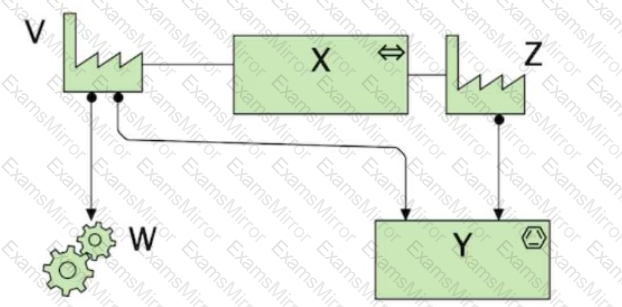

ThisArchiMate Physical Layer diagramrepresentslogistics and supply chain operations. The elements in the diagram align withphysical infrastructure conceptsused inArchiMate 3.2.

Understanding the Diagram Elements:

V (Factory symbol)→ Represents aFactory or Production Facility, where goods are manufactured.

W (Gear symbol)→ RepresentsRaw Material or Equipmentthat isused in production.

X (Network or Transportation symbol)→ RepresentsTransportation or a Distribution networkfor moving goods.

Y (End-point receiving goods)→ Represents alogistics center, warehouse, or transportation endpoint.

This matchesoption D, where:

V = Factory→ The starting point of manufacturing.

W = Raw material→ Essential input for production.

X = Transportation→ Moving products to distribution centers.

Analysis of Answer Choices:

✅A. V = Production process, W = Finished Material, X = Transport network→❌Incorrect

V is not a process; it is aphysical location (Factory).

W represents raw material, not finished material.

X represents transportation, but V is wrongly classified as a process.

✅B. V = Equipment, W = Facility, X = Distribution channel→❌Incorrect

V represents a Facility (Factory), not just Equipment.

W represents raw material, not a Facility.

X is more of a transportation network rather than a distribution channel.

✅C. V = Facility, W = Equipment, X = Distribution network→❌Incorrect

W represents raw material, not just Equipment.

X represents Transportation, not strictly a distribution network.

✅D. V = Factory, W = Raw material, X = Transportation→✅Correct Answer

This is the best match with the diagram’s physical elements.

V (Factory) is the production source.

W (Raw material) is used in production.

X (Transportation) is the means of moving goods.

ArchiMate 3.2 Specification, Section 7.7, definesFacilities, Materials, and Transportation as part of the Physical Layer modeling concepts.

Final Answer:✅D. V = Factory, W = Raw material, X = Transportation.

References:

ArchiMate 3.2 Specification: Sections 7.7 (Facilities & Physical Elements), 7.8 (Material Flow), and 7.9 (Distribution & Logistics).

Archi User Guide: Modeling physical infrastructure in enterprise architecture.

Comprehensive and Detailed In-Depth Explanation:

Theblack diamond notationinArchiMaterepresents aComposition relationship, which is used to indicatewhole-part relationshipsbetween elements.

Financial Processingis thewhole(parent element).

X, Y, and Zaresub-functions, meaning they arepart ofFinancial Processing.

Compositionisa strong relationship, meaning thesub-functions (X, Y, and Z) do not exist independently outside Financial Processing.

Analysis of Answer Choices:

✅A. The financial processing function is composed of three sub-functions X, Y, and Z.→✅Correct Answer

Composition relationshipsin ArchiMate indicate that one element ispart of anotherin a strict, whole-part hierarchy.

ArchiMate 3.2 Specification, Section 6.4.2, definesComposition as a structural relationship where the child elements belong strictly to the parent.

SinceFinancial Processing contains X, Y, and Z as integral sub-functions, this is the correct choice.

✅B. The financial processing function aggregates the three sub-functions X, Y, and Z.→❌Incorrect

Aggregationis aweakerrelationship in ArchiMate compared toComposition.

In Aggregation,the sub-functions can exist independently, whereas in Composition, theycannot.

ArchiMate 3.2 Specification, Section 6.4.1, states thatAggregation does not enforce a strict whole-part relationshiplike Composition does.

✅C. The financial processing function is influenced by the three sub-functions X, Y, and Z.→❌Incorrect

Influence relationshipsin ArchiMatedo not represent whole-part structures.

Influence is amotivation relationship, meaning it represents animpact or effect, not astructural dependency.

✅D. The financial processing function is assigned the three sub-functions X, Y, and Z.→❌Incorrect

Assignment relationshipsare used to indicate thata behavior element (e.g., function, process) is performed by an active structure element (e.g., role, actor, component).

This diagramdoes not depict an assignment relationship; instead, itshows a structural composition.

Final Answer:✅A. The financial processing function is composed of three sub-functions X, Y, and Z.

References:

ArchiMate 3.2 Specification: Sections 6.4.2 (Composition), 6.4.1 (Aggregation), and 6.5 (Influence & Assignment).

Archi User Guide: Modeling business functions and composition relationships.

Based on the ArchiMate 3 documents or objectives, the top-level language structure of the ArchiMate concepts defines four types of elements: Behavior, Composite, Motivation, and Structure. Behavior elements represent units of activity performed by one or more active structure elements. Composite elements represent collections of other concepts that belong together based on some criteria. Motivation elements represent the reasons for designing and implementing an architecture. Structure elements represent structural concepts that model the static construction or composition of concepts of the same or different types.

References: ArchiMate® 3.2 Specification, Chapter 3 Language Structure, Section 3.2 Top-Level Language Structure 1; ArchiMate - Wikipedia 2.

Comprehensive and Detailed In-Depth Explanation:

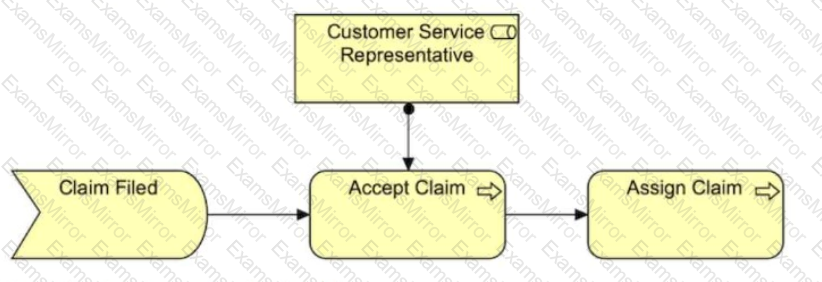

ThisArchiMate Business Layer diagramrepresentsa sequence of business processes triggered by a business event.

"Claim Filed" is a Business Event, which means it represents anexternal occurrence that initiates a process.

"Accept Claim" is a Business Process, meaning it is a structured activity that follows the event.

"Assign Claim" is another Business Process, which follows after the "Accept Claim" process.

A Customer Service Representative role is assigned to the "Accept Claim" process, but the focus of the diagram is the event-driven flow of processes.

Analysis of Answer Choices:

✅A. The Claim Filed event assigns the Customer Service Representative to participate in the Accept Claim and Assign Claim processing.→❌Incorrect

TheCustomer Service Representative role is involved only in the "Accept Claim" process, but the diagram does not indicate their role in "Assign Claim."

ArchiMate 3.2 Specification, Section 6.3.2, states thatBusiness Events trigger processes but do not assign roles.

✅B. The event Claim Filed triggers the Accept Claim process which is serviced by the Customer Service Representative role before the Assign Claim process.→❌Incorrect

WhileClaim Filed triggers Accept Claim, thefocus of the diagram is on process flow, not role assignments.

The key relationship is between the business processes, not the role.

✅C. The information that flows from Claim Filed to Accept Claim and then to Assign Claim is reviewed by the Customer Service Representative role.→❌Incorrect

TheCustomer Service Representative role is assigned to "Accept Claim," but there is no indication they review information across all steps.

The diagramshows process flow, not an explicit review process.

✅D. Business event Claim Filed triggers a business process Accept Claim which in turn triggers an Assign Claim process.→✅Correct Answer

"Claim Filed" (Business Event) triggers "Accept Claim" (Business Process), which then triggers "Assign Claim" (Business Process).

ArchiMate 3.2 Specification, Section 6.3.1, states thatBusiness Events initiate Business Processes, and processes can trigger subsequent processes.

This matches the flow depicted in the diagram.

Final Answer:✅D. Business event Claim Filed triggers a business process Accept Claim which in turn triggers an Assign Claim process.

References:

ArchiMate 3.2 Specification: Sections 6.3.1 (Business Processes) and 6.3.2 (Business Events).

Archi User Guide: Modeling event-driven process flows in business architecture.

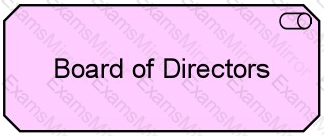

According to the ArchiMate 3.2 Specification1, a driver represents an external or internal condition that motivates an organization to define its goals and implement the changes necessary to achieve them. Drivers that are associated with a stakeholder are often called “concerns” of that stakeholder. A stakeholder represents the role of an individual, team, or organization (or classes thereof) that represents their interests in the outcome of the architecture. A motivation element is an element that represents the reasons for designing and implementing an architecture, such as stakeholders, drivers, goals, principles, requirements, or value. A motivation element is denoted by a hexagonal shape.

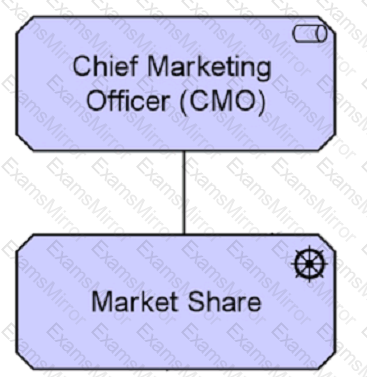

The diagram below shows a motivation element (driver) named Market Share that influences a stakeholder named CMO. The influence relationship is denoted by a dashed line with an open arrowhead.

The influence relationship means that the driver affects the stakeholder’s interests or concerns. Therefore, the best interpretation of the diagram is that the CMO is motivated by the driver Market Share.

According to the ArchiMate® 3.2 Specification1, an application function describes the internal behavior of an application component, and an application component may be assigned to an application function, which means that the application component performs the application function. Therefore, the correct answer is A. Assignment. This relationship indicates that an instance of a technology function performs (part of) the behavior of an instance of an application function1.

Comprehensive and Detailed in Depth Explanation:ABusiness Interfaceis an external active structure element that provides an external point of access to one or more Business Services. In theBusiness Layer metamodel, aBusiness Serviceis assigned to aBusiness Interfacebecause interfaces define how services are exposed to external parties or other components within an enterprise.

This is confirmed in theArchiMate Specification 3.2, where aBusiness Interfaceis described as representing a point of interaction that enables access toBusiness Services.

References:

Archi User Guide​

ArchiMate 3.2 Specification

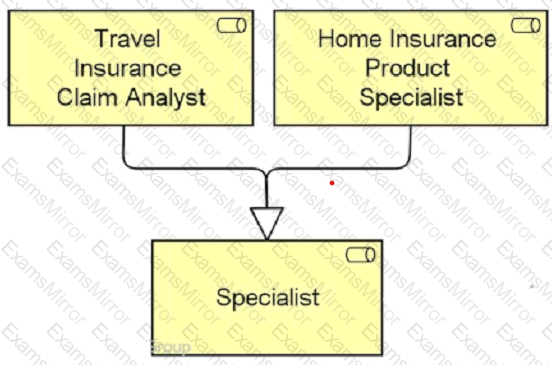

Based on the ArchiMate 3 documents or objectives, the diagram uses a specialization relationship to indicate that the two business roles Travel Insurance Claim Analyst and Home Insurance Product Specialist are more specific versions of the business role Specialist. A specialization relationship is a type of structural relationship that indicates that an object is a specialization of another object. The notation for a specialization relationship is a solid line with an empty triangle at the end that points to the more general element.

References: ArchiMate® 3.2 Specification, Chapter 4 Generic Metamodel, Section 4.1 Behavior and Structure Elements, Subsection 4.1.2 Structural Relationships 1; ArchiMate Specialization Relationship - ArchiMate Quick Guide - GitBook 2.

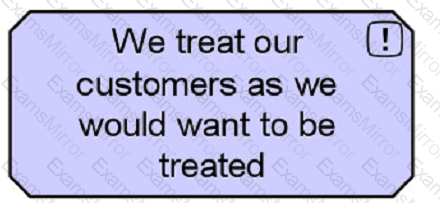

According to the ArchiMate® 3.2 Specification1, a principle defines a general property that applies to any system in a certain context. A principle is a normative property of all systems in a given context that expresses a fundamental value or property1. Therefore, the correct answer is A. A principle.
