VCF 9.0 Automation provides two primary "engines" for extensibility and external system integration. VCF Operations Orchestrator is the robust, long-standing workflow engine designed for complex, multi-step orchestration across heterogeneous infrastructure. It supports extensive plugin libraries for third-party systems like ServiceNow, Infoblox, or custom REST/SOAP endpoints. Action-Based Extensibility (ABX) is the modern, serverless alternative that allows administrators to execute lightweight scripts (Python, Node.js, or PowerShell) directly within the VCF Automation framework. ABX is ideal for quick, specific tasks such as calling a web hook or performing a simple API transformation during the provisioning lifecycle. While SDDC Manager (Option D) and vSphere Lifecycle Manager (Option E) are core components of the VCF stack for management and patching, they are not used as extensibility "integrations" for data exchange in the context of automation workflows.

In the multi-tenant architecture of VCF 9.0, Region Quotas are the primary administrative tool used by the provider to enforce resource governance. While vCenter resource pools (Option A) or vSphere limits (Option C) operate at a lower infrastructure layer, they do not integrate natively with the VCF Automation consumption model and can lead to unpredictable scheduling issues. By configuring a Region Quota within the Provider Management Portal, the administrator sets an upper bound on the total CPU, Memory, and Storage that a specific organization can request from the "West" region. When users in the Development organization attempt to deploy a new blueprint or scale an existing service, the automation engine checks the current consumption against this quota. If the request exceeds the limit, the deployment is blocked before it ever reaches the vCenter layer. This ensures that "noisy neighbors" cannot starve other mission-critical organizations—like Production—of essential capacity, allowing for fair and predictable resource sharing across the unified VCF 9.0 fleet.

The AllApps (AIIApps) organization model in VCF 9.0 is built on the principle of high-level abstraction to simplify the developer experience. In this model, the Organization Portal presents networking through the lens of Virtual Private Clouds (VPCs) and Connectivity Profiles. The Organization Administrator can easily view which VPC a workload belongs to and what connectivity policies (such as public access or isolation) are applied. However, the underlying NSX implementation details—such as the specific Tier-1 gateways and segments automatically created by the Supervisor—are intentionally abstracted away from the organization-level view. This "cloud-style" visibility ensures that tenants can manage their application networking without being burdened by the complexity of the provider's physical or logical NSX fabric, which remains the exclusive domain of the Provider Administrator.

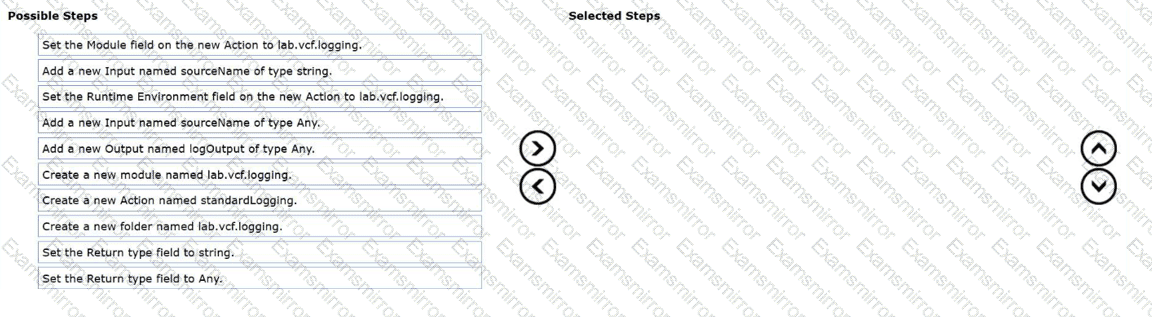

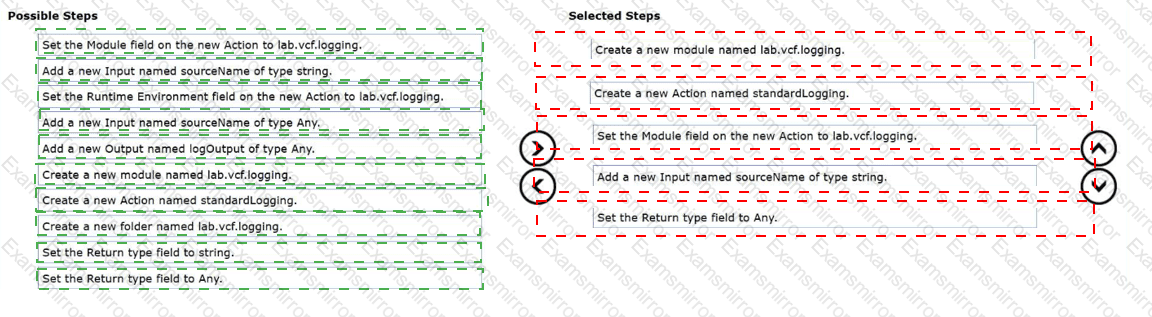

Create a new module named lab.vcf.logging.

Create a new Action named standardLogging.

Set the Module field on the new Action to lab.vcf.logging.

Add a new Input named sourceName of type string.

Set the Return type field to Any.

In VMware Cloud Foundation (VCF) 9.0, extensibility through the Operations orchestrator (formerly vRealize Orchestrator) requires a structured approach to modularity and data typing. To store an action in a specific path like lab.vcf.logging, an administrator must first create a new module with that name, as modules serve as the organizational namespaces for actions. Once the container exists, the administrator creates the Action named standardLogging and explicitly sets the Module field to the newly created namespace to ensure correct storage and accessibility across the orchestrator server.

The configuration of inputs and outputs is critical for programmatic integration. By adding an input named sourceName of type string, the administrator ensures the action can receive metadata from calling workflows exactly as specified in the technical requirements. Regarding the output, the requirement states the script returns a JSON object format. In the orchestrator's JavaScript-based engine, while a string could technically hold JSON text, the "Any" return type is the standard and verified method for returning structured objects. This allows subsequent workflow elements to programmatically parse and interact with the JSON properties without manual conversion, fulfilling the requirement for sophisticated log data handling and troubleshooting within the VCF 9.0 framework.

VCF 9.0 Automation uses a decentralized identity architecture to support complex multi-tenant requirements. To ensure that the Provider Management Portal and Organizations use different source directories (e.g., the provider uses a management AD while tenants use their own OIDC/SAML IdPs), the administrator must Deploy an Identity Broker cluster per organization. The Identity Broker acts as the localized gateway for authentication for that specific tenant. To prevent Organization administrators from modifying these settings—satisfying the second requirement—the provider must Ensure that "Do not use LDAP" is configured for the organization's standard SSO settings. This configuration forces the organization to rely exclusively on the broker-mediated IdP managed at the provider level, effectively "locking" the identity configuration and preventing local tenant admins from reverting to a manual LDAP setup that might bypass corporate security policies or the centralized identity strategy.

In VMware Cloud Foundation 9.0, the Virtual Private Cloud (VPC) model utilizes a profile-based approach to standardize and automate network and security services for tenants. The Connectivity Profile is the primary construct used to define the "boundary" of the VPC, determining how the VPC connects to the regional Transit Gateway and whether it has access to external networks or remains isolated. The Security Profile allows administrators to define baseline security postures, such as distributed firewall (DFW) rules and group memberships, that are automatically applied to workloads within the VPC. Finally, the Service Profile is used to enable and configure additional network services, such as Load Balancing or NAT, within the VPC environment. By using these three profile types, the VCF Automation engine can provision consistent, "secure-by-default" network spaces for different organizations or projects, significantly reducing the manual configuration required compared to traditional NSX-T segment management.

VCF 9.0 Automation natively supports GitOps methodologies by providing version synchronization with Git-based repositories (such as GitHub, GitLab, or Bitbucket). This integration allows administrators and developers to treat infrastructure as code (IaC) by storing blueprints (Cloud Templates) as YAML files in a version-controlled environment. The platform can be configured to periodically sync with the repository, ensuring that the latest "released" versions in Git are automatically available in the VCF Automation service catalog. This enables a declarative management model where changes to infrastructure are proposed via Pull Requests, peer-reviewed, and then synchronized to the private cloud environment. While it facilitates the lifecycle of the templates, it is primarily a synchronization engine (Option A) rather than a full-scale CD tool like ArgoCD or a real-time "auto-apply" engine for running instances, providing the necessary balance between developer flexibility and operational governance.

The Provider Management Portal in VCF 9.0 is the centralized interface where the cloud provider administrator manages all foundational infrastructure. When creating a Region, the administrator must select from the infrastructure already integrated into the VCF Automation appliance. By navigating to the infrastructure or "Cloud Accounts" section within the Provider Management Portal, the administrator can see the status of all vCenter Server and NSX Manager connections. This portal provides the "provider-view" of the entire fleet, allowing the admin to verify which vCenter instances are currently healthy, licensed for VCF 9.0, and have the Supervisor enabled. This step is critical because a Region cannot be successfully created if the underlying vCenter connection is down or the integration is incomplete. The Organization Portal, by contrast, is a tenant-facing interface and does not have the visibility into the global infrastructure required to perform these "Day 0" provider setup tasks.

In VMware Cloud Foundation 9.0, branding is managed within the Organization Portal to allow for tenant-specific customization. To meet the specific requirement that branding only appears after a user has authenticated, the administrator must navigate to the Branding section of the portal. The critical configuration step is to Disable the Enable Login and Logout Page Branding setting. By default, if this is enabled, the custom logos and colors are displayed on the public-facing login screen. Disabling it ensures that the generic VCF/Broadcom login page is presented to the public, and the custom tenant identity is only loaded into the browser session once the user’s organization context is established through successful login. This is a common requirement for service providers who want to maintain a consistent entry point for all users while providing a personalized "white-labeled" experience once the user is inside their specific environment.

In VCF 9.0 Automation, a Day 2 Operation is an extension of the platform's native capabilities, allowing users to perform lifecycle tasks on already deployed resources. To enable a vMotion migration through the automation portal, the administrator must first Create a resource action. This construct defines the UI element that will appear when a user selects a VM in their deployment list. The resource action must then be mapped to an execution logic; the most efficient and verified method is to Call the pre-defined Orchestrator workflow named Migrate virtual machine with vMotion. This workflow is part of the standard vCenter integration library in VCF Operations Orchestrator and contains all the necessary logic to handle destination host selection and validation. Once the action is created and mapped to the workflow, it must be added to a Service Broker Policy to entitle the appropriate users or projects to perform the migration task.
