In the context of Designing and Implementing Enterprise Network Assurance (300-445 ENNA) , understanding the visibility gap in SD-WAN environments is essential. While SD-WAN controllers provide native visibility into the overlay network (the logical IPsec tunnels and fabric health), they often lack granular insight into the physical transport or underlay network provided by ISPs or MPLS circuits.

According to the ENNA architecture guidelines, the most suitable method for measuring true SD-WAN performance is to install an agent on the underlay network (Option D). By deploying ThousandEyes Enterprise Agents directly on the transport-facing interfaces (Transport VPN0 in Cisco SD-WAN terminology), engineers can perform hop-by-hop path visualization and measure metrics like packet loss, latency, and jitter across the actual provider path. This is critical because performance degradation in the overlay is almost always a symptom of an issue in the underlay, such as BGP routing instabilities or physical link congestion at an ISP peering point.

Deploying agents on the overlay (Option A) only measures the performance of the tunnel itself, which may hide specific hop-level failures occurring in the public internet. Installing an agent on the LAN (Option C) or DMZ (Option B) adds local network noise to the metrics, making it harder to isolate if a problem exists within the corporate office or the service provider network. By focusing on the underlay , the engineer ensures they have the " internet intelligence " required to hold service providers accountable to SLAs and quickly resolve connectivity issues that impact the SD-WAN fabric.

Troubleshooting intermittent performance issues is a core component of the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) curriculum. When a transaction test using Basic Authentication fails randomly, the engineer must employ a multi-layered diagnostic approach to determine if the fault lies with the credentials, the network path, or the application server.

The first step is to verify the correctness of credentials (Option B). Because Basic Authentication encodes credentials in the header, any change in user permissions or account lockouts will trigger immediate failures. Performing manual logins from various geographical locations helps rule out location-based access control lists (ACLs) or regional IdP sync issues.

The most data-rich diagnostic step is to analyze the ThousandEyes waterfall charts and HTTP response codes (Option C). The waterfall view allows the engineer to see if the failure happens during the initial 401 Unauthorized challenge or after the credentials are sent. If the charts show high " Wait Time " or 5xx errors, the issue is likely server-side latency or instability. If the " Connect Time " is high, the problem may be network-layer congestion.

Finally, if the telemetry indicates that the network path is healthy but the server is intermittently returning errors or timing out, the engineer should contact the web application vendor (Option D). Providing the vendor with the specific ThousandEyes " Share Link " allows them to see the exact same packet-level and browser-level data, proving that the issue is not with the client ' s network but with the server-side infrastructure. Disabling authentication (Option A) is not a valid troubleshooting step for a test designed specifically to monitor an authenticated workflow.

In the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) implementation guide, the Cisco IOS XE Application Hosting lifecycle is a critical concept for troubleshooting and configuration management. When an application environment variable—such as proxy settings—is modified in the app-hosting configuration, a simple restart of the container is insufficient.

The correct procedure involves moving the application back to the Configured state before bringing it back to Running . This requires a four-step lifecycle execution (Option C):

Stop: Terminates the current running instance of the container.

Deactivate: Releases the hardware resources (CPU, Memory, Virtual Interfaces) and, crucially, detaches the previous runtime configuration.

Activate: Re-allocates the resources and injects the new configuration parameters (including the updated proxy settings) into the container ' s environment.

Start: Initiates the container with the newly applied configuration.

Without the deactivate/activate sequence, the container will continue to use the environment variables present at the time of its initial activation, causing the agent to remain offline as it fails to reach the ThousandEyes portal without the proxy. Reinstalling (Option B) is an unnecessary and time-consuming step that involves re-downloading or re-copying the image, while No action (Option D) will result in no change to the agent ' s connectivity status.

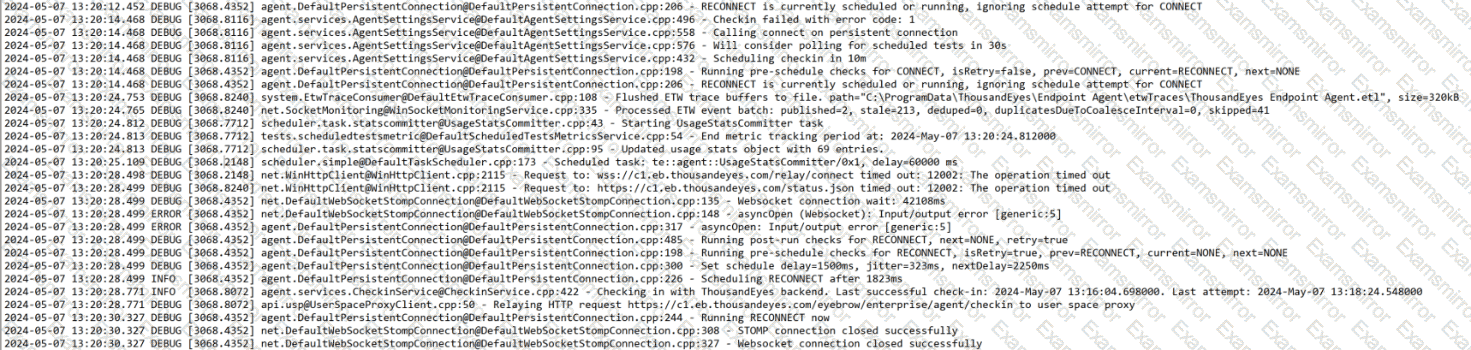

In the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) curriculum, troubleshooting endpoint connectivity requires a systematic analysis of local device logs and network environment changes. According to the log message provided in Exhibit there was a specific timeout error when the agent attempted to reach the ThousandEyes backend. The logs explicitly state: Request to: wss://c1.eb.thousandeyes.com/relay/connect timed out: 12002: The operation timed out.

Since the endpoint was relocated to a new network utilizing static IP assignment , and other endpoints on the same network are functioning correctly, the issue is highly localized to this specific device ' s configuration. In a static IP environment, human error during the manual entry of the IP address, subnet mask, default gateway, or DNS server is a common root cause of connectivity failure. If the gateway is incorrect, the agent cannot reach the internet; if the DNS is incorrect, it cannot resolve c1.eb.thousandeyes.com. Therefore, the best way to bring the endpoint online is to verify the accuracy of the IP settings and test direct connectivity to the ThousandEyes relay URL.

The alternative options do not address the technical evidence found in the logs:

Option A: Moving the device back is a regressive step that does not resolve the need for the device to function in its new location.

Option B: Reinstalling software is a " brute force " method that rarely fixes underlying network-layer misconfigurations like an incorrect static IP.

Option C: A timeout error (12002) indicates a persistent connectivity blockage that will not resolve itself without administrative intervention.

Checking the static IP credentials ensures the device has a valid path to the internet to establish its secure websocket (WSS) connection to the ThousandEyes platform.

Detailed Explanation:

This analysis requires extracting two specific browser-rendering metrics from the IT Operations Dashboard. By placing the cursor over the latest metrics data points:

Page Load time: 1479.6 ms.

DOM load time: 1354.3 ms.

By subtracting the DOM time from the Page Load time ($1479.6\text{ ms} - 1354.3\text{ ms} = 125.3\text{ ms}$), the engineer identifies the duration spent rendering the page after the initial document structure was established.

In the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) framework, baselining is the process of establishing a " normal " performance profile for network infrastructure to enable the detection of anomalies. When the metric of interest is the internal health of a physical device, such as CPU utilization on a core router, SNMP (Simple Network Management Protocol) is the industry-standard data source.

SNMP provides direct visibility into the device ' s control plane and hardware performance. By polling specific Object Identifiers (OIDs) from the router ' s Management Information Base (MIB), a monitoring system like Cisco Catalyst Center or a third-party NMS can collect granular data on CPU cycles, memory allocation, and temperature. This " inside-out " telemetry is essential for baselining because it reflects the actual resource consumption of the router during various traffic loads.

Conversely, ThousandEyes tests (Options A, B, and D) provide " outside-in " synthetic data. While DNS resolution time (Option A), HTTP response times (Option B), and Path Visualization (Option D) are excellent for measuring end-to-end service delivery and network transit health, they do not report on the router ' s internal hardware state. For instance, a router could have 99% CPU utilization (indicating a potential crash), yet a ThousandEyes path test might still show a " green " path if the data plane (ASICs) is still forwarding packets efficiently. Therefore, to establish a reliable baseline for hardware-specific metrics like CPU, SNMP data (Option C) is the only appropriate source among the choices.

Under the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) guidelines, the integration between ThousandEyes and Cisco Secure Client (formerly AnyConnect) is designed to provide visibility into the hybrid workforce experience. The integration primarily leverages network performance data from the user ' s device (Option C) to diagnose connectivity and application issues.

This data is collected by the ThousandEyes Endpoint Agent , which is deployed as a module within the Cisco Secure Client. 10 The agent captures real-time telemetry from the user ' s laptop or workstation, including Wi-Fi signal strength , CPU and memory utilization , and local network gateway latency . Specifically, for remote users, it monitors the health of the VPN tunnel and the performance of applications as seen from the end-user ' s vantage point.

When a user reports a " slow application, " this integrated telemetry allows IT teams to determine if the root cause is the user ' s home Wi-Fi, a saturated VPN concentrator, or an issue within the ISP underlay. The agent performs Automated Session Testing (AST) , which maps the network path as soon as a user joins a critical meeting or accesses a SaaS tool, providing a granular view of every hop between the device and the service destination. Unlike hardware configuration data (Option A) or behavioral analytics (Option B), the focus here is strictly on the network performance metrics that impact digital experience.

Therefore, the collection of device-centric network performance data is the core function of the Cisco Secure Client and ThousandEyes integration.
