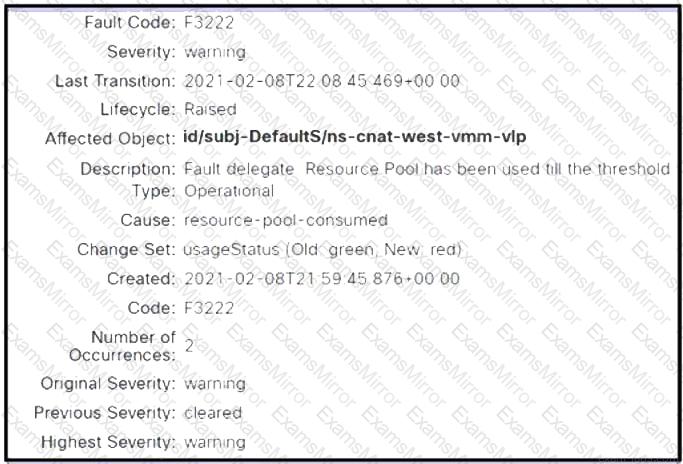

To clear the fault raised by the Cisco APIC when the EPG must accept endpoints from a VMM domain, the EPG should be associated with the VMM domain. This association is necessary for the APIC to recognize the endpoints within the VMM domain as part of the EPG. Without this association, the APIC cannot apply the policies defined in the EPG to the endpoints, which can result in errors1.

References :=

APIC Policy Deployment and Resolution Immediacy For AVS VMM Domain - Cisco Community

By enabling Global AES Encryption and ensuring secure data inclusion, you can safely back up and restore the Cisco ACI fabric configuration, including the vCenter password.

 The two true statements regarding ACI Multi-Site are:

ACI Multi-Site is a solution that supports a dedicated APIC cluster per site1.

ACI Multi-Site is a solution that allows one APIC cluster to manage multiple ACI sites1.

The setting that prevents the learning of Endpoint IP addresses whose subnet does not match the bridge domain subnet is the “Limit IP learning to subnet” setting within the bridge domain1. This setting ensures that only IP addresses belonging to the subnets configured on the bridge domain are learned, preventing mis-learning of IP addresses that may not belong to the fabric1.

The Cisco APIC configuration that prevents a remote network that is not configured on the bridge domain from being learned by the fabric is to enable Limit IP Learning to Subnet2. This setting restricts IP address learning to only those subnets that are defined on the bridge domain2.

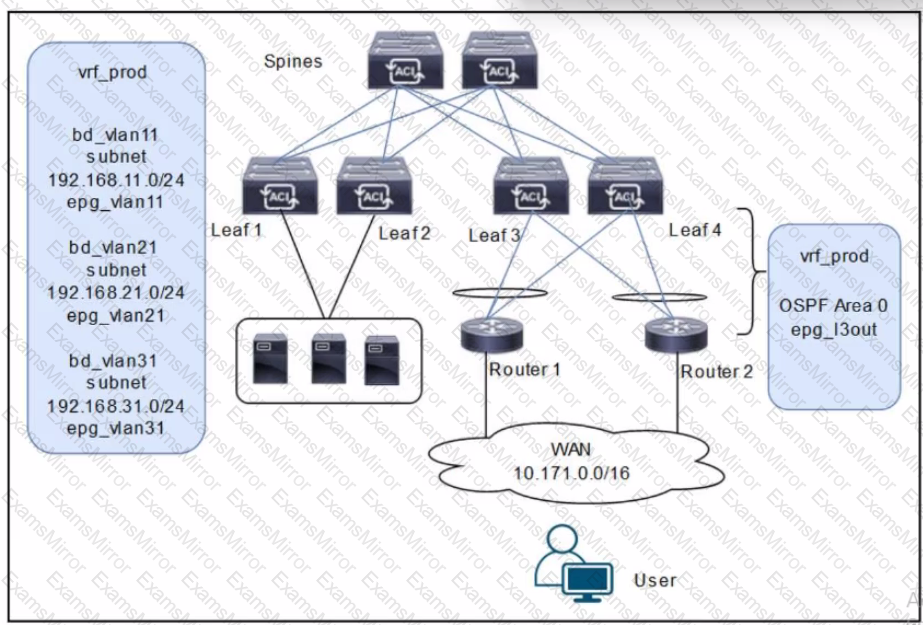

The scenario involves deploying a WAN with Cisco ACI, where Routers 1 and 2 (connected via an L3Out with OSPF Area 0) must receive specific routes (192.168.11.0/24 and 192.168.21.0/24) from the ACI fabric, and reachability to WAN users must be permitted only for servers in vrf_prod. The diagram shows three bridge domains (bd_vlan11, bd_vlan21, bd_vlan31) with their respective subnets and EPGs, all under vrf_prod, along with an L3Out (epg_l3out) for WAN connectivity.

Requirement Analysis

Routers 1 and 2 must receive only routes 192.168.11.0/24 and 192.168.21.0/24:

These subnets belong to bd_vlan11 and bd_vlan21, respectively. To advertise these routes to Routers 1 and 2 via the L3Out, they must be marked with the appropriate scope in the bridge domain configuration.

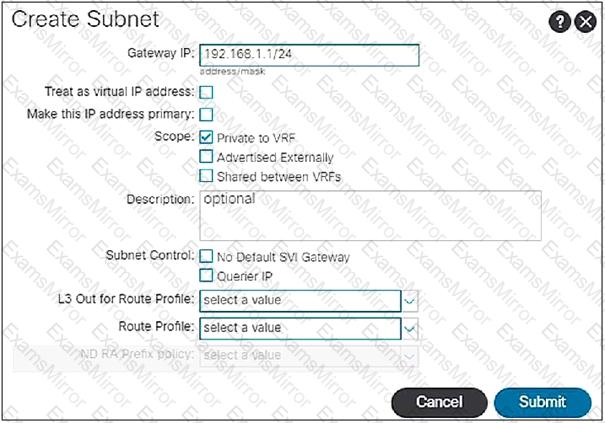

In ACI, the "Advertised Externally" scope on a subnet ensures that it is advertised to external routers via the L3Out routing protocol (OSPF in this case).

Reachability to WAN users must be permitted only for servers in vrf_prod:

This implies that only the subnets in vrf_prod (192.168.11.0/24, 192.168.21.0/24, and 192.168.31.0/24) should be accessible, but WAN users should only reach specific subnets based on policy.

The external EPG (epg_l3out) represents the WAN users (10.171.0.0/16), and its subnet scope must control inbound reachability.

The subnet 192.168.31.0/24 (bd_vlan31) should not be advertised to the WAN, as it is not listed in the routes Routers 1 and 2 should receive.

Option Evaluation

A. Configure the subnets 192.168.11.0/24 and 192.168.21.0/24 as Private to VRF. Configure the subnet 192.168.31.0/24 as Advertised Externally. Configure an EPG subnet 0.0.0.0/0 as External Subnets for External EPG:

Setting 192.168.11.0/24 and 192.168.21.0/24 as "Private to VRF" means they are not advertised externally, which fails the requirement for Routers 1 and 2 to receive these routes.

Setting 192.168.31.0/24 as "Advertised Externally" incorrectly advertises this subnet to the WAN, which is not desired.

The "External Subnets for External EPG" scope on 0.0.0.0/0 allows WAN users to reach all subnets in vrf_prod, which is correct for reachability.

Conclusion: Fails the first requirement (route advertisement).

 In Cisco Application Centric Infrastructure (ACI), when a subnet is configured on a bridge domain, the gateway IP address is configured on the leaf switches where the bridge domain of the tenant is present. This configuration allows for localized routing within the fabric, providing efficient east-west traffic handling without requiring traffic to traverse up to the spine nodes unless necessary for north-south routing or policy enforcement.

To implement management policy and data plane separation in the Cisco ACI fabric, the ACI object that must be created in Cisco APIC is a Bridge domain

To integrate the VMware vCenter cluster with Cisco ACI and ensure that the management traffic of the hypervisors and VM controllers uses the virtual switch associated with the Cisco Application Policy, the following steps must be taken:

Enable Infrastructure VLAN on AAEP used toward VMware hypervisors: This step involves enabling the infrastructure VLAN on the Attachable Access Entity Profile (AAEP) that is used for the VMware hypervisors. This VLAN is used for carrying infrastructure traffic such as management, vMotion, and fault tolerance.

Create a static binding in the target EPG toward VMware hypervisors with VLAN 300: This step involves creating a static binding in the “Vmware-MGMT” EPG for the VMware hypervisors with VLAN 300, setting it as an untagged access VLAN, and using Untagged 802.1P mode. This ensures that the management traffic is correctly tagged and associated with the appropriate EPG.

References :=

Cisco ACI Fabric Hardware Installation Guide

Cisco ACI Troubleshooting Guide

Cisco ACI Multi-Site Architecture White Paper

Cisco ACI Virtual Machine Manager (VMM) Integration White Paper
