For an email digital channel that routes to live agents, the engineer must create the channel asset and create the Webex Contact Center entry point. Cisco's digital channel setup process starts with channel assets in Webex Connect, because assets define the external channel identity and connection, such as an email mailbox or service provider configuration. The Contact Center side then requires entry points so interactions can enter the routing and queueing path. Templates can accelerate flow design, but they are not mandatory configuration objects in every email channel deployment. Onboarding the company is a broader tenant or Webex Connect setup activity and is not the specific action required once the organization already contains several channels. Authorizing nodes is a prerequisite for digital-channel setup, but this question asks what actions are part of configuring the email channel itself. The two required channel configuration actions are creating channel assets and creating entry points. Reference: Cisco Help, Set up digital channels in Webex Contact Center; Webex Connect Help, Email - WXCC.

The Queue Task node is the Webex Connect node that routes a digital interaction to Webex Contact Center for distribution. Cisco's Webex Connect documentation states that Queue Task calls the Webex CC Queue Task API to queue the contact at Webex Contact Center. In an email digital-channel flow, the channel receives or creates the conversation in Webex Connect, but a live-agent handoff requires creating or queueing a task so Webex Contact Center can apply routing, queue selection, skills, and agent assignment. A Screen Pop node provides information to an agent desktop after routing has occurred; it does not queue the email. Create Conversation creates the conversation object but does not distribute the work to a contact center agent. Add Participant is used to add a participant to a conversation, not to place the email interaction into the contact center routing engine. Therefore, Queue Task is the required node for contact distribution. Reference: Webex Connect Help, Queue Task - WXCC; Webex CC Task Integration Nodes and Node Authorizations.

Before configuring Webex Contact Center digital channels, the integration nodes in Webex Connect must be authorized. Cisco's digital-channel setup documentation explicitly requires completing node authorization in Webex Connect and setting both Webex CC Task and Webex CC Engage nodes to Authorized state. The Task integration lets Webex Connect communicate with Webex Contact Center for task creation, queueing, routing notifications, and task resolution. The Engage integration lets Webex Connect work with conversation objects in Webex Engage, such as creating, appending, resolving, and updating conversations. The wording in the incorrect options places authorization in Webex Engage, but Cisco's procedure puts the pre-built integration authorization under Webex Connect assets and integrations. Digital channel setup depends on those authorizations because the flow cannot queue or resolve a conversation through WxCC without valid access tokens. Therefore, Webex CC Engage and Webex CC Task integration authorization in Webex Connect are the prerequisites. Reference: Cisco Help, Set up digital channels in Webex Contact Center; Webex Connect Help, Webex CC Task Integration Nodes and Node Authorizations.

The requirements point to tenant-wide recording with the least custom design. Cisco's Webex Contact Center voice settings include a global call recording setting that records all inbound and outdial calls when enabled. That setting is administered centrally, which matches the requirement that only administrators configure recording and that recordings apply to the entire company. Flow-based recording is more flexible, especially when consent or conditional recording decisions are required, but it is custom logic and not the simplest global policy. Queue-level configuration is useful when different business lines need different recording behavior, but this scenario explicitly says all inbound calls across the company. Scheduled recording is suitable when recording depends on a time window, queue, team, site, or agent scope. Since the company wants all inbound calls recorded and wants to avoid custom configurations, global configuration is the cleanest Cisco-supported method. Reference: Cisco Help, Set up voice settings for Webex Contact Center; Manage call recording schedules.

Cisco documents two Local Gateway trunking models for Webex Calling: registration-based trunks and certificate-based trunks. A registration-based trunk has the local gateway maintain SIP registration toward Webex Calling, and the signaling relationship is established through that registration. Cisco's trunk and dial plan documentation describes this model as an implicit connection based on the gateway's registration. A certificate-based trunk uses mutual TLS and certificate trust to authenticate signaling without SIP registration in the same way. These are the formal trunking choices used when integrating on-premises voice infrastructure with Webex Calling and, by extension, supporting Webex Contact Center telephony designs that use Local Gateway. DNS-based trunks are not a Cisco trunking model name in this context. PSTN trunks and enterprise trunks are generic or design descriptions, not the two Local Gateway models. For 300-830, the key is recognizing the official Webex Calling trunk model terminology. Reference: Cisco Help, Configure Local Gateway on Cisco IOS XE for Webex Calling; Configure trunks, route groups, and dial plans for Webex Calling.

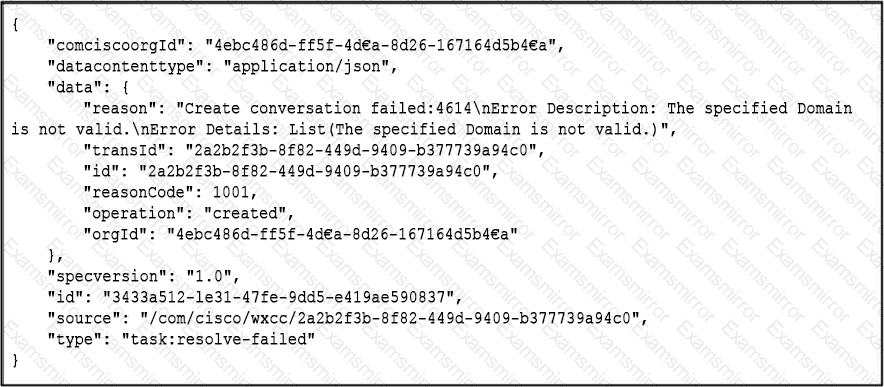

The failure occurs after the standard Live Chat workflow template is deployed and the widget can be started, so the website widget itself is not the main issue. The Resolve node response in the exhibit points to a missing or invalid Live Chat domain value used by the workflow. Cisco's Webex Connect live chat and create conversation documentation identifies Livechat Website Domain as a value stored under custom variables and used when resolving or creating live chat conversations. The standard template depends on that workflow custom variable being populated with the valid domain where the Live Chat widget is embedded. Changing media type and media channel on the Resolve node would not fix a missing domain variable in the deployed template. The option using chat Domain is close but not the named workflow custom variable indicated by the template. Setting the Workflow Custom Variable LiveChat Domain to a valid value resolves the failure. Reference: Webex Connect Help, Livechat; Create conversation - WxEngage standalone; Resolve Conversation - WXCC.

The Webex App inside Agent Desktop is controlled through the desktop layout JSON, not merely by installing the Webex App separately. Cisco documentation for supervisor and desktop features points administrators to the webexConfigured setting in the Webex Contact Center desktop layout. The layout also uses the AgentX Webex component identifier to render the embedded Webex application area. That is why the two required parameter combinations are the desktopChatApp object with webexConfigured set to true and the component value agentx-webex. The value webex-app is not the documented component name for this layout object. A generic webexAppEnabled Boolean or webexApp enabled object may look plausible, but it is not the required JSON pattern in the Cisco desktop layout schema. The result is practical: if either the correct component or the webexConfigured flag is absent, the embedded Webex App will not display in Agent Desktop for agent-to-agent, supervisor, or SME collaboration. Reference: Cisco Help, Create custom desktop layout; Supervise your agents and teams.

WhatsApp and SMS are premium digital channels in the Webex Contact Center licensing model. Cisco's Webex Contact Center data sheet distinguishes Standard Agent and Premium Agent capabilities. Standard Agent includes core contact center functions and agent-assisted chat and email, while Premium Agent adds broader digital communication channels such as SMS, social channels, multichannel analytics, and supervisor monitoring capabilities. The scenario says the agent can receive Chat and Voice, so the agent is already provisioned for basic voice and chat handling. The missing capabilities are specifically WhatsApp and SMS, which are part of the higher digital-channel entitlement. An enhanced license is not the relevant license category in the Cisco Webex Contact Center agent-type model. The desktop layout can affect UI presentation, but it would not by itself entitle the agent to receive those channel types. The missing configuration is therefore the Premium license. Reference: Cisco Webex Contact Center Data Sheet; Cisco Help, Set up digital channels in Webex Contact Center.
