Pass the EMC DCE DEE-1111 Questions and answers with ExamsMirror

 If an administrator has added custom SSL certificates and each time a client connection is made, default certificates are used, then ‘restart storsrvd’ must be completed. This is because changes to SSL certificates often require a restart of the service that uses them in order for the new certificates to be correctly loaded and used for future client connections1.

While using DELL EMC Data Erasure on a PowerMax, the minimum number of overwrites needed to support compliance with internal policies and regulatory requirements is 3. The application has prompts and notifications. Such as the option to choose the number of Media Eraser ‘wipes’ (3x times, 5x times or 7x times)1. References: Dell EMC Community Network

The NDM Updates feature should be used to complete the migration and address the client’s concern. The NDM Updates feature is designed to help automate the process of moving applications across arrays requiring a short application downtime. It allows application migration from a VMAX (5876) array to a VMAX3 (5977), VMAX All Flash (5978), or PowerMax (5978) array1. It supports pre-sync data between arrays and then schedule downtime to do the cutover1. References: Dell EMC PowerMax and VMAX: Non-Disruptive Migration Best Practices and Operational Guide

Data Domain is the only external storage that can be connected to PowerMax using DX emulation. DX emulation is a specialized back-end DA emulation that handles SAN attached disks. DX directors are configured on existing PowerMax front-end Fibre Channel ports and are required to be implemented in pairs for high availability. DX emulation is used to support ProtectPoint technology, which integrates primary storage with Data Domain protection storage to accelerate backup and recovery. Therefore, answer A is correct1.

B, C, and D are incorrect because they are not external storage that can be connected to PowerMax using DX emulation. Unity (B), PowerStore ©, and Compellent (D) are primary storage arrays that do not support ProtectPoint technology or DX emulation.

he %Busy and Balance KPIs are the most important indicators of the BE performance on a PowerMax array. The %Busy metric shows the percentage of time that a BE director is busy processing I/O requests. A high %Busy value may indicate that the BE director is overloaded and cannot keep up with the demand. The Balance metric shows the difference in %Busy between the two BE directors in a pair. A high Balance value may indicate that the workload is not evenly distributed across the pair, which can lead to performance degradation. By monitoring these two KPIs, a storage administrator can identify and troubleshoot any potential issues with the BE performance.

References:

PowerMax Performance Troubleshooting with Unisphere - Run a real time trace at the system level

In an SRDF/Star configuration, all SRDF/Star device pairs must be of the same geometry and size. This is because SRDF/Star uses concurrent SRDF to maintain synchronous and asynchronous SRDF sessions between three arrays. The devices in these sessions must have identical geometry to ensure data consistency56. References: Dell EMC Solutions Enabler 9.2 SRDF Family CLI User Guide, SRDF/Metro overview | Dell EMC PowerMax and VMAX All Flash: SRDF/Metro Overview and Best Practices

 In PowerMax, each RAID group is divided into 64 logical blocks known as TDATs (Thin Device Addressable Tracks). Each TDAT is configured to hold data at a given data reduction level, from 1:1 uncompressed data all the way to 16:11. References: Data Protection Schemes | Dell PowerMax: Reliability, Availability, and Serviceability | Dell Technologies Info Hub

The correct answer is D. When an SRDF/A MSC trip event occurs, the Receive Delta Set on the target arrays is checked for completeness. If the Receive Delta Set is incomplete on any of the target arrays, the session is marked as Cleanup required. This means that the data on the target arrays is not consistent and needs to be cleaned up before resuming SRDF/A replication. The symstar cleanup command can be used to discard the incomplete Receive Delta Set data and resume SRDF/A replication from the last consistent point1

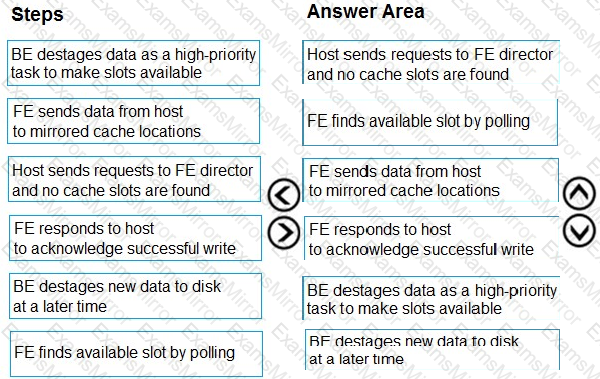

The correct sequence of actions that take place on a Write Miss is as follows:

Host sends requests to FE director and no cache slots are found.This happens when the cache is full or the desired cache slot is locked by another request1.

FE finds available slot by polling.This involves the FE director scanning the cache for an available slot or waiting for a slot to be freed by the BE director2.

FE sends data from host to mirrored cache locations.This involves the FE director writing the data from the host to two mirrored locations in the cache, one on each engine2.

FE responds to host to acknowledge successful write.This involves the FE director sending a signal to the host that the write operation is completed, even though the data is not yet written to disk2.

BE destages data as a high-priority task to make slots available.This involves the BE director flushing some of the existing write pending data from the cache to the disk, in order to free up some cache slots for new write requests2.

BE destages new data to disk at a later time.This involves the BE director writing the new data from the cache to the disk, according to the destaging algorithm and priority2.

The symstar halt command is used to write disable devices and synchronize SRDF data to remote sites in an SRDF/Star configuration. This command ensures that all sites have a consistent copy of data before switching the workload site from one site to another. Therefore, the symstar halt command should be used before the workload switch in case of a disaster at the workload site of an SRDF/Star configuration1
