Securing the BIG-IP management interface is a fundamental administrative responsibility. F5 best practices emphasize restricting who can reach the management port and ensuring that only authorized systems are allowed access.

A. Limiting management access to trusted network segments

F5 recommends placing the management interface on adedicated, isolated, and secured management network or VLAN, rather than exposing it to production or untrusted networks.

This reduces the attack surface by ensuring only trusted segments have visibility to administrative interfaces.

D. Restricting management access by IP or subnet

F5 BIG-IP uses the/sys httpd allowlist (for HTTPS) and configuration options insshd(for SSH) to control which IP addresses or subnets can access the device.

By specifying only known administrative IPs or ranges, unauthorized users cannot reach the login services.

Why the other options are incorrect

B. Blocking all management HTTPS/SSH ports

This would prevent any administrative access and is not a viable security practice.

C. Using Self-IP addresses for administrative access

F5 explicitly warns against using Self-IPs for management access unless strictly necessary.

Self-IPs are exposed to the data plane and should not be used as the primary administrative interface.

In BIG-IP, software images are installed onboot volumes(for example, HD1.1, HD1.2, HD1.3, etc.).

To install software on anew volume, the administrator must instruct the system to create a new boot location before installation.

There are two correct ways to create a new volume:

A. tmsh command (with correct syntax)

tmsh install software image /shared/images/BIGIP-.iso volume HD1.5 create-volume

This syntax correctly includes:

install software image

full path to ISO (/shared/images/...)

volume name (HD1.5)

create-volumekeyword

This instructs BIG-IP to create the new boot volume as part of the installation.

C. Using the GUI → System > Disk Management

From the Disk Management menu, the administrator can:

Select “New Volume”

Enter the volume identifier (e.g., HD1.5)

Apply changes

This GUI method is officially supported and explicitly creates a new boot volume before installing the software.

Why the other options are incorrect:

B. Incorrect tmsh syntax

Missing /shared/images/ path

Incorrect command structure

D. Incorrect command structure

Missing required keywords and correct command hierarchy

E. Software Management → Install does NOT create volumes

This installs to anexistingvolume only

The GUI install dialog does not create new boot volumes

Thus, onlyOption AandOption Cproperly create a new software volume.

When upgrading to a newer TMOS software version, BIG-IP validates whether the current license is permitted to run that version.

This is controlled by theService Check Datein the device’s license file.

If the Service Check Date is older than the minimum required for the target version:

The systemboots into the new volume,

Butfails to load the configuration,

And will instead present messages indicating that the configuration cannot be applied due to aninvalid or outdated license.

This is a well-known behavior:

An outdated license, not reactivated before upgrade, causes configuration load failure after reboot into the new software.

Why the other options are incorrect:

A. Performed on the standby unit

Upgrading a standby unit does not cause configuration load failure.

Standby-only upgrades are standard best practice.

C. Two reboots required

BIG-IP does not require two reboots during an upgrade.

One reboot into the new volume is sufficient.

D. DNS connectivity failure

DNS connectivity does not affect configuration loading.

DNS is only needed for automatic license activation, not for applying config at boot.

Thus, the configuration failed to load because thelicense was not reactivated before the upgrade, makingOption Bcorrect.

When upgrading to a newer TMOS software version, BIG-IP validates whether the current license is permitted to run that version.

This is controlled by the Service Check Date in the device’s license file.

If the Service Check Date is older than the minimum required for the target version:

The system boots into the new volume ,

But fails to load the configuration ,

And will instead present messages indicating that the configuration cannot be applied due to an invalid or outdated license .

This is a well-known behavior:

An outdated license, not reactivated before upgrade, causes configuration load failure after reboot into the new software.

Why the other options are incorrect:

A. Performed on the standby unit

Upgrading a standby unit does not cause configuration load failure.

Standby-only upgrades are standard best practice.

C. Two reboots required

BIG-IP does not require two reboots during an upgrade.

One reboot into the new volume is sufficient.

D. DNS connectivity failure

DNS connectivity does not affect configuration loading.

DNS is only needed for automatic license activation, not for applying config at boot.

Thus, the configuration failed to load because the license was not reactivated before the upgrade , making Option B correct.

BIG-IP licensing information, including the Service Check Date , is stored in the file:

/config/bigip.license

This file contains all license attributes downloaded from the F5 licensing server, including:

License key

Licensed modules

Useful life date

Service check date

The Service Check Date determines whether the system is eligible for upgrades to specific TMOS versions. When reviewing upgrade readiness, administrators extract this value directly from the license file with:

grep " Service check date " /config/bigip.license

Why the other options are incorrect:

/config/bigip.conf stores BIG-IP configuration objects, not license metadata.

/config/svc_chk_date.dat is not a valid file in the licensing system; it does not contain license parameters.

/config/BigDB.dat stores internal database values, not licensing attributes.

Thus, only the bigip.license file contains the correct licensing information required for verifying upgrade eligibility.

When a TMOS ISO file is transferred to /shared/images/ , the BIG-IP automatically performs a validation step:

Checksum Verification

Before the image becomes visible in the GUI, the system verifies the internal checksum embedded inside the ISO.

This ensures:

The file was fully transferred

The image is not corrupted

It matches the official F5 release signature

Only after passing this verification does the GUI display the ISO under “Available Images.”

Why the other options are incorrect:

A. Reboot into a new partition

No reboot occurs simply from uploading an image.

C. Copying into /var/local/images/

This directory is not used for ISO storage.

All valid images remain in /shared/images/ .

Thus, the correct system action is checksum verification .

To identify which boot volume is currently active on a BIG-IP system, the correct command is:

tmsh show sys software status

This command displays:

All installed boot volumes (HD1.1, HD1.2, HD1.3, etc.)

The BIG-IP software version installed on each volume

The Active field, indicating which volume the system is currently booted from

The installation status (“complete”, “in-progress”, “allowed”)

This is the standard and authoritative way to determine the active boot location.

Why the other options are incorrect:

A. tmsh show sys version

Displays OS version, build, and date.

Does not show boot locations or which volume is active.

C. tmsh list sys software update

Shows software update configurations, not boot volume status.

Does not display which volume is active.

Port Lockdown controls which ports and protocols a Self IP will respond to.

The Allow Default setting permits only a predefined set of BIG-IP internal and required service ports.

The Allow Default list includes :

TCP 443 → HTTPS (Management/TMUI access via Self-IP)

TCP 4353 → CMI (device sync)

TCP/UDP ports related to HA communication

Other essential internal F5 ports

Why TCP 443 is correct:

It is one of the officially allowed ports under Allow Default .

It enables HTTPS/TMUI access through a Self IP.

Why the other options are incorrect:

A. TCP 80 (HTTP)

Not allowed under Allow Default

HTTP via Self-IP is blocked unless placed under Allow Custom

B. UDP 8443

Not an F5 default service

Not part of the Allow Default ports

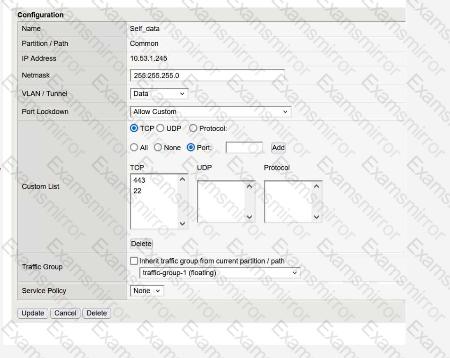

The exhibit shows the configuration of a Self IP with:

Port Lockdown: Allow Custom

A Custom List that includes the following TCP ports:

443

22

Meaning of these ports:

TCP 443 → HTTPS (TMUI — web-based management)

TCP 22 → SSH (command-line remote access)

No other TCP, UDP, or protocol entries are listed; therefore, only these two services are allowed to reach the BIG-IP via this Self IP.

Evaluating the answer choices:

Option

Service

Port

Allowed?

FTP

TCP 21

Not listed

Not allowed

SSH

TCP 22

Listed

Allowed

Telnet

TCP 23

Not listed

Not allowed

Thus, SSH is the only traffic permitted through this Self IP configuration.

Comprehensive and Detailed Explanation From BIG-IP Administration — Install, Initial Configuration, and Upgrade:

When provisioning modules on a BIG-IP system, F5 provides specific resource allocation settings that define how system resources — CPU, memory, and disk — are distributed to each licensed module. The two valid and officially recognised allocation settings are Nominal and Dedicated .

Nominal instructs the system to allocate a moderate, balanced share of resources to the module. It allows the module to function effectively while sharing system resources with other provisioned modules. This is the most commonly used setting in multi-module deployments.

Dedicated allocates the maximum available system resources exclusively to a single module. When this setting is applied, it is typically the only module provisioned, as it consumes resources at a level that prevents other modules from operating concurrently in a meaningful capacity.

Option A — Maximum is not a valid BIG-IP provisioning allocation level; it does not appear in the official provisioning interface or documentation as a selectable resource tier.

Option C — Limited similarly does not exist as a defined resource allocation setting within BIG-IP module provisioning. It may superficially resemble valid terminology but has no standing in the official provisioning framework.

Administrators access these settings via System » Resource Provisioning in the Configuration Utility, where each licensed module displays its available allocation options.

Reference Topics: Module Resource Provisioning, Nominal vs. Dedicated Allocation, System Resource Management — BIG-IP Administration Study Guide.
