The correct answer is D . For FortiGate VPN integration, FortiNAC-F depends on syslog from FortiGate to receive VPN user, IP address, and session information. The FortiNAC-F study guide states that after a remote user successfully authenticates and establishes a VPN connection, FortiGate sends user, IP, and session information to FortiNAC-F using syslog. This keeps FortiNAC-F aware of the VPN session so it can apply the correct access control state and update FortiGate when the device becomes trusted.

Option A is wrong because SNMP traps are commonly used for infrastructure events, link traps, or third-party event inputs, but this VPN workflow uses FortiGate syslog. Option B is wrong because RADIUS accounting can update session information in some NAC workflows, but the FortiGate VPN integration described in the guide uses syslog. Option C is wrong because Security Fabric integration is not the required mechanism for keeping FortiNAC-F updated with VPN session details in this scenario.

FortiNAC-F serves as a central manager for security events originating from a diverse ecosystem of third-party security appliances, such as FortiGate, Check Point, and Cisco. Each vendor utilizes its own internal scale forseverity levelswithin syslog messages (e.g., Check Point uses a 1–5 scale, while others may use 0–7). To provide a consistent response regardless of the source, FortiNAC-F usesSeverity Mappingsto normalize these incoming values.

According to theFortiNAC-F Administration Guide, severity mappings allow the administrator to translate vendor-specific threat levels into standardizedFortiNAC Security Levels(such as High, Medium, or Low Violation). When a syslog message arrives, the parser extracts the vendor ' s severity code, and the system immediately references theSecurity Event Severity Level Mappingstable to determine how that event should be categorized internally. This normalization is vital because it allows a singleSecurity Alarmto be configured to respond to any " High Violation " event, whether it was reported as a " Critical " by one vendor or a " Level 5 " by another. Without these mappings, the administrator would have to create separate, redundant security rules for every vendor to account for their different naming conventions and numerical scales.

" Each vendor defines its own severity levels for syslog messages. The following table shows the equivalent FortiNAC security level... To normalize these events, configure theSeverity Level Mappingsfound in the device integration guides. This allows FortiNAC to generate a consistent security event that can then trigger an alarm regardless of the reporting vendor ' s specific terminology. " —FortiNAC-F Administration Guide: Vendor Severity Levels and Syslog Management.

In FortiNAC-F,Device Profiling Rulesare used to automatically identify and categorize devices (such as IP cameras, printers, or IoT devices) based on fingerprints like DHCP fingerprints, OIDs, or MAC prefixes. When a device matches a rule, it appears in theProfiled Devicesview.

However, matching a rule does not automatically register the device in the database unless the rule is configured to do so. If the devices appear in the view but remain " Unknown " and show " No " in the registration column, it indicates that the " Confirm " (or " Auto-register " ) action has not been triggered. In the Device Profiling Rule configuration, there is a setting called " Allow Auto-Approval " or " Confirm " . If this is not enabled, the system identifies the device but waits for an administrator to manually approve the match before changing the host status from " Unknown " to " Registered " .

This is a common " safety " configuration used during the initial deployment phase to ensure that the profiling rules are accurate before the system begins automatically granting network access based on those matches.

" If a device matches a rule but is not registered, check the rule configuration. TheConfirmoption (within the Method or Rule settings) determines if the system automatically registers the device upon a match. IfConfirmis not enabled, the device will remain in the ' Profiled ' state with a registration status of ' No ' until an administrator manually promotes the device. " —FortiNAC-F Administration Guide: Device Profiling Rules.

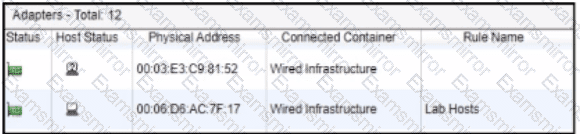

The correct answer is A . The exhibit shows two adapters learned on the same wired port: one appears as a rogue/unknown host, and the other is associated with the Lab Hosts rule. The port is in both Role-Based Access and Forced Registration . FortiNAC-F state-based control takes precedence over policy-based provisioning, and the study guide states that when a rogue host connects to a port in the Forced Registration group, FortiNAC-F isolates that host by moving it into the registration captive network. The guide also explains that the Isolation network can be used as a single network for abnormal host states while still presenting state-specific portal pages.

Because this is a wired switch port using VLAN-based control, FortiNAC-F cannot put one host on the production VLAN and the other host on the isolation portal VLAN at the same time on the same access port. The VLAN change applies to the port, not independently to each MAC address behind that port. Therefore, the presence of the rogue host on a Forced Registration port causes the port to be provisioned to the isolation network. Option B is technically unrealistic for this access-port scenario. Option C is wrong because two MAC addresses alone do not make the port an uplink; FortiNAC-F uses uplink logic for infrastructure-device MACs, manually marked uplinks, or a threshold such as more than 20 MAC addresses. Option D is unrelated because Access Point Management is not triggered by learning two wired hosts on a port.

In FortiNAC-F,MAC notification traps(also known as MAC Move or MAC Change traps) are essential for achieving real-time visibility of endpoint connections and disconnections. When a device connects to a switch port, the switch generates an SNMP trap that informs FortiNAC-F of the new MAC address on that specific interface. This allows FortiNAC-F to immediately initiate the profiling and policy evaluation process without waiting for the next scheduled L2 poll.

According to theFortiNAC-F Administration GuideandSwitch Integrationdocumentation, MAC notification traps should be configured onall ports except uplink ports. Uplink ports are the interfaces that connect one switch to another or to the core network. Because these ports see the MAC addresses of every device on the downstream switches, enabling MAC notification on uplinks would cause the switch to send a massive volume of redundant traps to FortiNAC-F every time any device anywhere in the downstream branch moves or reconnects. This can overwhelm the FortiNAC-F process queue and degrade system performance.

By only enabling these traps on " edge " or " access " ports—where individual endpoints like PCs, printers, and VoIP phones connect—FortiNAC-F receives precise data regarding exactly where a device is physically located. Uplinks should be identified in the FortiNAC-F inventory as " Uplink " or " Learned Uplink, " which tells the system to ignore MAC data seen on those specific ports.

" To ensure accurate host tracking and optimal system performance, SNMP MAC notification traps must be enabled on all access (downlink) ports.Do not enable MAC notification traps on uplink ports, as this will result in excessive and unnecessary trap processing. Uplink ports should be excluded to prevent the system from attempting to map multiple downstream MAC addresses to a single infrastructure interface. " —FortiNAC-F Administration Guide: SNMP Configuration for Network Devices.

TheN+1 High Availability (HA)architecture was introduced in FortiNAC-F version 7.6 to provide a more scalable and flexible redundancy model compared to the traditional 1+1 active/passive setup. In an N+1 configuration, a single secondary (standby) appliance can provide coverage for multiple primary (active) Control and Application (CA) appliances.

To set up an N+1 HA cluster, there are two fundamental structural requirements:

A FortiNAC-F Manager (FortiNAC-M):Unlike standard 1+1 HA, which can be configured directly between two CAs, N+1 management is centralized. The FortiNAC-M acts as the orchestrator that manages the failover groups, monitors the health of the primaries, and coordinates the promotion of the secondary server if a primary fails.

A FortiNAC-F device designated as a Secondary:The cluster must have one appliance explicitly configured with theSecondary failover role. This device remains in a standby state, receiving database replications from all N primaries in its group until it is called upon to take over the functions of a failed unit.

While a cluster can support multiple primaries (D), it does not strictly require " at least two " to function as an N+1 group; it simply requires N primaries (where N ≥ 1). Additionally, N+1 is typically a Layer 3 managed solution via the Manager, meaning it does not mandate a " dedicated VLAN " for synchronization like some Layer 2 HA deployments.

" In FortiNAC-F 7.6,FortiNAC-Mfunctions as a manager to manage the N+1 Failover Groups... enabling N+M high availability for CAs. To create an N+1 Failover group, you should add thesecondary CAto the FortiNAC-M first, then add the primary CAs. The secondary CA is designed to take over the functionality of any single failed primary component. " —FortiNAC-F 7.6.0 N+1 Failover Reference Manual.

In FortiNAC-F,Security Triggersare used to identify specific security-related activities based on incoming data such as Syslog messages or SNMP traps from external security devices (like a FortiGate or an IDS). These triggers act as a filtering mechanism to determine if an incoming notification should be escalated from a standard system event to aSecurity Event.

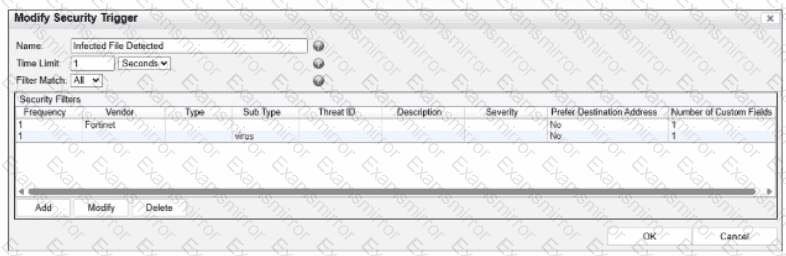

According to theFortiNAC-F Administrator Guideand relevant training materials for versions 7.2 and 7.4, theFilter Matchsetting is the critical logic gate for this process. As seen in the exhibit, the " Filter Match " configuration is set to " All " . This means that for the Security Trigger named " Infected File Detected " to " fire " and generate a Security Event or a subsequent Security Alarm,every single filterlisted in the Security Filters table must be satisfied simultaneously by the incoming data.

In the provided exhibit, there are two filters: one looking for the Vendor " Fortinet " and another looking for the Sub Type " virus " . If only one of these filters is satisfied (for example, a message from Fortinet that does not contain the " virus " subtype), the logic for the Security Trigger is not met. Consequently, FortiNAC-F does not escalate the notification. Instead, it processes theincoming data as aNormal Event, which is recorded in the Event Log but does not trigger the automated security response workflows associated with security alarms.

" The Filter Match option defines the logic used when multiple filters are defined. If ' All ' is selected, then all filter criteria must be met in order for the trigger to fire and aSecurity Eventto be generated. If the criteria are not met, the incoming data is processed as anormal event. If ' Any ' is selected, the trigger fires if at least one of the filters matches. " —FortiNAC-F Administration Guide: Security Triggers Section.

FortiNAC-F provides a robust engine for processing security notifications from third-party devices. For standard integrations, such as FortiGate or Check Point, the system comes pre-loaded with templates to interpret incoming data. However, when an administrator needs FortiNAC-F to process syslog messages from a vendor or device that is not supported by default, they must configure aSecurity Event Parser.

TheSecurity Event Parseracts as the translation layer. It uses regular expressions (Regex) or specific field mappings to identify key data points within a raw syslog string, such as the source IP address, the threat type, and the severity. Without a parser, FortiNAC-F may receive the syslog message but will be unable to " understand " its contents, meaning it cannot generate the necessarySecurity Eventrequired to trigger automated responses. Once a parser is created, the system can extract the host ' s IP address from the message, resolve it to a MAC address via L3 polling, and then apply the appropriate security rules. This allows for the integration of any security appliance capable of sending RFC-compliant syslog messages.

" FortiNAC parses the information based onpre-defined security event parsersstored in FortiNAC ' s database... If the incoming message format is not recognized, a newSecurity Event Parsermust be created to define how the system should extract data fields from the raw syslog message. This enables FortiNAC to generate a security event and take action based on the alarm configuration. " —FortiNAC-F Administration Guide: Security Event Parsers.

The correct answers are B and C . FortiNAC-F must have a persistent agent on the endpoint if the goal is continual or background endpoint monitoring. The study guide states that the persistent agent is an install-and-stay resident agent and that, after deployment, it communicates back to FortiNAC-F every 15 minutes. It also performs scheduled scans in the background without normal user interaction unless the scan fails. That is the agent model required for continuous compliance monitoring, not a one-time captive portal scan.

A custom scan is also required because the administrator wants to check very specific endpoint conditions: a registry key and a security service. The FortiNAC-F study guide lists Windows custom scan types including Registry Keys and Service , which directly match the two conditions in the question.

Option A is wrong because MDM integration is used to synchronize mobile device data, retrieve MDM-known hosts, receive MDM host updates, and apply policies based on MDM attributes; it is not the required mechanism for checking Windows registry keys or Windows service status. Option D is wrong because a remediation admin scan is not what defines the compliance check itself. The compliance logic must be created as a custom scan, and continuous monitoring requires the persistent agent.

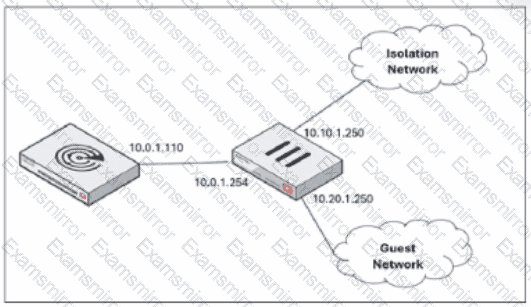

The correct answer is D . The question is about guest onboarding , and the exhibit shows the Guest Network using gateway 10.20.1.250 . In a Layer 3 captive network design, FortiNAC-F provides DHCP and DNS services to isolated or captive-network hosts, but the DHCP scope must still give the endpoint the correct default gateway for the network where that endpoint is placed. The study guide specifically warns that, when configuring Layer 3 captive network scopes, the administrator must think from the isolated host’s perspective for the IP pool and gateway configuration . It also states that each captive network interface configuration includes an IP address, subnet mask, default gateway, and one or more DHCP scopes.

Option A , 10.0.1.254 , is the infrastructure gateway on the FortiNAC-F service/production-side segment, not the guest network gateway. Option B , 10.0.1.110 , is the FortiNAC-F interface address shown in the diagram, not the default gateway for guest clients. Option C , 10.10.1.250 , is the gateway for the Isolation Network , not the Guest Network . Since the administrator is configuring guest onboarding, the DHCP scope for guest users must hand out 10.20.1.250 as the gateway.
