Pass the Fortinet NSE 5 Network Security Analyst NSE5_FWB_AD-8.0 Questions and answers with ExamsMirror

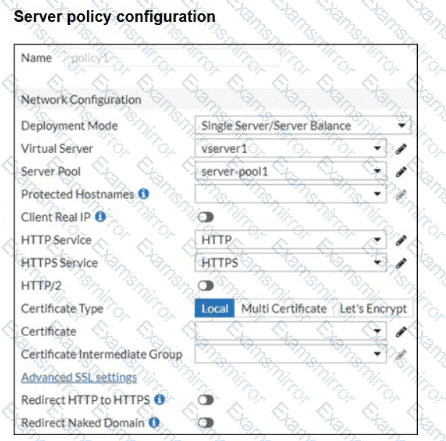

The exhibits show a mismatch between the configured server pool and the server pool referenced by the server policy. The server pool containing the two back-end servers is named app-server-pool1 , but the server policy is selecting server-pool1 . In reverse proxy mode, FortiWeb receives traffic on the virtual server and then forwards it to the server pool selected in the server policy. If the policy points to the wrong or empty pool, traffic will not be forwarded to the intended back-end servers, even if health checks for the correct pool are healthy. Client Real IP affects source IP preservation, not pool selection. The FortiGate should forward traffic to FortiWeb, not directly bypass it. The correct fix is to select the correct server pool.

================

To validate HA synchronization, the administrator should compare the configuration areas that affect traffic handling and security enforcement. Network configuration, such as interface and routing alignment, is important because HA peers must process traffic consistently. Policy configuration is also critical because server policies, protection profiles, rules, and related web security settings determine how FortiWeb inspects and blocks requests. Logs are not the right synchronization target for this question; log files are used for investigation, not for proving configuration synchronization. Firmware images and upgrade history are also not the normal operational configuration areas used to verify HA policy behavior. The correct verification focus is network configuration consistency and web protection/server policy consistency across the HA cluster.

================

Option D is the strongest SQL injection example because it uses SQL syntax with a comment marker -- to neutralize the password condition. In a vulnerable login query, that could cause the database to evaluate only the username portion and ignore the password check, creating an authentication bypass. Option C is not SQL injection; it is cross-site scripting because it executes JavaScript in the browser. Option B is fake XML-like markup and not a realistic SQL payload. Option A contains a SQL-like subquery, but it is not the best authentication-bypass pattern shown. FortiWeb’s injection defenses are designed to detect SQL injection and XSS as malicious input patterns targeting application logic.

================

FortiWeb machine learning protection depends on observed application traffic. The administrator must first collect traffic samples so FortiWeb can learn normal behavior and create a useful baseline. After sample collection, FortiWeb uses the collected data to build the detection model. Once the model is built, it must be enabled or run in the live environment so FortiWeb can evaluate production requests and detect abnormal or bot-like behavior. Manual verification on test data only is not enough to activate the model for real traffic. Bayesian analysis is not the FortiWeb configuration step shown for this process; the platform handles model logic internally. The practical workflow is collection, model building, and live enforcement or detection.

================

This is a stored cross-site scripting attack. The attacker submits JavaScript into a product review form, and the application stores and displays it later to other users. When victims view the review, their browsers execute the attacker’s script as if it came from the trusted site. That is dangerous because the script can access browser-side data available to the page, such as cookies, tokens, page content, or session-related information depending on browser and cookie security settings. It does not directly leak the back-end database; that would be more aligned with SQL injection. It also does not inherently bypass login pages or require the victim to click a link. The core risk is malicious code execution in the victim’s browser.

================

FortiAI improves investigation workflow by helping administrators interpret FortiWeb activity using natural language. Instead of manually reviewing many raw log entries, administrators can ask FortiAI questions about recent events, blocked requests, attack patterns, or policy behavior and receive a readable explanation. This helps reduce investigation time and makes troubleshooting faster, especially when reviewing attack logs, event logs, and traffic context. FortiAI does not disable logging; that would reduce visibility. It also does not replace FortiGuard updates, which remain important for signatures, reputation, and threat intelligence. Blocking malicious IP addresses automatically is a security action handled through FortiWeb policies and protections, not the primary FortiAI workflow benefit. The best answer is natural-language event explanation.

================

The scenario describes distributed scraping where each individual IP stays below request-rate thresholds. A simple DoS threshold is weak here because the attacker avoids volume-based detection per source. Static blocklists are also ineffective because many botnet IPs may appear only once or rotate frequently. Blocking every non-allowlisted user agent would cause severe false positives and is easy for bots to evade by spoofing headers. FortiWeb bot mitigation is the correct control because it can evaluate behavior beyond source IP volume. Device fingerprinting, browser behavior, headers, JavaScript challenges, and client characteristics help correlate suspicious automation even when requests are spread across many addresses. Therefore, bot mitigation with behavioral/device fingerprinting is the strongest answer.

================

SSRF is an application-layer abuse case where attacker-controlled input causes the backend application to make unintended server-side requests. FortiWeb controls such as parameter validation, file security, and ML anomaly detection reduce risk, but SSRF often succeeds when the application accepts weakly validated URLs, hostnames, redirects, metadata endpoints, internal IP ranges, or backend-only resources. Disabling ML would weaken protection. Moving SSRF protection to FortiGate is wrong because SSRF depends on HTTP/API logic, not only network-layer filtering. HTTPS inspection alone does not solve unsafe backend request behavior. The correct priority is to refine input validation and filtering logic so FortiWeb can better detect and block malicious URL, parameter, and backend-request patterns.

================

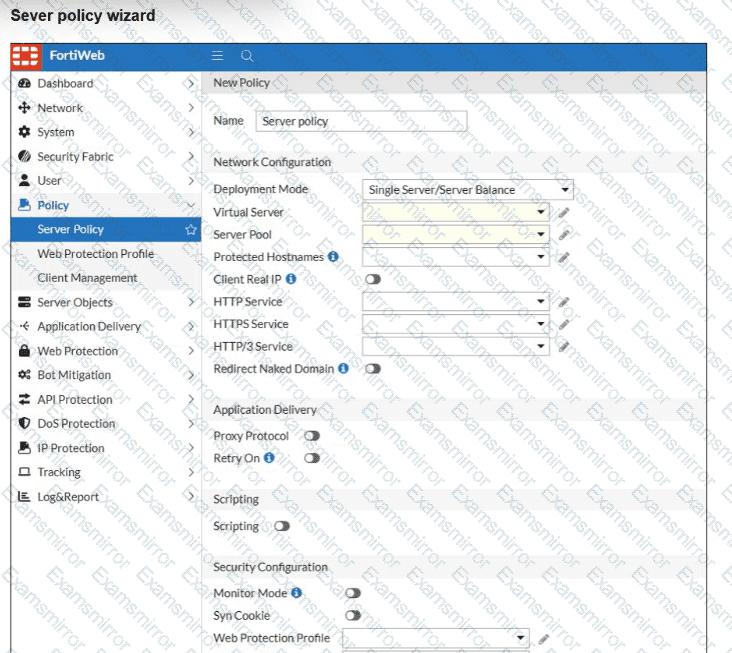

Traffic logging is more storage-intensive than normal event or attack logging, so FortiWeb does not always expose policy traffic-log selection by default. The Study Guide states that traffic logs must be enabled from the CLI before they can be selected in a server policy. This matches the exhibit: the administrator is in the server policy wizard but cannot see the traffic log option. FortiAnalyzer or FortiSIEM can receive logs, but they do not make the policy option appear. Deployment mode is also not the determining factor here. FortiAppSec Cloud licensing is unrelated. The correct cause is that global traffic logging must first be enabled manually through the CLI, after which policy-based traffic logging can be selected.

================
