Pass the Fortinet NSE 6 Network Security Specialist NSE6_FSM_AN-7.4 Questions and answers with ExamsMirror

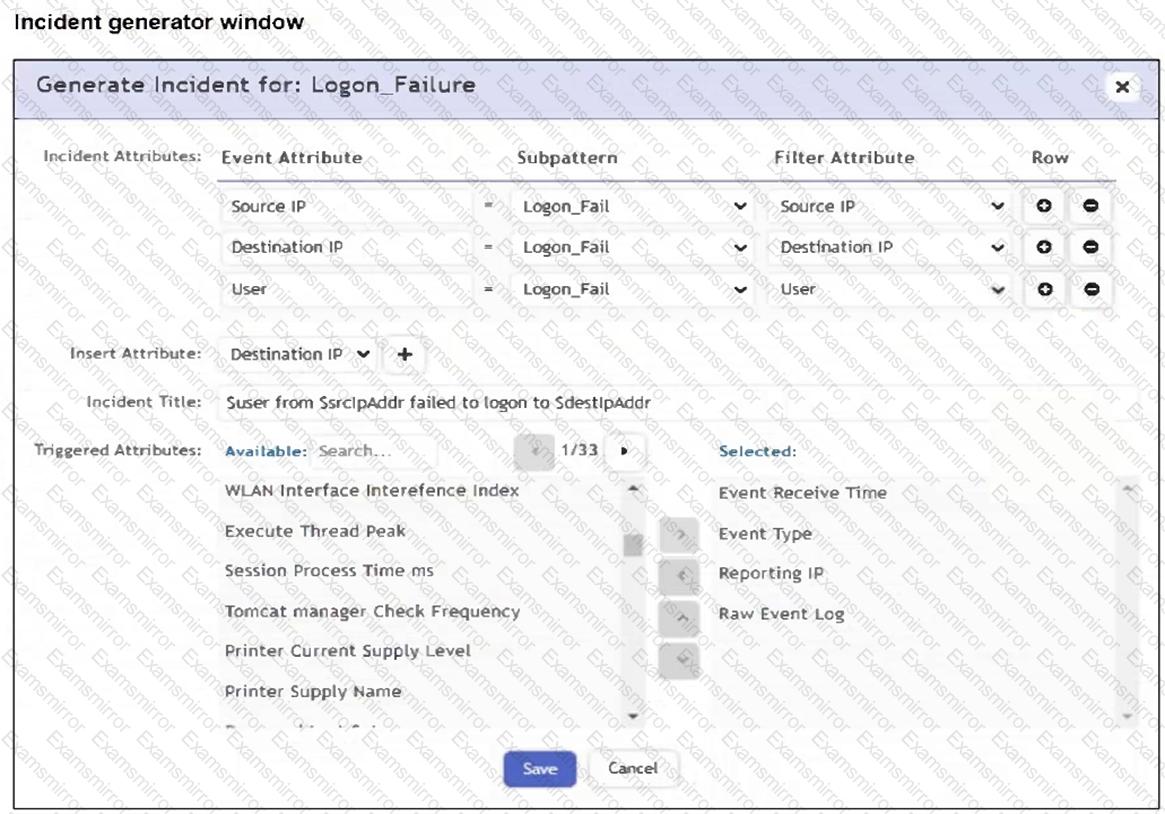

The attribute must be selected as a Triggered Attribute so that it becomes available for incident generation and incident-title substitution. In the FortiSIEM Study Guide’s rule action configuration section, FortiSIEM separates incident attributes from triggered attributes. Triggered attributes are taken from the events that cause the rule to trigger and are then available for incident display and incident context. The guide explains that the rule action step is where an analyst defines the incident generated by a rule and chooses which attributes are carried forward. If Destination Host Name is not selected in the Triggered Attributes list, FortiSIEM cannot use it as an incident attribute in the generated incident title. Option B is wrong because aggregate items are used for calculations such as COUNT, AVG, or SUM, not for making a text attribute available in the incident title. Option C is wrong because Destination Host Name is an event attribute, not an event type. Option D is unrelated; removing Destination IP would not make Destination Host Name selectable.

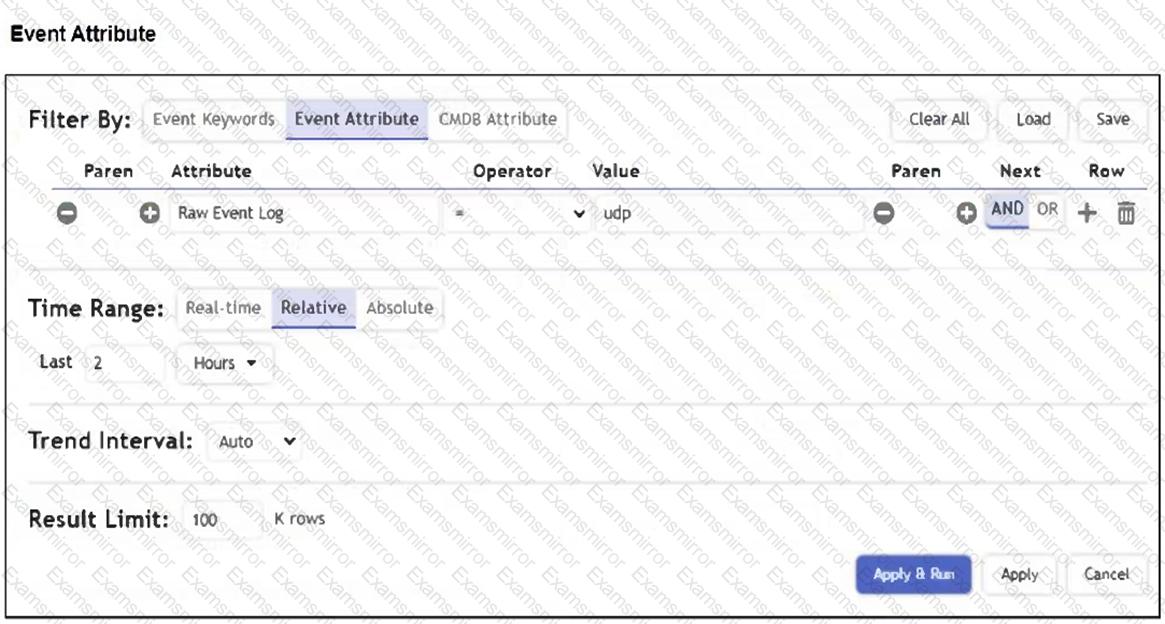

The operator is set to " = " , which performs an exact match on the entire raw event log, not a substring search. To find logs that contain the keyword " udp " , the analyst should use the CONTAIN operator instead. This will return all logs where " udp " appears anywhere in the raw log message.

The correct answer is D because the analyst is trying to search for raw logs that contain the keyword udp, but the filter uses the equality operator. The FortiSIEM Study Guide explains keyword searches in terms of Raw Event Log CONTAIN logic. In the keyword phrase search section, the guide states that without quotes, FortiSIEM searches raw event logs by using conditions such as Raw Event Log CONTAIN TCP OR Raw Event Log CONTAIN connection . Another analytics example explains that searching for TCP or UDP events uses the raw event log containing the keyword tcp or udp and that the search returns case-insensitive results for TCP and UDP. This directly eliminates option C. The time range is already set to the last two hours, which is correct for historical raw log searching. The problem is the operator. To find a keyword anywhere inside a raw log message, the analyst should use CONTAIN , not =.

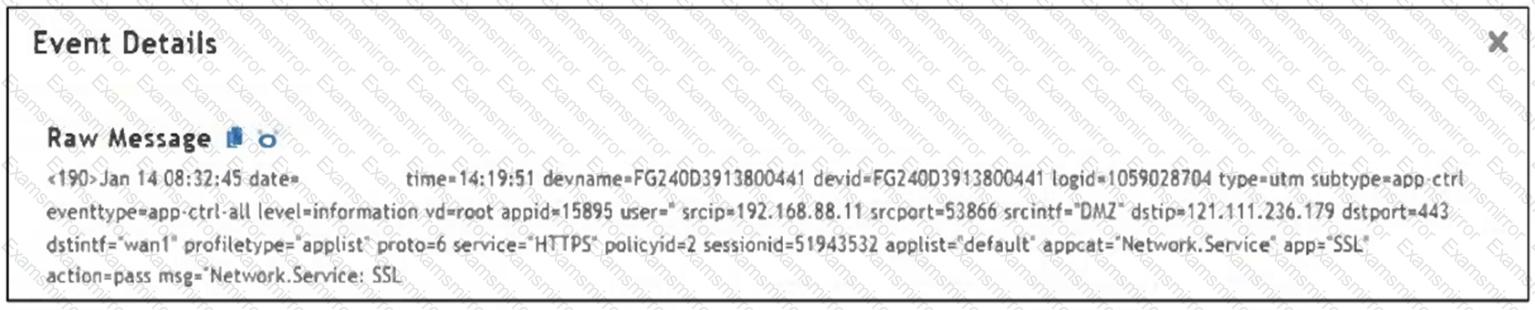

The correct answer is C. SSL . FortiSIEM receives raw logs, processes them through parsers, normalizes the extracted fields, classifies the event, and stores the structured data. The Study Guide explains the FortiSIEM process flow: data is collected, processed by the parsing engine, normalized, classified, and then stored. It further states that normalization extracts individual fields from raw events and maps those fields to a common schema. The FortiSIEM 7.4 User Guide describes a parser as a file containing instructions for the parser module to convert a raw log into event attributes. In the exhibit, the raw FortiGate log includes values such as profiletype= " applist " , appcat= " Network.Service " , and app= " SSL " . The field that directly represents the application value is app= " SSL " . Therefore, the parser would use SSL to populate the normalized Application Name field. applist describes the profile type, Network.Service is the application category, and wan1 is the interface, not the application name.

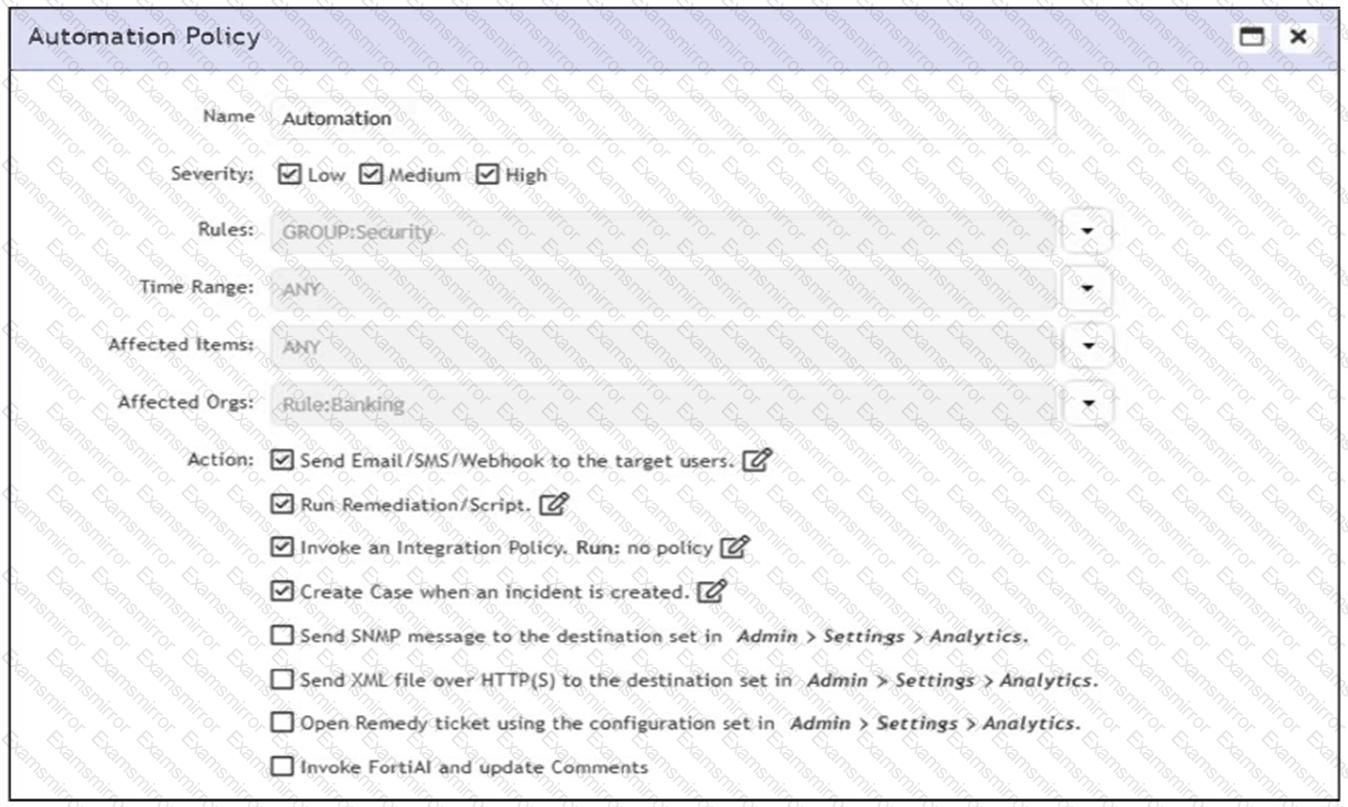

When an associated rule triggers, FortiSIEM performs all selected actions in the automation policy. In this case, it will send an email/SMS/webhook, run the remediation script, invoke the integration policy (even if none is currently defined), and create a case. All checked actions are executed.

The correct answer is B because FortiSIEM automation policies are designed to execute the actions selected in the policy when the policy criteria match. The FortiSIEM Study Guide states that automation policy actions define what occurs when policy criteria match. It lists possible automation actions such as sending an alert, invoking an integration policy, sending SNMP or HTTPS XML notifications, opening a remedy ticket or creating a FortiSIEM case, sending email or SMS, and running a remediation script. The same Study Guide explains that users can configure “any combination of actions.” Therefore, there is no single-action precedence rule where remediation overrides all other selected actions or email runs only because it appears first. If multiple action checkboxes are selected, FortiSIEM executes the configured selected actions according to the automation policy. In the exhibit, multiple actions are selected, including email/SMS/webhook, remediation/script, integration policy, and case creation. Option C is incorrect because the absence of a defined integration policy does not make FortiSIEM ignore the other selected actions. The policy runs the selected configured actions.

The correct answer is D because Server A satisfies the rule’s threshold and count requirements, while Server B does not. The Study Guide explains that a FortiSIEM subpattern consists of Filter , Aggregate , and Group By components. It also states that the Aggregate function defines how many or what metric values must match during the time window, while Group By controls how the matching events are grouped into rows. The performance metrics lesson explains that FortiSIEM collects performance and availability data, converts polling results into logs, and uses those metrics for performance, availability, resource utilization, and baselining. In the exhibit, the aggregate evaluates CPU utilization against the device’s CPU critical threshold and also requires a matched-event count of at least two within the 10-minute window. Server A has CPU values above its critical threshold enough times in the window, so it generates one incident. Server B has a lower configured threshold but its collected CPU values do not satisfy the required aggregate condition for the grouped server. Therefore, only Server A generates an incident.

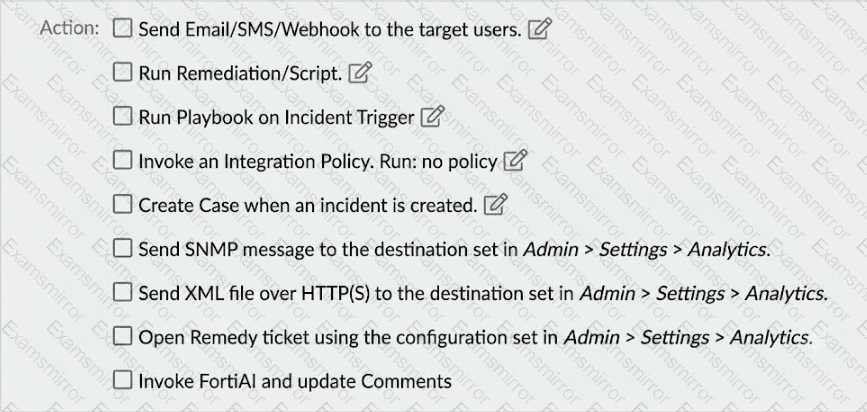

The correct answers are D. Run Remediation/Script and E. Run Playbook on Incident Trigger . FortiSIEM can block an IP address on a FortiGate through a remediation script or through a FortiSOAR playbook/connector workflow. The FortiSIEM Analyst Study Guide explains that for automatic remediation, you define a remediation script for a scenario, and that mitigation scripts can “block an IP address in a firewall” or disable a user in Active Directory. It also states that, when an automation policy is triggered and the remediation script option is enabled, FortiSIEM uses incident data and runs the script to quarantine or block the offending IP address on FortiGate.

FortiSIEM 7.4 also supports automatic playbook execution from an automation policy. The 7.4 User Guide states that under Admin > Settings > Automation Policy , you can choose Run Playbook on Incident Trigger and select a playbook. The same guide explains that FortiSOAR playbooks can call connectors, and the Fortinet FortiOS connector can perform actions such as Block IP Address on a FortiGate firewall.

Email, Remedy tickets, and generic integration policies are notification/ticketing workflows, not the direct FortiGate IP-block actions.

A FortiSIEM rule requires detection logic and at least one subpattern structure to evaluate matching events. The FortiSIEM Study Guide explains that a single subpattern rule example consists of filter, aggregate, and group-by sections. It states: “The subpattern, ExcessVPNLoginFailure, consists of three components: Filter, Aggregate, Group By.” That confirms that a subpattern is a core rule component. The FortiSIEM 7.4 User Guide also identifies Detection Technology as part of rule definition and built-in rule metadata. Detection Technology describes the detection method used by the rule, such as correlation, profiling, machine learning, or correlation using lookup tables. Exception policy is not required; it is used to suppress or tune matches under specific conditions. Clear policy is also not required; it controls how an incident can be cleared or auto-cleared after triggering. Therefore, the required components among the listed options are Subpattern and Detection Technology. Without them, the rule lacks both the event-detection structure and the detection-method classification needed for rule evaluation.

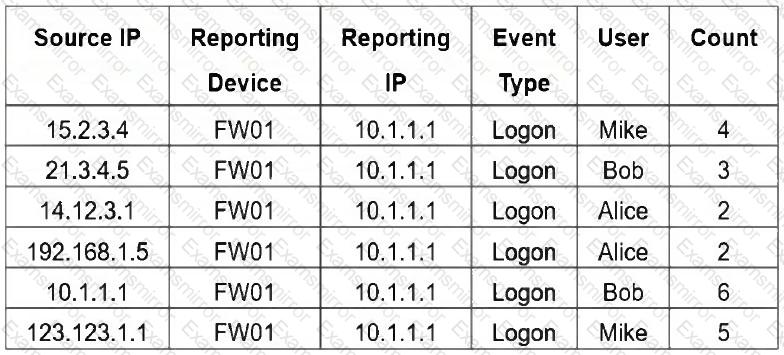

Grouping by User, Source IP, and Count means that each unique combination of those three attributes will be treated as a separate result. In the table, all six rows have distinct combinations of User, Source IP, and Count - so FortiSIEM will display 6 results.

Six because grouping by User , Source IP , and Count creates a separate result for every unique combination of those three selected attributes. The FortiSIEM Study Guide explains this grouping behavior in the single-subpattern rule example: “If multiple VPN login failure events have the same source IP address, reporting device, reporting IP address, and user, they are grouped together in one row, and the count column tracks the number of events for each of those rows.” Applying that rule here, FortiSIEM compares all selected Group By fields together. In the exhibit, every row has a unique Source IP address, even where the same user appears more than once. For example, Mike appears twice, but the Source IP and Count values are different. Alice appears twice with Count 2, but the Source IP values are different. Bob appears twice, but both Source IP and Count are different. Since no row has the same User, Source IP, and Count combination as another row, FortiSIEM displays all six rows.

The time period must be defined under the Define Condition tab of the rule. The FortiSIEM Study Guide states that a rule has three components: General , Condition , and Action . The General section defines the overall purpose and scope of the rule, the Condition section specifies which conditions trigger the rule, and the Action section configures what happens after the rule is triggered. The Study Guide further explains that on the Define Condition page, FortiSIEM specifies “the conditions—event attributes and thresholds—that will trigger the rule and create an incident,” including “the time window” within which the subpatterns must match for the rule condition to be satisfied. It also states that when there is more than one subpattern, you must define the logic between subpatterns and their relationships or constraints.

For a 24-hour multiple-subpattern rule, the guide gives an example using an 86400-second time window, which equals 24 hours, and shows it under Resource > Rules > Define Condition. Therefore, the time period is not configured inside each individual subpattern, not under General, and not under Define Action.

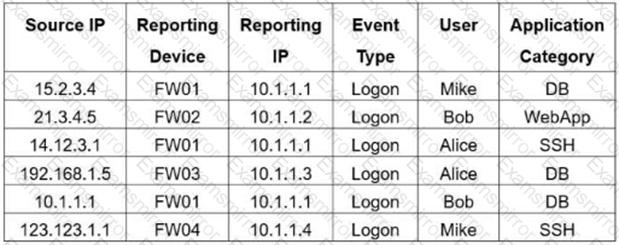

FortiSIEM grouping works by combining events that have the same values for all selected Group By attributes. The Study Guide’s rule and subpattern example states that when multiple events have the same Group By values, “they are grouped together in one row, and the count column tracks the number of events for each of those rows.” In the exhibit, the selected grouping fields are Reporting Device, Reporting IP, and Application Category. The table contains six raw rows, but two rows share the same grouped combination: FW01 / 10.1.1.1 / DB . Those two rows are collapsed into one grouped result. The other combinations are unique: FW02 / 10.1.1.2 / WebApp, FW01 / 10.1.1.1 / SSH, FW03 / 10.1.1.3 / DB, and FW04 / 10.1.1.4 / SSH. That creates five grouped rows in total. FortiSIEM does not display six because grouping removes duplicate combinations, and it does not display four because only one duplicate combination exists.
