Based on the technical data provided in the exhibits and the OT Security 7.6 Architect curriculum:

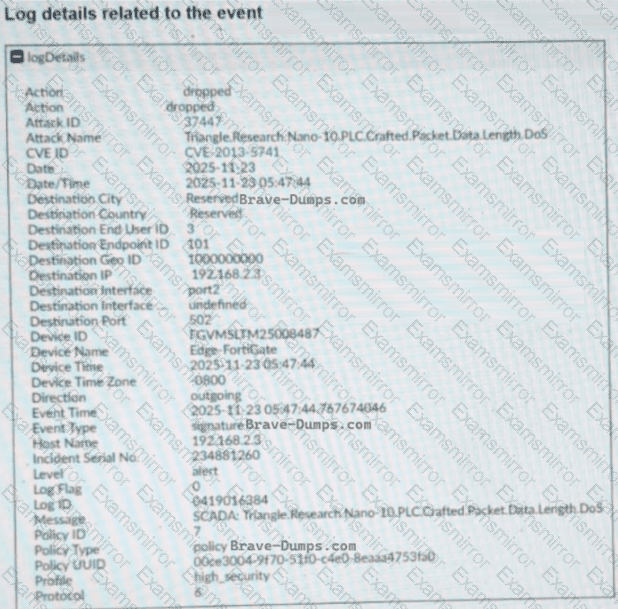

Industrial Protocol Identification (Statement A) : The log details exhibit clearly shows that the Destination Port used in the attack is 502 . According to the study guide ' s section on Industrial Protocol Protection , the standard port used by the Modbus TCP protocol is 502 . Furthermore, the attack name identifies a " Triangle.Research.Nano-10.PLC, " which are industrial controllers commonly utilizing Modbus for communications.

Attack Mitigation (Statement B) : The log details specify that the Action taken by the FortiGate (Edge-FortiGate) was dropped . In cybersecurity and Fortinet fabric operations, dropping a packet associated with an IPS signature means the traffic was blocked from reaching its target, thereby mitigating the attack.

Target IP Address (Statement E) : The log detail explicitly lists the Destination IP as 192.168.2.3 . The Incident Analysis page also titles the incident with dstip:192.168.2.3. While the " Affected Endpoint " is shown as 10.1.5.20 , in an " outgoing " attack direction (as shown in the log), this likely refers to the internal source/attacker IP, whereas the target is the destination IP (192.168.2.3). Thus, Statement E is incorrect.

Protocol Conflict (Statement C) : The IEC 104 protocol typically utilizes port 2404 . Since the log specifies port 502, Statement C is incorrect.

Severity Distinction (Statement D) : While the Incident severity is marked as High , the question specifically asks about event severity. The " Events " table at the bottom of the Incident Analysis page shows a " User login/logout failed " event with a medium severity. Because there is a distinction in the management console between the severity of individual events and the aggregated incident, and Statement A and B are technically definitive based on port and action, A and B are the correct architectural choices.

The correct answer is A. You must enable Virtual Patching in the Feature Visibility section .

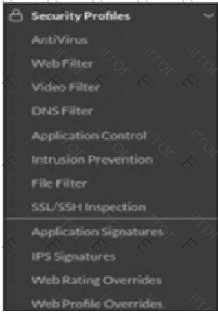

The study guide states clearly that “By default, virtual patching profiles are hidden on the GUI, and you must enable them through System > Feature Visibility.” That exactly matches the situation in the exhibit, where Virtual Patching does not appear under Security Profiles . So the issue is not that the feature is unsupported, but that it is simply hidden in the GUI until it is enabled.

The other options do not answer the question being asked. A valid OT security service license is required for virtual patching signatures and protection workflow, and OT signatures are relevant to IPS-based OT protection, but those do not explain why the menu item itself is missing from the Security Profiles section . The guide specifically identifies Feature Visibility as the reason the Virtual Patching profile is not shown in the GUI. Therefore, the required action is to enable Virtual Patching in System > Feature Visibility .

Based on the OT Security 7.6 Architect study guide regarding the Asset Identity Center and Asset Management :

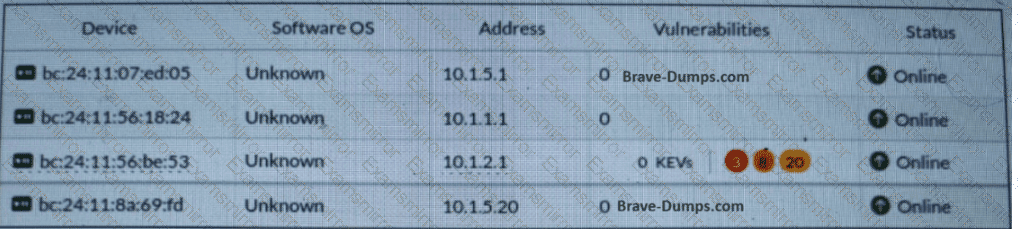

Vulnerability Visibility : The Asset Identity List tab displays key metadata for IT and OT devices, including detected addresses, users, and a specific column for Vulnerabilities .

Virtual Patching Feature : In the OT Security 7.6 architecture, the " Vulnerabilities " column is populated through the OT Security Service license, which includes " OT vulnerability correlation definitions & virtual patching signatures " .

Correlation Mechanism : FortiGate extracts metadata from OT traffic and uses these signatures to identify known vulnerabilities on the assets. For these vulnerabilities to be identified and correlated in the Asset Identity Center as shown in the exhibit (displaying a count of 8 vulnerabilities), the Virtual Patching feature must be active.

Architectural Implementation : Virtual patching is a critical component of the " Protection " layer in OT networks, allowing administrators to secure legacy or unpatchable PLCs and RTUs by blocking exploit attempts at the network level using IPS-based virtual patching signatures.

Exhibit Analysis : The presence of identified vulnerabilities (the number " 8 " in the red shield) in the Asset Identity List confirms that the FortiGate is actively performing vulnerability correlation, which is the operational result of having a Virtual Patching security profile applied to the relevant firewall policy.
