Pass the Fortinet Certified Professional Security Operations NSE7_SOC_AR-7.6 Questions and answers with ExamsMirror

Comprehensive and Detailed Explanation From FortiSOAR 7.6., FortiSIEM 7.3 Exact Extract study guide:

To establish a successful integration betweenFortiSOAR 7.6and aFortiGatefirewall via the FortiGate connector, specific administrative and network requirements must be met on the FortiGate side:

API Administrator and Key (D):FortiSOAR does not use standard UI login credentials. Instead, it requires aREST API Administratoraccount to be created on the FortiGate. This account must be assigned an administrative profile with the necessary permissions (e.g., Read/Write for Firewall policies or Address objects). Upon creation, the FortiGate generates a uniqueAPI Key, which must be entered into the "API Key" field of the FortiSOAR configuration wizard as shown in the exhibit.

HTTPS Management Access (C):The connector communicates with the FortiGate using REST API calls overHTTPS(port 443 by default). Therefore, the physical or logical interface on the FortiGate that corresponds to the "Hostname" IP (172.16.200.1) must haveHTTPSenabled under "Administrative Access" in its network settings. If HTTPS is disabled, the connection will time out or be refused.

Why other options are incorrect:

Trusted hosts (A):While it is a best practice to restrict API access to specific IPs (like the FortiSOAR IP), the integration can technically function without "Trusted hosts" enabled if the network allows the traffic. However, theabsenceof an API key or HTTPS access will definitively cause a failure regardless of trusted host settings.

VDOM name (B):In the exhibit, the VDOM field contains multiple values ("VDOM_1", "VDOM_2"). If VDOMs are disabled on the FortiGate, this field should generally be left blank or set to the default "root." Setting it specifically to "VDOM_1" when VDOMs are disabled is not a universal requirement for connectivity; the primary handshake depends on the API key and HTTPS connectivity.

Understanding Playbook Variables:

Playbook tasks in Security Operations Center (SOC) playbooks use variables to pass and manipulate data between different steps in the automation process.

Variables help in dynamically handling data, making the playbook more flexible and adaptive to different scenarios.

Types of Variables:

Input Variables:

Input variables are used to provide data to a playbook task. These variables can be set manually or derived from previous tasks.

They act as parameters that the task will use to perform its operations.

Output Variables:

Output variables store the result of a playbook task. These variables can then be used as inputs for subsequent tasks.

They capture the outcome of the task's execution, allowing for the dynamic flow of information through the playbook.

Other Options:

Create:Not typically referred to as a type of variable in playbook tasks. It might refer to an action but not a variable type.

Trigger:Refers to the initiation mechanism of the playbook or task (e.g., an event trigger), not a type of variable.

Conclusion:

The two types of variables used in playbook tasks areinputandoutput.

Understanding the Playbook and its Components:

The exhibit shows the status of a playbook named "DOS attack" and its associated tasks.

The playbook is designed to execute a series of tasks upon detecting a DoS attack event.

Analysis of Playbook Tasks:

Attach_Data_To_Incident:Task ID placeholder_8fab0102, status is "upstream_failed," meaning it did not execute properly due to a previous task's failure.

Get Events:Task ID placeholder_fa2a573c, status is "success."

Create SMTP Enumeration incident:Task ID placeholder_3db75c0a, status is "failed."

Reviewing Raw Logs:

The error log shows a ValueError: invalid literal for int() with base 10: '10.200.200.100'.

This error indicates that the task attempted to convert a string (the IP address '10.200.200.100') to an integer, which is not possible.

Identifying the Source of the Error:

The error occurs in the file "incident_operator.py," specifically in the execute method.

This suggests that the task "Create SMTP Enumeration incident" is the one causing the issue because it failed to process the data type correctly.

Conclusion:

The failure of the playbook is due to the "Create SMTP Enumeration incident" task receiving a string value (an IP address) when it expects an integer value. This mismatch in data types leads to the error.

Overview of Automation Stitches:

Automation stitches in FortiAnalyzer are predefined sets of automated actions triggered by specific events. These actions help in automating responses to security incidents, improving efficiency, and reducing the response time.

FortiAnalyzer Connectors:

FortiAnalyzer integrates with various Fortinet products and other third-party solutions through connectors. These connectors facilitate communication and data exchange, enabling centralized management and automation.

Available Connectors for Automation Stitches:

FortiCASB:

FortiCASB is a Cloud Access Security Broker that helps secure SaaS applications. However, it is not typically used for running automation stitches within FortiAnalyzer.

NIST Cybersecurity Framework Overview:

The NIST Cybersecurity Framework provides a structured approach for managing and mitigating cybersecurity risks. Incident handling is divided into several phases to systematically address and resolve incidents.

Incident Handling Phases:

Preparation: Establishing and maintaining an incident response capability.

Detection and Analysis: Identifying and investigating suspicious activities to confirm an incident.

Containment, Eradication, and Recovery:

Containment: Limiting the impact of the incident.

Eradication: Removing the root cause of the incident.

Recovery: Restoring systems to normal operation.

Containment Phase:

The primary goal of the containment phase is to prevent the incident from spreading and causing further damage.

Quarantining a Compromised Host:

Quarantining involves isolating the compromised host from the rest of the network to prevent adversaries from moving laterally and causing more harm.

Techniques include network segmentation, disabling network interfaces, and applying access controls.

Understanding FortiAnalyzer Fabric Topology:

The FortiAnalyzer Fabric topology is designed to centralize logging and analysis across multiple devices in a network.

It involves a hierarchy where the supervisor node manages and coordinates with other Fabric members.

Analyzing the Options:

Option A:Downstream collectors forwarding logs to Fabric members is not a typical configuration. Instead, logs are usually centralized to the supervisor.

Option B:For effective management and log centralization, logging devices must be registered to the supervisor. This ensures proper log collection and coordination.

Option C:The supervisor does not primarily use an API to store logs, incidents, and events locally. Logs are stored directly in the FortiAnalyzer database.

Option D:For the Fabric topology to function correctly, all Fabric members need to be in analyzer mode. This mode allows them to collect, analyze, and forward logs appropriately within the topology.

Conclusion:

The correct statements regarding the FortiAnalyzer Fabric topology are that logging devices must be registered to the supervisor and that Fabric members must be in analyzer mode.

Comprehensive and Detailed Explanation From FortiSOAR 7.6., FortiSIEM 7.3 Exact Extract study guide:

InFortiSOAR 7.6, theWar Roomis a collaborative space designed for high-priority incident investigation. TheEvidencestab within theInvestigateview (as shown in the exhibit) is specifically designed to highlight critical findings found during the investigation process.

Evidence Tagging:To populate theAction Logs Marked As Evidencesection, an analyst must specifically tag a relevant log entry, a playbook output, or a comment within the collaboration workspace with the system-defined keyword"Evidence".

Automatic Categorization:Once the tag is applied, FortiSOAR automatically parses these entries and displays them in this centralized view. This allows team members and stakeholders to quickly view substantiated facts and proof gathered during the "Root Cause Analysis" phase without sifting through all raw action logs.

Manual vs. Action Logs:The exhibit shows two distinct areas: "Manually Upload Evidences" (where files like the CSLAB document shown can be dragged and dropped) and "Action Logs Marked As Evidence." The latter is reserved exclusively for system-generated logs or comments that have been promoted to evidence status via tagging.

Why other options are incorrect:

By linking an indicator to the war room (B):Linking indicators associates technical artifacts (like IPs or hashes) with the record, but it does not automatically classify them as evidence within the War Room action log view.

By creating an evidence collection task and attaching a file (C):While this is a valid step in an investigation, attaching a file to a task typically places it in the "Attachments" or "Manually Upload Evidences" area, rather than the "Action Logs" section specifically.

By executing a playbook with the Save Execution Logs option enabled (D):Saving execution logs ensures a trail of what the playbook did, but it does not mark the output as "Evidence" unless the specific logic or a manual analyst action applies the "Evidence" tag to the resulting log entry.

Exact Extract: “INFO verbosity is recommended for well-established playbooks. It contains only the final playbook execution status and individual playbook step status.” The guide further states: “DEBUG verbosity is recommended for newer playbooks or for active troubleshooting. It contains detailed logging that includes execution information, such as step input, output, configuration, and other details.”

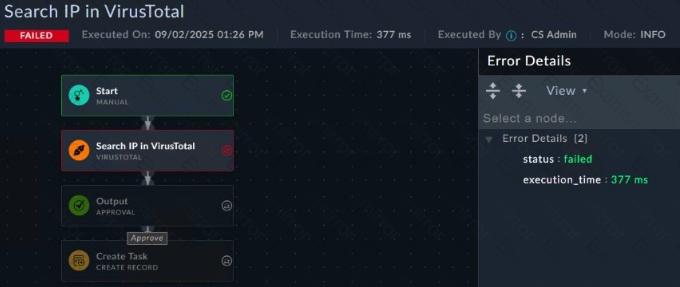

The correct answer is B . In the exhibit, the executed playbook shows Mode: INFO . INFO mode gives only high-level execution status and step status, which explains why the error panel shows only minimal details such as status: failed and execution time. To see connector input, output, configuration, and more useful troubleshooting details, the playbook logging verbosity must be changed to DEBUG .

A may cause a connector step to fail, but it does not explain why error details are missing. C is wrong because Ignore Error would allow the workflow to continue rather than fail normally. D could cause permission-related failure, but again it does not explain the lack of diagnostic detail. The visible clue is the logging mode.

Technical Deep Dive: For a newly built playbook, you should run tests in DEBUG mode until the workflow is stable. DEBUG logs expose step inputs, connector payloads, returned outputs, variable values, and configuration details. After validation, switch back to INFO in production to reduce log volume and storage usage. FortiGate NP/CP hardware offloading is irrelevant here because this is FortiSOAR workflow logging and connector execution diagnostics, not firewall data-plane traffic processing.

Understanding the Playbook Configuration:

The playbook named " Update Asset and Identity Database " is designed to update the FortiAnalyzer Asset and Identity database with endpoint and user information.

The exhibit shows the playbook with three main components: ON_SCHEDULE STARTER, GET_ENDPOINTS, and UPDATE_ASSET_AND_IDENTITY.

Analyzing the Components:

ON_SCHEDULE STARTER: This component indicates that the playbook is triggered on a schedule, not on-demand.

GET_ENDPOINTS: This action retrieves information about endpoints, suggesting it interacts with an endpoint management system.

UPDATE_ASSET_AND_IDENTITY: This action updates the FortiAnalyzer Asset and Identity database with the retrieved information.

Evaluating the Options:

Option A: The actions shown in the playbook are standard local actions that can be executed by the FortiAnalyzer, indicating the use of a local connector.

Option B: There is no indication that the playbook uses a FortiMail connector, as the tasks involve endpoint and identity management, not email.

Option C: The playbook is using an " ON_SCHEDULE " trigger, which contradicts the description of an on-demand trigger.

Option D: The action " GET_ENDPOINTS " suggests integration with an endpoint management system, likely FortiClient EMS, which manages endpoints and retrieves information from them.

Conclusion:

The playbook is configured to use a local connector for its actions.

It interacts with FortiClient EMS to get endpoint information and update the FortiAnalyzer Asset and Identity database.

Understanding the Playbook Requirements:

The SOC analyst needs to design a playbook that filters for high severity events.

The playbook must also attach the event information to an existing incident.

Analyzing the Provided Exhibit:

The exhibit shows the available actions for a local connector within the playbook.

Actions listed include:

Update Asset and Identity

Get Events

Get Endpoint Vulnerabilities

Create Incident

Update Incident

Attach Data to Incident

Run Report

Get EPEU from Incident

Evaluating the Options:

Get Events: This action retrieves events but does not attach them to an incident.

Update Incident: This action updates an existing incident but is not specifically for attaching event data.

Update Asset and Identity: This action updates asset and identity information, not relevant for attaching event data to an incident.

Attach Data to Incident: This action is explicitly designed to attach additional data, such as event information, to an existing incident.

Conclusion:

The correct action to use in the playbook for filtering high severity events and attaching the event information to an incident is Attach Data to Incident .
