According to the OT Security 7.6 Architect study guide regarding FortiAnalyzer Event Management :

Notification Options : When configuring a new event handler, FortiAnalyzer provides several built-in notification methods to alert administrators when specific log criteria are met. The most common and direct method is Send alert email (Option A).

Incident Management : To streamline the SOC workflow, an event handler can be configured to Automatically create an incident (Option D) based on the triggered event. This moves the event into the Incident Manager for further analysis.

Security Fabric Integration : In the 7.6 architecture, event handlers can directly trigger an Automation stitch (Option E). This allows the FortiAnalyzer to notify the root FortiGate to take action (like running a CLI script or changing a policy) across the Security Fabric.

Exclusions : Create a report (Option B) is typically a task performed by a Playbook or a scheduled report job, not a direct setting inside the basic event handler configuration. Quarantine an attacker (Option C) is an action that results from an automation stitch or playbook, but it is not a direct configuration toggle within the event handler itself.

The correct answer is A. Fortinet Single-Sign On (FSSO) . The study guide states under Active and Passive Authentication that for passive authentication, “User does not receive a login prompt from FortiGate” , “Credentials are determined automatically” , and specifically “FSSO, RSSO, and NTLM can be used.” It then explains that passive authentication occurs with the single sign-on method and explicitly identifies Fortinet SSO (FSSO) as one of those methods.

The guide also says: “For passive authentication, you can implement FSSO. FSSO allows users who have already authenticated on the network through another system to be transparently identified. After initial login to any system on the network, users can access allowed resources without being prompted for credentials.” That is exactly what the question asks for: improving access control in a large OT network using passive authentication .

The other options do not match passive authentication. Local users are part of local authentication, two-factor authentication adds an extra security factor but still uses active authentication, and FortiAuthenticator as a remote server supports centralized authentication for mid-to-large networks, but by itself it is not the specific passive-authentication method being asked here. The study guide is explicit that the FortiGate configuration for passive authentication is FSSO .

The correct answer is D. You must configure a layer 3 switch .

The study guide explains that “Layer 2 devices can add or remove tags” but “cannot modify them.” It then states that “A layer 3 device, such as a router or FortiGate, can modify the VLAN tag before routing the packet. This allows them to route traffic between VLANs.” It also explicitly describes “Router on a Stick” as “a way to allow routing between VLANs.” Since the exhibit shows a layer-2 switch and the Engineering Workstation and PLC are placed in different VLANs, inter-VLAN communication requires layer-3 routing.

The other options do not solve this requirement. intra-switch-policy explicit/implicit applies to a software switch , where member interfaces are in the same broadcast domain and same subnet, not to routing between separate VLANs. forward domain IDs are used in transparent mode to confine broadcasts to specific broadcast domains; they do not provide inter-VLAN access. Therefore, to let the Engineering Workstation in one VLAN reach the PLC in another VLAN, you need a layer 3 routing function , which matches option D .

The correct answers are B and D .

Option B is correct because the profile has Medium , High , and Critical selected, while Low severity is not selected. That means low-severity virtual patching signatures are not enforced by this profile. So for the device with MAC address 12:12:12:12:12 , low-severity signatures are not blocked. The study guide explains virtual patching as device-specific protection where “FortiGate caches the signatures and mitigation rules that apply to each device” and applies them when the related traffic matches the firewall policy.

Option D is correct because the Virtual Patching Exemptions table shows a row with the MAC address 11:11:11:11:11 and no specific signature listed. The study guide states that in the Virtual Patching profile you can “Exempt a specific device with the MAC address or a specific signature.” A MAC-only exemption means that specific device is excluded from virtual patching enforcement, so in practical terms it is treated as having no applicable vulnerabilities in this profile.

Option C is incorrect because the profile does not block critical signatures for all devices. The exemptions list proves that at least one device can be excluded by MAC address, and a specific signature can also be exempted. Therefore, enforcement is not universal across all devices.

Option A is incorrect because the entry Schneider.Electric.ClearSCADA.HTTP.Interface.XSS appears as a specific signature exemption , not as the only remaining vulnerability. The profile display is showing exemptions, not a statement that only one vulnerability is still present.

The correct answers are A and D .

Option A is correct because the study guide states that for OT protocol coverage, “a valid OT security service license is required to receive updates on both intrusion prevention and application control signatures.” It also shows “Valid license required” in the FortiGuard subscriptions section for OT protocol coverage. This confirms that a valid OT security service license is required to use and maintain the OT signatures database correctly.

Option D is also correct because the guide explicitly shows the CLI configuration used “To enable OT signatures” :

config ips global

set exclude-signatures none

end

It then states that “By default, OT signatures are excluded from the signatures lists on the GUI until you enable them on the CLI.” This directly confirms that you must set exclude-signatures to none in the CLI to enable OT signatures.

Option B is incorrect because the study guide does not say you manually import the OT signatures database. Instead, it explains that FortiGuard maintains updated OT signatures and that a valid license is required to receive updates. Option C is incorrect because the guide clearly says OT signatures are excluded by default until enabled from the CLI.

According to the OT Security 7.6 Architect study guide regarding the Purdue Model :

Asset Location : The study guide states that " All critical physical assets are located on the plant floor and equipped with IIoT sensors. "

Level Classification : The " plant floor " is further defined as the " control area zone, " which consists of Levels 0, 1, and 2 .

Hierarchy : The " Operations & Control " zone is identified as Level 3 and Level 3.5 .

Direct Answer : In the " Introduction " lesson ' s Knowledge Check , the specific question " In the Purdue model, at which level are IIoTs placed? " is provided with the verified answer: Below Level 3.5 .

The correct answers are A and C . The study guide explains that “You can use application control signatures to detect OT protocols” and that application control provides “granular message type identification.” In the exhibit, the Operational Technology application category is included in the Application Sensor profile, so OT application signatures are enabled in this profile.

Option C is also correct because the override table shows Modbus_Read.Holding.Registers = Allow and Modbus = Block . The study guide states that you can use specific granular application control signatures to allow a specific Modbus command and block all others , and it also shows that application control can identify read and write commands separately at message level. Therefore, Modbus write commands are blocked by this profile.

Option B is incorrect because the profile is not simply monitoring all OT protocols; it contains a Block action for Modbus. Option D is incorrect because the study guide links OT protocol visibility specifically to the monitor status , while in the exhibit Modbus_Read.Holding.Registers is set to Allow , not Monitor .

The correct answer is C . Fortinet VDOMs partition a physical FortiGate into multiple logical FortiGate devices, with each VDOM maintaining independent security policies, routing tables, and other configurations. Traffic is confined to its VDOM unless explicit inter-VDOM connectivity is configured. Because the exhibit specifies that FortiGate operates in NAT mode , separate traffic VDOMs are the appropriate method for creating independent security domains for network 1 and network 2. Forward-domain IDs apply specifically to FortiGate operating in transparent mode , where interfaces otherwise share a broadcast domain, so option D does not fit this topology. An implicit software switch places interfaces in the same layer-2 broadcast domain rather than creating stronger separation. Universal ZTNA controls user access to applications and is not a replacement for structural network segmentation. Therefore, two traffic VDOMs provide the required separation.

================

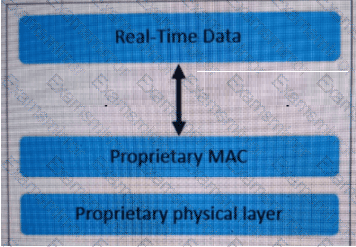

The correct answer is D. EtherCAT . The study guide explicitly states under the Ethernet/IP and EtherCAT section that “EtherCAT is a protocol that offers real-time communication in a primary-secondary configuration” and “EtherCAT skips layers 3 to 6 to deliver real-time communication.” It also adds that “the most important feature of this protocol is that secondary devices collect only the information they need from the data packets.” This matches the exhibit exactly, where the diagram shows Real-Time Data above a Proprietary MAC and Proprietary physical layer , reflecting the protocol structure that bypasses the intermediate OSI layers.

The other options do not match this behavior. The guide says POWERLINK uses layer 2 and layer 7 of the OSI model, not that it skips layers 3 to 6. It also explains that Ethernet/IP is the industrial protocol based entirely on Ethernet standards and adapts to the OSI model. Modbus is described as an open client/server protocol and is not suitable for transmitting data in real time . Therefore, the protocol in the exhibit is clearly EtherCAT .

The correct answer is D. Automatically by an event handler . The study guide explicitly states that “Event handlers generate events on FortiAnalyzer” and “FortiAnalyzer uses event handlers to filter all incoming logs. If the logs received match the conditions set in the event handlers, FortiAnalyzer generates an event.” It also says “You can view all generated events on the Event Monitor page.” This directly matches the exhibit, which is showing entries on the Event Monitor page. Therefore, the attack shown there was detected automatically through an event handler .

The guide also explains the detection flow: “FortiAnalyzer receives logs,” “FortiAnalyzer parses logs,” and “FortiAnalyzer generates an event if a rule is matched in an event handler.” In addition, the Event Monitor view includes the Handler column, which identifies the event handler that generated the event. That is why the attack is not considered manually detected, and it is not primarily detected by a playbook or stitch. Playbooks and stitches are used for subsequent automation actions, but the event appearing in Event Monitor is created by the event handler mechanism.
