Pass the Huawei HCIA-Datacom H12-811_V2.0 Questions and answers with ExamsMirror

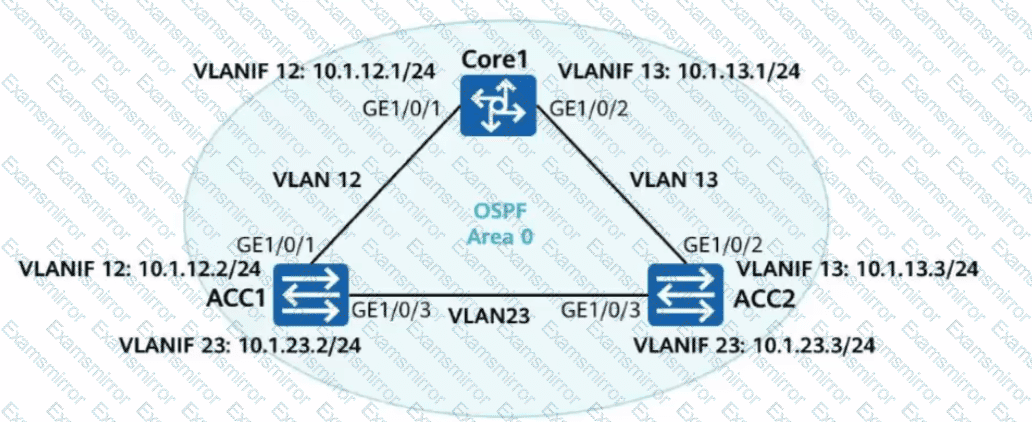

The topology contains three Layer 3 interconnection VLANs: VLAN 12 between Core1 and ACC1, VLAN 13 between Core1 and ACC2, and VLAN 23 between ACC1 and ACC2. OSPF is enabled across the campus, while STP still controls Layer 2 forwarding on the VLAN links. If ACC2 GE1/0/3 is an alternate port, STP blocks service forwarding on the ACC1-ACC2 path. As a result, OSPF Hello packets cannot be exchanged across that blocked Layer 2 path and ACC1 and ACC2 cannot establish an OSPF neighbor relationship on VLAN 23, so C is true. Core1 still has routes for all three interconnection networks: VLAN 12 and VLAN 13 are directly connected, and information for VLAN 23 can be learned through OSPF from the access devices, making B true. Statement A is incorrect because ACC1 already has VLANIF 23 as a directly connected network rather than needing to learn that same connected segment through OSPF. Statement D is also false: STP can still be relevant on Layer 2 VLAN links even in a campus using Layer 3 routing.

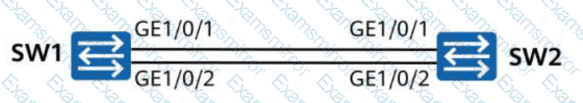

For an Eth-Trunk operating in manual load-balancing mode , the logical Eth-Trunk interface can remain Up as long as at least one member link is operational and properly added to the trunk. Therefore, if GE1/0/1 is Up and GE1/0/2 is Down, Eth-Trunk 1 can still stay Up, making option A correct.

Option B is incorrect because member interfaces in a manual Eth-Trunk do not need to be in identical physical states for the trunk itself to remain operational. Option C is also incorrect because there is no inherent rule here that two-member trunks must have both links active unless a separate minimum-links mechanism has been explicitly configured. No such condition is stated in the question. Option D is false because one of the key purposes of Eth-Trunk is redundancy; requiring all member interfaces to be Up would defeat that design advantage. HCIA-Datacom teaches that Eth-Trunk enhances link reliability by allowing continued forwarding when part of the bundle fails, provided the trunk still has an active forwarding member.

All four statements are correct. The code uses the Paramiko library to automate SSH login to a network device. import paramiko and import time load the Python modules required for SSH communication and delay control, so option C is correct. The statement ssh = paramiko.SSHClient() creates an SSH client object, and ssh.set_missing_host_key_policy(paramiko.AutoAddPolicy()) allows the client to accept an unknown host key automatically in this example scenario.

The command ssh.connect( ' 192.168.1.254 ' , username= ' python ' , password= ' Huawei@123 ' ) establishes an SSH connection to the target device, so option B is correct. Then channel = ssh.invoke_shell() opens an interactive shell channel , which is commonly used to send CLI commands and receive output just as an administrator would in a terminal session, making option D correct. The command channel.send( ' screen-length 0 temporary\n ' ) disables page-by-page output for the current session, which is useful in network automation. Finally, ssh.close() closes the SSH session and releases the connection, so option A is correct. HCIA-Datacom automation knowledge often uses Paramiko examples to demonstrate basic Python-based device O & M.

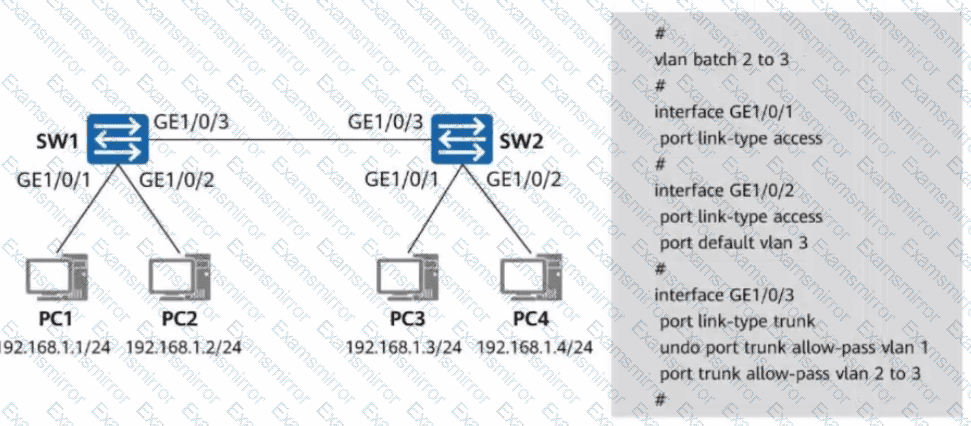

The exhibit shows GE1/0/2 as an access port in VLAN 3 on both switches, so PC2 and PC4 belong to the same Layer 2 broadcast domain. The inter-switch GE1/0/3 link is a trunk that permits VLANs 2 and 3, allowing VLAN 3 frames to pass between SW1 and SW2. Therefore, PC2 and PC4 can communicate at Layer 2, making statement B true. GE1/0/1 remains an access interface in the default VLAN 1 because no other default VLAN is configured. VLAN 1 is not permitted across the shown trunk, so PC1 cannot communicate with PC3 across the switches. PC1 and PC2 are also in different VLANs locally, and PC2 and PC3 are in different VLANs. Devices in different VLANs cannot exchange Layer 2 traffic directly; a Layer 3 gateway is required for inter-VLAN communication. Accordingly, statements A, C, and D are the false statements, which makes A, C, and D the correct selections.

The correct answer is 802.11ac , so option C is correct. In standard WLAN evolution knowledge used in HCIA-Datacom, 802.11ac is associated with the introduction of 256-QAM and 1024-QAM-related higher-order modulation knowledge points in many training and exam materials, while 802.11ax and 802.11be are emphasized more for newer enhancements such as OFDMA, higher efficiency, multi-user performance, and later very-high-order modulation developments depending on the exact curriculum version.

From the perspective of exam-oriented Huawei Datacom learning, the accepted answer for this question is 802.11ac . Option A , 802.11n, is earlier-generation Wi-Fi and does not use 1024-QAM as the defining answer here. Option B , 802.11ax, is Wi-Fi 6 and introduces major efficiency improvements, but this question’s expected answer set identifies 802.11ac . Option D , 802.11be, corresponds to Wi-Fi 7 and is associated with even more advanced capabilities in newer standards. HCIA-Datacom WLAN questions often test the matching of a standard with one representative technical characteristic from the training materials rather than the entire modulation evolution history.

Wi-Fi 7 supports operation in the 2.4 GHz , 5 GHz , and 6 GHz frequency bands, so options A , C , and D are correct. These three bands together provide flexible coverage and capacity options. The 2.4 GHz band offers better propagation and wider coverage, while the 5 GHz and 6 GHz bands provide more channels, higher capacity, and better support for high-speed, low-latency services.

Option B , 9.6 GHz , is incorrect because it is not a Wi-Fi 7 operating band. HCIA-Datacom WLAN content highlights Wi-Fi 7 as a major advancement in wireless performance, bringing improvements in throughput, channel usage, spectrum efficiency, and latency characteristics. The addition and use of the 6 GHz band is especially important because it expands available spectrum resources and helps reduce contention in dense wireless environments. In practical enterprise WLAN design, understanding supported frequency bands is essential for channel planning, interference control, device compatibility assessment, and service optimization. This question checks whether the learner can correctly identify the standard operating bands used by modern Wi-Fi 7 networks.

This statement is true . Traditional VLANs use a 12-bit VLAN ID , which means that only about 4094 usable VLANs are available. In modern data centers, especially in cloud and virtualization environments, that scale is often insufficient because a very large number of tenants, services, and virtual machines need isolated network segments.

VXLAN addresses this limitation by introducing the VNI (VXLAN Network Identifier) , which is 24 bits long. This allows support for up to about 16 million logical segments , greatly expanding the number of isolated Layer 2 networks that can be created across an IP underlay. Because of this, VXLAN is widely used in modern data centers to provide scalable tenant isolation, flexible service deployment, and large Layer 2 extension across physical boundaries. HCIA-Datacom highlights VXLAN as a key overlay technology that solves the VLAN scale problem in virtualized data center environments. It allows a much larger number of VMs and tenants to be isolated than traditional VLAN-based solutions can support, making it essential for modern cloud-oriented and large-scale data center networking.

Several upper-layer management and file transfer protocols use SSH as their secure transport foundation. SFTP is the SSH File Transfer Protocol and operates over SSH, making option C correct. STelnet is secure Telnet implemented over SSH, so option D is also correct. NETCONF commonly uses SSH as its transport protocol for secure configuration management and device orchestration, making option B correct as well.

Option A, DNS, does not use SSH as its normal transport protocol. Traditional DNS operates over UDP or TCP port 53, depending on the query or transfer type. Although DNS security extensions and encrypted DNS variants exist, they are not based on SSH. HCIA-Datacom emphasizes the role of SSH in secure network management because it replaces insecure plaintext protocols and provides confidentiality, integrity, and authentication. In practical Huawei enterprise deployments, SSH-based protocols are widely used for interactive device login, automated configuration delivery, and secure file operations. This question tests recognition of management protocols that inherit SSH’s secure channel rather than protocols that operate independently at the application layer.

Modern cloud data centers require horizontal scalability, high east-west bandwidth, virtualization support, and flexible tenant network extension. A spine-leaf physical topology provides predictable low-hop connectivity between leaf switches by connecting each leaf to the spine layer. VXLAN provides an overlay that can create large numbers of logical Layer 2 segments over the Layer 3 underlay and is well suited to virtualized and multi-tenant cloud environments. The combination of Spine-Leaf and VXLAN is therefore a standard architecture for cloud-based general-purpose data center networks. M-LAG with Eth-Trunk can provide device and link redundancy but does not by itself provide the scalable overlay architecture expected for a cloud fabric. PFC and ECN are lossless-network and congestion-management technologies rather than a complete general-purpose data center architecture. STP with VRRP represents more traditional Layer 2 redundancy and gateway protection and does not offer the same cloud-fabric scalability. Consequently, the architecture described in the question is Spine-Leaf + VXLAN, making option B correct.

The protocol that cannot directly modify device configurations such as interface IP addresses or device names is SFTP , so option C is correct. SFTP is a secure file transfer protocol that runs over SSH and is mainly used to upload, download, and manage files between a client and a network device. It is commonly used for tasks such as transferring configuration files, system software, patches, or log files, but it does not itself provide an interactive or structured configuration modification mechanism.

By contrast, STelnet allows secure remote CLI login, through which an administrator can directly enter commands to change device settings. NETCONF is specifically designed for network configuration management and can modify configurations in a structured manner. SNMP can also modify certain managed object values through write operations when permissions and MIB support allow it, although in practice it is used more often for monitoring. HCIA-Datacom distinguishes between management-plane protocols based on their roles: interactive access, structured configuration, monitoring, and file transfer. This question checks whether the learner can identify SFTP as a file transfer tool rather than a direct configuration protocol.
