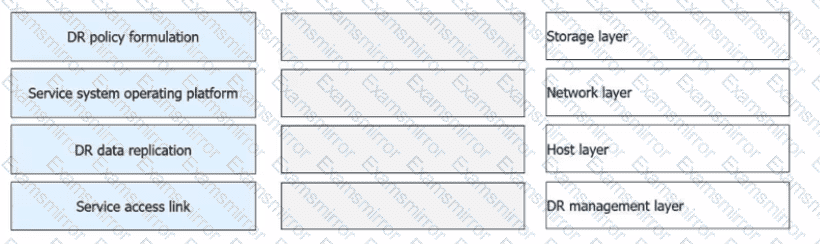

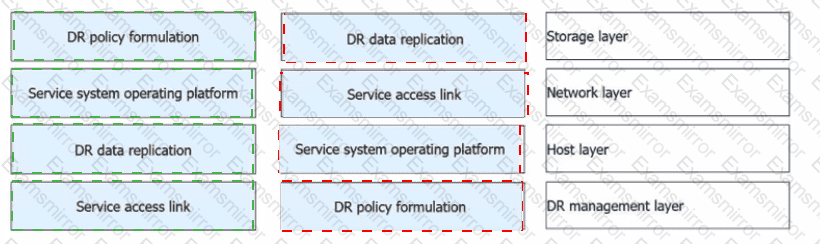

DR data replication → Storage layer; Service access link → Network layer; Service system operating platform → Host layer; DR policy formulation → DR management layer

Huawei ' s DR technology section identifies replication at the host layer, SAN network layer, and storage array layer. It states that storage-layer DR uses inter-array data replication to replicate data from the local array to the DR array. Network-layer DR places the replication mechanism between application servers and backend storage. For the host layer, the course states that data-replication or switchover software can be installed on hosts in the production and DR centers to form an application-level DR solution. The DR-management function is provided by BCManager/eReplication. Its server performs “DR service process control, DR policy scheduling, and configuration data management of DR resources and services.” Therefore, replication of protected data belongs to the storage layer; connectivity between sites and services belongs to the network layer; the service operating environment belongs to the host layer; and formulation/orchestration of DR policies belongs to the DR-management layer.

Study Guide Topics: Data Protection Basics → DR Solution Architecture → Common DR Technologies → BCManager eReplication → Geo-Redundant 3DC DR.

All four listed capabilities are included in the DME data-management/O & M framework.

Huawei describes DME Storage as an intelligent storage management platform covering the complete storage lifecycle, including planning, deployment, O & M, and optimization. Its architecture includes intelligent diagnosis, intelligent optimization, resource optimization, planning simulation, operation visibility, insight analysis, and multidimensional analysis.

Planning enables administrators to model and organize resources before deployment. Analysis provides performance, capacity, topology, alarm, and workload insight. Optimization uses those analytics to recommend or execute improvements such as capacity balancing, migration, SLA adjustment, and QoS changes. Search is important for unstructured-data environments because files, objects, and other unstructured content must be located and analyzed according to metadata.

Huawei OceanStor Pacific also provides SmartIndexing for unstructured file, object, and HDFS storage. It can return search results from extremely large metadata sets within seconds and provides unified multi-protocol metadata indexing.

Consequently, DME ' s unstructured-data management workflow spans the complete chain of search, analysis, planning, and optimization.

Study Guide Topics: Data Storage Management and O & M → DME → Unstructured Data Management → Search → Analysis → Planning → Optimization.

The only true statement is C, so the false statements are A, B, and D.

Huawei states: “If communication between the storage systems is down, the preferred site continues to provide services while the other site stops providing services.”

The HyperMetro pair therefore transitions to To be synchronized because the two storage systems can no longer maintain synchronous dual-write consistency across the failed inter-site link.

Option A is false because automatic fallback to static priority mode is associated with quorum-server failure, not merely failure of the HyperMetro communication link while the quorum server remains available. Option D is false because permitting both sites to continue independently would create a split-brain risk. Quorum arbitration exists specifically to prevent that condition.

Option B is also false because arbitration does not simply make both sides unavailable. One site wins arbitration and continues providing services, while the losing site stops host access.

This behavior preserves data consistency until the inter-site link is repaired and synchronization resumes.

Study Guide Topics: Data Protection Solution → HyperMetro → Single Quorum Server → Arbitration Mechanism → Link Failure → To-be-Synchronized State.

The required feature is SmartMobility.

The function implements policy-driven movement of file data according to its value or activity level. Frequently accessed, performance-sensitive data remains on the local primary storage, while colder data can be relocated to remote storage resources. The objective is to preserve high performance for active data while reducing the cost of retaining less frequently accessed information.

Huawei characterizes next-generation hybrid flash storage as supporting “Free warm and hot data flow” and states that “Warm and hot data can be migrated in a gateway-free, software-free, and cross-device manner.”

The broader tiering architecture similarly describes policy-based classification of hot, warm, and cold data and automated migration according to storage policies. This enables the physical location of cold data to change without requiring the application to manage the movement manually.

SmartMobility extends that lifecycle principle to file-service scenarios in which cold file data is migrated away from the primary system to suitable remote devices while the frequently accessed portion remains local.

Study Guide Topics: Data Storage Technology Presentation → Hybrid Flash Storage → File Services → Data Lifecycle Management → Hot/Cold Data Migration → SmartMobility.

Huawei lists “Performance bottleneck analysis” as one of the major DME IQ intelligent-computing capabilities, together with noisy-neighbor analysis, disk-risk prediction, workload planning, performance-exception detection, and capacity prediction.

DME IQ uses collected performance and configuration data to assess whether storage workloads are operating normally, whether resources are balanced, or whether resource pressure has resulted in overload. Accordingly, the load-status classifications in this interface are Balanced, Overloaded, and Normal.

Optimizable is not one of the load-status values in this classification. Optimization is an O & M action or analytical recommendation rather than the load state assigned to a resource on the Performance Bottlenecks page.

The broader course explains that DME IQ uses cloud-native AI, machine learning, and deep-learning analysis for performance prediction, fault reporting, capacity prediction, risk prediction, and proactive O & M. These capabilities supply the data used by bottleneck analysis.

The retrieved Training/Lab text explicitly documents the Performance Bottleneck Analysis capability, although it does not separately reproduce the UI table containing the three status-label names.

Study Guide Topics: Data Storage Management and O & M → DME IQ → Performance Bottleneck Analysis → Intelligent Computing → Performance Diagnosis.

Huawei explicitly states: “To back up host files, you must install a data protection client on the host and back up the files in LAN-Base mode.” The first part of the statement is therefore correct.

The second part is not. For NAS backup, the course describes protection of OceanStor V6, OceanStor Dorado, OceanStor Pacific, NetApp, and other third-party NAS shares. For applicable NAS systems, NFS or SMB shares are mounted using the NAS protocol for backup and recovery. It does not define installation of an NDMP client on the NAS host plus mandatory LAN-free operation as the standard NAS backup workflow described here.

Huawei further explains that Dorado and new-generation OceanStor hybrid flash systems can use snapshot-difference and block-level transmission technology for high-performance NAS backup, whereas other systems can use NFS/SMB access. This demonstrates that NAS protection is selected according to the source-storage capabilities and does not universally depend on the asserted NDMP-client/LAN-free combination.

Because the second half of the statement is incorrect, the complete statement is FALSE.

Study Guide Topics: Data Protection Solution → OceanProtect Backup → Host File Backup → NAS File Backup → LAN-Base → NFS/SMB Protection.

The Huawei flash-storage feature table defines SmartThin as “Intelligent thin provisioning.” Therefore, when the provisioning type is configured for thin provisioning, the associated feature is SmartThin.

The DME Storage course separately states that block-storage service levels support resource-tuning policies for Thin/Thick mode, deduplication and compression, and SmartTier. These are separate resource-tuning dimensions.

SmartTier concerns data placement among storage tiers, SmartCompression performs data reduction by compression, and SmartDedupe eliminates duplicate data. None of those features defines whether a LUN is thinly or thickly provisioned. SmartThin is specifically the capacity-allocation technology that exposes a logical capacity while allocating physical storage according to actual consumption.

Thus, among the four choices, SmartThin is the license/feature corresponding to the requested provisioning type.

The retrieved course material clearly maps SmartThin to intelligent thin provisioning and DME to Thin/Thick resource tuning; the exact licensing dialog wording is not separately reproduced in the parsed Training/Lab pages.

Study Guide Topics: Data Storage Management and O & M → DME Storage → Block Storage Service Level → Resource Tuning → Thin Provisioning → SmartThin.

The OceanProtect software architecture states: “Infrastructure: Includes GaussDB, Elasticsearch, Kafka, ZooKeeper, and other common components.”

Accordingly, Elasticsearch, Kafka, and GaussDB are valid infrastructure components and the correct selections are A, C, and D.

GaussDB provides relational database services required by the management and data-protection software stack. Elasticsearch supports indexing and search-oriented functions, which are important for metadata processing, global search, and operational data retrieval. Kafka provides distributed messaging capabilities that enable communication and event/data exchange between components in the distributed OceanProtect architecture.

Ceph is not listed as one of the OceanProtect infrastructure components in this architecture. Instead, the storage layer is Huawei ' s integrated storage platform, providing file-system and protocol-access capabilities beneath the data-protection services.

The same architecture separates the platform into the management layer, data-protection layer, storage layer, hardware layer, and common infrastructure. ProtectManager schedules backup, recovery, archive, and replication jobs, while DataMover Engine processes protection data flows.

Study Guide Topics: Data Protection Solution → OceanProtect Backup Storage → Software Architecture → Infrastructure Components → ProtectManager/DataMover Engine.
