Junos OS is built upon a highly stable and secure architecture that distinguishes it from many legacy network operating systems. Two of its most defining characteristics are software modularization and the separation of the control and forwarding planes .

Modularization means that Junos OS runs each major function—such as the routing protocol process (rpd), the management process (mgd), and the interface process (dcd)—as an independent software daemon in its own protected memory space. This ensures that if a single process crashes or needs to be restarted, it does not bring down the entire system or interrupt traffic forwarding.

Furthermore, the physical and logical separation of the Control Plane (Routing Engine) and the Forwarding Plane (Packet Forwarding Engine) is a cornerstone of Junos design. The Routing Engine handles complex intelligence, protocol calculations, and management, while the Packet Forwarding Engine performs high-speed packet switching in hardware. This ensures that a heavy management load or a complex routing recalculation won ' t cause " jitter " or packet loss for transit traffic. Conversely, Junos strictly prohibits unsigned third-party binaries to maintain system integrity, and it maintains a clear functional distinction between routing policies (path selection) and security policies (traffic permit/deny).

In networking architecture, point-to-point (P2P) links are used to interconnect two Layer 3 devices, such as a pair of Juniper MX series routers. Because these links only involve two endpoints, using a large subnet mask would result in wasted IP addresses. The standard historical prefix for a P2P link that provides exactly two usable host addresses is /30.

A /30 subnet mask (255.255.255.252) reserves 2 bits for the host portion. Applying the usable host formula ($2^2 - 2$) results in 2 usable addresses. In the case of 192.168.1.0/30:

192.168.1.0 is the Network Address.

192.168.1.1 is the first usable host address (assigned to Router A).

192.168.1.2 is the second usable host address (assigned to Router B).

192.168.1.3 is the Broadcast Address.

While modern Junos OS versions also support /31 masks for point-to-point links (which eliminate the network and broadcast address overhead to provide two hosts), the /30 mask remains the classic and most widely recognized answer for providing " only two usable host addresses " within the standard subnetting framework. Using /30 ensures compatibility across all legacy and multi-vendor environments while precisely meeting the connectivity requirements of a dedicated link between two interfaces.

In the Junos OS architecture, the configuration environment is strictly bifurcated to ensure system stability and integrity. The candidate configuration is a specific database that serves as a staging area, storing all proposed changes made by an administrator during a configuration session before they are finalized. Unlike other network operating systems where changes might take effect immediately upon entry, Junos utilizes this " sandbox " approach where modifications reside only in the candidate database until a commit command is explicitly executed.

Once the commit process is initiated, the Junos OS kernel validates the candidate configuration for syntax errors and logical consistency. If the validation check is successful, the candidate configuration is promoted and becomes the active configuration—the operational state currently running on the device hardware. This separation allows multiple administrators to work on complex changes without impacting live transit traffic or device stability prematurely. If a mistake is identified during the editing process, the candidate configuration can be easily discarded or compared against the active state to identify discrepancies. This workflow is a cornerstone of Junos OS, facilitating a " check-before-apply " methodology that is essential for carrier-grade reliability and minimizing the risk of accidental outages during critical maintenance windows. Reference: Junos OS Fundamentals, Configuration Databases, Candidate vs. Active.

==========

Comprehensive and Detailed 150 to 250 words of Explanation From: The Transmission Control Protocol (TCP) is a core transport-layer protocol within the TCP/IP suite designed to provide a highly reliable, connection-oriented service. Unlike the User Datagram Protocol (UDP), which is connectionless and best-effort, TCP ensures that data is delivered accurately and in the correct order. A defining characteristic of TCP is its use of a three-way handshake to establish a session. This process involves the exchange of SYN, SYN-ACK, and ACK segments, which synchronizes sequence numbers between the two endpoints and ensures both hosts are ready for data transfer.

Furthermore, TCP provides reliable, ordered delivery by utilizing sequence numbers and acknowledgments. Each data segment is assigned a sequence number; the receiving host uses these numbers to reassemble the data in its original order, even if segments arrive out of sequence due to network jitter or multiple paths. If a segment is lost, the lack of a timely acknowledgment triggers a retransmission, guaranteeing that the application receives all data. TCP does not provide fixed latency guarantees, as its error-recovery mechanisms can introduce delays. Additionally, TCP is a unicast-only protocol and does not support broadcasting on Ethernet. Reference: Networking Fundamentals, Transport Layer Protocols, TCP vs. UDP.

==========

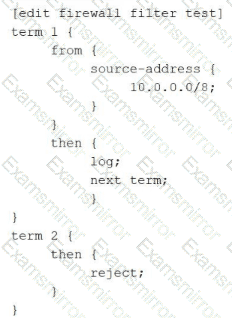

Junos OS firewall filters operate on a sequential, " first-match " logic, but their behavior is significantly influenced by the use of terminating versus non-terminating actions. In this exhibit, a packet with a source address of 10.0.0.0/8 is evaluated against the filter named test.

Evaluation begins with term 1 . The packet matches the source-address criteria, triggering the actions defined in the then statement. The first action is log, which sends the packet header information to the firewall task buffer for logging. The second action is next term . This is a critical non-terminating action ; it instructs the Packet Forwarding Engine (PFE) to continue the evaluation process using the subsequent term in the filter rather than stopping after the match.

Evaluation then moves to term 2 . Because term 2 contains no from match conditions, it acts as a " catch-all " for any traffic that reaches it. The action in this term is reject . This is a terminating action that discards the packet and sends an ICMP " destination unreachable " message back to the source. Therefore, the packet is first recorded by the logging process and is subsequently dropped by the rejection mechanism. If next term had not been present in term 1 , the packet would have been implicitly accepted (as any matched term without a terminating action like discard, reject, or accept defaults to an implicit accept in that specific term). However, the explicit instruction to move forward ensures the packet hits the reject statement.

The fundamental architecture of Junos OS is built upon the clean separation of the Control Plane (Routing Engine or RE) and the Forwarding Plane (Packet Forwarding Engine or PFE). While these two components perform vastly different tasks, they must maintain a high-speed, reliable communication channel to synchronize the state of the device. This connection is achieved through an internal Ethernet link .

This internal link serves several critical functions. First, it allows the Routing Engine to " push " the distilled forwarding table (FIB) to the PFE, ensuring that the hardware knows exactly how to handle incoming transit traffic at wire speed. Second, it acts as a conduit for exception traffic . If the PFE receives a packet that it cannot handle alone—such as an OSPF hello, a BGP update, or an ICMP " Time Exceeded " message—it sends that packet over the internal Ethernet link to the RE for processing. This link is carefully policed by built-in rate limiters to ensure that a flood of transit-related exception traffic cannot overwhelm the Routing Engine ' s CPU, a mechanism known as control plane protection. By using a standard Ethernet-based internal fabric, Junos ensures a scalable and modular design where the RE can focus on complex protocol calculations while the PFE focuses on the heavy lifting of packet switching.

The exhibit illustrates the configuration of a firewall filter named mgmt_fill and its subsequent application to an interface. The first true statement is that the filter is applied to a physical interface . The configuration shows the filter attached to me0 , which in Junos nomenclature represents the Management Ethernet port—a dedicated physical port for out-of-band management traffic. This is separate from logical or virtual interfaces, as me0 provides the physical link for administrative access.

The second true statement is that the filter evaluates SSH packets egressing from the management interface . In the provided snippet, term t1 specifically matches the destination-port ssh , and the filter is applied to the interface unit. When a filter is applied to an interface, it can monitor traffic entering or leaving the device. Furthermore, the filter utilizes a count action (count c1), which is a non-terminating action used to provide telemetry on specific traffic types passing through that physical port. There is no mention of a syslog or log action in the configuration, meaning that while packets are counted, they are not being written to the system log files. This configuration is a standard method for hardening the management plane and tracking administrative session activity on the Routing Engine. Reference: Routing Policy and Firewall Filters, Firewall Filter Actions, Management Interfaces.

==========

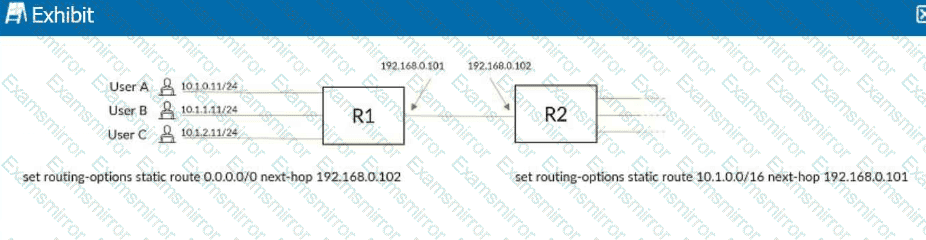

The configuration exhibit demonstrates a classic scenario where mismatched static routing leads to a routing loop . Router R1 is configured with a default route ( 0.0.0.0/0 ) pointing to R2 as its next hop. Conversely, R2 is configured with a broad static route for 10.1.0.0/16 pointing back to R1 .

If a user sends a packet to an unassigned IP address such as 10.1.99.1 , the following sequence occurs:

R1 receives the packet and consults its routing table. Finding no specific match for the 10.1.99.1 host, it uses the default route and forwards the packet to R2 .

R2 receives the packet and identifies that 10.1.99.1 falls within its defined static route for 10.1.0.0/16 .

Following its configuration, R2 forwards the packet back to R1 . This process repeats indefinitely—or until the packet ' s Time to Live (TTL) reaches zero—because the broad summary on R2 encompasses addresses that R1 does not actually have a local path for. This illustrates the critical importance of ensuring that summary routes or default routes do not overlap in a way that creates circular forwarding paths for non-existent destinations. Reference: Routing Fundamentals, Static Route Configuration, Routing Loops and TTL.

==========

Maintaining the integrity of the Junos OS file system is a critical operational requirement, especially during maintenance that involves removing power from the hardware. To achieve a graceful power-down, the request system halt command must be used. This command initiates a systematic shutdown of all running software processes and daemons, flushes any pending data from the system ' s volatile memory (RAM) to the solid-state storage or hard disk, and unmounts the file systems correctly. Once the software has safely shut down, the console will typically display a message indicating that it is safe to turn off the physical power switch or remove the power cables.

Using request system halt prevents potential file system corruption that can occur if power is abruptly cut while the OS is actively writing logs or configuration data. This is distinct from request system reboot, which restarts the OS, or request system logout, which merely terminates the current CLI session. As a Senior Architect, it is essential to follow this procedure to ensure that the device remains in a reliable state for its next power-on cycle. For devices equipped with dual Routing Engines, the command can often be directed to a specific member or both simultaneously to ensure a synchronized and safe shutdown of the entire chassis. Reference: Operational Monitoring and Maintenance, System Halt and Reboot Procedures.

==========

When a network architect needs to completely sanitize a Junos device for redeployment or decommissioning, the request system zeroize command is the most thorough tool available. Unlike simply loading the factory default configuration, which only resets the configuration database, the zeroize command performs a deep wipe of the system.

Specifically, this command removes all user-created data, including all configuration files (active and rollback), log files, license keys, and any locally stored files in the /var/tmp or /home directories. It essentially restores the device to its " pristine " out-of-box state. Once the command is initiated, the device reboots and goes through a sanitization process. This is a critical security measure to ensure that sensitive information—such as encrypted passwords, proprietary routing policies, or SNMP community strings—does not leave the organization when hardware is transferred.

In contrast, the request system storage cleanup command is a maintenance utility used to delete temporary files and old log entries to free up disk space, but it does not affect the running configuration or user accounts. Therefore, for a total system reset that includes configuration deletion, zeroize is the mandatory operational command.
