High availability and fast convergence are critical in data center networks to minimize downtime and maintain optimal performance. The following technologies contribute to achieving these goals:

Graceful Restart (GR):

GR allows routers to maintain forwarding state during control plane restarts, ensuring continuous packet forwarding while minimizing network disruptions.

Bidirectional Forwarding Detection (BFD):

BFD provides fast detection of path failures, allowing routing protocols to converge quickly by detecting link failures much faster than traditional timers.

Link Aggregation Group (LAG):

LAG increases both redundancy and bandwidth by combining multiple physical links into one logical link, providing load balancing and fault tolerance.

Juniper Reference:

High Availability Techniques: These technologies are fundamental in ensuring rapid recovery and failover within Juniper-based data center environments.

Per-flow load balancingensures that packets within the same flow are always forwarded over the same path, ensuring that packet order is preserved.

Step-by-Step Breakdown:

Flow Definition:A flow is typically defined by a combination of packet attributes like source/destination IP, source/destination port, and protocol type. Packets that belong to the same flow are routed over the same path to avoid reordering.

Per-Flow Behavior:Inper-flow load balancing, the hashing algorithm ensures that all packets in a particular flow use thesame egress port, maintaining order across the network.

Juniper Reference:

Load Balancing in Juniper: This method ensures that flows are balanced across multiple paths while preventing packet reordering within a single flow.

EBGP (External BGP)andIBGP (Internal BGP)operate with different rules due to the nature of their relationships.

Step-by-Step Breakdown:

TTL Differences:

EBGP: By default, EBGP peers have a TTL of 1, meaning they must be directly connected, or the TTL needs to be manually increased for multihop EBGP.

IBGP: IBGP peers within the same AS have a TTL of 255, as they are expected to communicate over multiple hops within the AS.

Preference for EBGP Routes:

Routes learned viaEBGPare typically preferred over IBGP routes. This is because EBGP routes are considered more reliable since they originate outside the AS, while IBGP routes are internal.

Juniper Reference:

BGP Configuration: The different handling of TTL and route preferences between EBGP and IBGP ensures proper route selection and security within Junos-based networks.

When creating aLAG (Link Aggregation Group)in Junos, theduplex settingsandlink speedmust be the same across all member interfaces.

Step-by-Step Breakdown:

LAG Overview:A LAG combines multiple physical interfaces into a single logical interface to increase bandwidth and provide redundancy. All member links must act as a single cohesive unit.

Interface Requirements:

Duplex: All member interfaces must operate in the same duplex mode (either full-duplex or half-duplex). Mismatched duplex settings can cause performance issues, packet drops, or interface errors.

Link Speed: All interfaces in the LAG must have the same link speed (e.g., all interfaces must be 1 Gbps or 10 Gbps). Mismatched speeds would prevent the interfaces from functioning correctly within the LAG.

Configuration and Validation: Ensure that all member interfaces have identical settings before adding them to the LAG. These settings can be checked using the show interfaces command, and the LAG can be configured using:

set interfaces ae0 aggregated-ether-options link-speed 10g

set interfaces ge-0/0/1 ether-options 802.3ad ae0

Juniper Reference:

LAG Configuration: Duplex and link speed must be consistent across member interfaces to ensure proper LAG operation in Juniper devices.

To verify that your router islearning routes from a remote BGP peerat a specific IP address (e.g., 10.10.100.1), the correct command to use is show route receive-protocol bgp.

Step-by-Step Breakdown:

BGP Route Learning:The show route receive-protocol bgp command displays the routes that have been received from a specified BGP peer. This helps in confirming that the remote peer is sending routes correctly and that your router is receiving them.

Command Example:

show route receive-protocol bgp 10.10.100.1

This will show all routes that have been received from the BGP peer with IP address 10.10.100.1.

Juniper Reference:

BGP Route Verification: Use this command to troubleshoot and verify that routes from a specific BGP peer are being received.

In Junos OS,direct routesare the most preferred routes in the routing table, having the highest priority.

Step-by-Step Breakdown:

Direct Routes:

Direct routes represent networks that are directly connected to the router's interfaces. Since these routes are directly accessible, they are assigned the highest priority and always take precedence over other types of routes.

Preference Values:

Direct routes have apreference of 0, which is the most preferred in Junos. Static routes, OSPF routes, and BGP routes have higher preference values and will only be used if there are no direct routes to the destination.

Juniper Reference:

Direct Route Preference: In Junos,direct routesare always preferred over other routes, ensuring that the router forwards traffic through locally connected networks.

In modern data centers, the shift toward leaf-spine architectures is driven by the need to handle increased east-west traffic, which is traffic between servers within the same data center. Unlike traditional hierarchical data center designs, where most traffic was "north-south" (between users and servers), modern applications often involve server-to-server communication (east-west) to enable services like distributed databases, microservices, and virtualized workloads.

Leaf-Spine Architecture:

Leaf Layer: This layer consists of switches that connect directly to servers or end-host devices. These switches serve as the access layer.

Spine Layer: The spine layer comprises high-performance switches that provide interconnectivity between leaf switches. Each leaf switch connects to every spine switch, creating a non-blocking fabric that optimizes traffic flow within the data center.

East-West Traffic Accommodation:

In traditional three-tier architectures (core, aggregation, access), traffic had to traverse multiple layers, leading to bottlenecks when servers communicated with each other. Leaf-spine architectures address this by creating multiple equal-cost paths between leaf switches and the spine. Since each leaf switch connects directly to every spine switch, the architecture facilitates quick, low-latency communication between servers, which is essential for east-west traffic flows.

Juniper's Role:Juniper Networks provides a range of solutions that optimize for east-west traffic in a leaf-spine architecture, notably through:

QFX Series Switches: Juniper’s QFX series switches are designed for the leaf and spine architecture, delivering high throughput, low latency, and scalability to accommodate the traffic demands of modern data centers.

EVPN-VXLAN: Juniper uses EVPN-VXLAN to create a scalable Layer 2 and Layer 3 overlay network across the data center. This overlay helps enhance east-west traffic performance by enabling network segmentation and workload mobility across the entire fabric.

Key Features That Support East-West Traffic:

Equal-Cost Multipath (ECMP): ECMP enables the use of multiple paths between leaf and spine switches, balancing the traffic and preventing any one path from becoming a bottleneck. This is crucial in handling the high volume of east-west traffic.

Low Latency: Spine switches are typically high-performance devices that minimize the delay between leaf switches, which improves the efficiency of server-to-server communications.

Scalability: As the demand for east-west traffic grows, adding more leaf and spine switches is straightforward, maintaining consistent performance without redesigning the entire network.

In summary, the leaf-spine architecture is primarily designed to handle the increase ineast-west trafficwithin data centers, and Juniper provides robust solutions to enable this architecture through its switch platforms and software solutions like EVPN-VXLAN.

IBGP (Internal Border Gateway Protocol)is used to exchange routing information betweenrouters within the same AS (Autonomous System).

Step-by-Step Breakdown:

TTL of 255:

By default, IBGP sessions are established with aTTL (Time to Live)value of255. This allows IBGP neighbors to communicate over multiple hops within the AS without requiring any additional configuration.

Full Mesh Requirement:

IBGP requires alogical full meshbetween all IBGP routers to ensure that routing information is fully distributed within the AS. Since IBGP does not propagate routes learned from one IBGP peer to another by default, a full mesh topology is needed unlessroute reflectorsorBGP confederationsare used.

Juniper Reference:

IBGP Full Mesh: Juniper recommends using route reflectors in large networks to simplify IBGP full-mesh requirements.

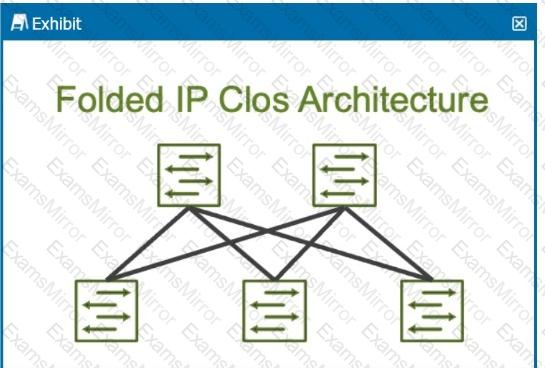

The exhibit shows aFolded IP Clos Architecture, which is also referred to as a3-stage Closnetwork design. This architecture typically consists of two layers of switches:

Spine Layer: The top row of switches.

Leaf Layer: The bottom row of switches.

Step-by-Step Breakdown:

Clos Architecture:A 3-stage Clos network has two types of devices: spine and leaf. In this design, each leaf switch connects to every spine switch, providing a high level of redundancy and load balancing.

Stage Explanation:

Stage 1: The first set of leaf switches.

Stage 2: The spine switches.

Stage 3: The second set of leaf switches.

TheFolded Closarchitecture shown here effectively "folds" the 3-stage design by combining the ingress and egress leaf layers into one, reducing it to two visible layers, but still maintaining the overall3-stage architecture.

Juniper Reference:

IP Clos Architecture: The 3-stage Clos design is commonly used in modern data centers for high availability, redundancy, and scalability.
