In a spine-leaf fabric architecture, which is commonly used in data center designs, each device has a distinct role to ensure efficient and scalable network traffic flow.

Step-by-Step Breakdown:

Spine Nodes:

The spine nodes form the backbone of the fabric and are responsible for transit traffic between leaf nodes. They connect to every leaf switch and provide multiple paths for traffic between leaf nodes, ensuring redundancy and load balancing.

Leaf Nodes:

The leaf nodes are used for host connectivity. These switches connect to servers, storage, or edge routers. They also connect to the spine switches to reach other leaf switches.

Juniper Reference:

Spine-Leaf Architecture: In Juniper's IP fabric designs, spine switches handle inter-leaf communication, while leaf switches manage host and endpoint connectivity.

In Junos OS, the default route preference for a static route is 5. Route preference values are used to determine which route should be installed in the routing table when multiple routes to the same destination are available.

Step-by-Step Breakdown:

Static Route Preference:

A static route, by default, has a preference of 5, making it a highly preferred route. Lower preference values are more preferred in Junos, meaning static routes take precedence over most dynamic routing protocol routes, such as OSPF (preference 10) or BGP (preference 170).

Route Preference:

Route preference is a key factor in the Junos routing decision process. Routes with lower preference values are preferred and installed in the forwarding table.

Juniper Reference:

Static Routes: In Junos, the default preference for static routes is 5, making them more preferred than most dynamic routes.

In legacy hierarchical network design, three key layers are used to create a scalable and structured network:

Step-by-Step Breakdown:

Access Layer:

The access layer is where end devices, such as computers and IP phones, connect to the network. It typically involves switches that provide connectivity for devices at the edge of the network.

Aggregation Layer (Distribution Layer):

The aggregation layer (also called the distribution layer) aggregates traffic from multiple access layer devices and applies policies such as filtering and QoS. It also provides redundancy and load balancing.

Core Layer:

The core layer provides high-speed connectivity between aggregation layer devices and facilitates traffic within the data center or between different network segments.

Juniper Reference:

Legacy Hierarchical Design: Juniper networks often follow the traditional three-layer design (Access, Aggregation, and Core) to ensure scalability and high performance.

A Layer 2 switch builds its Ethernet switching table through a learning process based on the source MAC addresses of incoming frames. When a frame arrives on an interface within a VLAN or bridge domain, the switch examines the source MAC address and associates it with the ingress interface and VLAN context. If the MAC address is new, the switch creates a new entry; if it already exists but is seen on a different interface, the switch updates the entry to reflect the new location. This dynamic learning is fundamental to efficient unicast forwarding and is why option A is correct.

Once the switch has learned MAC-to-port mappings, it can forward subsequent frames destined to those MAC addresses as known unicast out the specific egress interface rather than flooding them. If the destination MAC is unknown, the switch typically floods the frame within the VLAN or bridge domain to discover the correct destination. When the destination replies, the switch learns that MAC as a source, completing the learning cycle.

Spanning Tree Protocol does not provide a MAC table and there is no concept of downloading an Ethernet switching table from a root bridge. STP’s role is loop prevention and topology control at Layer 2, not MAC learning distribution. Firewall filters can enforce policy but do not create the switching table. Recording destination MAC addresses would not correctly learn endpoint locations because the destination can be unknown when the first frames are sent; source learning is reliable because every received frame carries the sender’s MAC address.

Link aggregation groups, implemented on Junos as aggregated Ethernet interfaces, allow multiple physical Ethernet links to operate as one logical Layer 2 interface. This increases available bandwidth and provides link level resiliency because member links can fail without taking down the logical interface, as long as at least one member remains operational. In data center leaf spine designs, link aggregation is commonly used for server dual homing, uplinks to appliances, or inter switch connectivity where parallel links are desired with a single logical adjacency.

From a forwarding perspective, the device distributes traffic across member links using a hashing algorithm based on packet header fields so that individual flows remain in order while the aggregate uses multiple links. Control plane operation can be static or negotiated with LACP. With LACP, both sides exchange protocol information to ensure consistent bundling and to remove failed or miswired members automatically. This makes link aggregation a core high availability building block at the link layer, independent of Routing Engine redundancy features.

Graceful Routing Engine switchover, nonstop bridging, and nonstop active routing are control plane redundancy features. They are designed to minimize disruption during Routing Engine failover or preserve protocol state, but they do not combine multiple physical Ethernet interfaces into one logical link layer interface.

Verification sources from Juniper documentation

https://www.juniper.net/documentation/us/en/software/junos/interfaces-ethernet/topics/topic-map/understanding-lacp.html

https://www.juniper.net/documentation/us/en/software/junos/interfaces-ethernet/topics/topic-map/aggregated-ethernet-interfaces-overview.html

In Junos-based data center switching, an IRB interface is the Layer 3 gateway that is logically associated with a Layer 2 VLAN or bridge domain. The VLAN provides Layer 2 bridging inside the broadcast domain, while the IRB interface provides the routed interface that enables hosts in that VLAN to reach destinations outside their local subnet. This is the standard mechanism used for inter-VLAN routing on Juniper switches and for providing default gateway services to servers connected to access ports or VLAN-tagged trunks.

Operationally, endpoints in a VLAN use the IRB interface IP address as their default gateway. Frames destined to a remote subnet are bridged at Layer 2 to the IRB gateway MAC address, and then the packet is routed at Layer 3 based on the routing table. This allows a single device to perform both bridging within the VLAN and routing between VLANs or to other routed interfaces, which is why the concept is called integrated routing and bridging.

IRB does not encrypt traffic and does not provide NAT by itself; those functions are typically associated with security services features and firewall platforms. IRB is also not the mechanism that performs pure bridging within the same VLAN, because bridging is handled by the VLAN or bridge domain and the Ethernet switching table.

On Junos devices used in data centers, an aggregated Ethernet bundle can run either static bundling or dynamic bundling using LACP. When LACP is used, Junos supports two negotiation modes: active and passive. These modes control whether the device initiates LACP negotiation by transmitting LACP Data Units or whether it waits to respond to LACP Data Units sent by its peer. In active mode, the system periodically sends LACP control frames to begin and maintain the negotiation. In passive mode, the system does not initiate negotiation but will respond if it receives LACP control frames from the neighbor.

From an operational perspective, active is typically recommended on at least one side of the link so the bundle reliably forms even if the peer is configured to be passive. If both ends are passive, each side waits for the other to start, and the aggregated link might not come up as expected. This is a common cause of down or partially formed bundles in leaf spine uplinks and server dual-homing scenarios.

Options aggressive and mixed are not Junos LACP modes for aggregated Ethernet. In Junos, you configure LACP under the aggregated-ether-options hierarchy and select active or passive behavior, along with optional timing such as periodic fast for quicker detection.

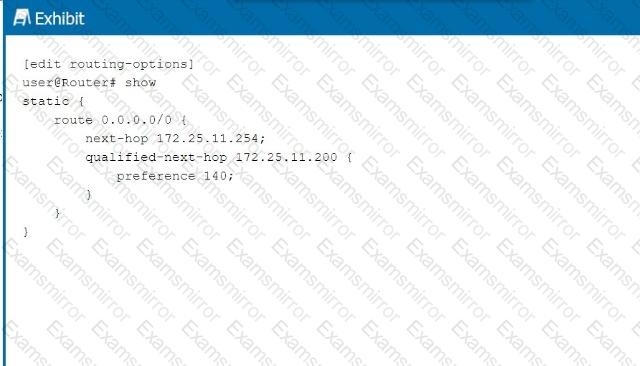

In the exhibit, we see two next-hop addresses for the default static route (0.0.0.0/0):

The first next hop is 172.25.11.254, with no specified preference.

The second next hop is 172.25.11.200, with a specified preference of 140.

Step-by-Step Breakdown:

Default Static Route Preference:If no preference is explicitly set for a next hop in Junos, it defaults to 5 for static routes.

Determining Preference:In this case, the next hop 172.25.11.254 does not have an explicit preference defined, so it will use the default value of 5. The second next hop has a preference of 140, which is higher, meaning it will only be used if the primary next hop is unavailable.

Juniper Reference:

Static Route Preference: In Junos, the default preference for static routes is 5, and this value is applied unless overridden by the preference parameter.

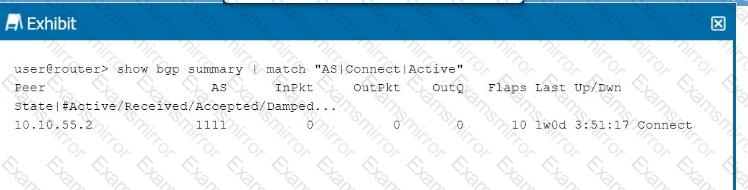

The BGP session in the exhibit shows the state as Connect, which indicates that the TCP session between the BGP peers has not been fully established.

Step-by-Step Breakdown:

BGP State "Connect":

The Connect state is the second stage in the BGP finite state machine (FSM). At this stage, BGP is trying to establish a TCP session with the peer, but the session has not yet been successfully established.

A successful TCP three-way handshake (SYN, SYN-ACK, ACK) is required before BGP can progress to the OpenSent state, where the peers exchange BGP Open messages.

Possible Causes:

A firewall blocking TCP port 179.

Incorrect IP addresses or network connectivity issues between the BGP peers.

Juniper Reference:

BGP Troubleshooting: In Junos, if a BGP session is stuck in the Connect state, the issue is likely due to a failure in establishing the underlying TCP connection.

The configuration is applied under the routing-options hierarchy and specifically under graceful-restart with the statement disable. In Junos, routing-options graceful-restart is the global control point used to enable or manage graceful restart behavior at the system routing level. When graceful restart is enabled, the router can continue forwarding and temporarily suppress certain routing protocol update behavior during a routing process restart or control-plane event, allowing the network to avoid unnecessary reconvergence and route churn.

Placing disable under routing-options graceful-restart turns off graceful restart globally. This means the device will not attempt to use graceful restart mechanisms for routing protocols at the global level. Protocol-specific graceful restart configuration exists under each routing protocol hierarchy, but the exhibit shows the global routing-options location, which impacts overall graceful restart behavior for the routing subsystem.

Option A is incorrect because disabling BGP graceful restart only would be done under the BGP protocol hierarchy, not routing-options. Option C is incorrect because graceful restart is a routing protocol restart behavior, not something applied only to static routes. Option D is also incorrect because the setting is not scoped to specific route statements under routing-options; it disables the graceful restart feature itself, not individual routes.

In data center environments, globally disabling graceful restart may be chosen when an operator prefers deterministic, immediate reconvergence behavior or when interoperability testing indicates graceful restart helper or restart behavior is undesired with specific peers.
