An IP fabric underlay is the routed foundation of a modern leaf-spine data center. Its purpose is to provide scalable, deterministic Layer 3 reachability between all fabric nodes, typically using point-to-point routed links between leaves and spines. In this design, EBGP is commonly used as an underlay routing protocol because it scales well, supports clear policy boundaries, and enables fast convergence and operational simplicity. Each leaf forms EBGP sessions to each spine, advertising loopback addresses and link subnets so that overlay endpoints and control plane services can reach one another reliably.

RSTP is a Layer 2 spanning tree mechanism and is not the standard protocol for a routed underlay. EVPN is an overlay control plane used to distribute tenant reachability and multihoming information; it is not the underlay routing protocol itself. VXLAN is a data plane encapsulation used by the overlay to transport Layer 2 segments across a Layer 3 fabric; it also is not the underlay routing protocol.

In Juniper data center architectures, the underlay is intentionally kept simple and purely routed, while overlays such as EVPN VXLAN deliver multi-tenant Layer 2 and Layer 3 services on top of that underlay. EBGP fits the underlay requirement among the provided options.

On broadcast network types in OSPF, such as Ethernet segments, forming a full mesh of adjacencies between every pair of routers would create significant control-plane overhead. Every router would need to maintain neighbor state with every other router, exchange database information redundantly, and flood link-state updates across many parallel adjacencies. This becomes inefficient as the number of routers on the segment grows.

To address this, OSPF elects a Designated Router and a Backup Designated Router. The DR acts as the central point for adjacency formation on that broadcast segment. Instead of each router forming full adjacencies with all others, routers form full adjacencies primarily with the DR and BDR. The DR is responsible for generating and flooding network LSAs that represent the broadcast segment and for coordinating reliable LSA flooding on that segment. This significantly reduces the number of adjacencies and the volume of duplicated database exchange and LSA flooding, which is why option A is correct.

The BDR is a standby control-plane role. It monitors the segment and is prepared to take over the DR function if the DR fails, improving stability and convergence. However, the primary purpose of having DR and BDR is the scaling benefit of reduced adjacency and flooding overhead on broadcast networks.

In OSPF, routers exchange link-state information in different stages to establish full adjacency. The MTU size is checked during the Exchange state.

Step-by-Step Breakdown:

1.     OSPF Adjacency Process:

o   OSPF routers go through multiple stages when forming an adjacency: Down, Init, 2-Way, ExStart, Exchange, Loading, and Full.

2.     Exchange State:

o   During the Exchange state, OSPF routers exchange Database Description (DBD) packets to describe their link-state databases. The MTU size is checked at this stage to ensure both routers can successfully exchange these packets without fragmentation.

o   If there is an MTU mismatch, the routers may fail to proceed past the Exchange state.

Juniper Reference:

·        MTU Checking in OSPF: Junos uses the Exchange state to check for MTU mismatches, ensuring that routers can properly exchange database information without packet fragmentation issues.

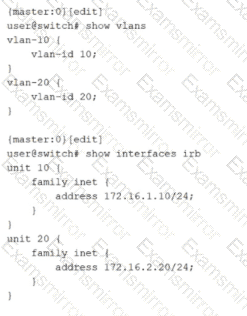

Inter-VLAN routing on Junos switching platforms is typically implemented by associating each VLAN or bridge domain with an IRB interface that provides the Layer 3 gateway for that VLAN. In the exhibit, VLAN 10 and VLAN 20 are defined with vlan-id values, and IRB logical units 10 and 20 already have IPv4 addresses assigned. However, the VLAN definitions do not yet reference the IRB interfaces. Without that association, hosts in the VLANs have no routed gateway on the switch, and the switch cannot perform Layer 3 forwarding between the two VLAN subnets.

To enable routing, each VLAN must include an l3-interface statement that binds the VLAN to the corresponding IRB logical unit. Adding l3-interface irb.10 under vlan-10 makes irb.10 the default gateway interface for VLAN 10 and enables the device to route traffic sourced from that VLAN. Adding l3-interface irb.20 under vlan-20 does the same for VLAN 20. Once both VLANs are bound to their IRB interfaces, the switch can route packets between 172.16.1.0/24 and 172.16.2.0/24 using its routing table, while still switching Layer 2 traffic within each VLAN.

The default VLAN settings are unrelated to enabling routing between these two specific VLANs. They control the behavior of the default VLAN, not the creation of Layer 3 gateways for VLAN 10 and VLAN 20.

Spine and leaf architectures improve data center scalability by using a consistent, modular building block. When you need more server ports, you add leaf switches. When you need more fabric capacity, you add spine switches. This horizontal growth model avoids the limitations of traditional three-tier designs that often require larger aggregation devices or complex expansion. Because each leaf connects to every spine, the fabric naturally provides many parallel paths and can use equal-cost multipath forwarding across all uplinks. These properties deliver better scaling characteristics in both bandwidth and port count, which is why option B is correct.

Option C is also correct because spine and leaf fabrics provide low and predictable hop counts. Traffic between endpoints on different leaves typically crosses the fabric with a consistent number of hops, usually one spine hop in a two-tier fabric. This predictability reduces latency variance and improves application performance, especially for east-west traffic patterns common to distributed systems, storage, and microservices. Predictable paths also simplify troubleshooting and capacity planning.

Container and hypervisor management is primarily an orchestration and operations topic rather than a direct network architecture advantage. Finally, making all broadcast domains reachable is not an inherent benefit; modern data centers usually limit Layer 2 flooding domains and prefer routed underlays with overlays for segmentation, rather than expanding broadcast reachability everywhere.

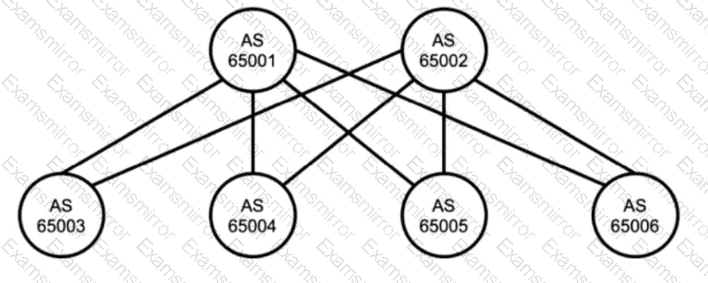

The diagram shows multiple autonomous systems, with each device labeled with a different AS number. Because the peers are in different autonomous systems, the correct BGP session type is external BGP. In a typical Juniper data center IP fabric underlay, this design is intentional: EBGP is used between leaf and spine devices to simplify policy boundaries, improve operational clarity, and avoid the additional mechanisms commonly required in large internal BGP designs.

In an EBGP-based underlay, neighbors are most commonly formed over the directly connected point-to-point links between leaf and spine. That means the BGP peering is established using the IP addresses configured on those physical routed interfaces, not loopback addresses. Using physically connected addresses aligns with the default EBGP behavior where the TTL is one hop, and it reduces configuration complexity because no multihop settings or additional reachability dependencies are required to bring up the session.

Peering using loopbacks is possible, but it typically requires EBGP multihop and a routing method to ensure reachability to the remote loopback before BGP can establish. That approach is more common for overlay control-plane sessions or for specific design requirements, rather than for the simplest and most common underlay implementation. Therefore, the two true statements are that the exhibit uses EBGP and that devices should peer using physically connected IP addresses.

In modern data center architectures, an overlay network is a logical or virtual network built on top of an underlay, where the underlay is the physical IP fabric that provides basic Layer 3 transport and reachability between fabric nodes. The overlay abstracts the physical topology and delivers tenant connectivity and segmentation services. This makes the statement that an overlay is a virtual network running on top of a physical network correct.

In EVPN VXLAN based data centers, overlays commonly carry both Layer 2 and Layer 3 services. Layer 2 extension is achieved by encapsulating Ethernet frames inside VXLAN so that a VLAN like segment can span multiple leaf switches across a routed underlay. Layer 3 services are delivered either through symmetric routing at the VTEPs or by advertising IP prefixes and host routes through the overlay control plane. As a result, overlays are not limited to Layer 3 traffic only, and statement D is correct.

The overlay is not defined by being public versus private. It can be built for private multi tenant segmentation inside a single data center, across multiple data centers, or to connect to external services, but public network is not a defining attribute.

Verification sources from Juniper documentation

https://www.juniper.net/documentation/us/en/software/junos/evpn-vxlan/topics/topic-map/evpn-vxlan-overview.html

https://www.juniper.net/documentation/us/en/software/junos/vxlan/topics/topic-map/vxlan-overview.html

On Junos switching platforms used in data centers, a VLAN is a Layer 2 broadcast domain. To make a VLAN functional for user traffic, you define the VLAN with a name and typically a VLAN ID, and you associate Layer 2 interfaces with that VLAN so frames arriving on those interfaces are placed into the correct broadcast domain. Without interface membership, the VLAN exists as configuration but does not carry endpoint traffic because no ports participate in it. This is why assigning a VLAN name or ID and associating Layer 2 interfaces to the VLAN is a correct requirement.

Trunk mode interfaces are designed to carry multiple VLANs over a single physical link using 802.1Q tagging. In a data center, trunks are common on leaf-to-spine uplinks, switch-to-switch connections, and server connections where the host or hypervisor tags multiple VLANs. Therefore, assigning one or more VLANs to a trunk port is correct.

An IRB interface is not required for every VLAN. IRB is only needed when the VLAN requires Layer 3 gateway functionality, such as inter-VLAN routing or default gateway services for that subnet. Pure Layer 2 VLANs do not need IRB. Also, an access mode interface is intended to belong to a single VLAN and typically carries untagged traffic, so assigning multiple VLANs to an access mode interface is not correct in standard Ethernet switching behavior.

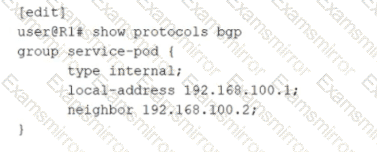

The configuration shown is under protocols bgp and defines a BGP group named service-pod with the statement type internal. In Junos, the BGP group type determines whether the sessions formed by neighbors in that group are treated as internal BGP or external BGP. When the group is set to type internal, the router establishes an iBGP session to the configured neighbor address. That means both peers are expected to be in the same autonomous system, and the session is used to exchange routes within that single AS.

The local-address statement sets the source address that the router will use when initiating the TCP connection for BGP. In data center designs, this is commonly a loopback address so the session can be resilient and independent of any single physical interface. The neighbor statement identifies the remote peer address. With type internal, the session is iBGP even if the neighbor is directly connected, because the relationship is defined by AS scope rather than topology.

OSPF and IS-IS are different routing protocols entirely and are not established through BGP configuration. EBGP would require type external and typically involves different AS numbers across the peering. Therefore, the only correct answer is IBGP.

On Junos Ethernet switching platforms, the Layer 2 forwarding decision is based on a MAC address lookup table. Juniper commonly refers to this as the Ethernet switching table, which contains learned source MAC addresses mapped to an ingress interface and a VLAN or bridge domain context. This table is built dynamically through normal Layer 2 learning, and it is what allows the switch to forward known unicast frames to the correct egress interface instead of flooding within the broadcast domain.

In Juniper terminology, the forwarding plane also maintains a forwarding database used to program hardware forwarding entries. While the term forwarding information base is most often associated with Layer 3 forwarding for IP prefixes, many training and operational contexts use FIB language when describing the programmed forwarding state in the data plane, including the entries that result from Ethernet switching learning. The key idea is that the control plane and switching processes populate forwarding state, and the forwarding plane uses that state to make fast, deterministic forwarding decisions at line rate.

Options inet.0 and RIB are Layer 3 constructs. inet.0 is the main IPv4 routing table, and the RIB is the routing information base that stores routes before they are programmed into forwarding. Neither represents the Layer 2 MAC learning table.
