To restore a LUN from a SnapMirror Synchronous destination, the following steps must be taken:

Release the relationship: This step is necessary to break the SnapMirror relationship, allowing the LUN to be restored independently.

Delete the relationship: After releasing the relationship, deleting it ensures that there are no residual dependencies or configurations that might interfere with the restore process.

For more information, refer to:

NetApp Documentation on SnapMirror Synchronous​ ( NetApp )​​ ( NetApp )​.

Verification should confirm actual FC logins at both the fabric and ONTAP layers. On Cisco switches, show flogi database displays devices that have successfully completed Fabric Login, enabling the engineer to confirm host and storage WWPN presence within the fabric. On ONTAP, vserver fcp initiator show displays FCP initiators that are currently logged in and identifies their associated SVM, LIF, WWPN, and igroup information. Together, these commands validate end-to-end client connectivity. show zoneset active confirms the currently activated zoning configuration but does not prove that every initiator has successfully logged in. vserver fcp portname show concerns target port-name information rather than currently connected initiators. Relevant SAN ONTAP topics include FLOGI, FC logins, initiator WWPNs, FCP LIFs, zoning validation, and redundant fabric troubleshooting.

DH-HMAC-CHAP is the ONTAP mechanism for secure in-band NVMe authentication. NetApp documents that ONTAP supports both unidirectional and bidirectional authentication for NVMe/TCP and NVMe/FC by using DH-HMAC-CHAP. For bidirectional mode, a host secret and a controller secret are configured so that the controller authenticates the NVMe host and the host also authenticates the controller. The authentication configuration is associated with the NVMe subsystem host by its NQN. SAML, Kerberos, and an Active Directory domain tunnel are not NVMe transport authentication mechanisms and therefore do not satisfy this requirement. In current ONTAP releases, DH-HMAC-CHAP can be configured through System Manager or the CLI, depending on release. Relevant SAN ONTAP topics are NVMe subsystem host configuration, secure in-band authentication, host/controller secrets, and NVMe/TCP security.

To enable CHAP (Challenge-Handshake Authentication Protocol) authentication on iSCSI sessions, the command vserver iscsi security create should be used. This command sets up the necessary security policies and passwords required for CHAP authentication, ensuring secure access to iSCSI targets.

For more details, refer to:

NetApp Documentation on iSCSI Configuration​ ( NetApp )​.

ALUA (Asymmetric Logical Unit Access) is a protocol used in SAN environments to manage paths between a host and its storage. It enables the host to recognize and manage paths to the LUNs more efficiently by designating paths as either " Active/Optimized " or " Active/Nonoptimized " . A significant event, such as shutting down all FC LIFs on the HA partner node, will trigger ALUA to change the path states. This action effectively causes the storage paths to transition from the HA partner node to the local node, switching the path states from Active/Nonoptimized to Active/Optimized on the paths that remain active.

For more information, you can refer to:

NetApp Community Discussion on ALUA

NetApp Documentation on ALUA

ONTAP provides dedicated FCP connectivity tests for validating communication between host initiators and FC LIFs. The vserver fcp ping-igroup show command performs a connectivity check between FCP initiators contained in an igroup and the FCP LIFs through which those initiators are configured to connect. The vserver fcp ping-initiator show command performs the equivalent validation for an individual FC initiator. These commands are therefore appropriate after zoning a new FCP SVM to SQL hosts. cluster ping-cluster validates ONTAP ' s internal cluster network and is unrelated to host-to-storage FC connectivity. network fcp zone show displays discovered FC zoning information but is not the specific FCP initiator connectivity test requested. Relevant SAN ONTAP topics include FC zoning validation, igroups, WWPN connectivity, FCP LIFs, and SAN troubleshooting commands.

For an FC-attached VMware VMFS datastore migrated through SnapMirror, maintaining the expected LUN identity is critical when presenting the replicated LUN from the destination cluster. VMware uses persistent SCSI device identifiers associated with the LUN, including its serial-based identity, when recognizing an existing VMFS device. ONTAP provides the lun modify -serial capability specifically to modify a LUN serial number. Therefore, after the SnapMirror destination is made writable, the destination LUN ' s serial number must be configured appropriately before the LUN is mapped back to the VMware initiators. Creating a FlexClone, restoring from a Snapshot copy, or changing the LUN OS type does not address device identity. Relevant SAN ONTAP topics include SnapMirror SAN migration, LUN identity, LUN serial numbers, VMware VMFS, and LUN mapping.

SnapMirror active sync is the ONTAP data-protection technology designed to provide Zero Recovery Time Objective for business-critical SAN applications. It synchronously replicates protected application data between ONTAP clusters and uses host multipathing plus ONTAP Mediator-assisted automatic failover so that application access can continue when the primary storage system or site becomes unavailable. NetApp explicitly describes SnapMirror active sync as providing Zero RTO or Transparent Application Failover for SAN environments. SnapMirror asynchronous cannot provide Zero RTO because replication is not continuously synchronous and recovery requires a failover workflow. SnapMirror SVM and FlexClone LUNs also do not provide the same automatic, synchronous application failover behavior. Relevant SAN ONTAP topics are SnapMirror active sync, synchronous replication, consistency groups, ONTAP Mediator, automatic failover, and SAN business continuity.

Based on the output of the command lun igroup show -instance, which lists the protocol as fcp and the initiator as server1.netapp.com, the initiator type is WWPN (World Wide Port Name). In Fibre Channel Protocol (FCP) environments, WWPNs are used to uniquely identify Fibre Channel devices. This contrasts with IQNs used in iSCSI, and NQNs used in NVMe over Fabrics.

For more details, refer to:

NetApp Documentation on Initiators

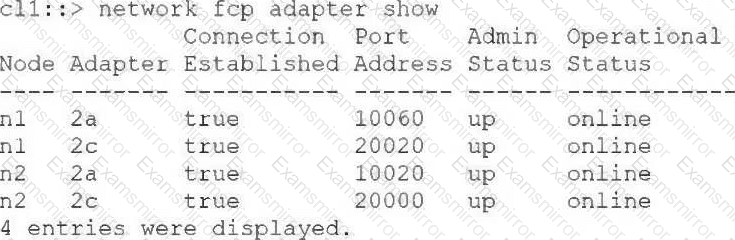

The port address shown for node n2, adapter 2a is 10020. ONTAP reports the FC host port address as a hexadecimal fabric address. Fibre Channel port addresses are interpreted as a 24-bit FC address; when the displayed value is zero-padded to six hexadecimal digits, 10020 becomes 010020. The high-order byte is therefore 01, identifying switch domain ID 1. NetApp’s network fcp adapter show command reference confirms that the command reports the Host Port Address and also exposes a domain-id field for the connected fabric. The other choices do not match the domain portion of this FC address. Therefore, the V9.02 supplied answer of D is incorrect for the displayed output. Relevant SAN ONTAP topics are FCP adapter diagnostics, FC port addresses, domain IDs, and fabric connectivity.
